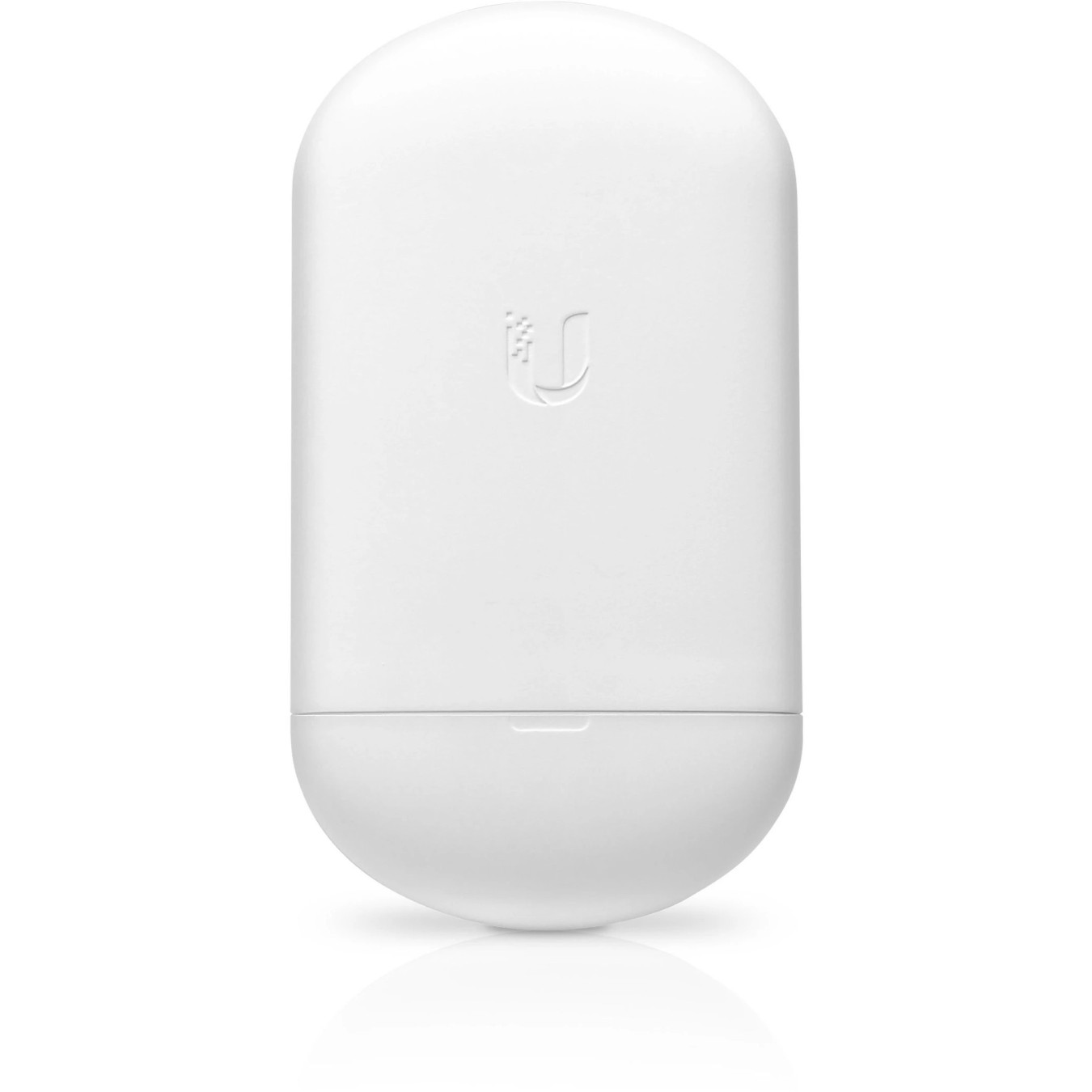

Z Ubiquiti Loco5AC - Loco5AC - (White, 24V Passive PoE, 1x RJ-45, Ceiling mount)
5 GHz wireless bridge with up to 1000 Mbps max data rate, 450 Mbps throughput, 24V passive PoE, 1x RJ-45, ceiling-mount design.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
| Wireless Bridges - Frequency | 5 GHz |
|---|---|
| Wireless Bridges - PoE | 24V Passive |
| Wireless Bridges - Range | 5-15 km |
Ubiquiti NanoStation 5AC Loco. 5 GHz. Maximum data transfer rate: 1000 Mbit/s. Ethernet LAN data rates: 10.100.1000 Mbit/s. Power over Ethernet (PoE). Product colour: White
| Feature | Built-in processor |
| Maximum data transfer rate | 1000 Mbit/s |
| Ethernet LAN data rates | 10.100.1000 Mbit/s |
| Throughput data rate | 450 Mbit/s |
| Frequency band | 5.150 - 5.250. 5.250 - 5.350. 5.470 - 5.725. 5.725 - 5.850 GHz |
| Modulation | 16-QAM. 64-QAM. 256-QAM. BPSK. QPSK |
| Maximum outdoor range | 10000 m |
| Ethernet LAN (RJ-45) ports | 1 |
| AC input voltage | 24 V |
| Input current | 0.5 A |
| Placement | Ceiling |
| Product colour | White |
| LED indicators | Network. Power. Signal strength |
| Antenna type | Internal |
| Internal memory | 64 MB |
| Operating system installed | AirOS |
| Certification | CE. FCC. IC |
| Width | 179 mm |
| Depth | 77.5 mm |
| Height | 59.1 mm |
| Weight | 180 g |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | -40 - 70 °C |
| Harmonized System (HS) code | 85176990 |
