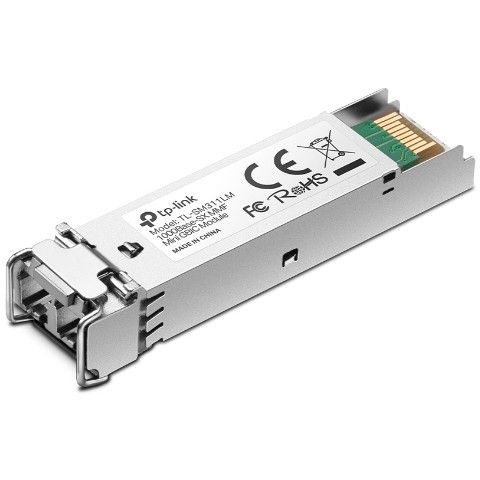

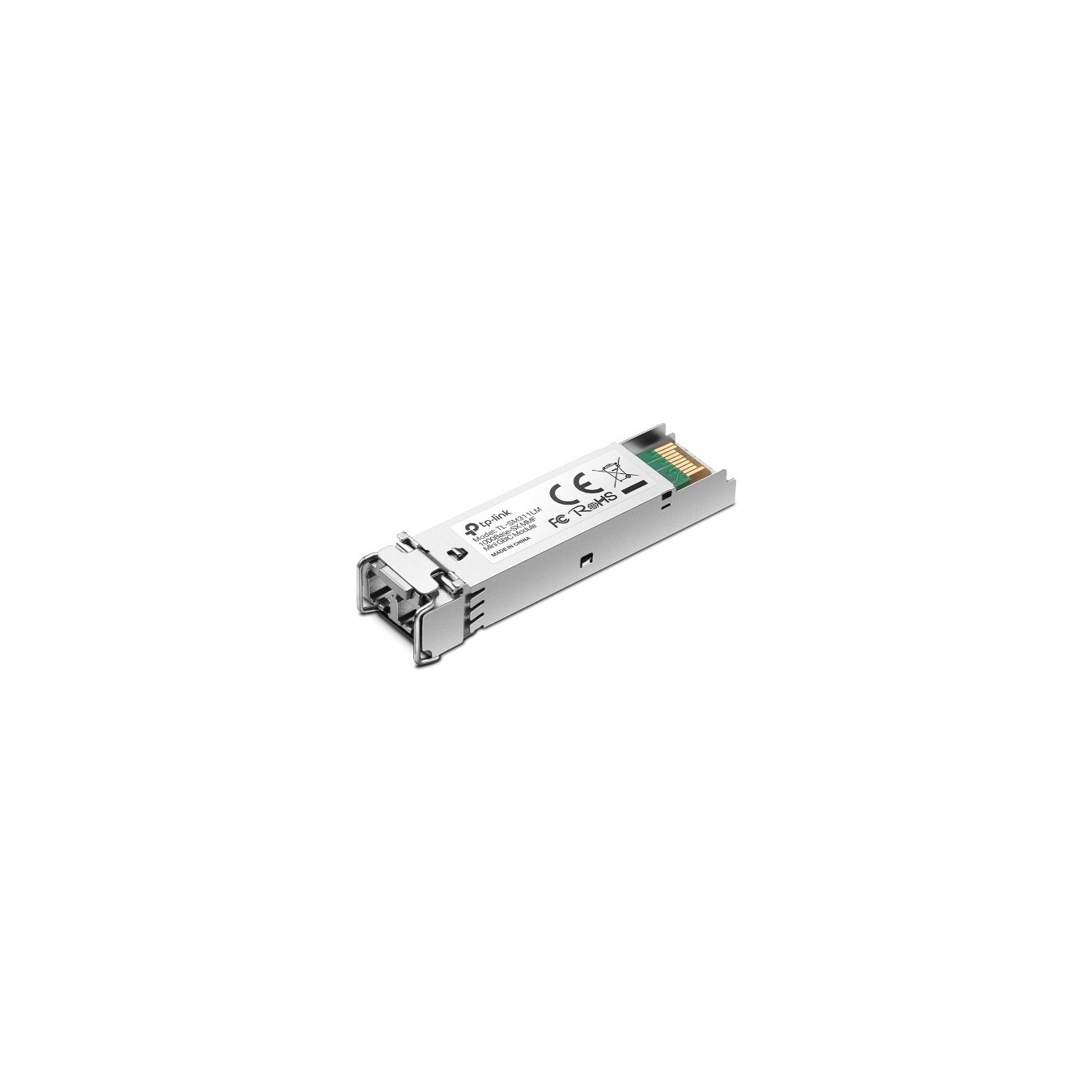

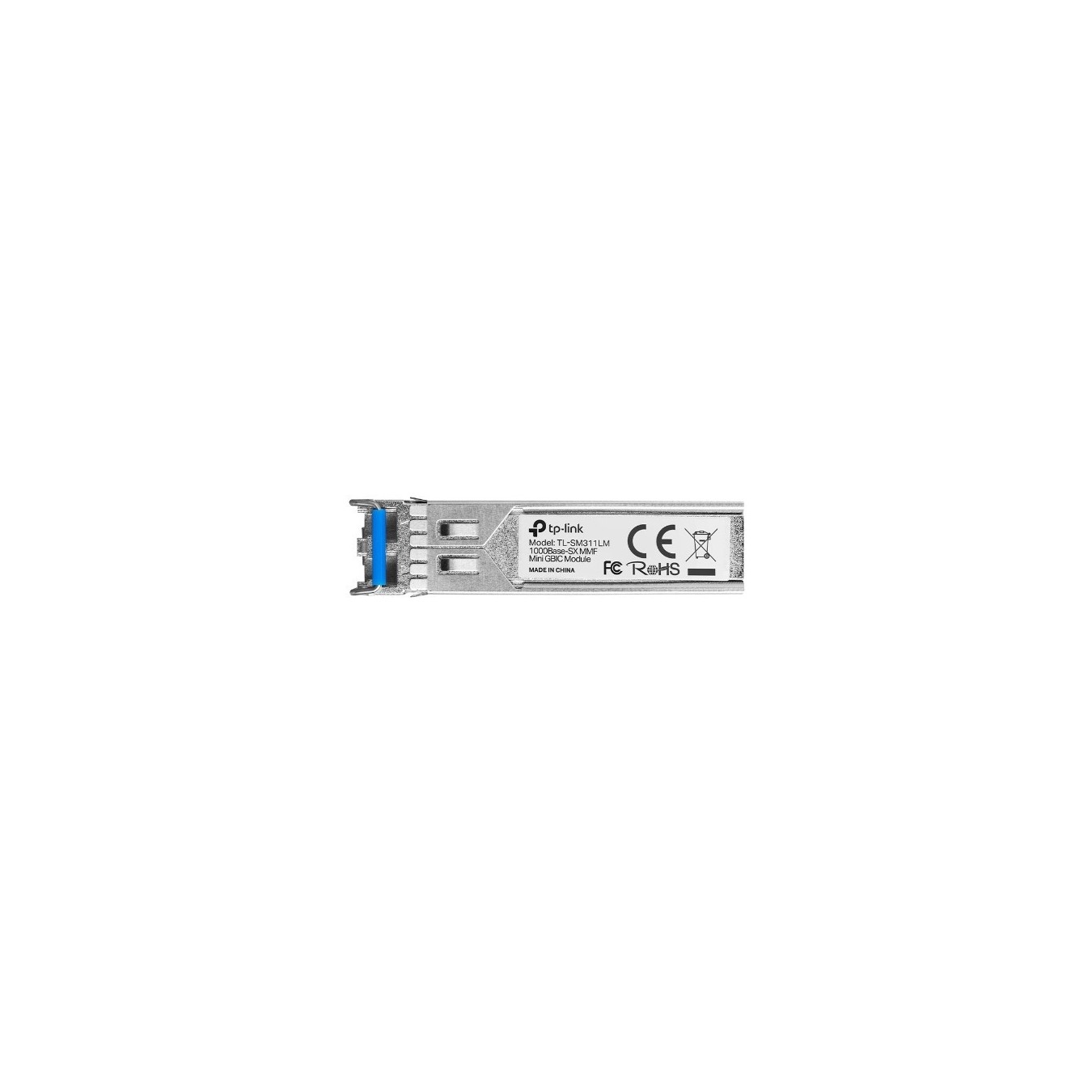

Z GBIC TP-LINK SM311LM 1000Base-SX Gigabit SFP - SM311LM - LC/UPC, 850 nm, 550 m
TP-Link MiniGBIC SFP, 1000Base-SX, LC/UPC, 850 nm, up to 550 m fiber; RoHS, FCC/CE; 3.3 V; metallic housing.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
TP-Link MiniGBIC Module. SFP transceiver type: Fiber optic. Maximum data transfer rate: 1250 Mbit/s. Interface type: mini-GBIC/SFP. Product colour: Metallic. Input voltage: 3.3 V. Compliance certificates: RoHS. Certification: FCC. CE. Width: 55.4 mm. Depth: 13.7 mm. Height: 12.9 mm
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 1250 Mbit/s |
| Interface type | mini-GBIC/SFP |
| Feature | User guide |
| Fiber optic connector | LC (UPC) |
| Fiber cable diameters supported (core/cladding) | 50/125.62.5/125 µm |
| Maximum transfer distance | 550 m |
| Wavelength | 850 nm |
| Networking standards | IEEE 802.3z |
| Product colour | Metallic |
| Input voltage | 3.3 V |
| Compliance certificates | RoHS |
| Certification | FCC. CE |
| Minimum operating temperature | 0 °C |
| Maximum operating temperature | 70 °C |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 80 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Width | 55.4 mm |
| Depth | 13.7 mm |
| Height | 12.9 mm |
| Quantity per pack | 1 pc(s) |
| Package width | 148 mm |
| Package depth | 207 mm |
| Package height | 38 mm |
| Package weight | 110 g |
| Harmonized System (HS) code | 85369010 |
