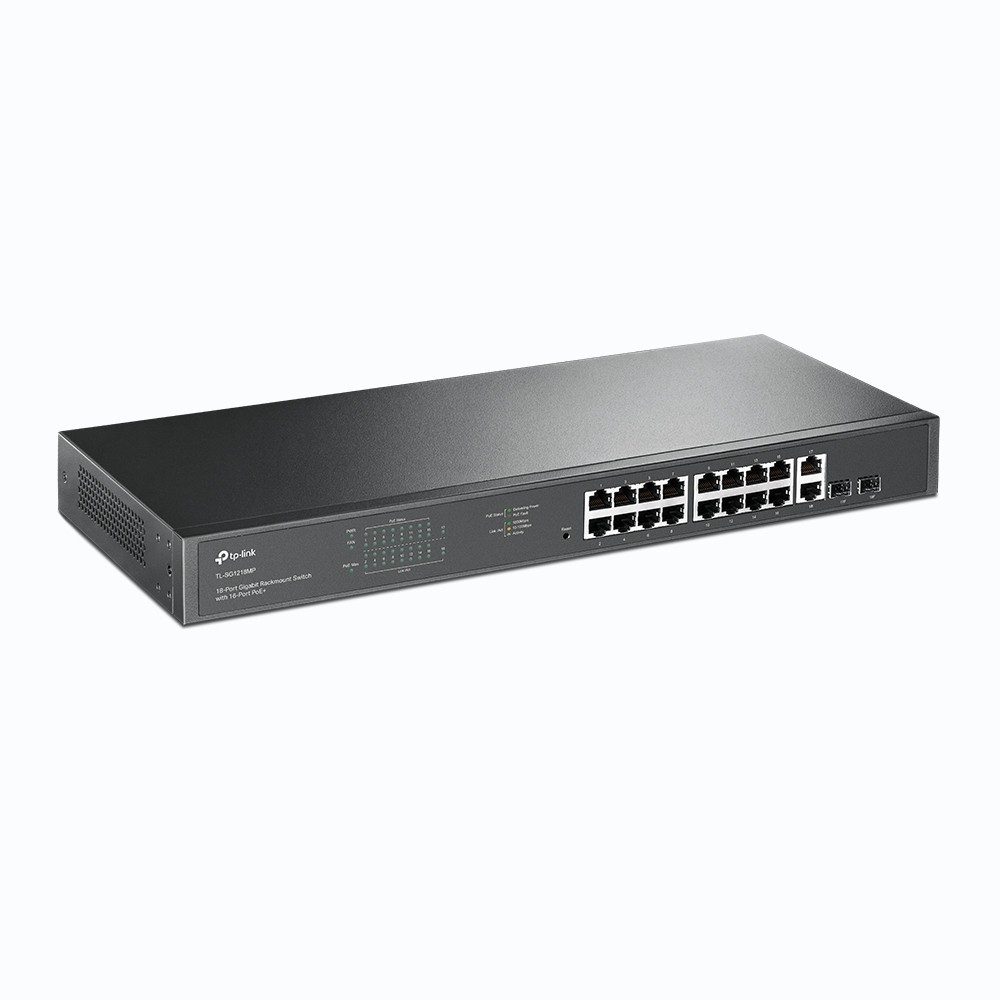

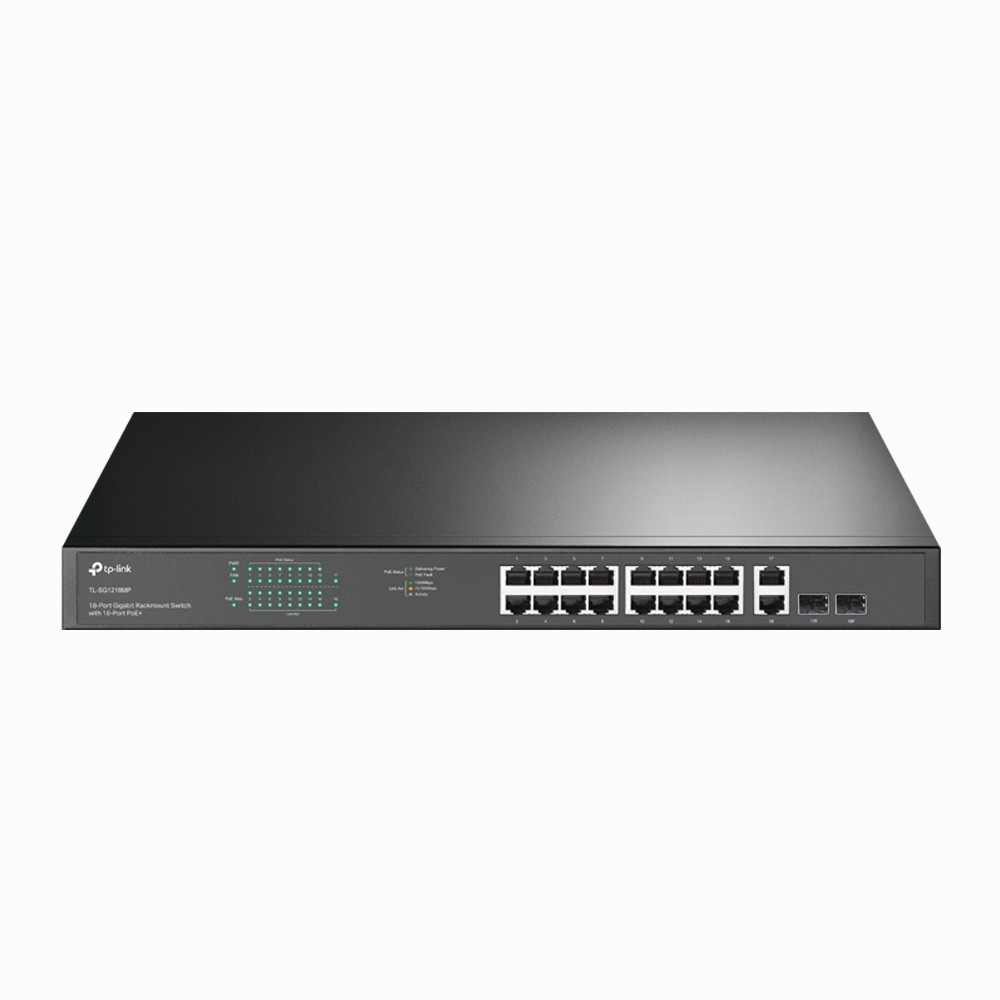

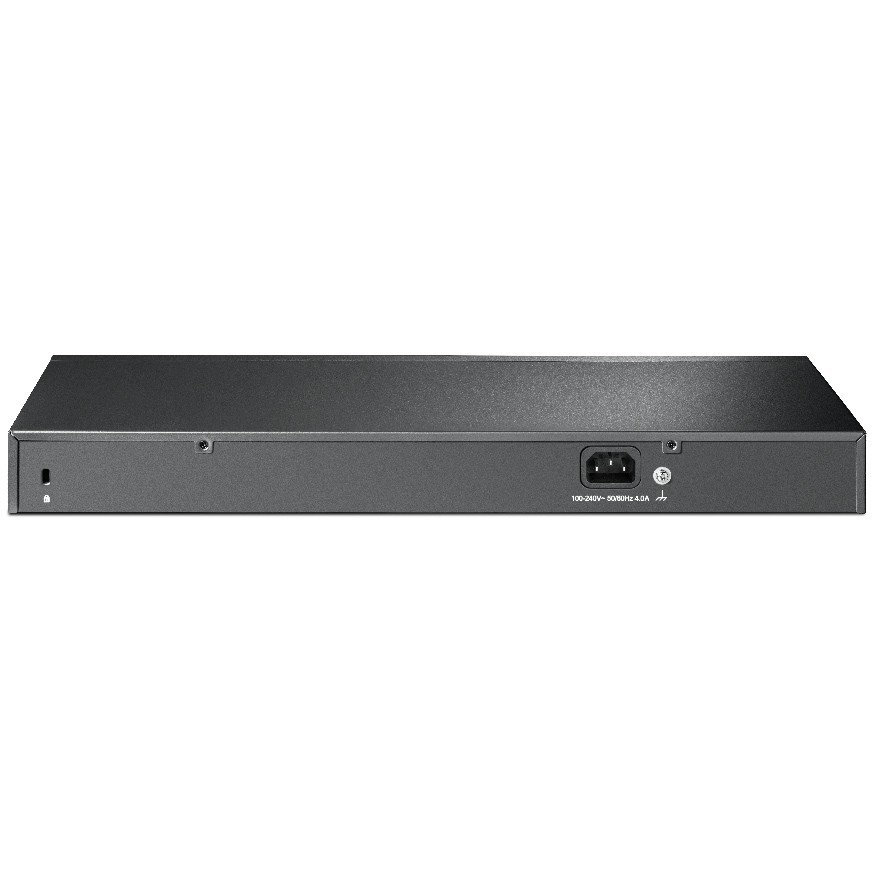

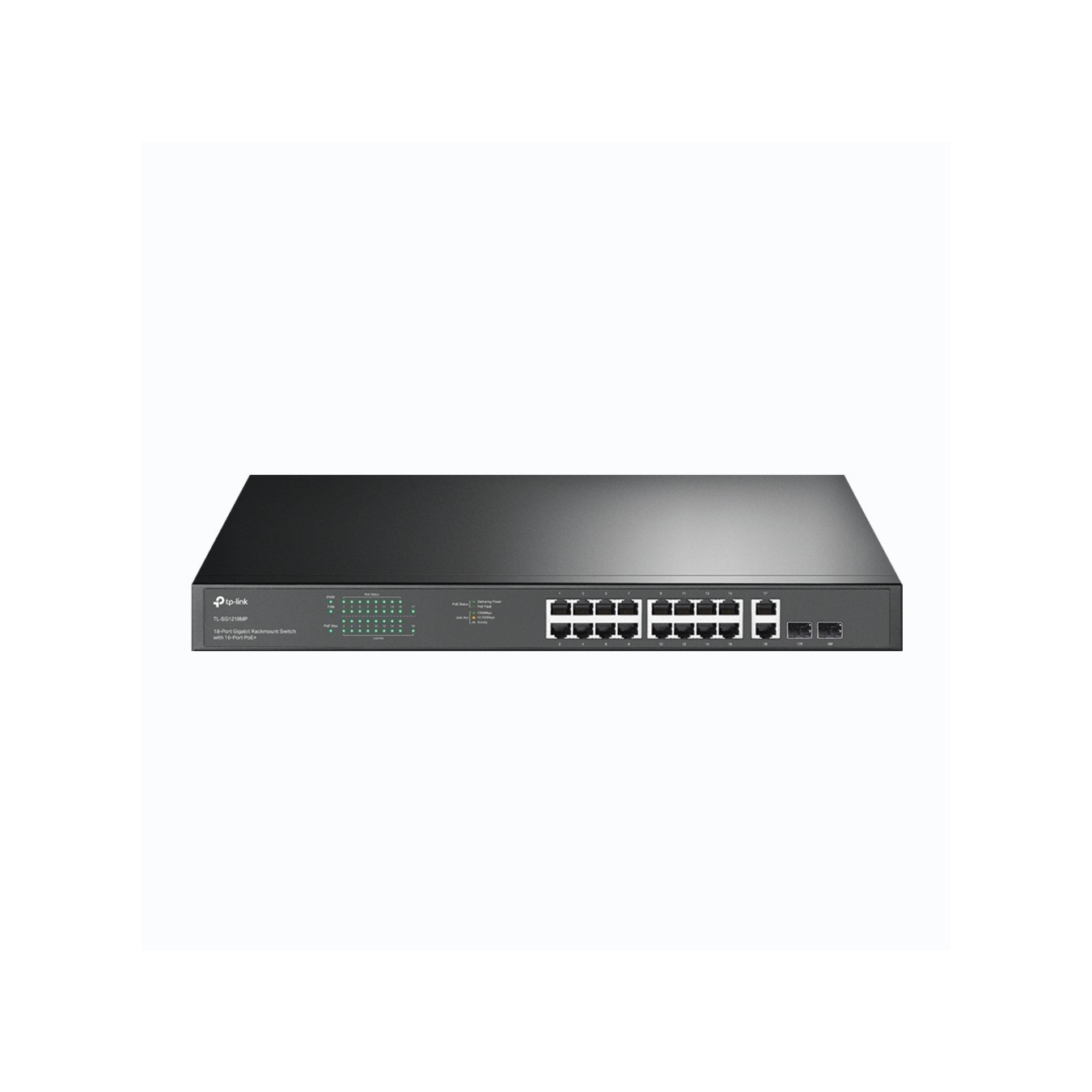

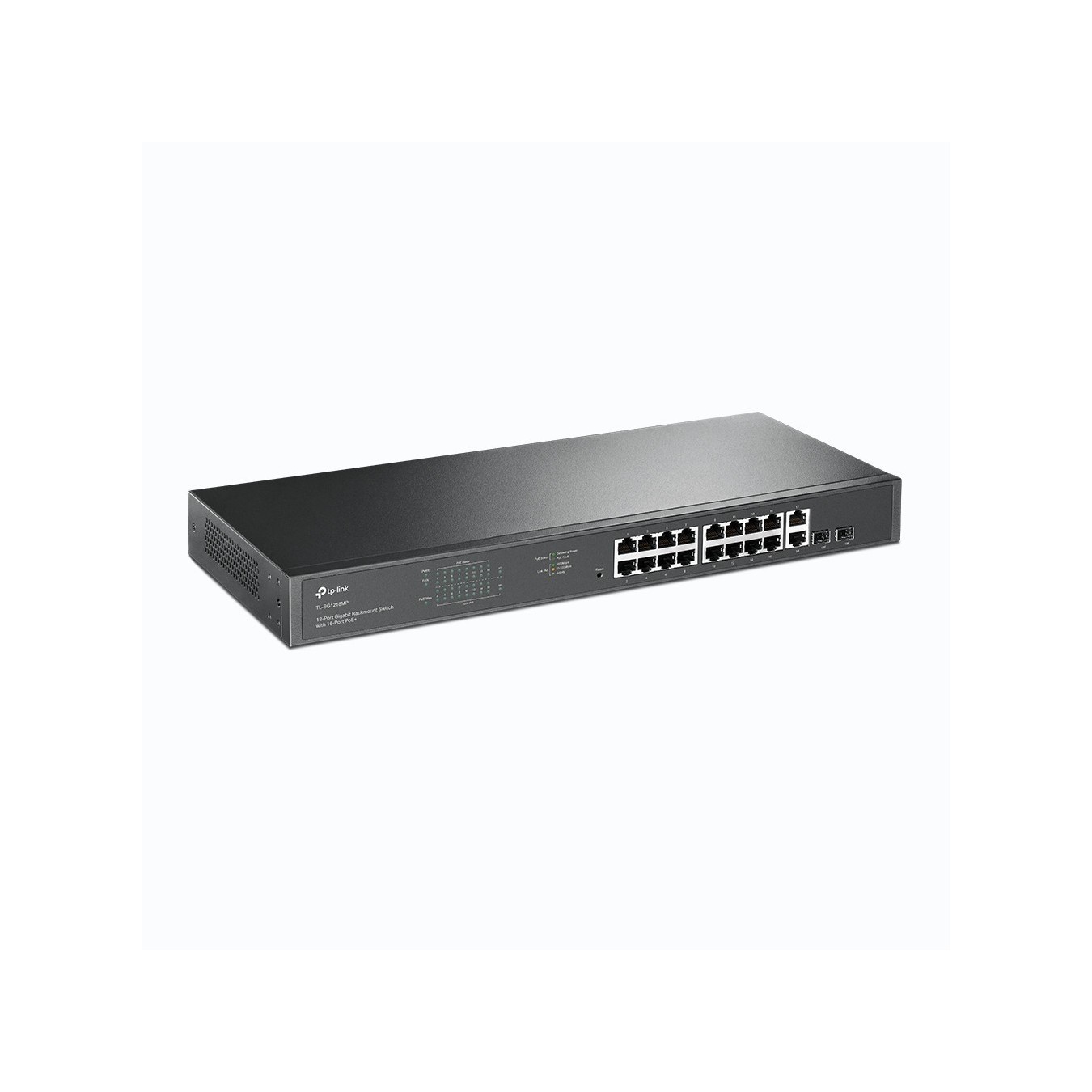

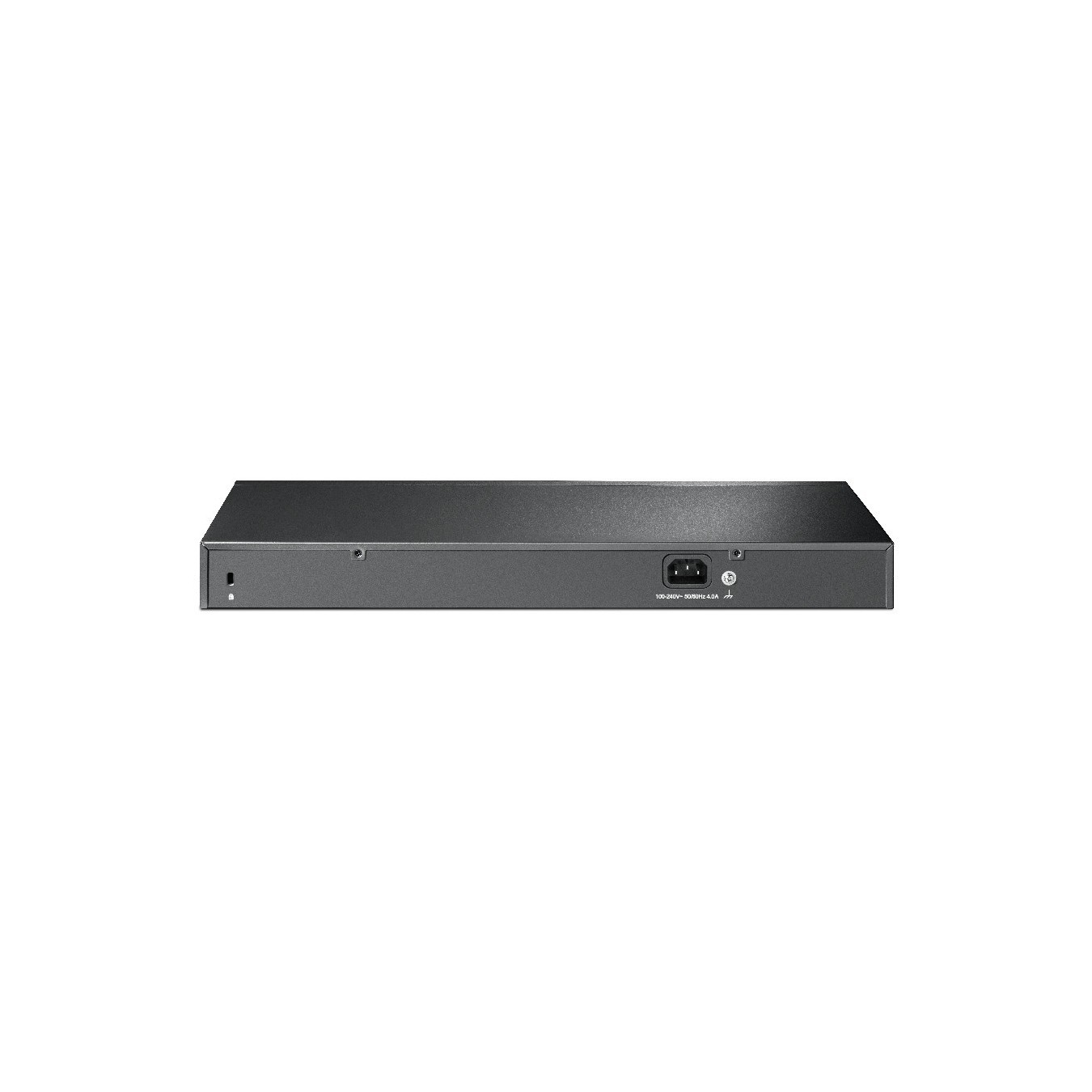

TP-LINK SG1218MP - SG1218MP - 18-Port Gigabit Rackmount PoE+ Switch, 1U, Black
Unmanaged 18-port Gigabit rackmount switch with 16 PoE+ ports, 250 W PoE budget, 1U chassis, dual fans, 100-240V AC.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Network Switches - Type | Unmanaged |
|---|---|
| Network Switches - Port Speed | Gigabit (10/100/1000) |
| Network Switches - PoE Budget | 131-250 W |
| Network Switches - Rackmount | Yes |
| Network Switches - Fanless | No |
TP-Link 18-Port Gigabit Rackmount Switch with 16 PoE+. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000). Basic switching RJ-45 Ethernet ports quantity: 18. Full duplex. MAC address table: 8000 entries. Switching capacity: 36 Gbit/s. Networking standards: IEEE 802.1Q. IEEE 802.1p. IEEE 802.3. IEEE 802.3ab. IEEE 802.3u. IEEE 802.3x. Power over Ethernet (PoE). Rack mounting. Form factor: 1U
| Switch type | Unmanaged |
| Feature | Quick start guide |
| Basic switching RJ-45 Ethernet ports quantity | 18 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 18 |
| Combo SFP ports quantity | 2 |
| Networking standards | IEEE 802.1Q. IEEE 802.1p. IEEE 802.3. IEEE 802.3ab. IEEE 802.3u. IEEE 802.3x |
| Cable types supported | Cat3. Cat4. Cat5. Cat5e. Cat6 |
| Ethernet LAN data rates | 10.100.1000 Mbit/s |
| Switching capacity | 36 Gbit/s |
| Forwarding rate | 26.78 Mpps |
| MAC address table | 8000 entries |
| Jumbo frames | 10000 |
| Packet buffer memory | 4.1 MB |
| Form factor | 1U |
| Product colour | Black |
| Housing material | Metal |
| Number of fans | 2 fan(s) |
| Power source | AC |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (max) | 286.64 W |
| Power over Ethernet plus (PoE+) ports quantity | 16 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 250 W |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation | 977.44 BTU/h |
| Width | 440 mm |
| Depth | 180 mm |
| Height | 44 mm |
| Cables included | AC |
| Package width | 250 mm |
| Package depth | 528 mm |
| Package height | 80 mm |
| Package weight | 3.05 kg |
| Certification | CE. FCC. RoHS |
| Harmonized System (HS) code | 85176990 |
