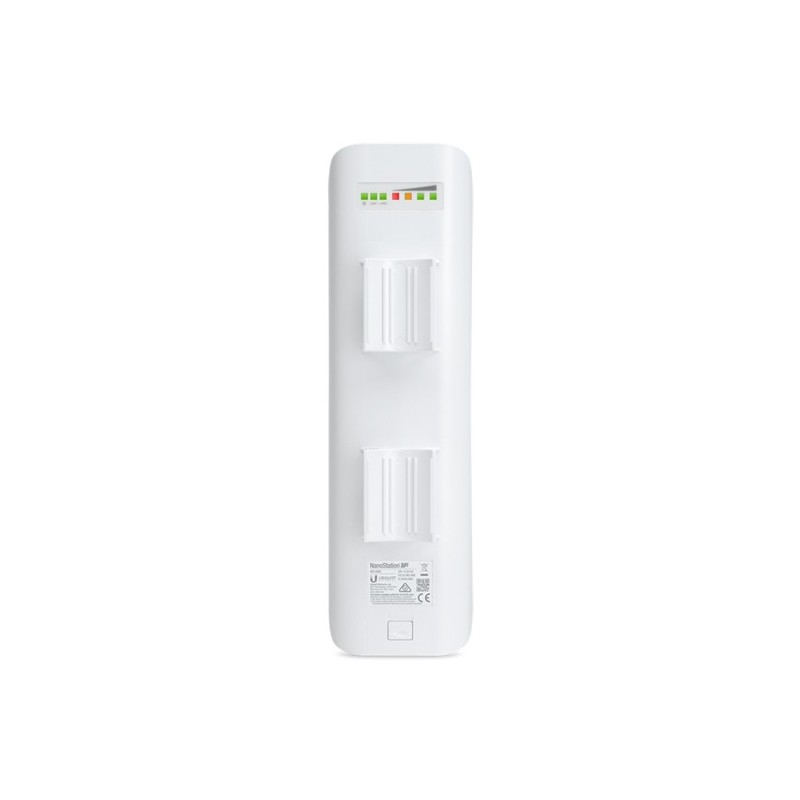

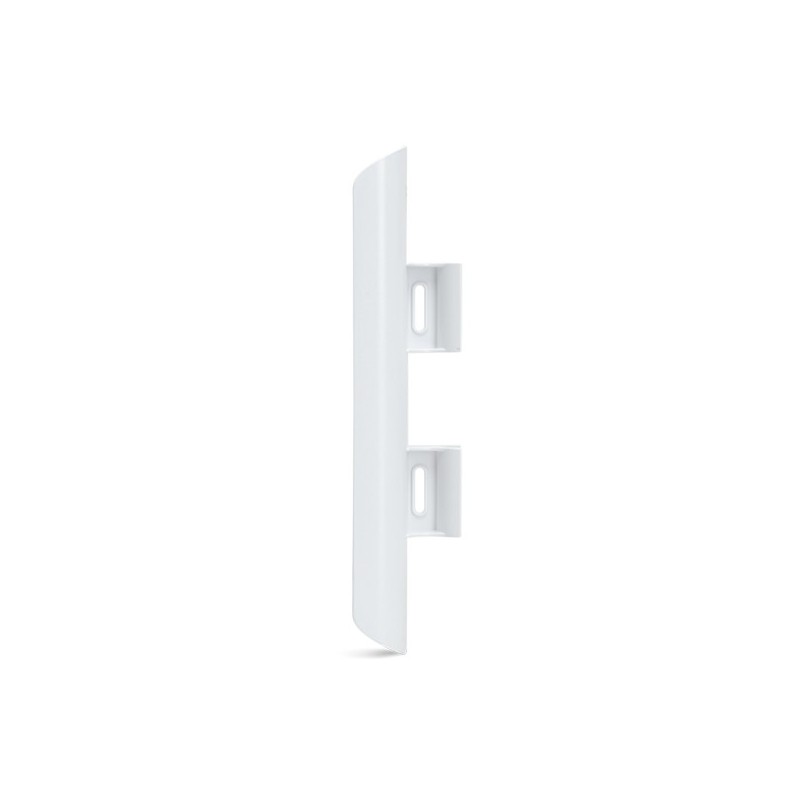

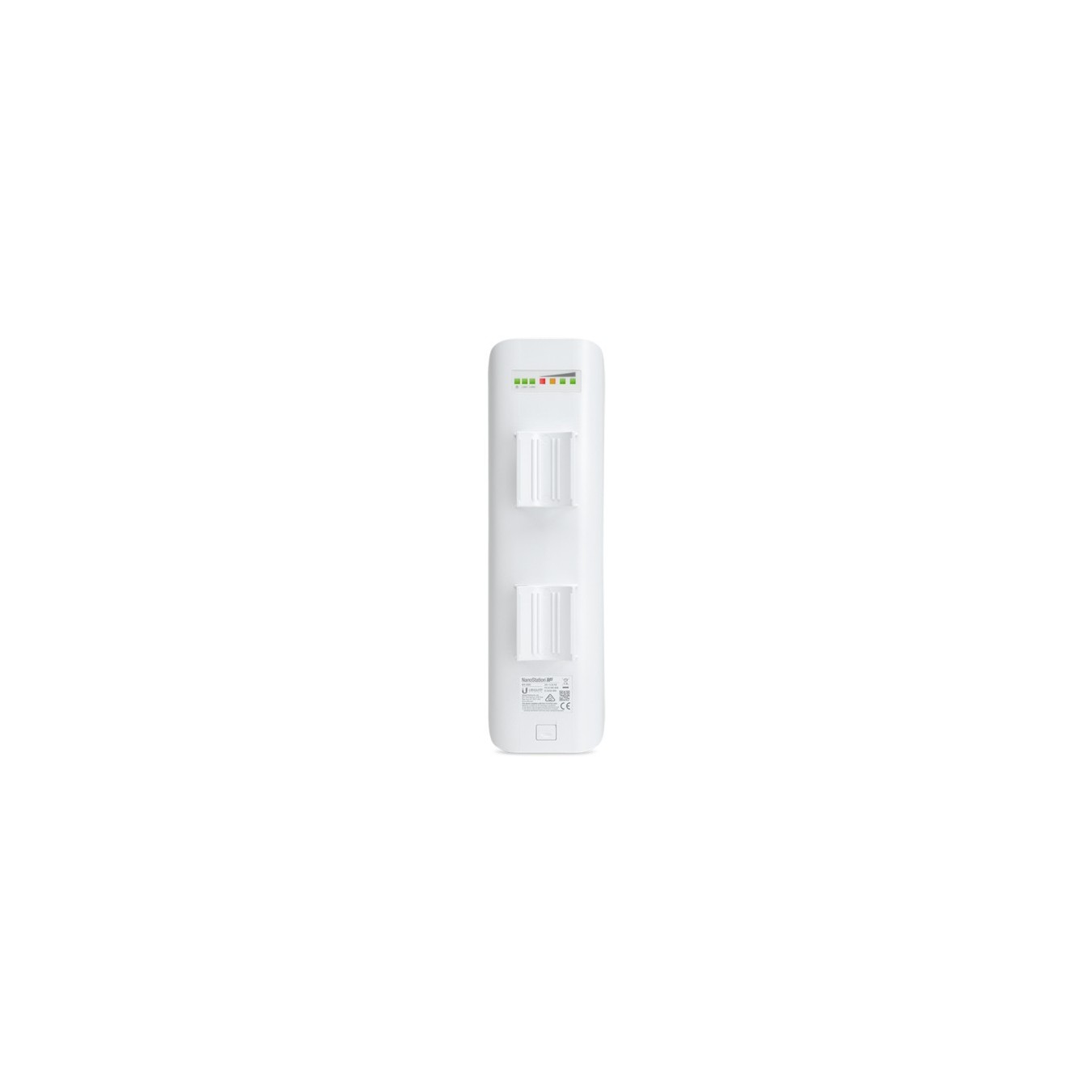

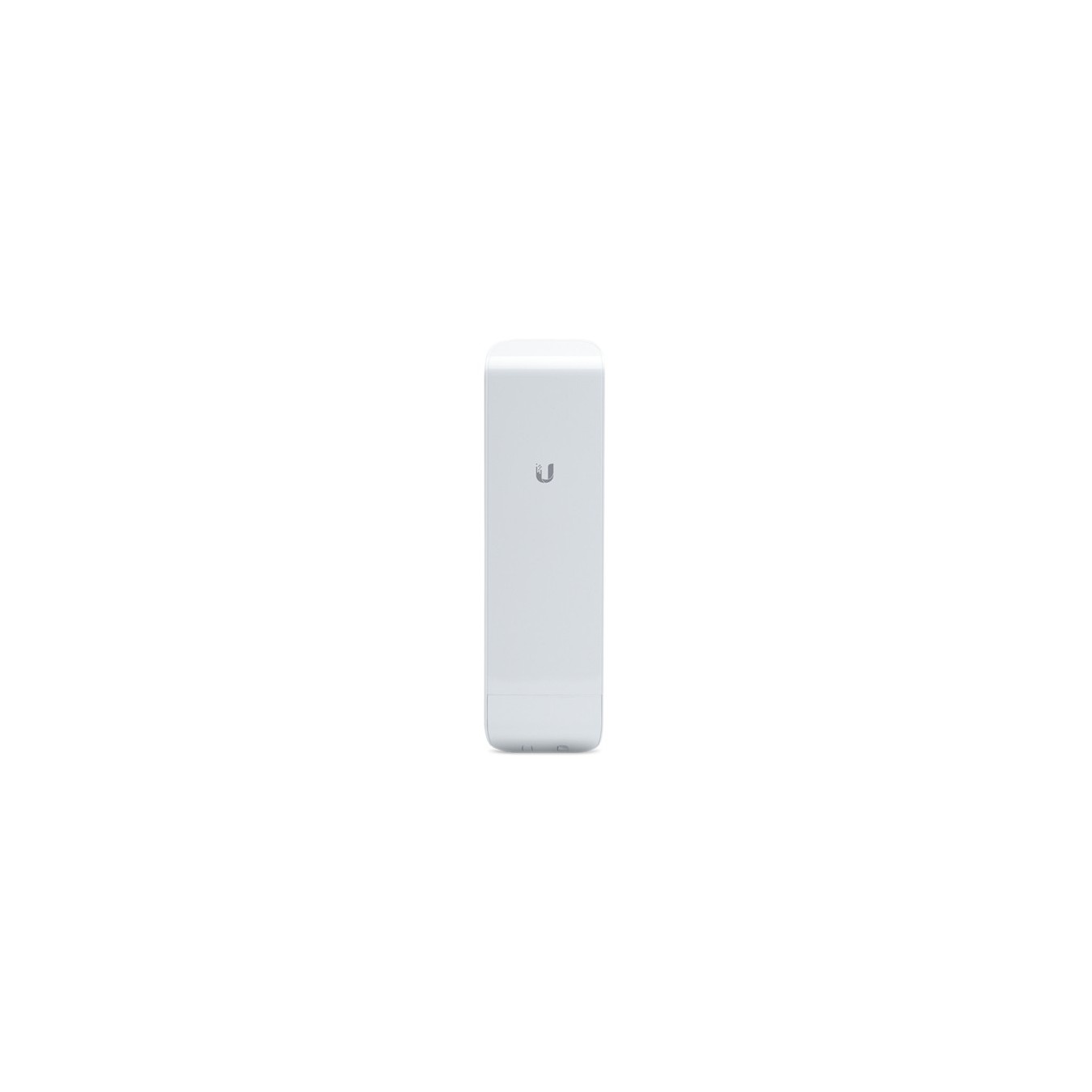

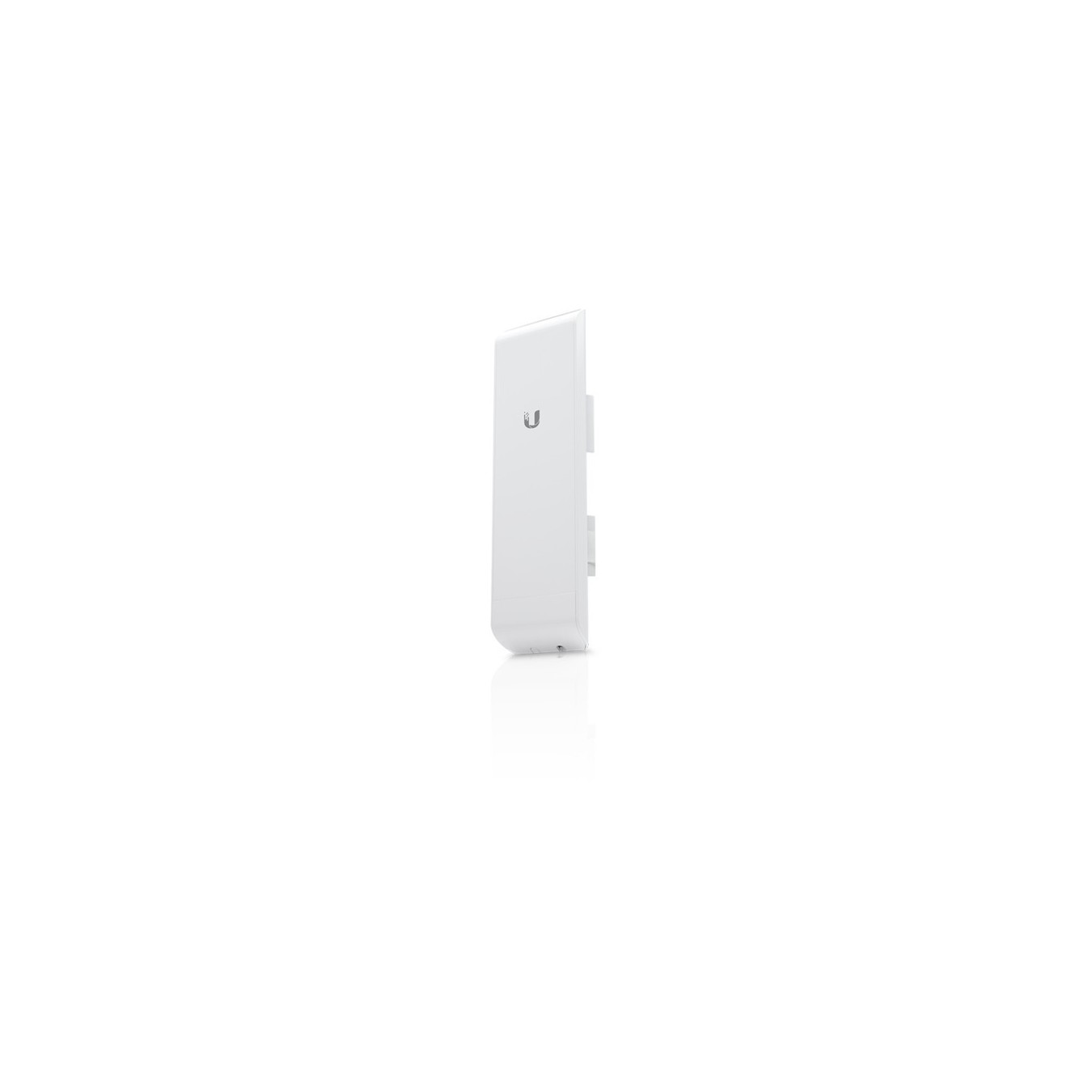

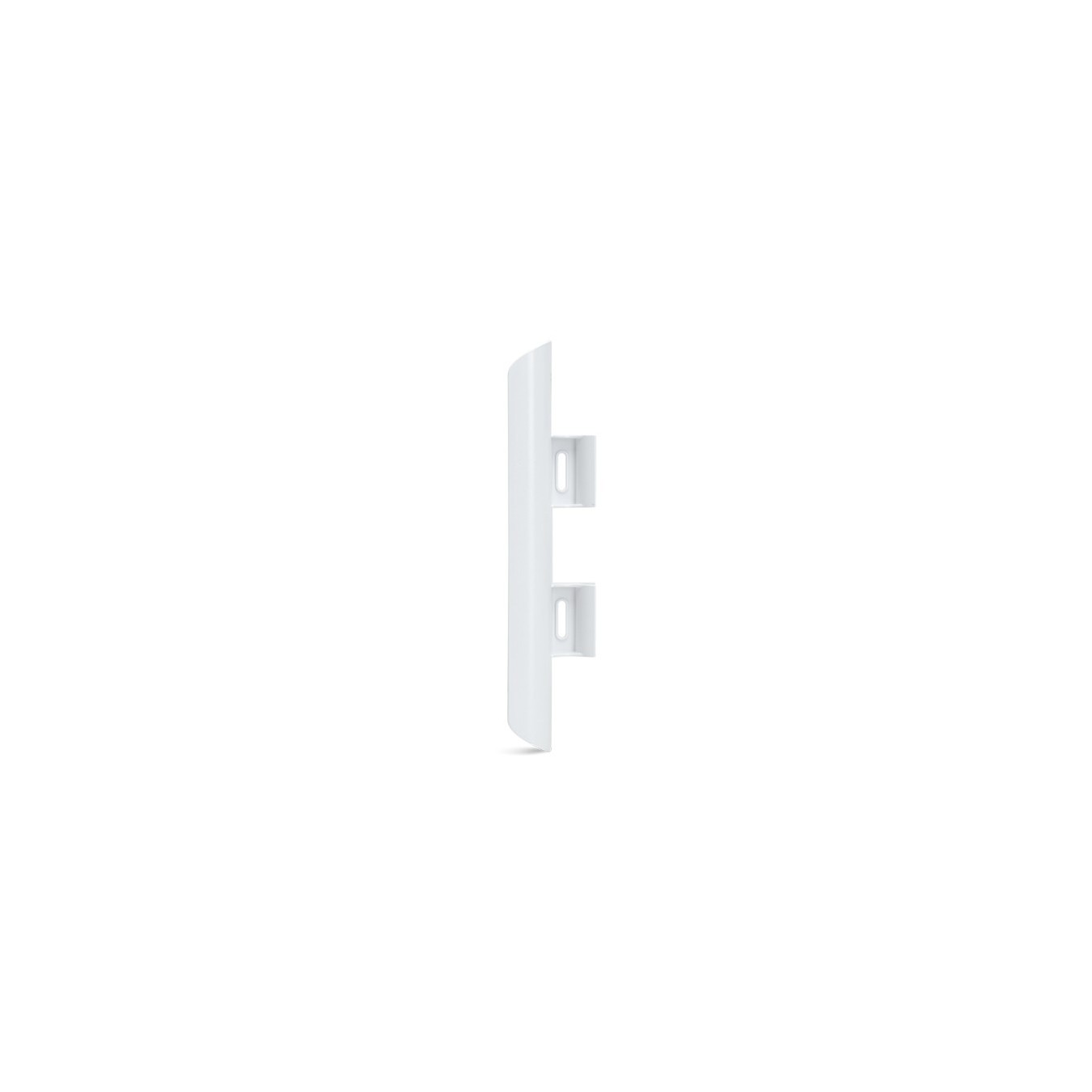

Z Ubiquiti NSM5 - NSM5 - White
Outdoor 5 GHz wireless bridge with PoE, 2x RJ-45 Ethernet ports, white, pole-mount. NanoStation M5.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
| Wireless Bridges - Type | Point-to-Point (PtP) |
|---|---|
| Wireless Bridges - Frequency | 5 GHz |
| Wireless Bridges - PoE | 24V Passive |
| Wireless Bridges - Range | 1-5 km |
| Wireless Bridges - Mounting | Pole |
| Wireless Bridges - Outdoor Rating | IP55 |
Ubiquiti NanoStation M5. Antenna gain level (max): 16.1 dBi. Wi-Fi band: Single-band (5 GHz). Frequency band: 5.17 - 5.875 GHz. Ethernet LAN interface type: Fast Ethernet. Ethernet LAN data rates: 10.100 Mbit/s. Cabling technology: 10/100Base-T(X). Connectivity technology: Wired & Wireless. Product type: Network bridge. Material: Plastic. Mounting type: Pole
| Antenna gain level (max) | 16.1 dBi |
| Feature | Power over Ethernet (PoE) |
| Wi-Fi band | Single-band (5 GHz) |
| Frequency band | 5.17 - 5.875 GHz |
| Ethernet LAN interface type | Fast Ethernet |
| Ethernet LAN data rates | 10.100 Mbit/s |
| Cabling technology | 10/100Base-T(X) |
| Connectivity technology | Wired & Wireless |

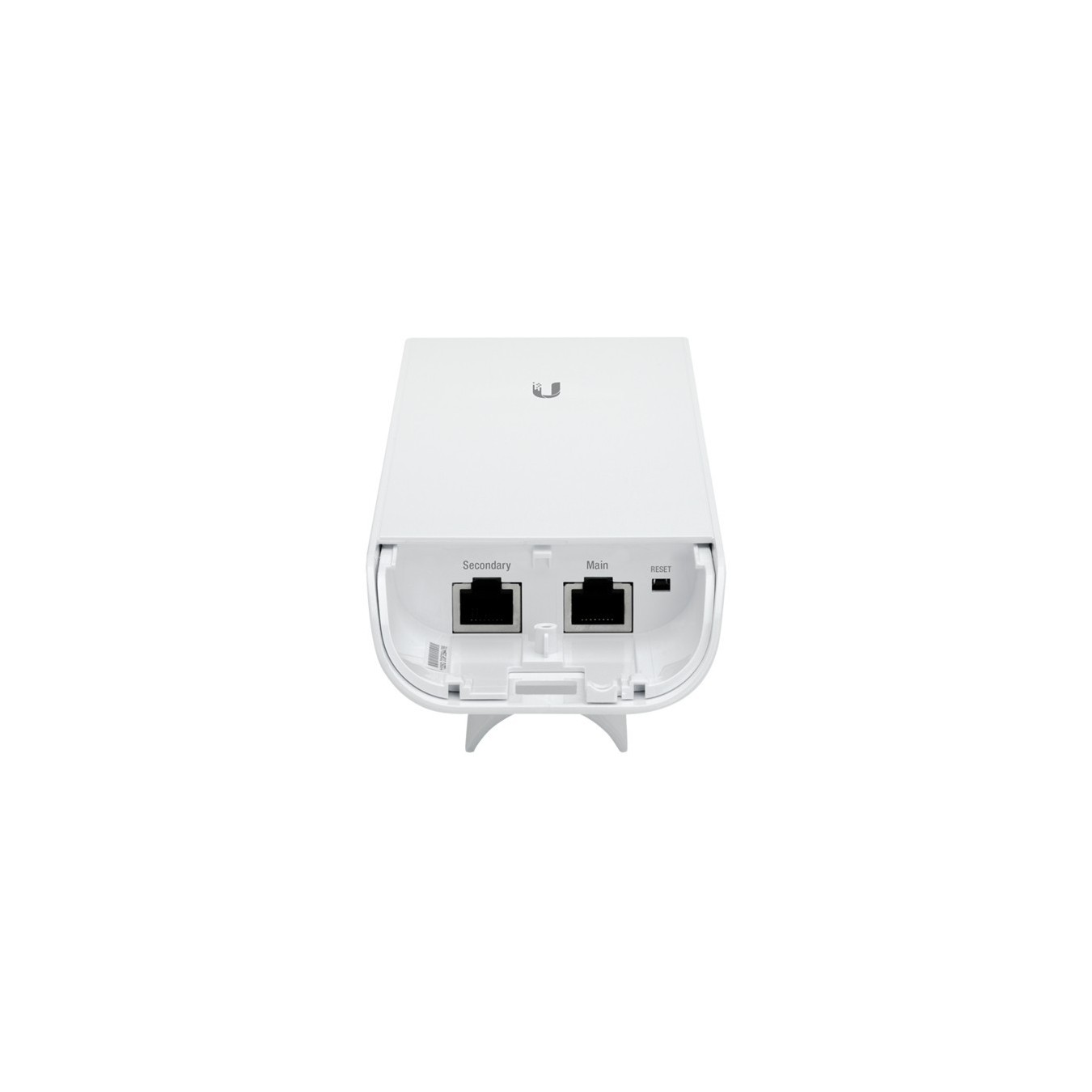

| Ethernet LAN (RJ-45) ports | 2 |
| Product type | Network bridge |
| Material | Plastic |
| Mounting type | Pole |
| Product colour | White |
| Processor family | Atheros |
| Processor model | MIPS 74Kc |
| Processor frequency | 560 MHz |
| Internal memory | 64 MB |
| RAM type | DDR2 |
| Power consumption (max) | 8 W |
| Power over Ethernet (PoE) voltage | 24 V |
| Operating temperature (T-T) | -30 - 75 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Certification | FCC 15.247. IC RS210. CE. RoHS |
| Width | 80 mm |
| Depth | 31 mm |
| Height | 294 mm |
| Weight | 400 g |
| Flash memory | 8 MB |
| Quantity per pack | 1 pc(s) |
| Harmonized System (HS) code | 85176990 |
