Teltonika TSW030 Unmanaged Ethernet Switch 8x100 Mbps - TSW030 - Black
Unmanaged 8-port Fast Ethernet switch (10/100) with 20 Gbps switching, aluminium housing, -40 to 75 C, DC input 7-57 V; PoE not supported.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.

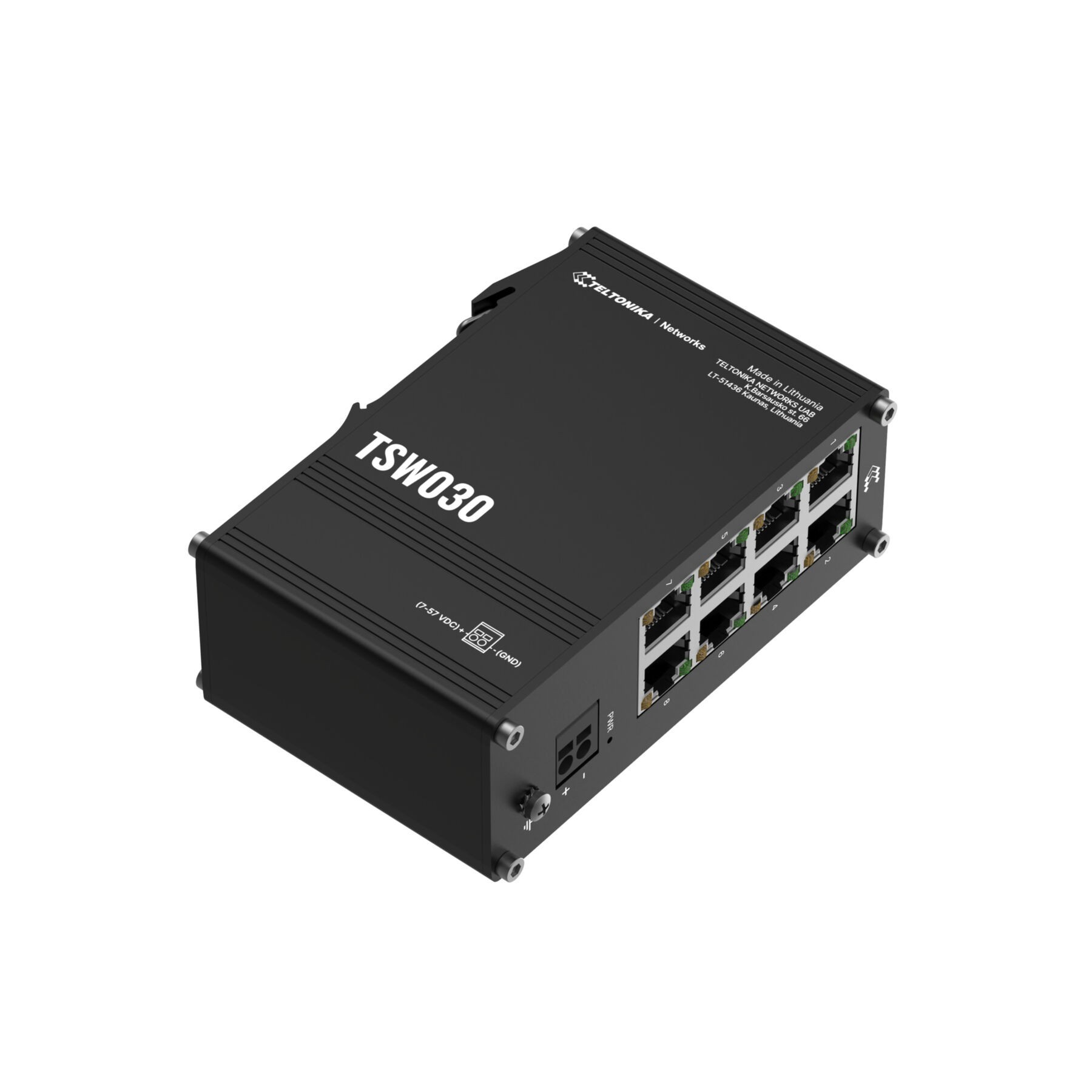

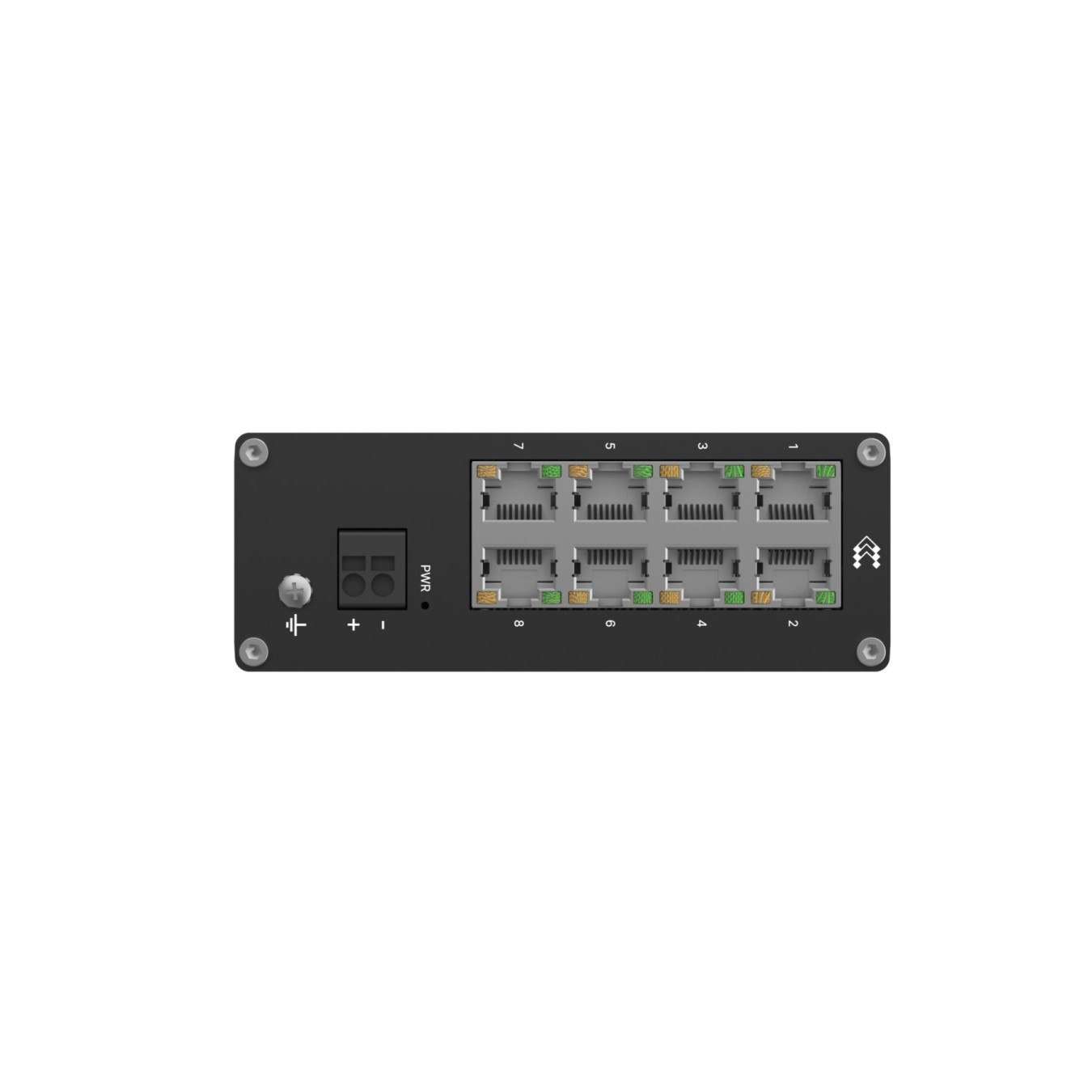

The TSW030 is a cost-efficient unmanaged Ethernet switch, featuring eight 10/100 RJ45 ports and integrated DIN rail mounting. This compact and rugged 8-port switch includes a 2-pin power input and low power consumption of up to 0.5 W when idle and a maximum of up to 1.5 W. These make this plug-and-play switch perfect for industrial applications requiring to connect up to eight devices.
| Switch type | Unmanaged |
| Web-based management | No |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Fast Ethernet (copper) ports quantity | 8 |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Switching capacity | 20 Gbit/s |
| MAC address table | 2048 entries |
| Jumbo frames support | Yes |
| Jumbo frames | 9216 |
| Rack mounting | No |
| Stackable | No |
| Product colour | Black |
| Housing material | Aluminium |
| Reset button | Yes |
| LED indicators | LAN, Power, Status |

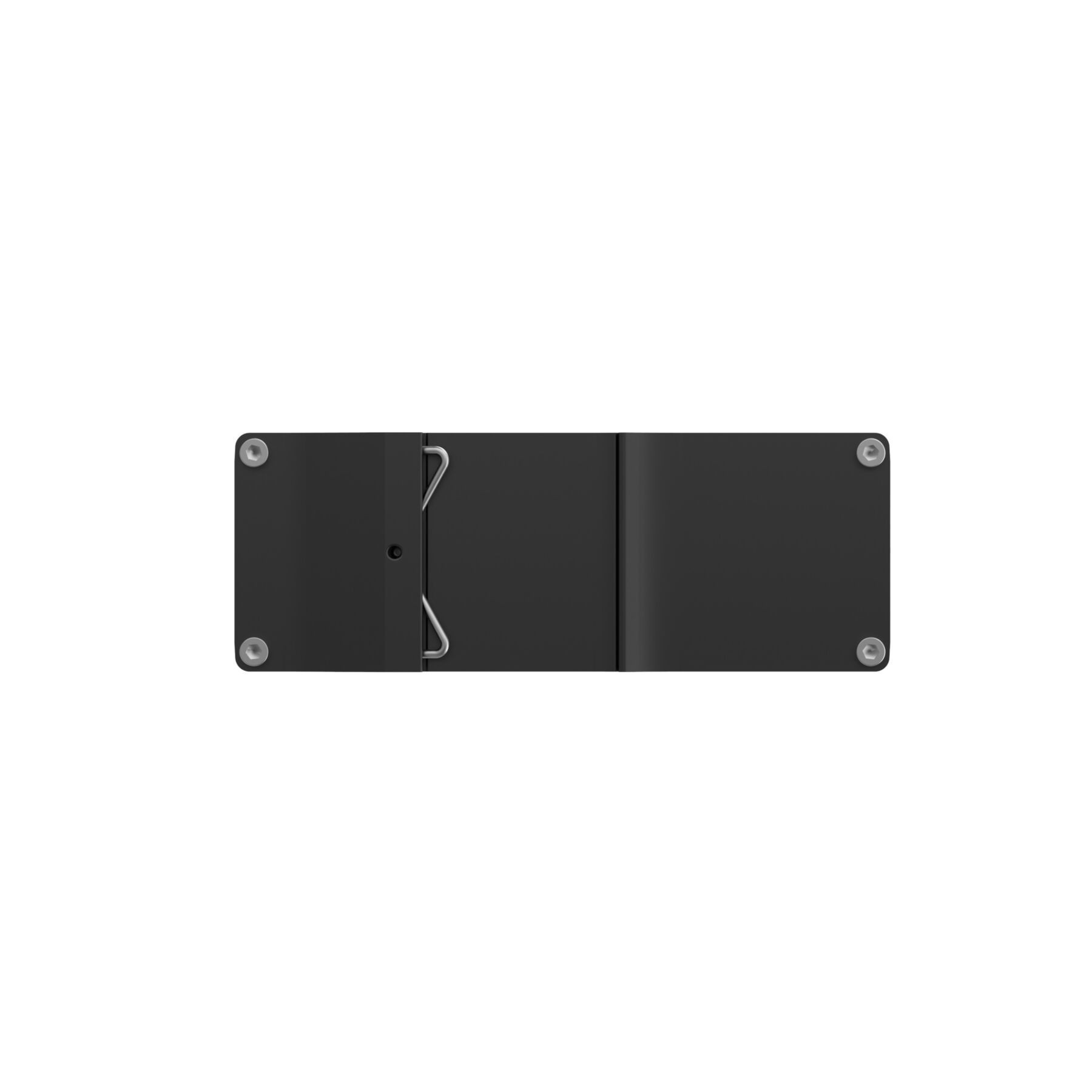

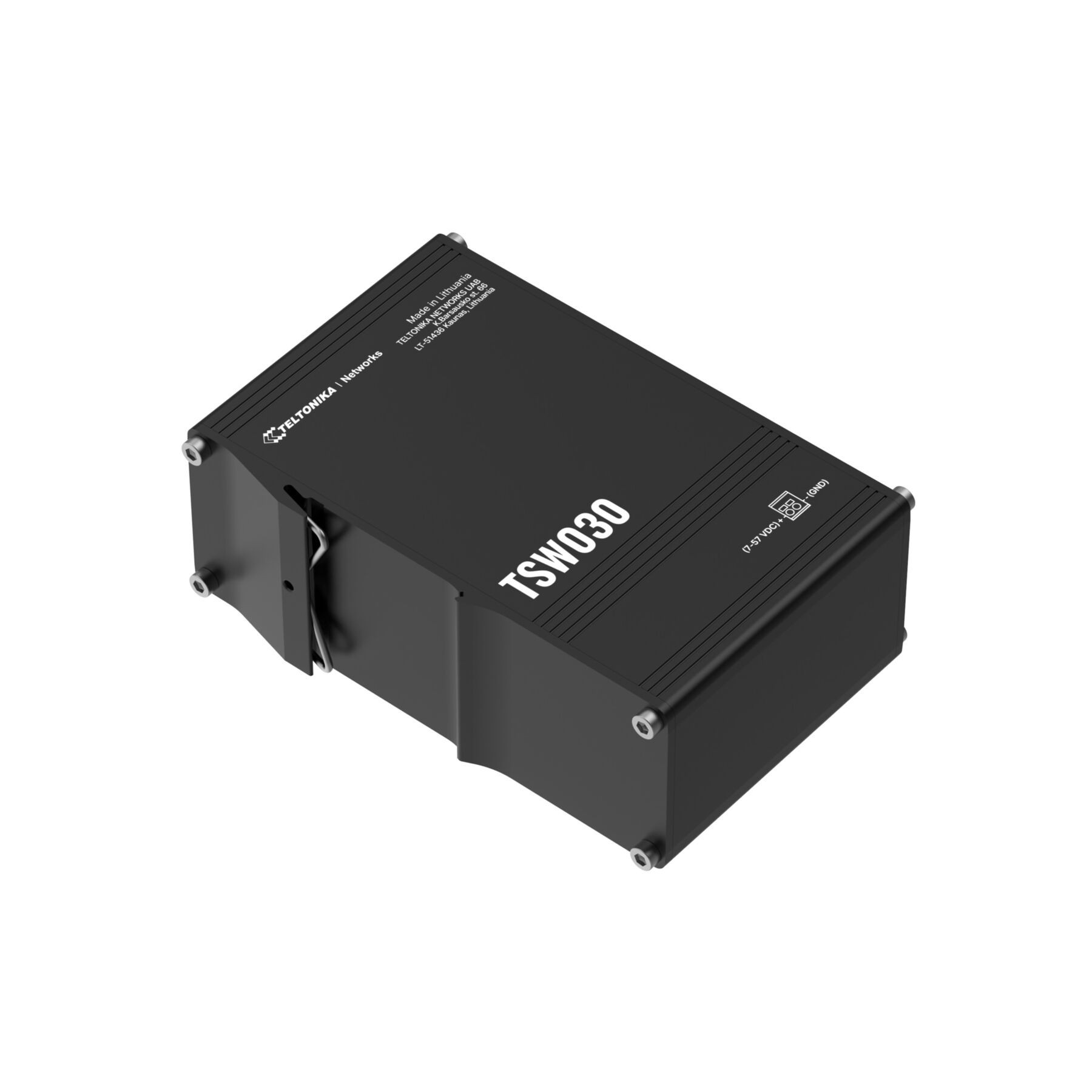

| DIN rail mounting | Yes |
| Power source | DC |
| Power supply included | No |
| DC input voltage | 7 - 57 V |
| Power over Ethernet (PoE) | No |
| Operating temperature (T-T) | -40 - 75 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Certification | CE, UKCA, EAC, UCRF, RCM, FCC, IC, CB Standards EN 55032:2015+A11:2020; EN 55035:2017+A11:2020; EN IEC 61000-3-2:2019+A1:2021; EN 61000-3-3:2013+A1:2019+A2:2021; |
