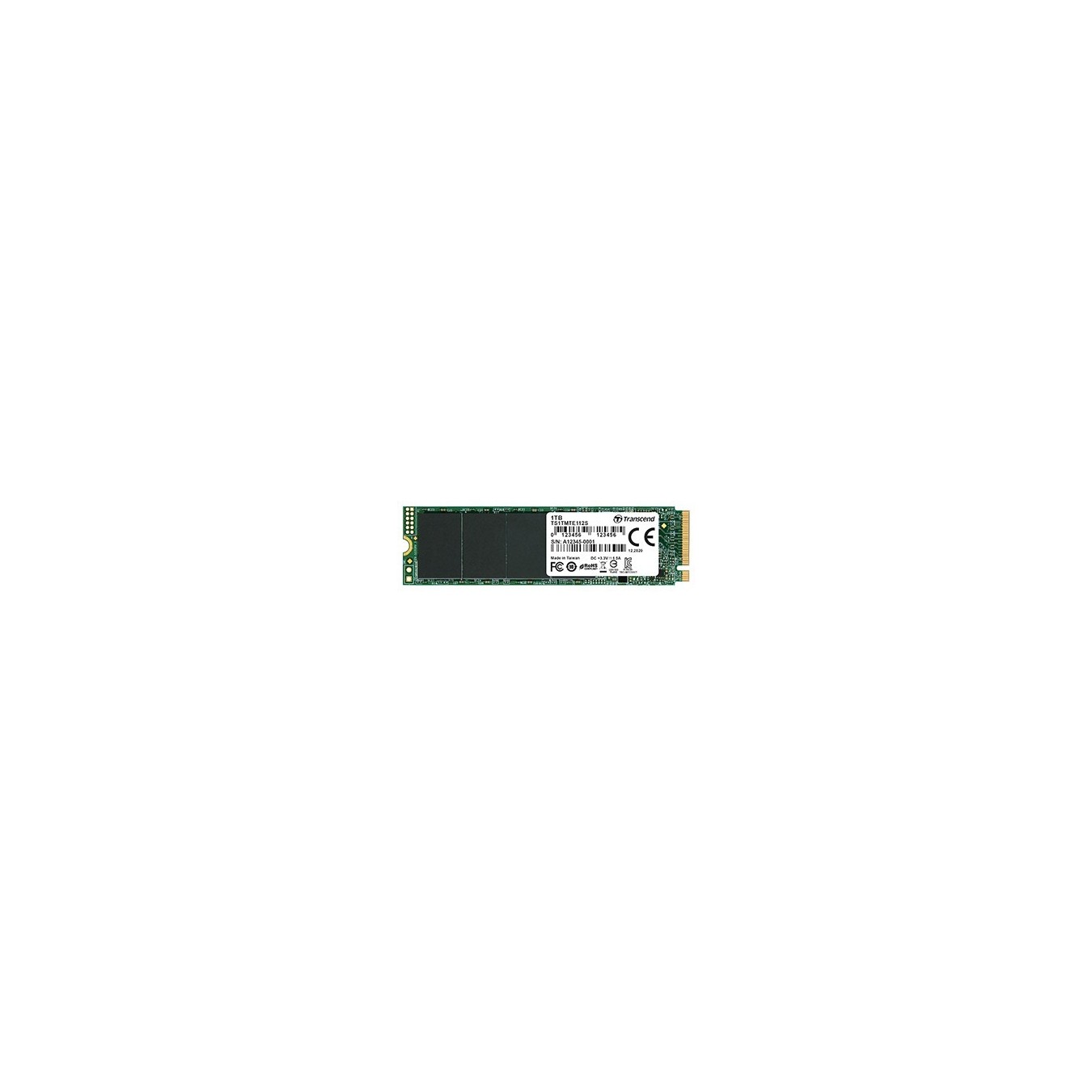

Transcend 112S - 112S - 1TB NVMe M.2 PCIe Gen3x4 2280 DRAM-less M-Key
Transcend 112S 1TB NVMe M.2 PCIe Gen3x4 SSD for PC, 2280 form factor, DRAM-less 3D TLC, up to 1700 MB/s read and 1400 MB/s write.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
| Storage (SSD & HDD) - Type | SSD |
|---|---|
| Storage (SSD & HDD) - Capacity | 1TB |
| Storage (SSD & HDD) - Interface | NVMe PCIe Gen3 x4 |
| Storage (SSD & HDD) - Form Factor | M.2 2280 |
| Storage (SSD & HDD) - PCIe Version (SSD) | Gen3 |
| Storage (SSD & HDD) - PCIe Lanes (SSD) | x4 |
| Storage (SSD & HDD) - NVMe Version (SSD) | 1.3 |
| Storage (SSD & HDD) - DRAM Cache (SSD) | None (DRAM-less) |
| Storage (SSD & HDD) - NAND Type (SSD) | 3D TLC |
| Storage (SSD & HDD) - Intended Use | Desktop |
Transcend 112S. SSD capacity: 1 TB. SSD form factor: M.2. Read speed: 1700 MB/s. Write speed: 1400 MB/s. Component for: PC
| NVMe version | 1.3 |
| SSD capacity | 1 TB |
| SSD form factor | M.2 |
| Interface | PCI Express 3.0 |
| Feature | S.M.A.R.T. support |
| Memory type | 3D NAND |
| Component for | PC |
| Read speed | 1700 MB/s |
| Write speed | 1400 MB/s |
| Random read (4KB) | 160000 IOPS |
| Random write (4KB) | 140000 IOPS |
| PCI Express interface data lanes | x4 |
| Mean time between failures (MTBF) | 2000000 h |
| Windows operating systems supported | Windows 10. Windows 7. Windows 8 |
| Linux operating systems supported | Kernel 2.6.31. Kernel 2.6.33. Kernel 3.12. Kernel 3.3. Kernel 4.6.4 |
| TBW rating | 400 |
| Certification | FCC. BSMI. KC. RCM |
| Operating voltage | 3.3 V |
| Width | 22 mm |
| Depth | 80 mm |
| Height | 2.23 mm |
| Weight | 8 g |
| Operating temperature (T-T) | 0 - 70 °C |
| Minimum operating temperature | 0 °C |
| Maximum operating temperature | 70 °C |
| Compliance certificates | CE |
| Harmonized System (HS) code | 84717070 |
