LEXAR

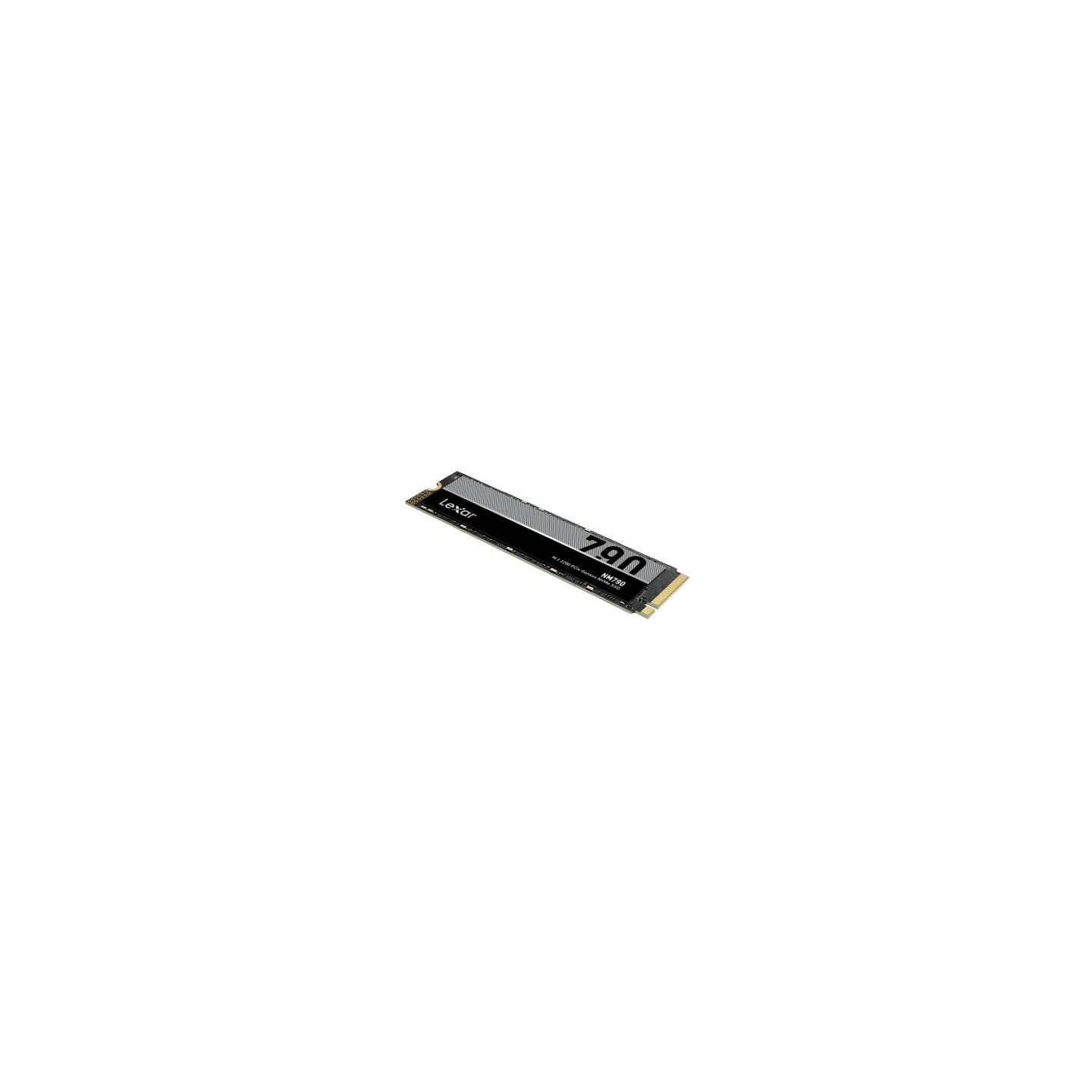

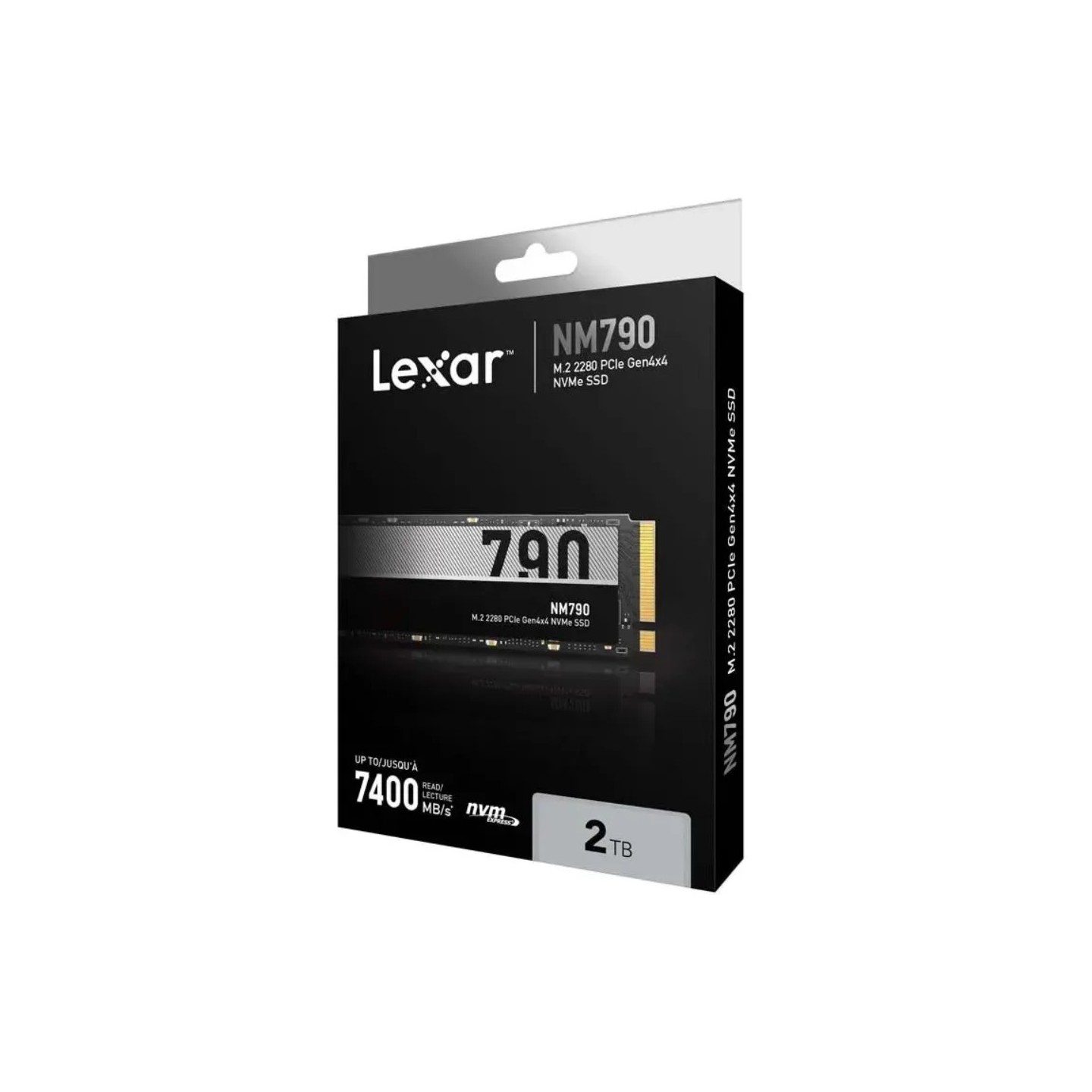

Lexar NM790 2TB M.2 2280 NVMe SSD - PCIe 4.0 x4 7400 MB/s - LNM790X002T-RNNNG (Boxed)

SKU 18065 Brand LEXAR EAN13 0843367130290
The Lexar NM790 2TB is an elite PCIe Gen4 NVMe SSD engineered for extreme performance. Delivering up to 7400 MB/s read and 6500 MB/s write speeds, this DRAM-less drive uses HMB 3.0 technology and Dynamic SLC Cache to provide an incredible boost for gamers, professionals, and PlayStation 5 users.
Storage (SSD & HDD) - Device Type Internal SSD
Storage (SSD & HDD) - Capacity 2TB
Storage (SSD & HDD) - Sequential Read Speed (SSD) 7001 to 10000 MB s
Storage (SSD & HDD) - DRAM Cache (SSD) None (DRAM-less)
Storage (SSD & HDD) - Interface PCIe 4.0 (Gen4)
Storage (SSD & HDD) - Heatsink (SSD) Not Included
Storage (SSD & HDD) - Form Factor M.2 2280
Storage (SSD & HDD) - PCIe Lanes (SSD) x4

The Lexar NM790 2TB M.2 NVMe SSD is designed to push the limits of PCIe Gen4 technology, making it the perfect upgrade for hardcore gamers, content creators, and PC enthusiasts. Utilizing the NVMe 1.4 standard and a high-speed PCIe 4.0 x4 interface, this drive achieves blistering sequential read speeds of up to 7400 MB/s and write speeds of up to 6500 MB/s. This translates to near-instantaneous game load times, seamless 4K/8K video rendering, and rapid large file transfers.

Built with efficiency in mind, the NM790 operates without a dedicated DRAM cache. Instead, it leverages Host Memory Buffer (HMB) 3.0 and Dynamic SLC Caching to maintain peak performance while consuming up to 40% less power than traditional DRAM-equipped Gen4 SSDs. This ensures your system runs cooler and your laptop battery lasts longer. Its ultra-compact, single-sided M.2 2280 form factor fits effortlessly into tight spaces, including modern thin-and-light laptops and the PlayStation 5 console.

  • Elite Performance: Maximize your system with up to 7400 MB/s read and 6500 MB/s write speeds.
  • Advanced Efficiency: DRAM-less design with HMB 3.0 reduces power consumption by up to 40%.
  • High Capacity: 2TB of spacious storage for large game libraries and professional media files.
  • PS5 Compatible: Meets the performance and size requirements for PlayStation 5 storage expansion.
  • Robust Endurance: High-density 3D NAND delivers an exceptional 1500 TBW rating and a 1.5 million hour MTBF.
SSD capacity2 TB
SSD form factorM.2 2280
InterfacePCI Express 4.0 x4
NVMe version1.4
Memory type3D TLC NAND
Component forPC / Laptop / Game console
Read speed7400 MB/s
Write speed6500 MB/s
Random read (4KB)1000000 IOPS
Random write (4KB)900000 IOPS
TBW rating1500
Mean time between failures (MTBF)1500000 h
Lithography12 nm
Width22 mm
Depth80 mm
Height2.45 mm
Weight6 g
Operating temperature (T-T)0 - 70 °C
Storage temperature (T-T)-40 - 85 °C
Operating shock1500 G
Vibration resistance20 G
Warranty period5 year(s)
