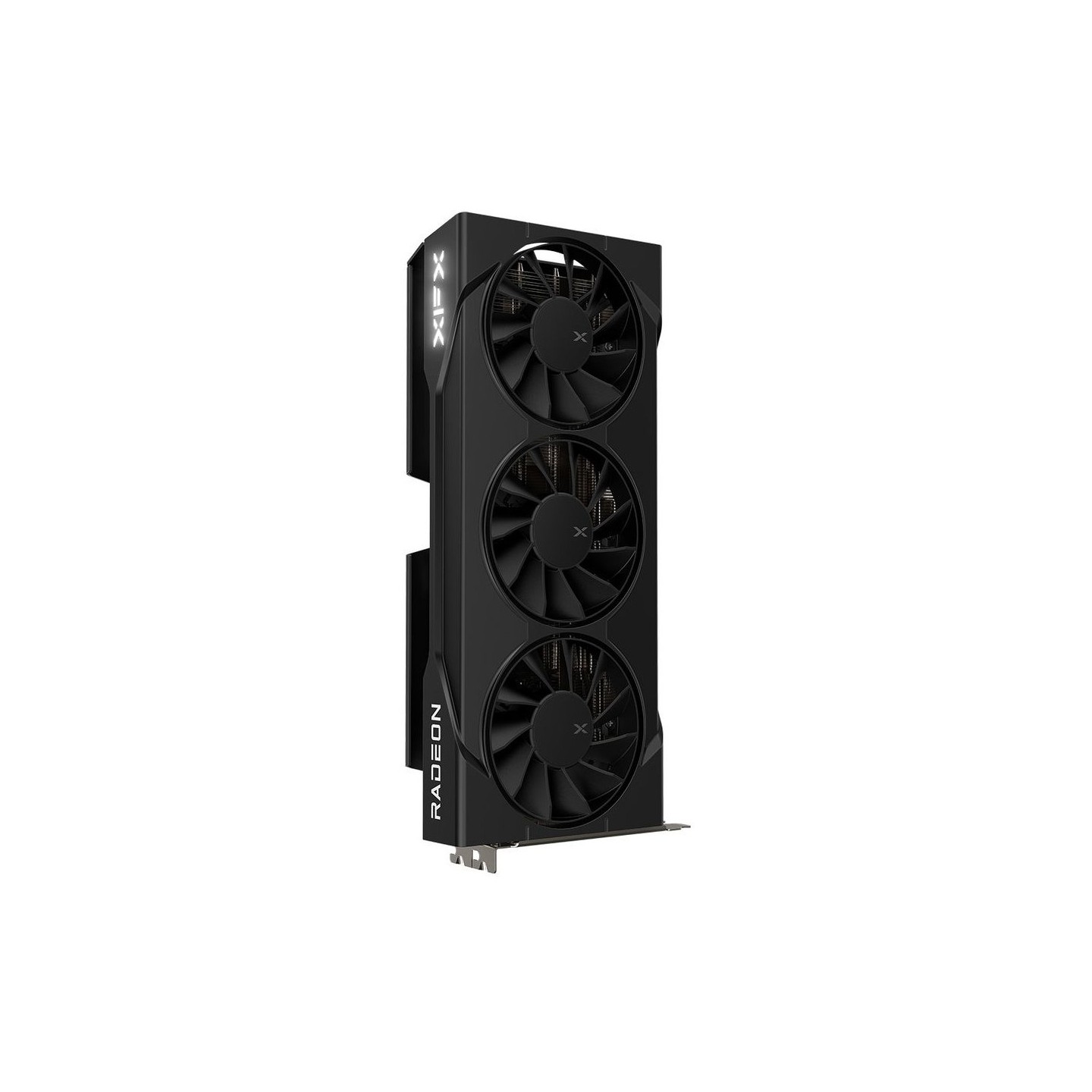

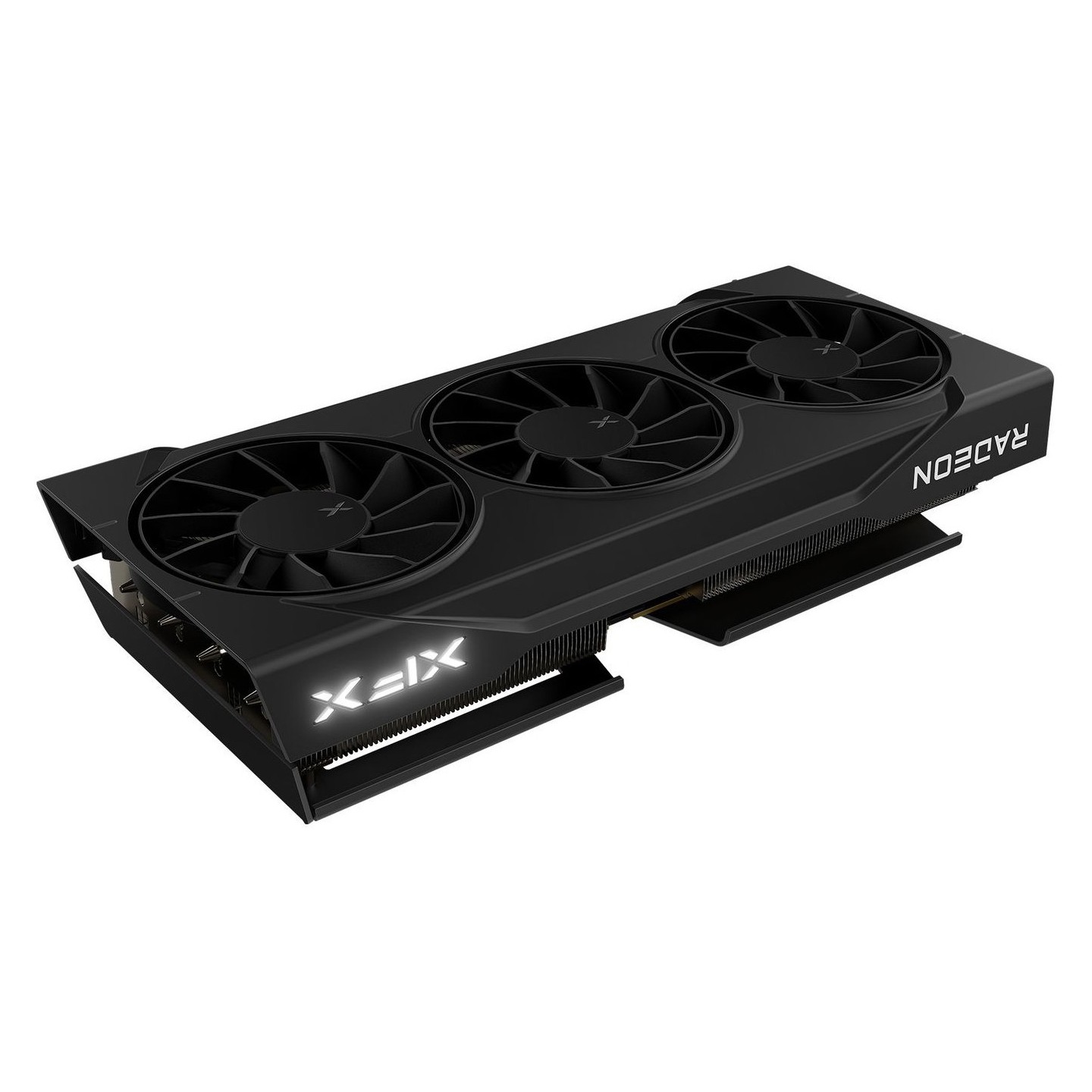

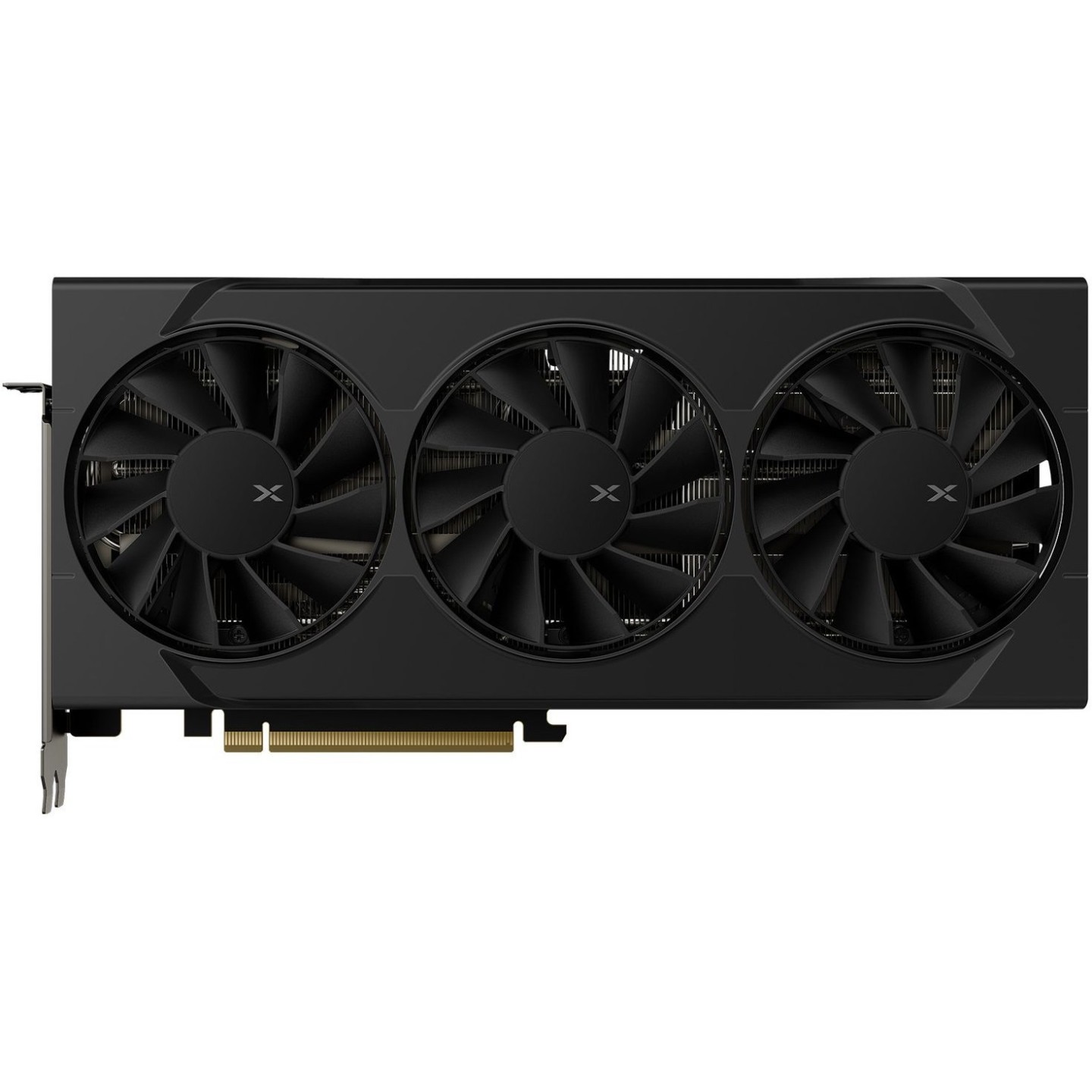

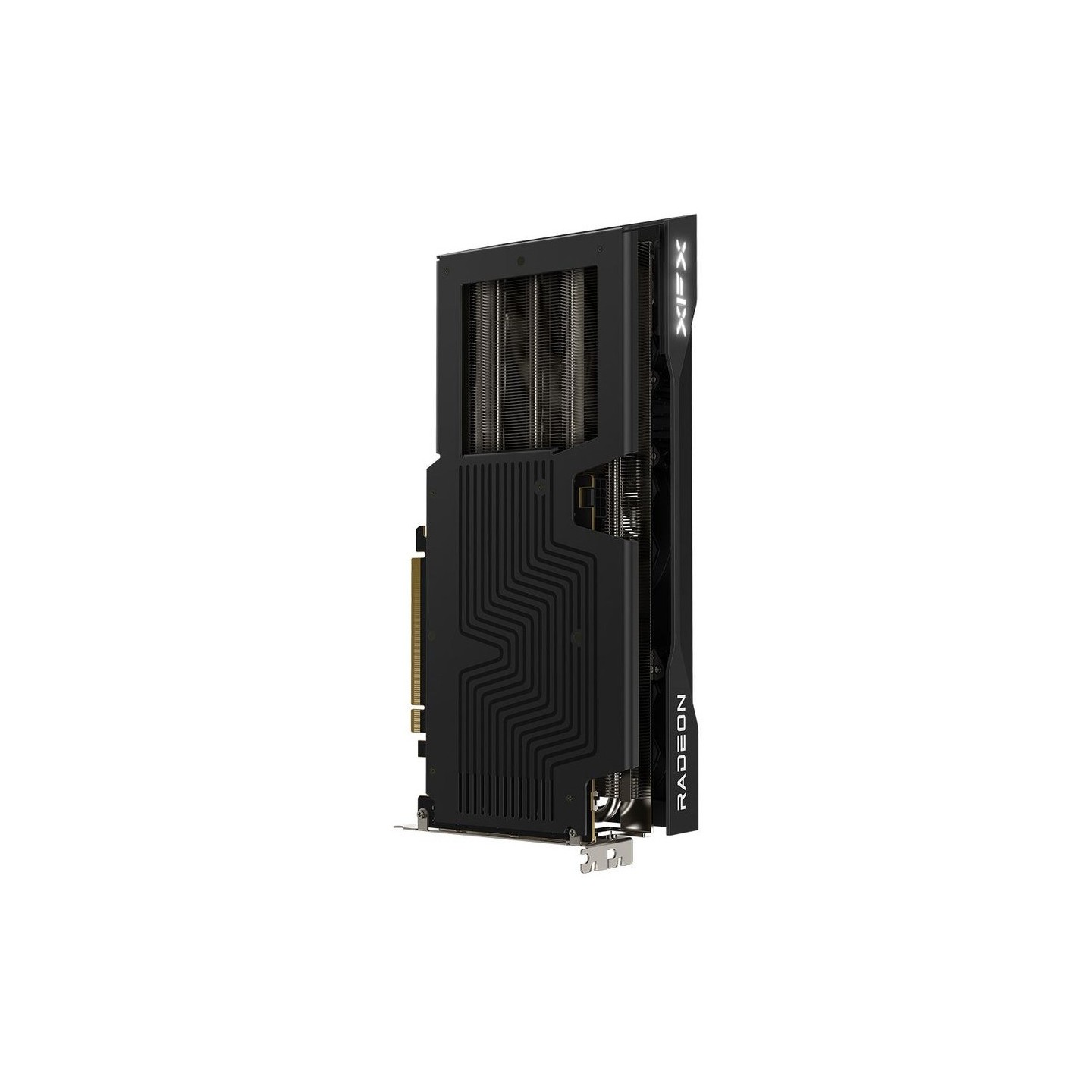

XFX Radeon RX 9060 XT Swift OC 16GB GDDR6 3-Fan - Black (Boxed)
XFX Swift Radeon RX 9060 XT OC 16GB GDDR6 delivers strong 1080p/1440p gaming on RDNA 4 with 32 CUs, 3320MHz boost, 180W TBP. Features PCIe 5.0, 320GB/s bandwidth, AV1 decode. Compact dual-fan cooler.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| GPU (Graphics Cards) - Series | AMD Radeon RX |
|---|---|
| GPU (Graphics Cards) - PCIe Interface | PCIe 5.0 x16 |
| GPU (Graphics Cards) - Cooler Type | Triple Fan |
| GPU (Graphics Cards) - Color | Black |
| GPU (Graphics Cards) - VRAM Capacity | 16 GB |
| GPU (Graphics Cards) - VRAM Type | GDDR6 |
| GPU (Graphics Cards) - Outputs | DisplayPort 2.1 HDMI 2.1 |
| GPU (Graphics Cards) - Power Connector | 1x8-pin |
| GPU (Graphics Cards) - Card Length | Large (281-300 mm) |
The XFX Swift AMD Radeon RX 9060 XT OC Gaming Edition 16GB is a mid-range GPU powered by AMD's RDNA 4 architecture, targeting 1080p and 1440p gaming. Built on TSMC N4P process with 32 Compute Units, 32 Ray Accelerators, and 64 AI Accelerators, it offers 25.6 TFLOPS FP32 performance and up to 821 AI TOPS. The card boosts to 3320MHz with a 180W TBP, requiring a 450W PSU and 1x 8-pin connector.
Equipped with 16GB GDDR6 memory at 20Gbps on a 128-bit bus (320GB/s bandwidth), it supports modern features like PCIe 5.0 x16, DirectX 12 Ultimate, HDMI 2.1, and 2x DisplayPort 2.1. The active dual-fan cooling solution keeps temperatures in check for sustained performance in games like Dragon's Dogma 2 and Black Myth: Wukong.
- Graphics Processor: Radeon RX 9060 XT (RDNA 4)
- Stream Processors: 2048
- Memory: 16GB GDDR6, 128-bit, 20Gbps
- Clocks: 1900MHz base, 2780MHz game, 3320MHz boost
- Outputs: 1x HDMI 2.1, 2x DP 2.1
- Power: 180W TBP, 1x 8-pin, 450W min PSU
- Dimensions: 290 x 124 x 49 mm, 2-slot
| Compute units | 32 |
| Graphics processor family | AMD |
| Graphics processor | Radeon RX 9060 XT |
| Architecture | RDNA 4 |
| Stream processors | 2048 |
| Ray Accelerators | 32 |
| AI Accelerators | 64 |
| Processor frequency | 1900 MHz |
| Processor boost clock speed | 3320 MHz |
| Processor boost clock speed (Gaming mode) | 2780 MHz |
| Discrete graphics card memory | 16 GB |
| Graphics card memory type | GDDR6 |
| Memory bus | 128 bit |
| Data transfer rate | 20 Gbit/s |
| Memory bandwidth (max) | 320 GB/s |
| Interface type | PCI Express x16 5.0 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 2 |
| DisplayPort version | 2.1 |
| DirectX version | 12 Ultimate |
| Total Board Power (TBP) | 180 W |
| Minimum system power supply | 450 W |
| Supplementary power connectors | 1x 8-pin |
| Cooling type | Active |
| Number of fans | 2 fan(s) |
| Number of slots | 2 |
| Product colour | Black |
| Length | 290 mm |
| Height | 124 mm |
| Depth | 49 mm |
| Warranty period | 3 year(s) |
| Video formats supported | AV1, H.264, HEVC/H.265 |
