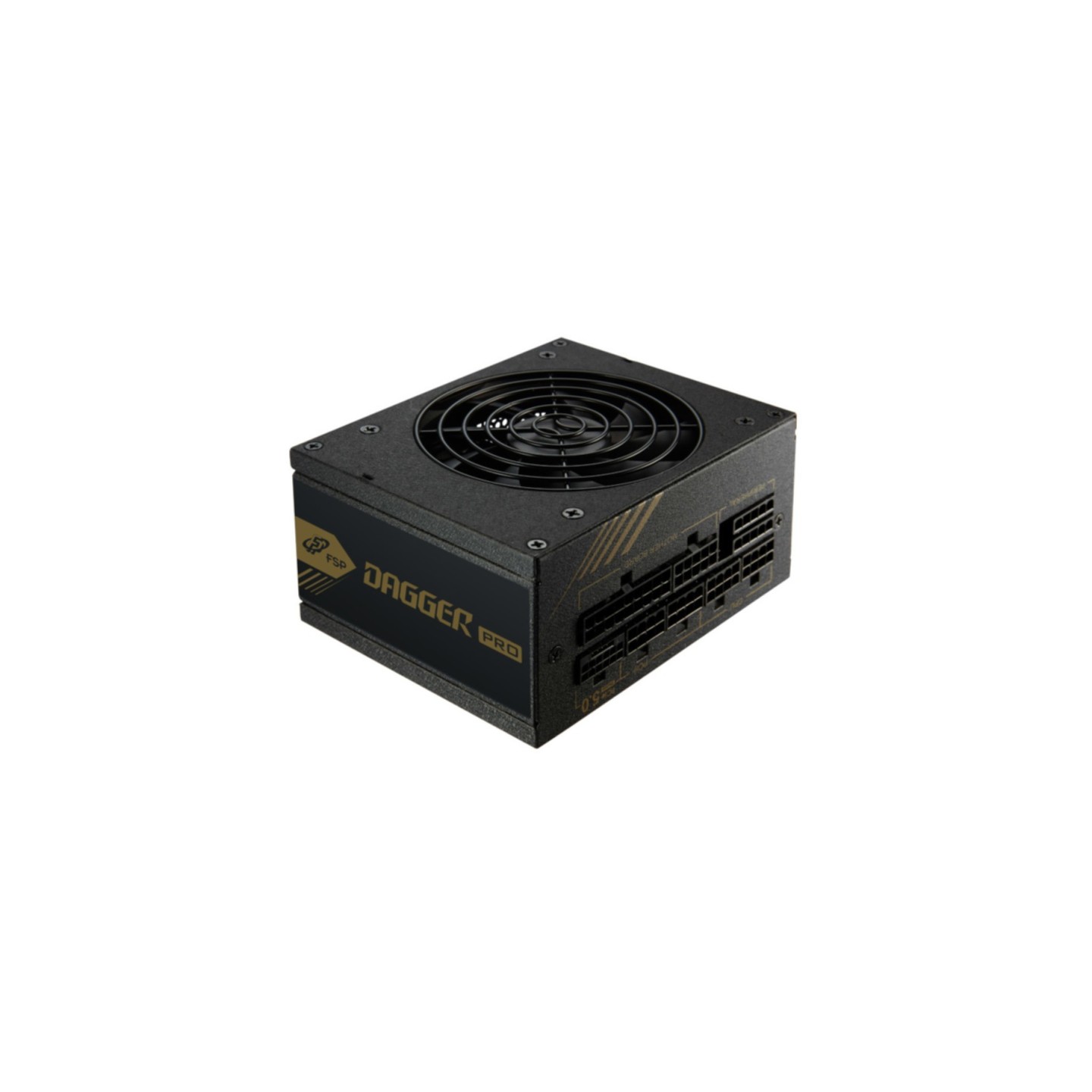

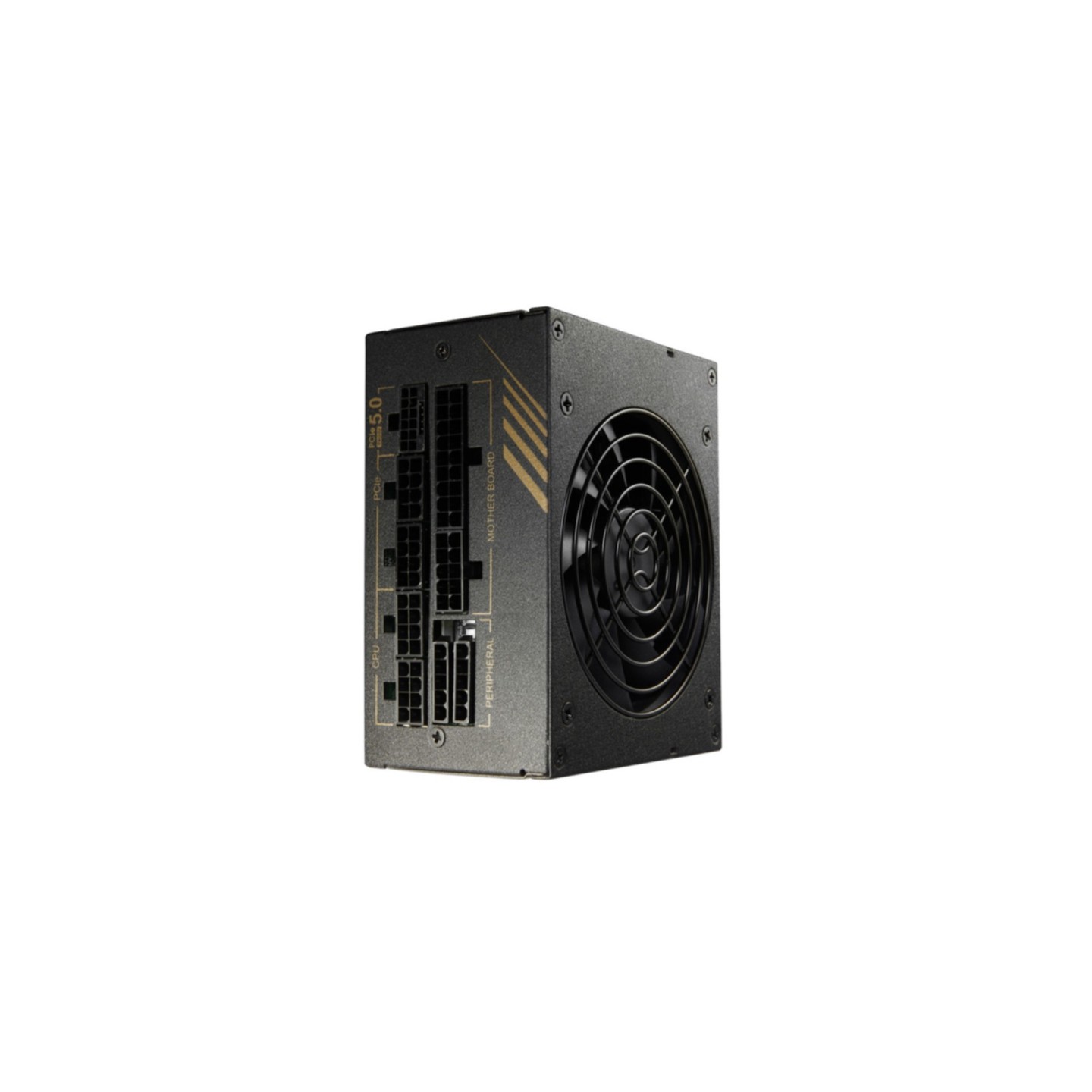

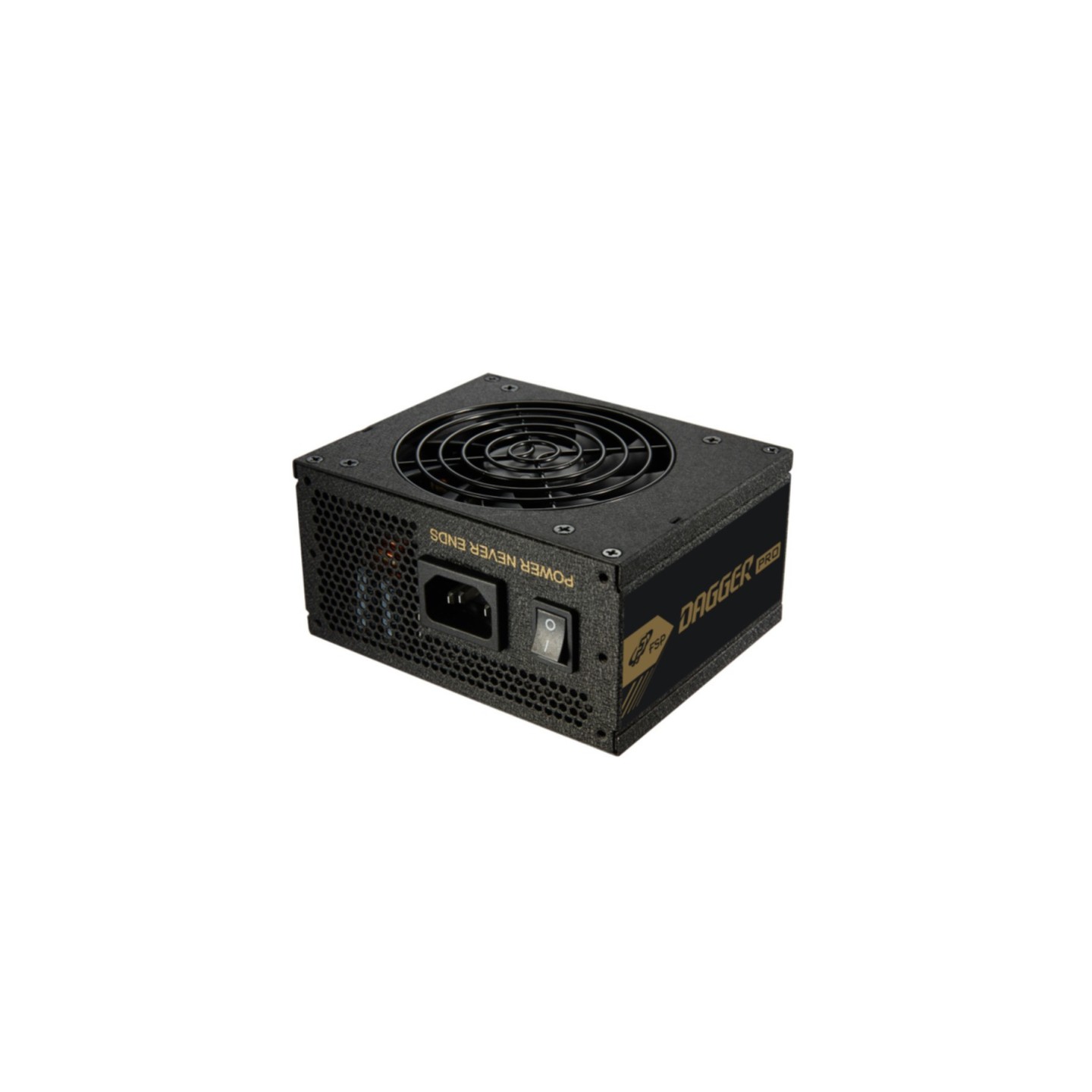

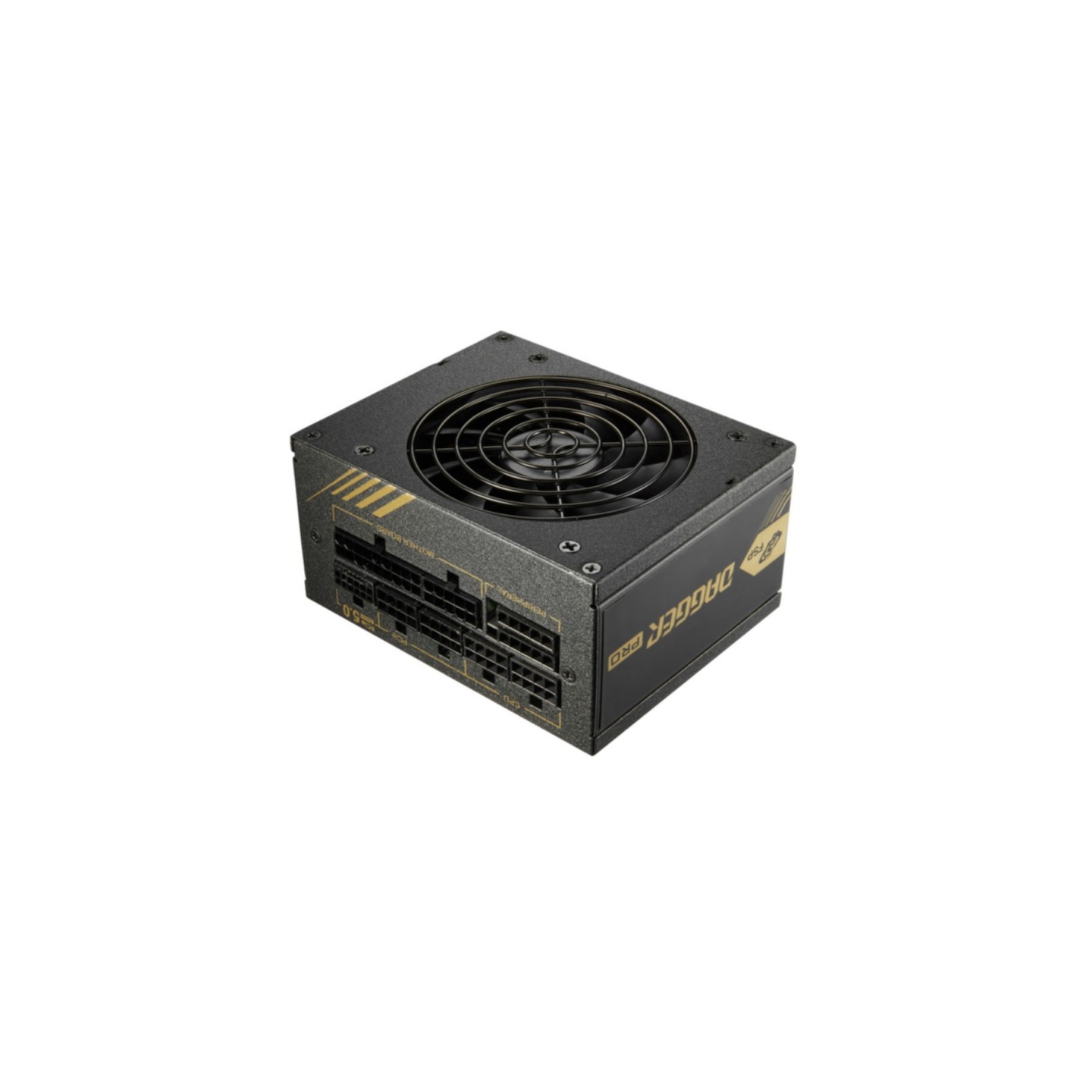

Fortron Dagger PRO 850W SFX Fully Modular 80+ Gold PSU (Boxed)
850W SFX fully modular PSU with 80+ Gold efficiency, Active PFC, compact form factor for small PC builds. Features 2x PCIe 6+2 pin and 1x 12+4 pin connectors.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PSU (Power Supplies) - Wattage | 800 - 899 W |
|---|---|
| PSU (Power Supplies) - Efficiency Rating | 80 Plus Gold |
| PSU (Power Supplies) - Color | Black |
| PSU (Power Supplies) - Modularity | Fully modular |
| PSU (Power Supplies) - PCIe GPU Connectors | 2x 8/6 pins |
| PSU (Power Supplies) - Length | Up to 140 mm |
| PSU (Power Supplies) - EPS CPU Connectors | 1x 4+4pin EPS/ATX12V |
The Fortron Dagger PRO 850W is a high-efficiency SFX form factor power supply designed for compact PC builds and small form factor systems. Manufactured by Fortron Source Corporation, a U.S.-based leader in power conversion solutions since 1983, this unit delivers 850W of reliable power with 80+ Gold certification, ensuring 90% efficiency and reduced energy consumption. The fully modular cable design allows builders to use only the cables they need, minimizing clutter and improving airflow in space-constrained builds.
This PSU features Active Power Factor Correction (PFC) for stable operation across 100-240V AC input, comprehensive protection systems including overcurrent, overvoltage, overheating, and short-circuit protection. The single 92mm ball-bearing fan with active cooling maintains optimal temperatures during extended use. With its compact dimensions (100mm W x 125mm D x 63.5mm H), the Dagger PRO 850W is ideal for Mini-ITX and SFF (Small Form Factor) gaming PCs, workstations, and compact server builds.
Key Features:
- 850W continuous power output with 80+ Gold efficiency rating (90%)
- SFX form factor - compact 100 x 125 x 63.5mm footprint

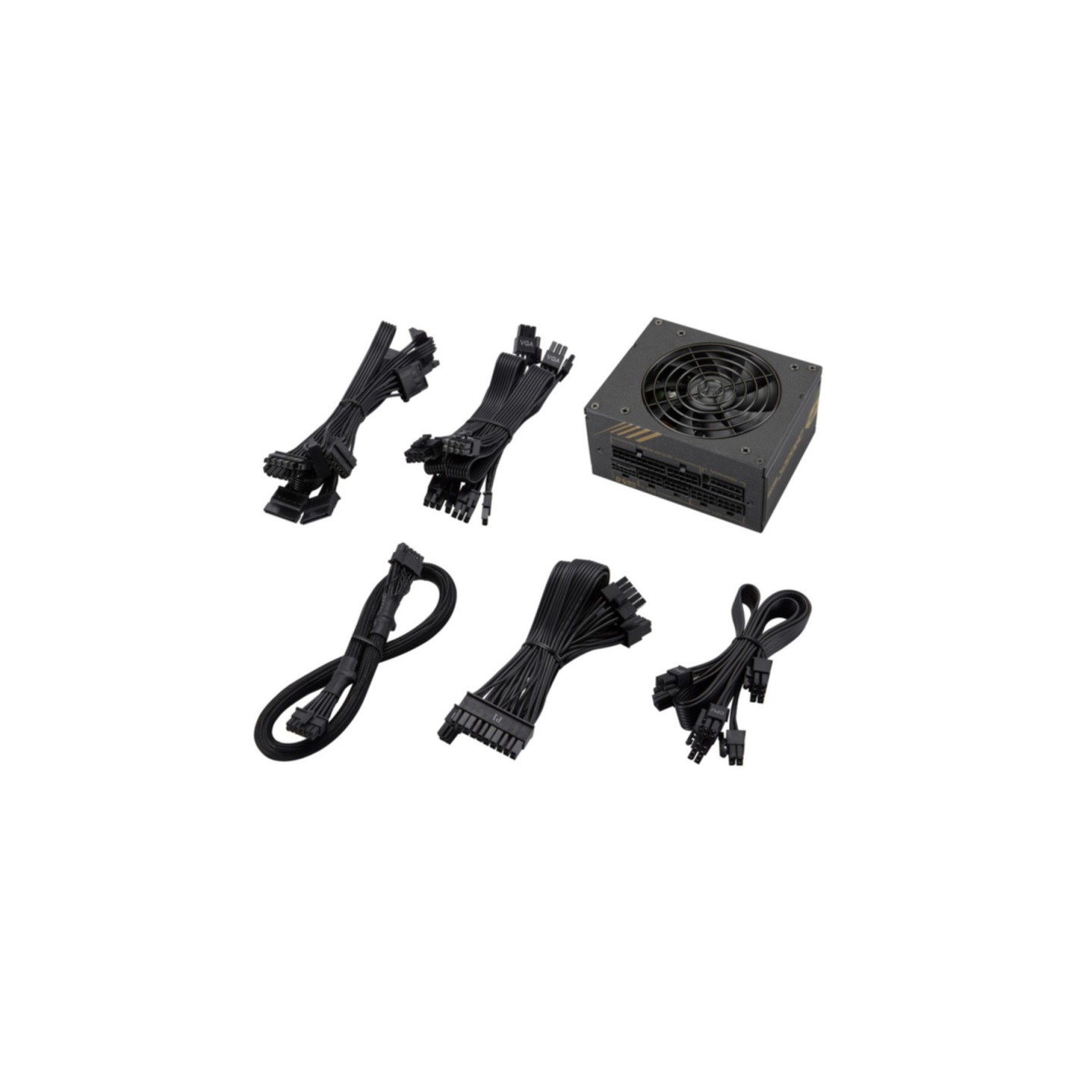

- Fully modular cabling system for clean builds
- Active PFC for universal voltage compatibility (100-240V, 50/60Hz)
- PCIe connectors: 2x 6+2 pin + 1x 12+4 pin for GPU power
- 1x 4+4 pin EPS CPU connector for processor power
- 6x SATA connectors and 2x Molex (4-pin) connectors
- 20+4 pin ATX motherboard connector with 35cm cable
- Multiple protection features: OCP, OPP, OVP, OHP, SCP
- Ball bearing fan with active cooling
- ATX 3.0 compliant design
| Total Power Output | 850 W |
| Form Factor | SFX |
| Efficiency Rating | 80+ Gold (90%) |
| AC Input Voltage | 100 - 240 V |
| AC Input Frequency | 50/60 Hz |
| Input Current | 12-6 A |
| Power Factor Correction | Active PFC |
| Modularity | Fully Modular |
| ATX Version | 3.0 |

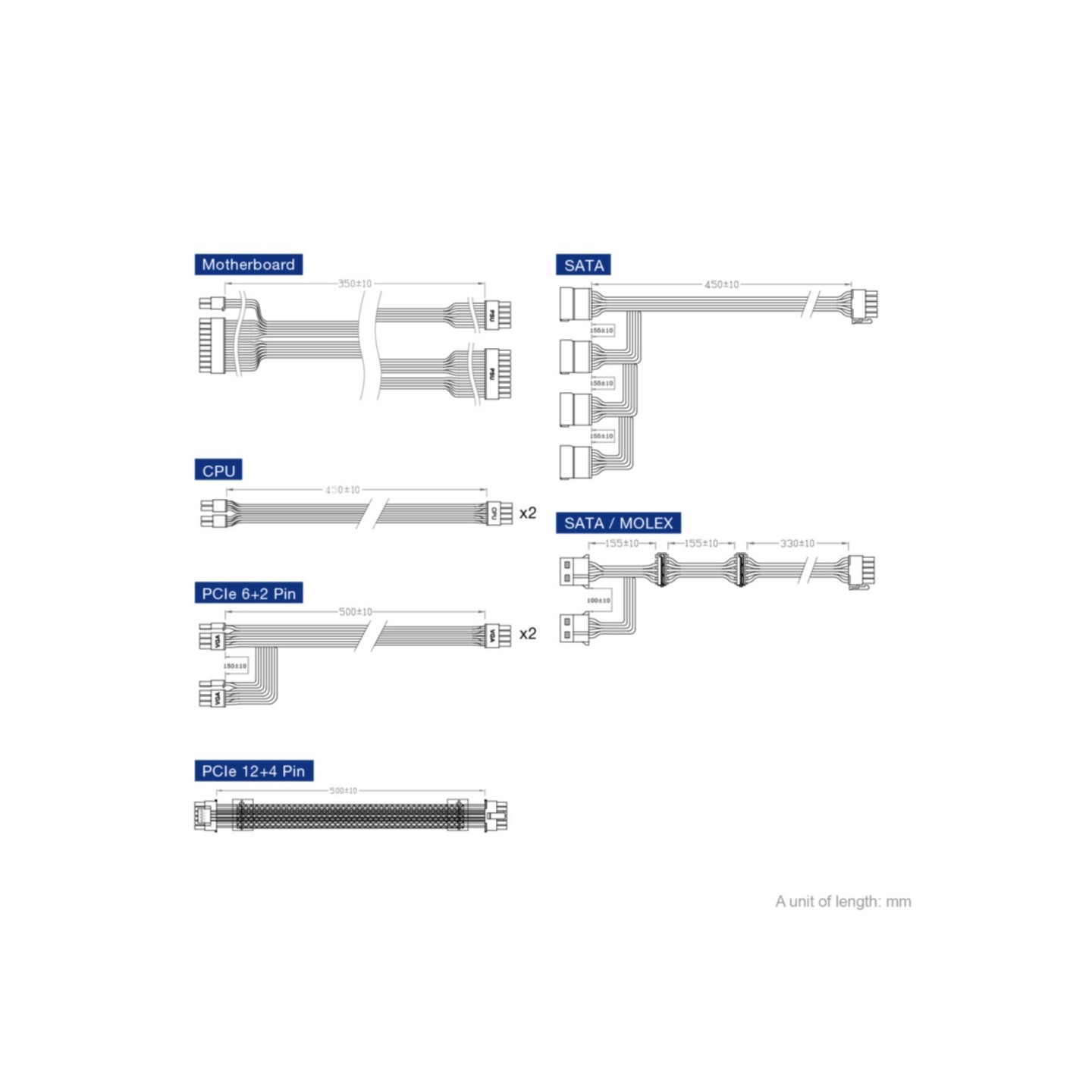

| Motherboard Power Connector | 20+4 pin ATX |
| Motherboard Power Cable Length | 35 cm |
| CPU Power Connector | 1x 4+4 pin EPS/ATX12V |
| CPU Power Cable Length | 45 cm |
| PCIe GPU Connectors | 2x 6+2 pin + 1x 12+4 pin |
| PCIe 12+4 Pin Cable Length | 500 mm |
| SATA Power Connectors | 6 |
| SATA Power Cable Length | 450 mm |
| Molex (4-pin) Connectors | 2 |
| +3.3V Rail Max Current | 20 A |
| +5V Rail Max Current | 20 A |
| +12V Rail Max Current | 70.83 A |
| -12V Rail Max Current | 0.3 A |
| +5Vsb Rail Max Current | 2.5 A |
| +3.3V Combined Power | 120 W |
| +5V Combined Power | 120 W |
| +12V Combined Power | 850 W |
| -12V Combined Power | 3.6 W |
| +5Vsb Combined Power | 12.5 W |
| Protection Features | Overcurrent (OCP), Overpower (OPP), Overvoltage (OVP), Overheating (OHP), Short Circuit (SCP) |
| Cooling Type | Active |
| Fan Type | Ball Bearing |
| Fan Diameter | 92 mm |
| Number of Fans | 1 |
| Fan Location | Top |
| On/Off Switch | Yes |
| Cabling Included | CPU, PCIe, Peripheral (Molex), SATA |
| Color | Black |
| Width | 100 mm |
| Depth | 125 mm |
| Height | 63.5 mm |
| Manufacturer | Fortron Source Corporation |
| Manufacturer Country | USA (Designed & Engineered) |
| Manufacturing Location | China (Shenzhen, Kunshan) and USA (Fremont, California) |
