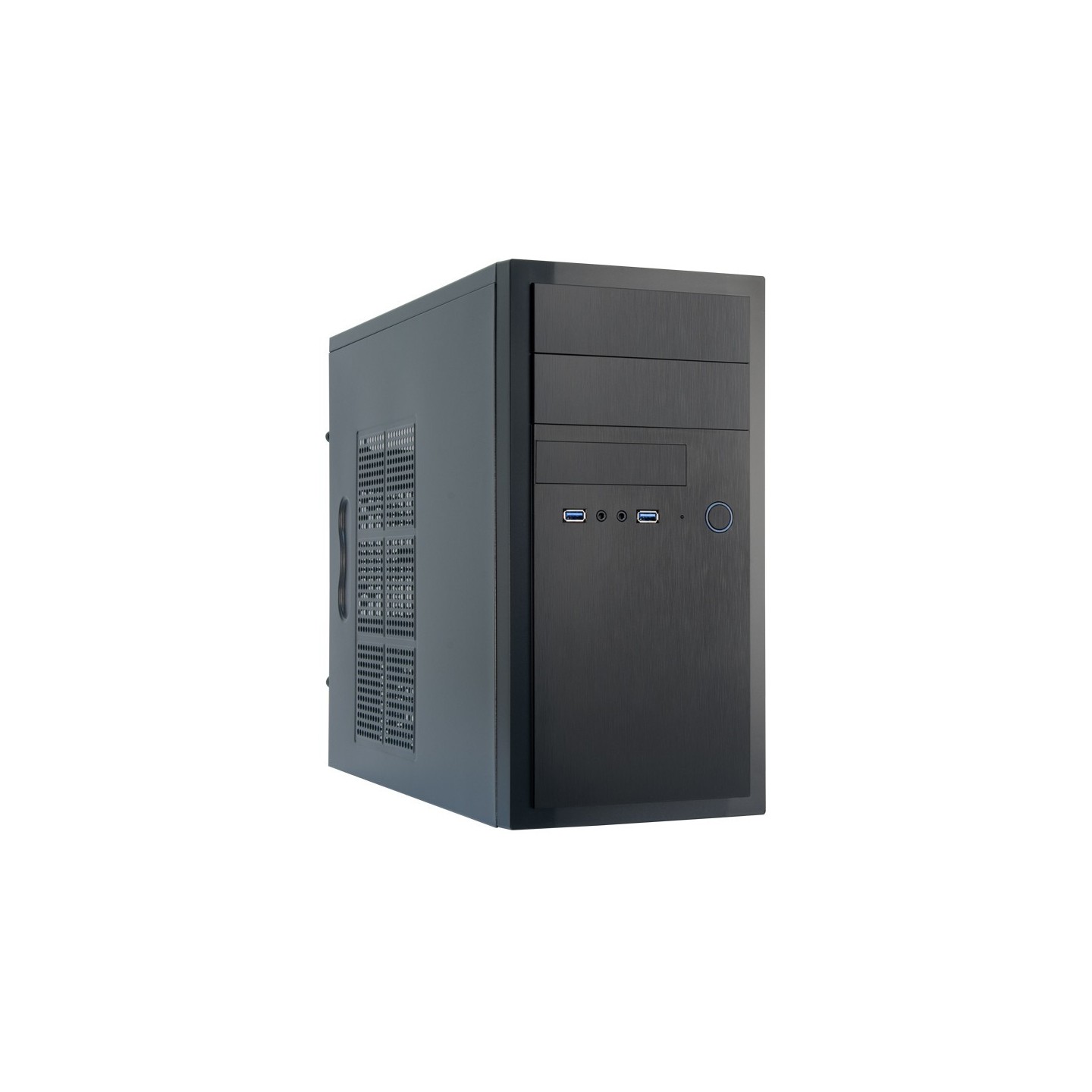

Chieftec Elox HT-01B-OP Mini Tower Case - Black (Boxed)
Compact black Chieftec Elox HT-01B-OP Mini Tower chassis supporting Mini ITX and mATX motherboards. Features 2x USB 3.0 front ports, tool-free installation, and supports graphics cards up to 340mm.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PC Cases - Motherboard Support | Micro ATX Mini ITX |
|---|---|
| PC Cases - Radiator Support | None |
| PC Cases - Included Fans | 0 |
| PC Cases - Front I/O | Audio Jacks USB A |
| PC Cases - Form Factor | Mini Tower |
| PC Cases - Max GPU Length | 331–360 mm |
| PC Cases - Color | Black |
| PC Cases - CPU Cooler Clearance | 151-165 mm |
The Chieftec Elox HT-01B-OP is a space-saving Mini Tower chassis designed for compact builds with Mini ITX and mATX motherboards. This black aluminum case features a modern hair-line design front panel that blends seamlessly into both home and office environments. The compact footprint (425mm x 180mm x 352mm) makes it ideal for users seeking a balance between functionality and desk space efficiency.
Equipped with ergonomically positioned front interfaces, the case includes 2x USB 3.0 ports (USB 3.1 Gen 1) supporting 5 GBit/s data transfers, along with audio-out (AZALIA/HD-Audio) and microphone-in connectivity. The tool-free installation design simplifies component integration, while the case supports graphics cards up to 340mm in length and CPU coolers up to 140mm in height. Internal storage options include 2x 3.5" and 1x 2.5" drive bays, with 2x 5.25" and 1x 3.5" external bays for optical drives and additional storage.
Built with 0.5mm SECC steel material and featuring 4 expansion slots, this chassis provides adequate connectivity and upgrade potential for mainstream computing needs. The case comes with a 24-month warranty and includes mounting hardware (screws, motherboard standoffs, and knurled screws).
- Supports Mini ITX and mATX motherboards
- 2x USB 3.0 front ports with 5 GBit/s transfer speed
- Maximum GPU length: 340mm
- Maximum CPU cooler height: 140mm
- Tool-free installation design
- 4 expansion slots for upgrades
- Compact dimensions: 425 x 180 x 352mm
| Model | HT-01B-OP |
| EAN Code | 4710713237254 |
| Color | Black |
| Material | 0.5mm SECC |
| Form Factor | Mini Tower |
| Motherboard Support | Mini ITX, mATX |
| Dimensions (DxWxH) | 425mm x 180mm x 352mm (Stand +3mm) |
| Weight (without/with package) | 4.72kg / 5.32kg |
| Drive Bay External | 2x 5.25 |
| Drive Bay Internal | 2x 3.5 |
| Power Supply | Optional (not included) |
| Front I/O | 2x USB 3.0 (USB 3.1 Gen 1), Audio-out (AZALIA / HD-Audio), Mic-in |
| Expansion Slots | 4 |
| Cooling Compatibility | Rear: 1x 80mm or 90mm or 120mm |
| CPU Cooler Height (max.) | 140mm |
| VGA Card Length (max.) | 340mm |
| Warranty | 24 Months |
| Included Fans | 0 |
| Tool-Free Installation | Yes (HDD, ODD) |
