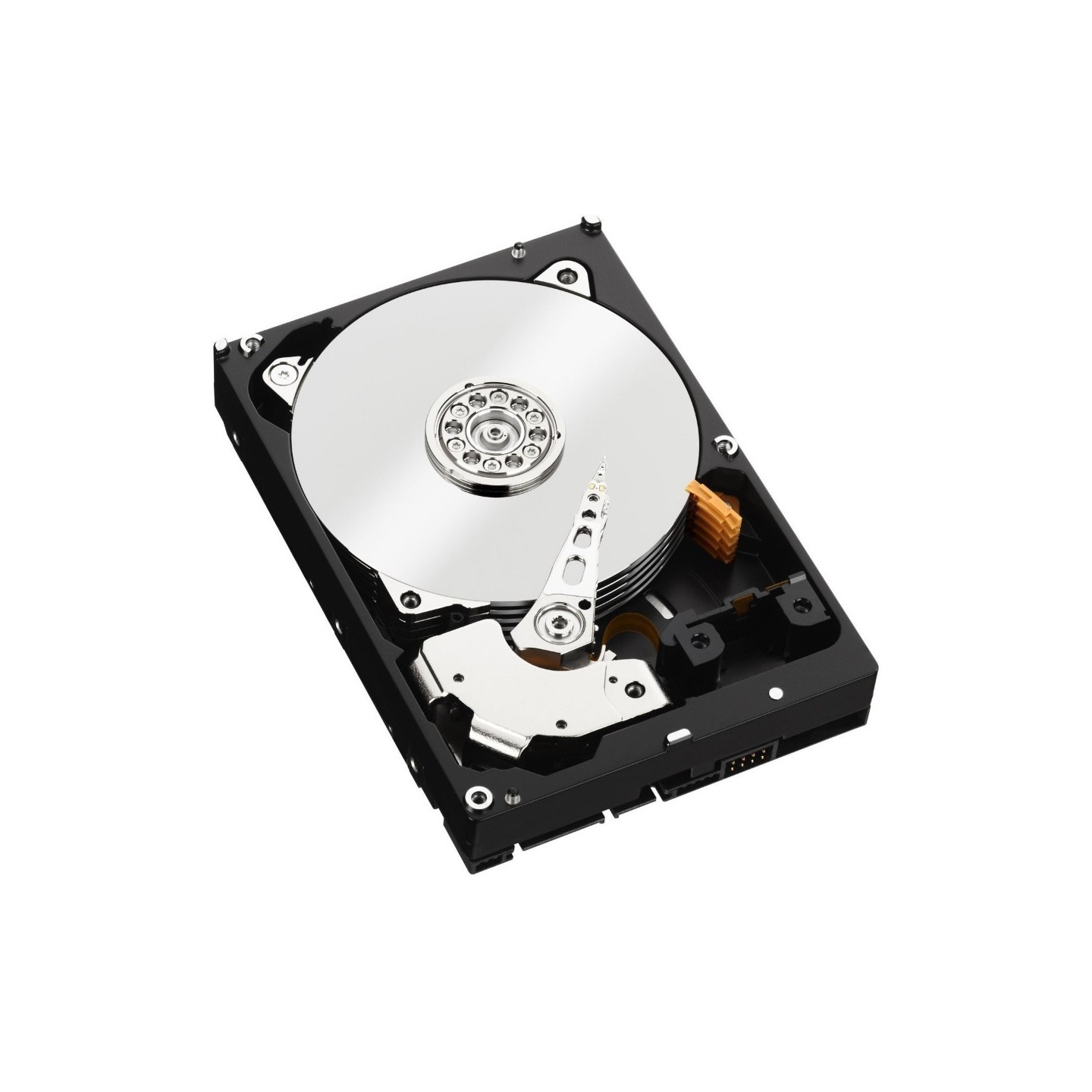

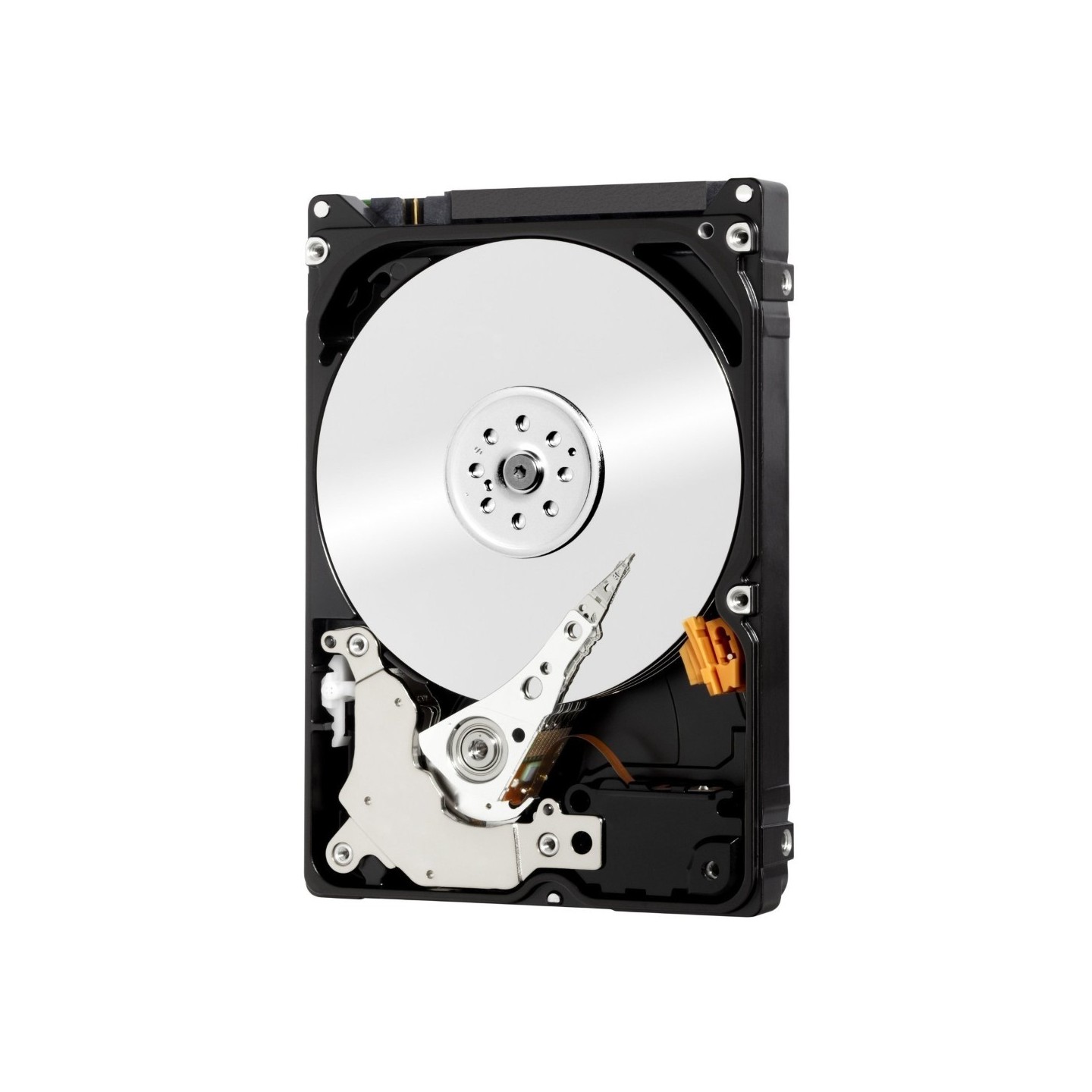

Western Digital Ultrastar DC HC570 22TB - 7200 RPM 512MB SAS 12Gb/s Enterprise HDD - WUH722222AL5204 (Bulk)
The Western Digital Ultrastar DC HC570 22TB (WUH722222AL5204) is a high-capacity enterprise HDD designed for cloud-scale storage. Featuring OptiNAND technology, a 10-disk HelioSeal design, and a SAS 12Gb/s interface, it delivers reliable 7200 RPM performance for demanding data center workloads.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Storage (SSD & HDD) - Device Type | Internal HDD |
|---|---|
| Storage (SSD & HDD) - Capacity | 22TB |
| Storage (SSD & HDD) - RPM (HDD) | 7200 RPM |
| Storage (SSD & HDD) - Interface | SAS 12Gb/s |
| Storage (SSD & HDD) - Cache (HDD) | 512MB |
| Storage (SSD & HDD) - Heatsink (SSD) | Not Included |
| Storage (SSD & HDD) - Form Factor | 3.5 inch |
The Western Digital Ultrastar DC HC570 22TB Enterprise HDD is engineered to meet the explosive demand for storage in modern cloud and hyperscale data centers. Built on a proven 10-disk helium-sealed platform (HelioSeal), this drive integrates Western Digital's innovative OptiNAND technology to deliver massive capacity with improved performance and resiliency. It is specifically designed for massive scale-out (MSO) environments, big data analytics, and distributed file systems where density and power efficiency are critical.
Delivering consistent enterprise-class performance, the DC HC570 operates at 7200 RPM with a large 512MB cache and a SAS 12Gb/s interface, achieving sustained transfer rates of up to 291 MB/s. It incorporates Energy-Assisted Magnetic Recording (ePMR) and a Triple Stage Actuator (TSA) for precise data accuracy. With a robust workload rating of up to 550TB per year and a 2.5 million hour MTBF, this drive ensures 24/7 reliability for mission-critical infrastructure.
- Massive Capacity: 22TB of storage utilizing OptiNAND and 10-disk HelioSeal technology.
- High Performance: 7200 RPM spindle speed with a 512MB buffer for efficient data access.
- Enterprise Interface: SAS 12Gb/s connection for high-throughput data center integration.
- Advanced Reliability: Rated for a 550TB/year workload and 2.5 million hours MTBF.
- Data Protection: Features ArmorCache technology for write cache data safety during power loss events.
| HDD capacity | 22 TB |
| HDD speed | 7200 RPM |
| Interface | SAS 12Gb/s |
| Storage drive buffer size | 512 MB |
| Form factor | 3.5 inch |
| Transfer rate (sustained) | 291 MB/s |
| Format | 512e / 4Kn |
| Mean time between failures (MTBF) | 2500000 h |
| Workload rate limit | 550 TB/year |
| Average latency | 4.16 ms |
| Technology | OptiNAND, HelioSeal, ePMR |
| Power consumption (operating) | 9.6 W |
| Power consumption (idle) | 6.0 W |
| Operating temperature | 5 - 60 °C |
| Width | 101.6 mm |
| Height | 26.1 mm |
| Depth | 147 mm |
| Weight | 670 g |
