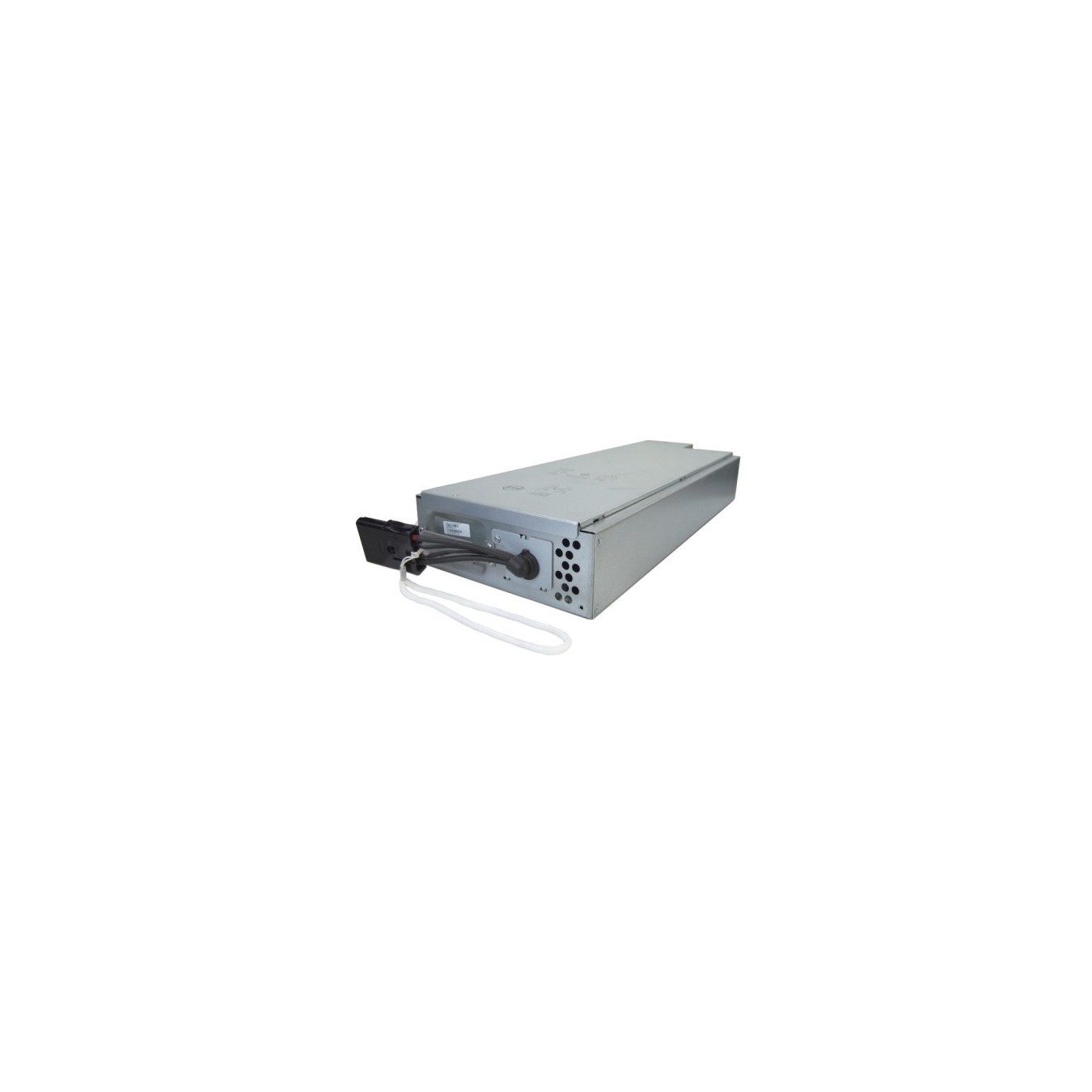

APC Replacement Battery Cartridge APCRBC117 - 120V 5Ah UPS RBC117 (Boxed)
Genuine APC APCRBC117 replacement battery cartridge for Smart-UPS systems. Contains 10x 12V 5Ah sealed lead-acid batteries (120V total). User-replaceable, hot-swappable module with 2-year warranty. Ensures optimal UPS performance.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| UPS & Power Backup - Product Type | Replacement Battery |
|---|---|
| UPS & Power Backup - Special Features | Hot Swappable Battery |
The APC APCRBC117 is a genuine replacement battery cartridge designed for select APC Smart-UPS models, such as SMX2000RMLV2U and SMX2200RMHV2U. This internal, user-replaceable module contains ten 12V 5Ah sealed lead-acid (SLA) batteries connected in series, providing a total output voltage of 120V and 600VAh capacity. It restores full UPS performance and runtime during power outages.
Fully spill-proof and maintenance-free, the APCRBC117 features hot-swappable design for easy installation without powering down the UPS. APC rigorously tests these cartridges to meet original specifications, backed by a 2-year repair-or-replace warranty. Expected battery life is 3-5 years under normal conditions.
- ✅ Contains 10x 12V 5Ah high-rate discharge AGM batteries
- ✅ Hot-swappable and user-installable
- ✅ RoHS compliant, safe for air/ground transport
- ✅ Includes installation guide and recycling instructions
- ✅ 2-year APC warranty
| Battery Type | Sealed Lead Acid (SLA) / VRLA |
| Battery Configuration | 10 x 12V 5Ah batteries in series |
| Total Voltage | 120 V |
| Capacity | 5 Ah (per battery) / 600 VAh total |
| Battery Life | 3-5 years |
| Hot Swappable | Yes |
| Warranty | 2 years repair-or-replace |
| Dimensions (Product) | Width: 8.0 in (20.3 cm), Height: 3.0 in (7.6 cm), Depth: 23.0 in (58.4 cm) |
| Weight (Product) | 49.16 lbs (22.3 kg) |
| Shipping Dimensions | 15.5 x 9 x 30 in (39.4 x 22.9 x 76.2 cm) |
| Shipping Weight | 55.56 lbs (25.2 kg) |
| Operating Temperature | 32-104°F (0-40°C) |
