be quiet! Pure Base 501 DX White Mid-Tower ATX PC Case (Boxed)
Compact white mid-tower ATX case with three pre-installed 140mm fans, tempered glass side panel, USB 3.2 Gen 2 Type-C, and support for radiators up to 360mm for quiet, high-performance PC builds.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PC Cases - Motherboard Support | ATX Micro ATX Mini ITX |
|---|---|
| PC Cases - Radiator Support | 120 mm 140 mm 240 mm 360 mm |
| PC Cases - Included Fans | 3 |
| PC Cases - Front I/O | Audio Jacks USB C Gen2 |
| PC Cases - GPU Orientation | Vertical Supported |
| PC Cases - Form Factor | Mid Tower |
| PC Cases - Max GPU Length | 331–360 mm |
| PC Cases - Color | White |
| PC Cases - CPU Cooler Clearance | 170+ mm |

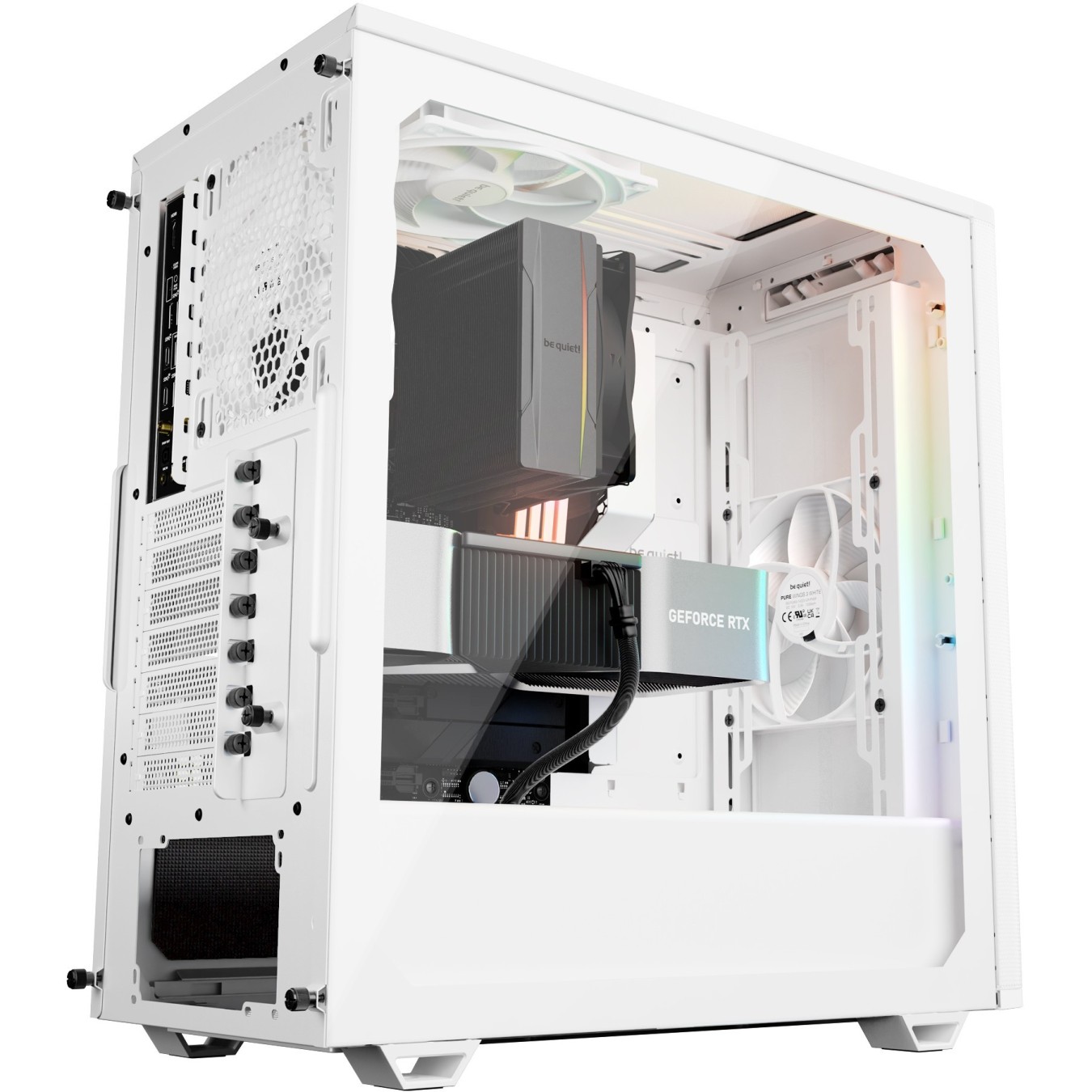

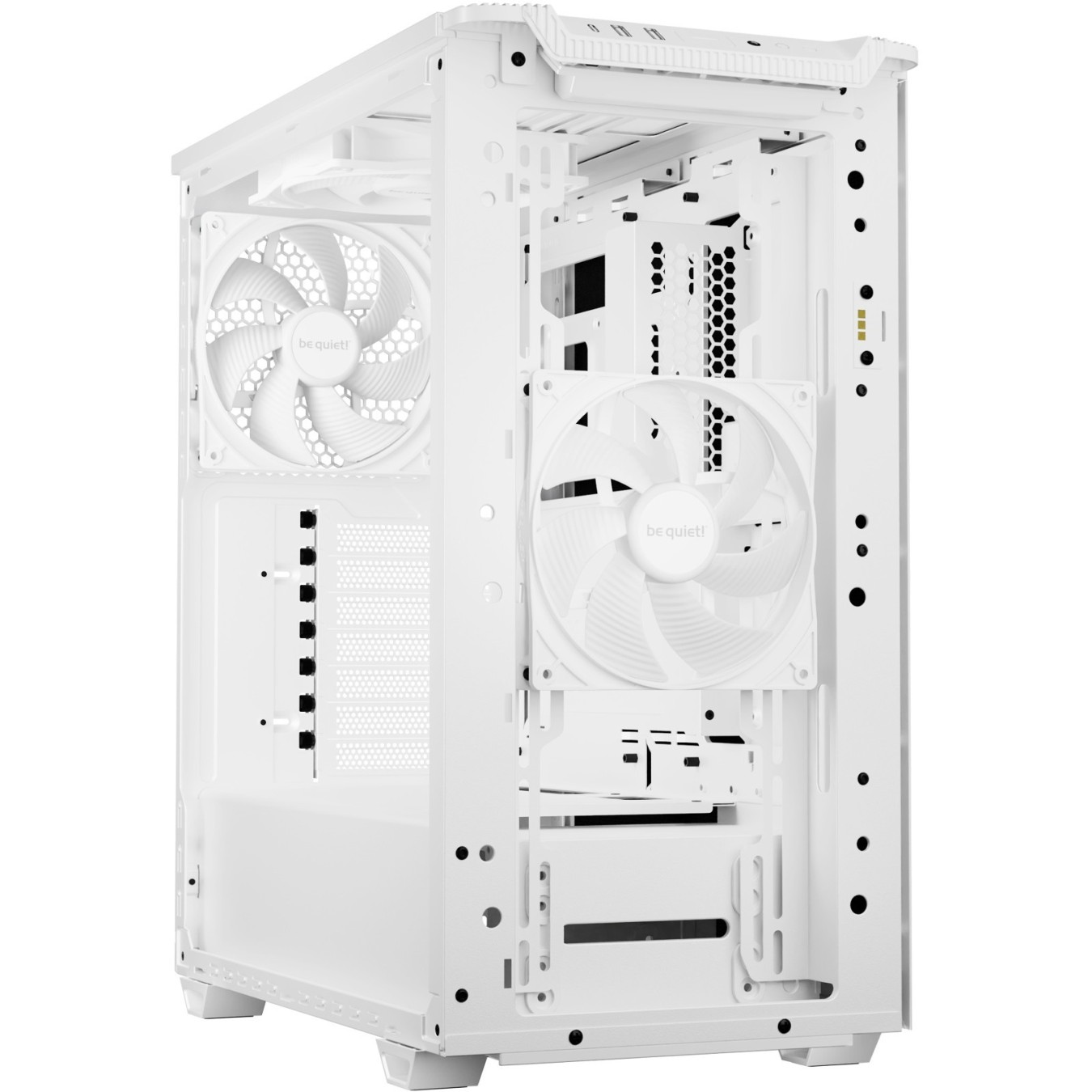

The be quiet! Pure Base 501 DX is a compact mid-tower ATX case designed for builders seeking a balance between performance and quiet operation. Despite its modest footprint of 450x231x463mm, it accommodates high-end components including graphics cards up to 368mm and CPU coolers up to 178mm. The case comes pre-installed with three Pure Wings 3 140mm PWM fans positioned at the front, top, and rear for optimized airflow and pressure balance.

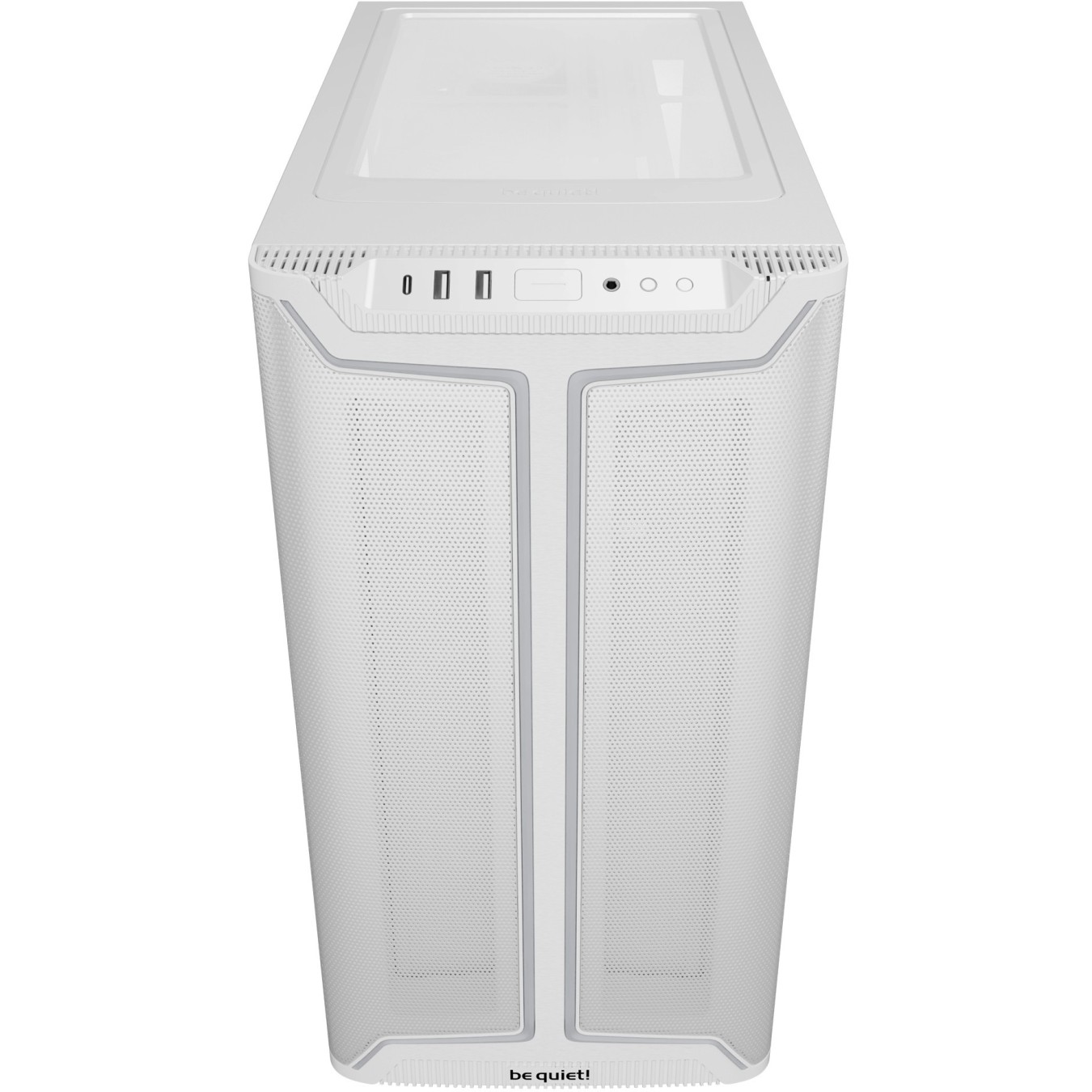

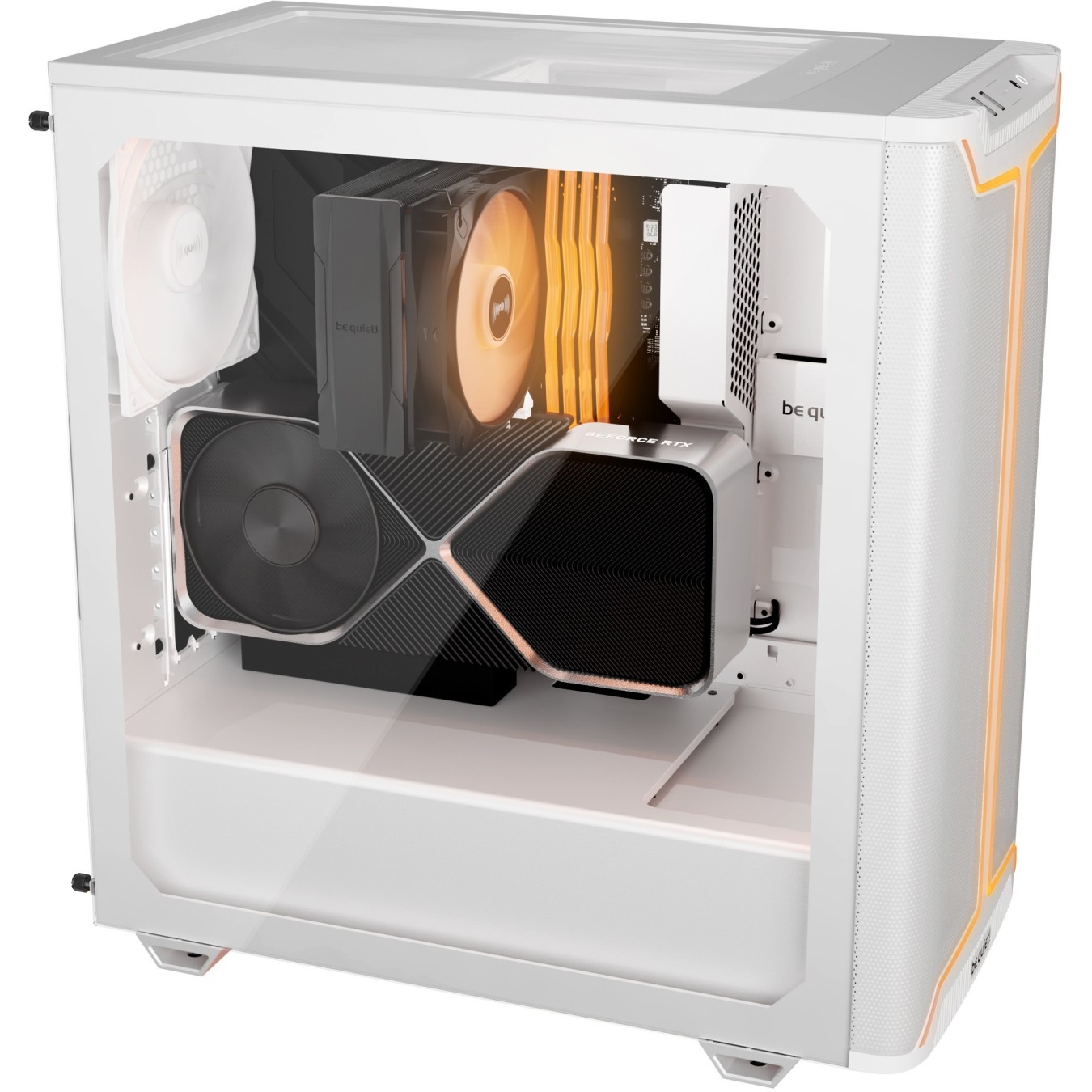

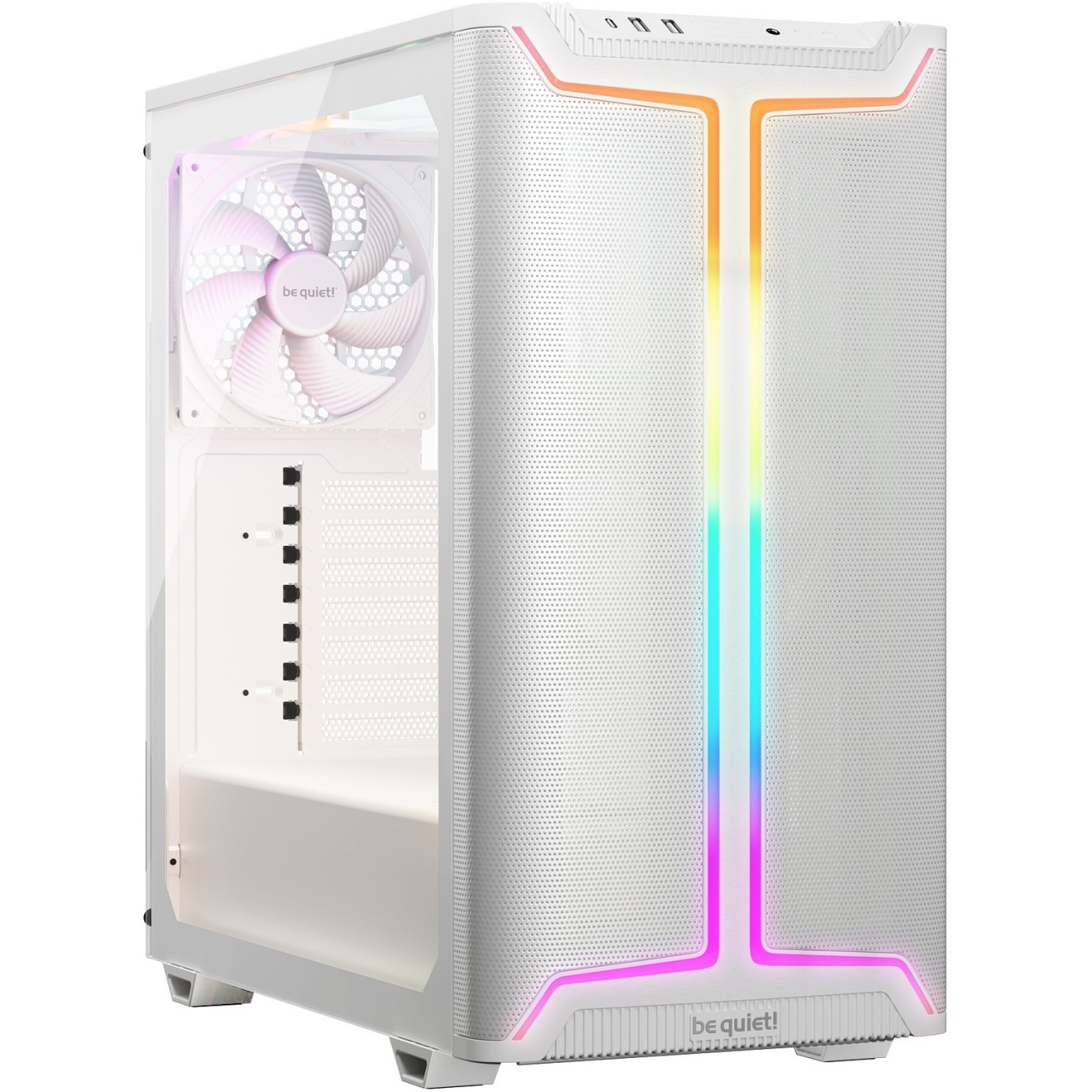

The case features a tempered glass side panel for showcasing internal components, ARGB LED lighting along the front and top edges, and USB 3.2 Gen 2 Type-C connectivity on the front I/O panel alongside audio output. It supports multiple motherboard form factors (ATX, Micro-ATX, Mini-ITX) and offers extensive cooling flexibility with radiator support up to 360mm on the front, 240mm on top, and 140mm on the rear. The case includes 7 expansion slots, 2x 3.5" drive bays, and 5x 2.5" drive bays, accommodating both traditional and modern storage configurations.
Key specifications and features:
- Dimensions: 450 x 231 x 463 mm (39.2L volume)
- Weight: 7.9 kg (net), 9.2 kg (boxed)
- Motherboard Support: ATX, Micro-ATX, Mini-ITX
- Max GPU Length: 368 mm
- Max CPU Cooler Height: 178 mm
- Max PSU Length: 200 mm
- Pre-installed Fans: 3x Pure Wings 3 140mm PWM (57.4 CFM, 21.9 dB at full speed)
- Radiator Support: Front 360mm, Top 240mm, Rear 140mm
- Drive Bays: 2x 3.5", 5x 2.5"
- Front I/O: USB 3.2 Gen 2 Type-C, Audio output
- Materials: ABS, Steel, Tempered Glass
- Warranty: 3 Years
| Type | ATX Mid-Tower |
| Color | White |
| Dimensions (L x W x H) | 450 x 231 x 463 mm |
| Volume | 39.2 L |
| Net Weight | 7.9 kg |
| Boxed Weight | 9.2 kg |
| Materials | ABS, Steel, Tempered Glass |
| Motherboard Support | ATX, Micro-ATX, Mini-ITX |
| Expansion Slots | 7 |
| 3.5 | 2 |
| 2.5 | 5 |
| 5.25 | 0 |
| Max GPU Length | 368 mm |
| Max CPU Cooler Height | 178 mm |
| Max PSU Length | 200 mm |
| PSU Form Factor | ATX PS/2 |
| Pre-installed Fans | 3x Pure Wings 3 140mm PWM (Front, Top, Rear) |
| Fan Speed (100% PWM) | 1200 RPM |
| Fan Airflow (100% PWM) | 57.4 CFM / 97.5 m³/h |
| Fan Noise Level (100% PWM) | 21.9 dB(A) |
| Fan Voltage Range | 5 - 13.2 V DC |
| Fan Power Consumption | 3.6 W |
| Fan Lifespan | 80,000 h @ 25°C |
| Maximum Fans Supported | 6 |
| Front Radiator Support | 120mm, 140mm, 240mm, 280mm, 360mm |
| Top Radiator Support | 120mm, 240mm |
| Rear Radiator Support | 120mm, 140mm |
| Front I/O Connectors | USB 3.2 Gen 2 Type-C, Audio output |
| Side Panel | Tempered Glass |
| Lighting | ARGB LED strips (front and top edges) |
| GPU Mounting | Horizontal (standard), Vertical (optional) |
| Warranty | 3 Years |
| Recommended Retail Price | €129.90 |
