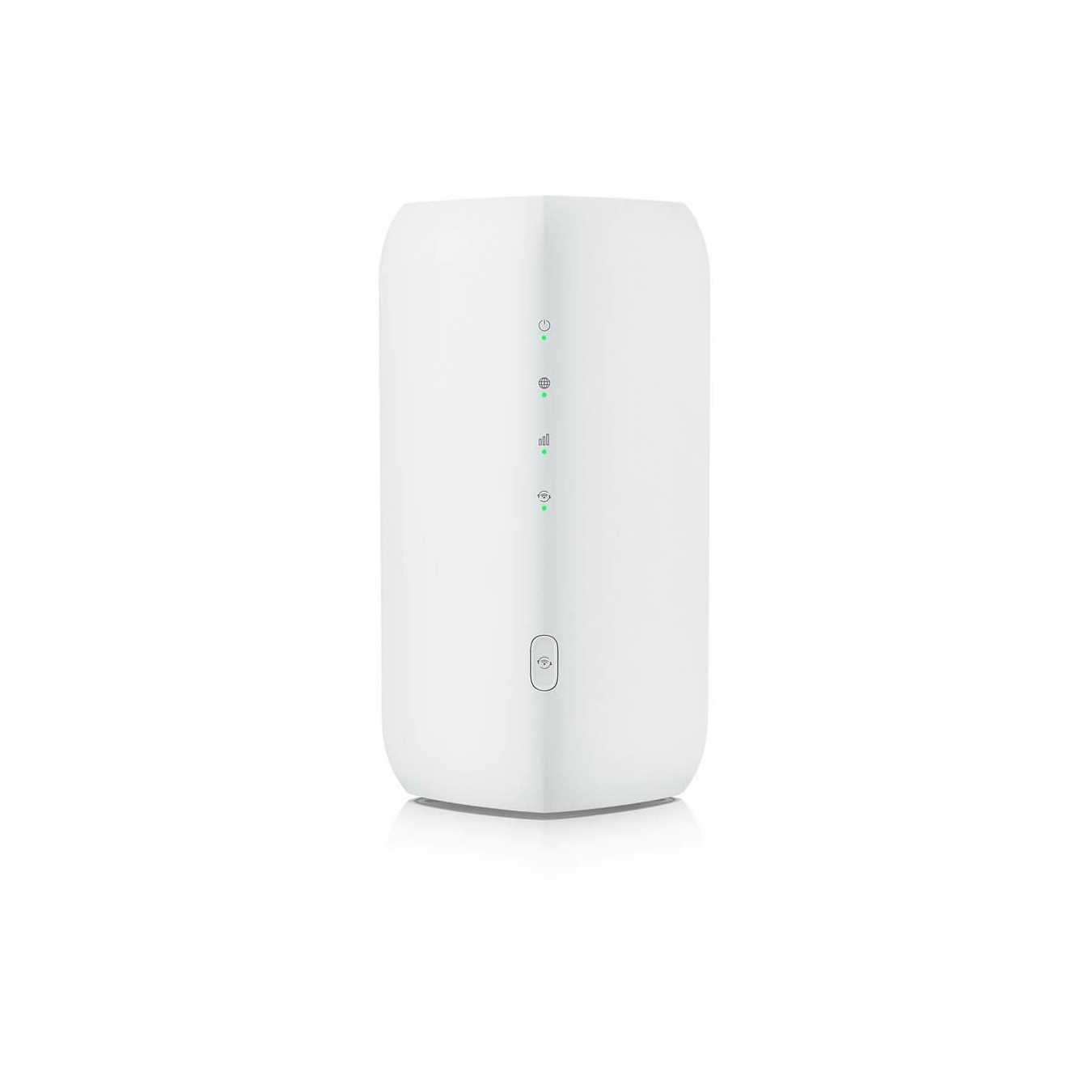

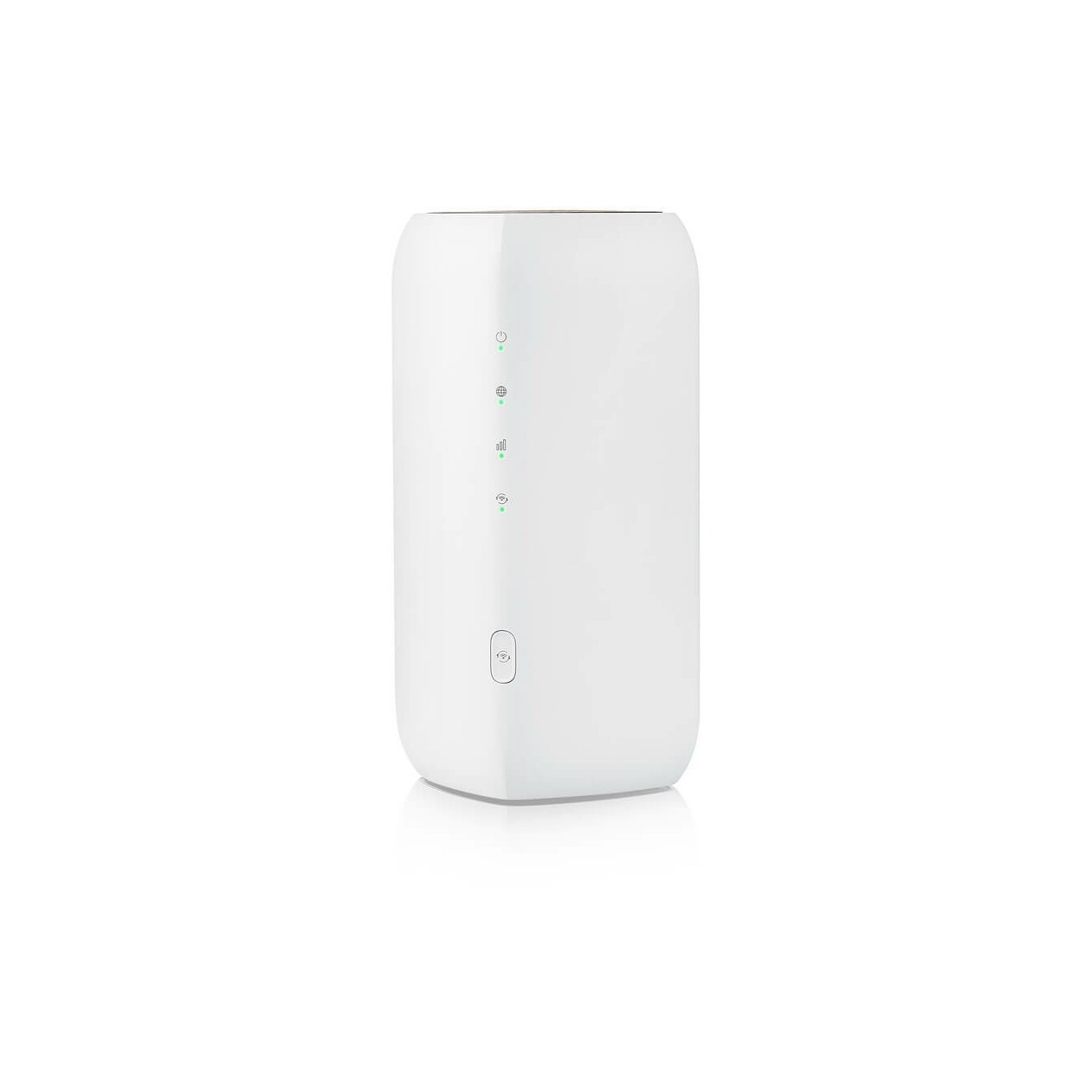

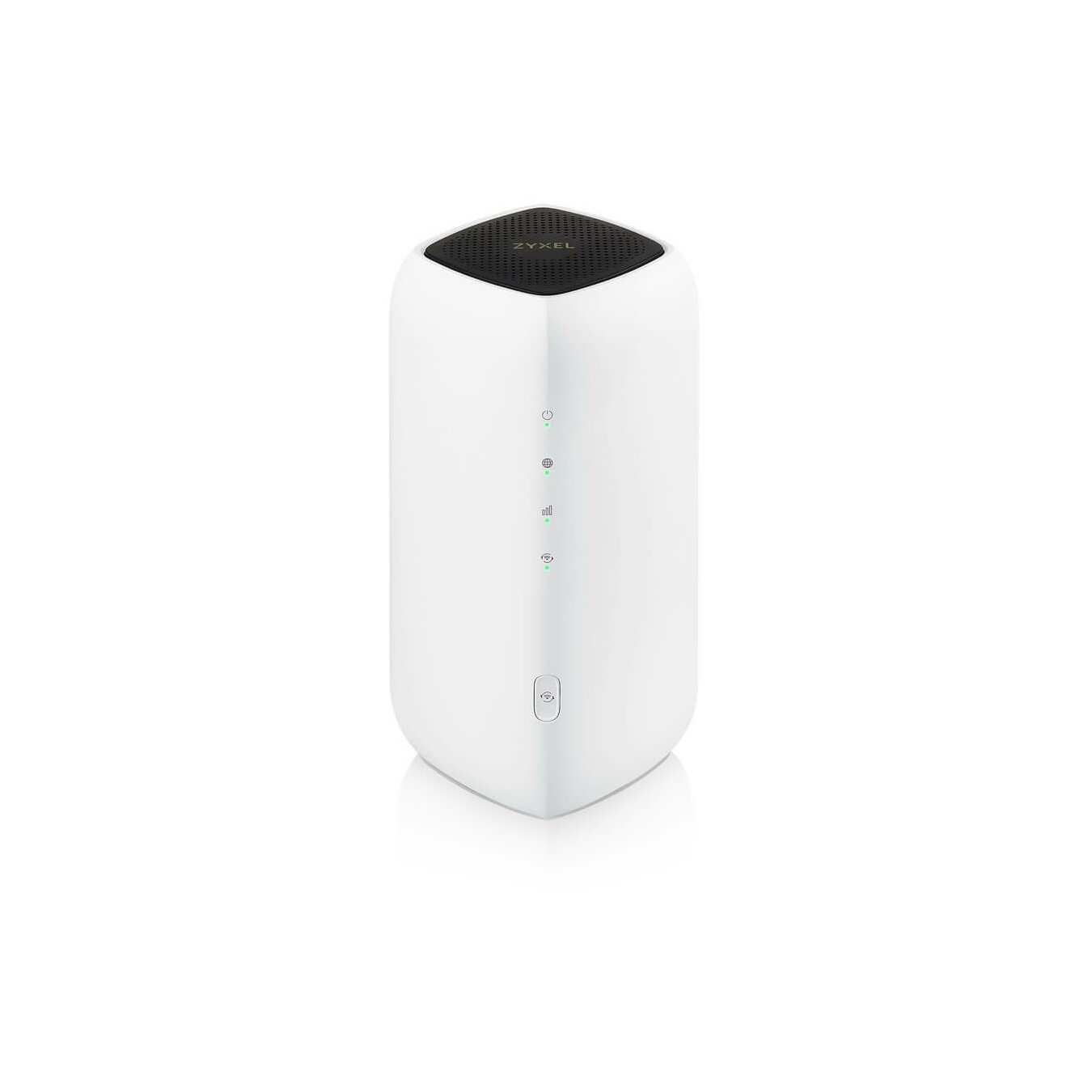

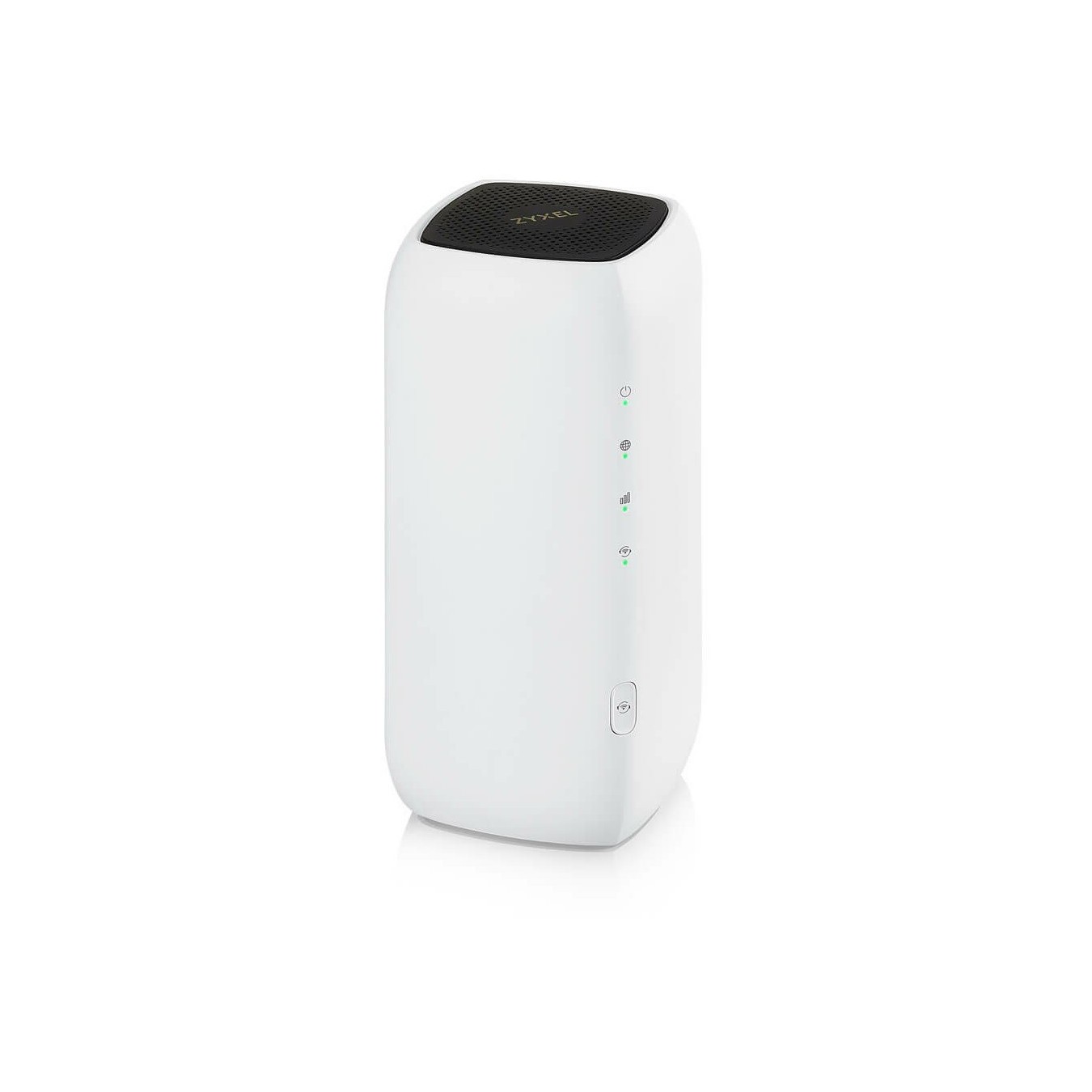

Zyxel FWA505 Indoor 5G NR Router - WiFi 6 AX1800, 2x GbE LAN (Boxed)
Zyxel FWA505 is a cloud-managed indoor 5G NR router with WiFi 6 AX1800 dual-band (2.4+5GHz), 2x Gigabit Ethernet ports (LAN/WAN failover), internal antennas. Supports 5G SA/NSA up to 4.7Gbps DL, ideal for home/SOHO with WPA3 security.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Routers - Device Type | Mobile 4G/5G Router |
|---|---|
| Routers - Special Features | Cloud Managed Failover Support Firewall WPA3 Security |
| Routers - LAN Ports | 2 |
| Routers - Wi-Fi Standard | Wi-Fi 6 (802.11ax) |
| Routers - Bands | Dual-band (2.4+5 GHz) |
The Zyxel FWA505 is a compact, cloud-managed 5G NR indoor router designed for reliable high-speed connectivity in homes, small offices, or temporary setups like construction sites. It combines 5G Sub-6 GHz support (NSA/SA modes) with WiFi 6 AX1800 technology, delivering up to 1.77 Gbps wireless speeds across dual-band 2.4 GHz and 5 GHz frequencies for up to 64 devices simultaneously.

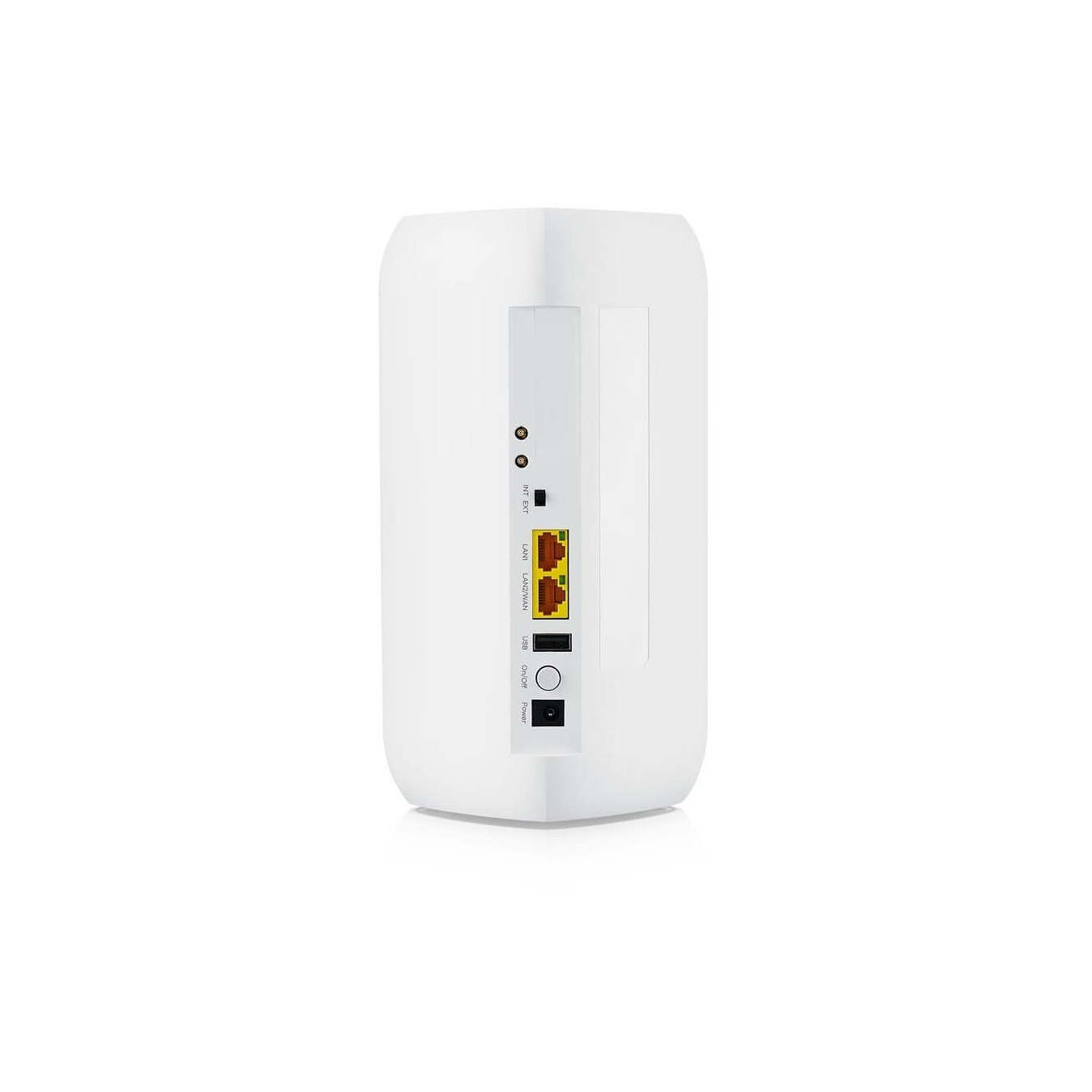

Featuring two Gigabit Ethernet RJ-45 ports (LAN2 configurable as WAN for failover), internal high-gain antennas (up to 5 dBi), and advanced security including WPA3, firewall, DoS protection, and Nebula cloud management for easy setup and monitoring. Power consumption peaks at 24W, with dimensions of 103 x 103 x 222 mm and weight of 1.15 kg (packaged: 2.45 kg).
- 5G NR: DL 4.7 Gbps (SA)/3.7 Gbps (NSA), UL up to 2.5 Gbps, FDD/TDD bands
- WiFi 6: 802.11ax, 2x2 MIMO dual-band concurrent
- Ethernet: 2x 1Gbps (LAN/WAN failover)
- Security: WPA3, NAT firewall, MAC/IP filtering
- Management: Nebula cloud app, standalone mode
| Device Type | Indoor 5G NR Router |
| 5G Standard | 3GPP Release 15, NSA/SA, Sub-6 GHz |
| 5G Data Rates | DL 4.7 Gbps (SA) / 3.7 Gbps (NSA); UL 2.5 Gbps (SA) / 1.5 Gbps (NSA) |
| 5G FDD Bands | n1/n3/n5/n7/n8/n20/n28/n77/n78 |
| 5G TDD Bands | n38/n40/n41 |
| LTE Bands | FDD: B1/B3/B5/B7/B8/B20/B28/B32; TDD: B38/B40/B41/B42/B43 |
| WiFi Standard | IEEE 802.11b/g/n/a/ac/ax (WiFi 6) |
| WiFi Speeds | AX1800: up to 1774 Mbps (DBDC) |
| WiFi Bands | Dual-band concurrent 2.4 GHz + 5 GHz (2x2 + 2x2) |
| Ethernet Ports | 2 x 100/1000 Mbps RJ-45 (LAN2 configurable as WAN) |
| Antenna Type | Internal antennas |
| Antenna Gain | <4 dBi (2.4 GHz), <5 dBi (5 GHz); max 5 dBi |
| Security | WPA2/WPA3, NAT/NAPT firewall, DoS detection, MAC/IP filtering, SPI |
| Management | Nebula cloud-managed or standalone |
| Power Consumption | 24 W (peak) |
| Dimensions (W x D x H) | 103 x 103 x 222 mm |
| Weight | 1.15 kg (device); 2.45 kg (packaged) |
| SIM Slots | 1 |
