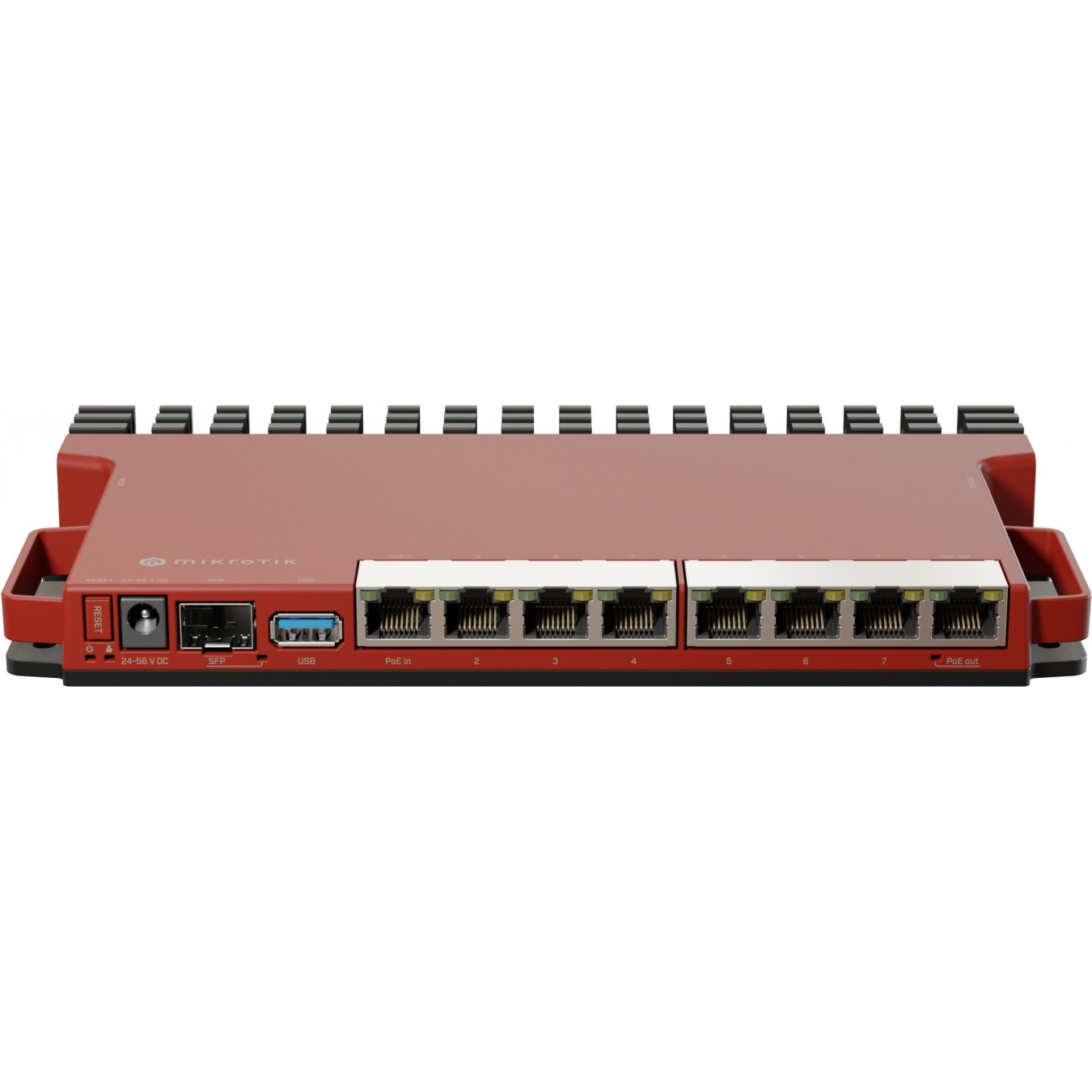

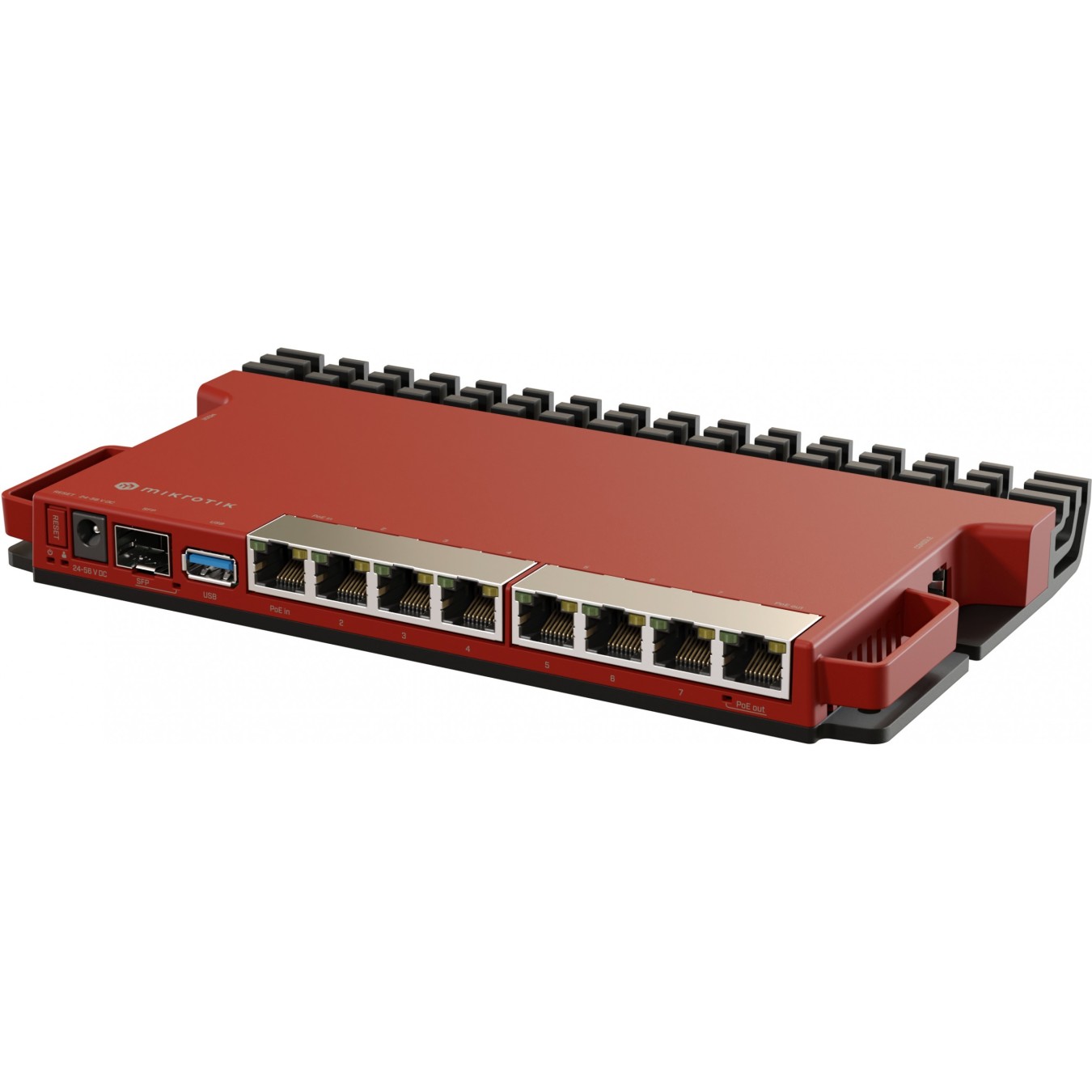

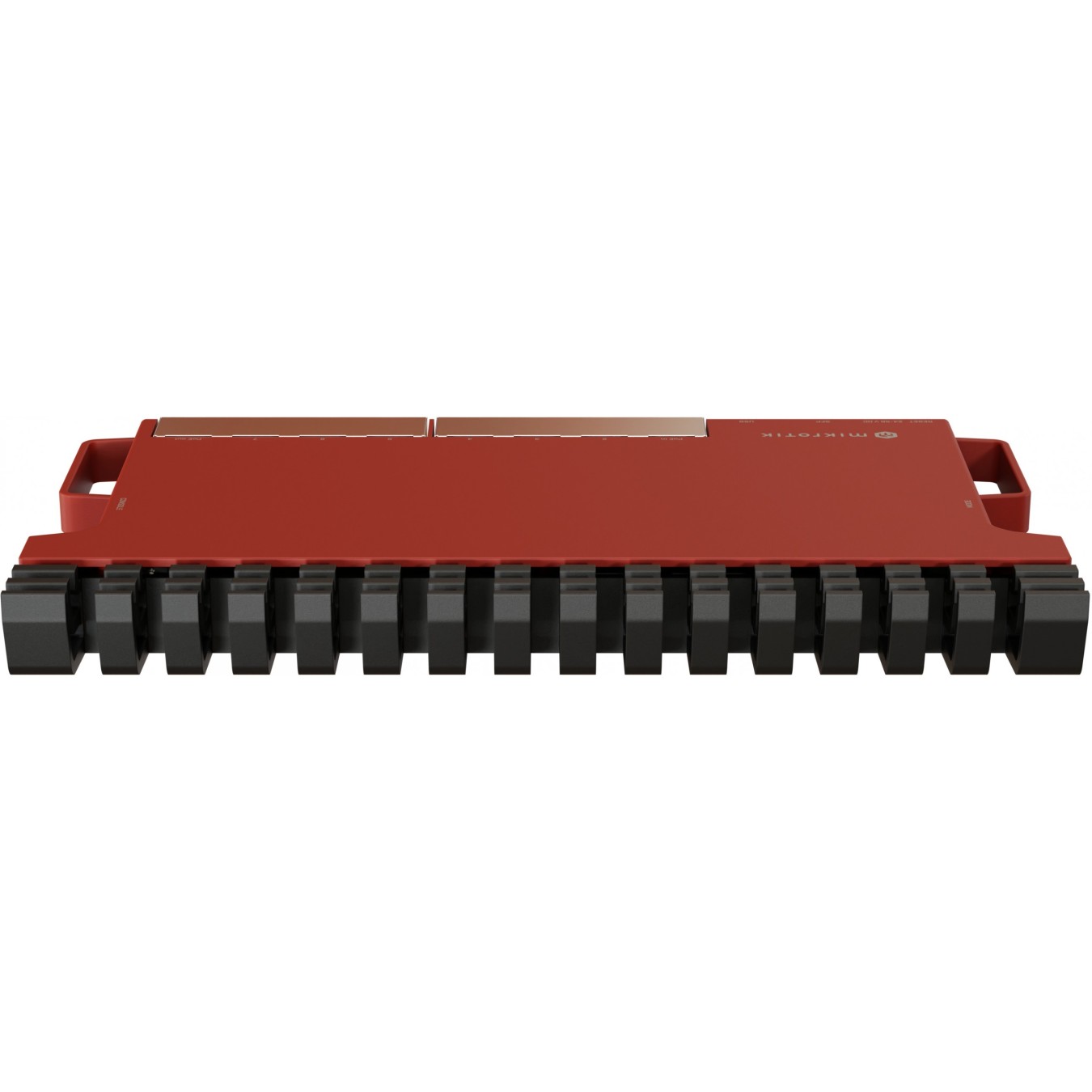

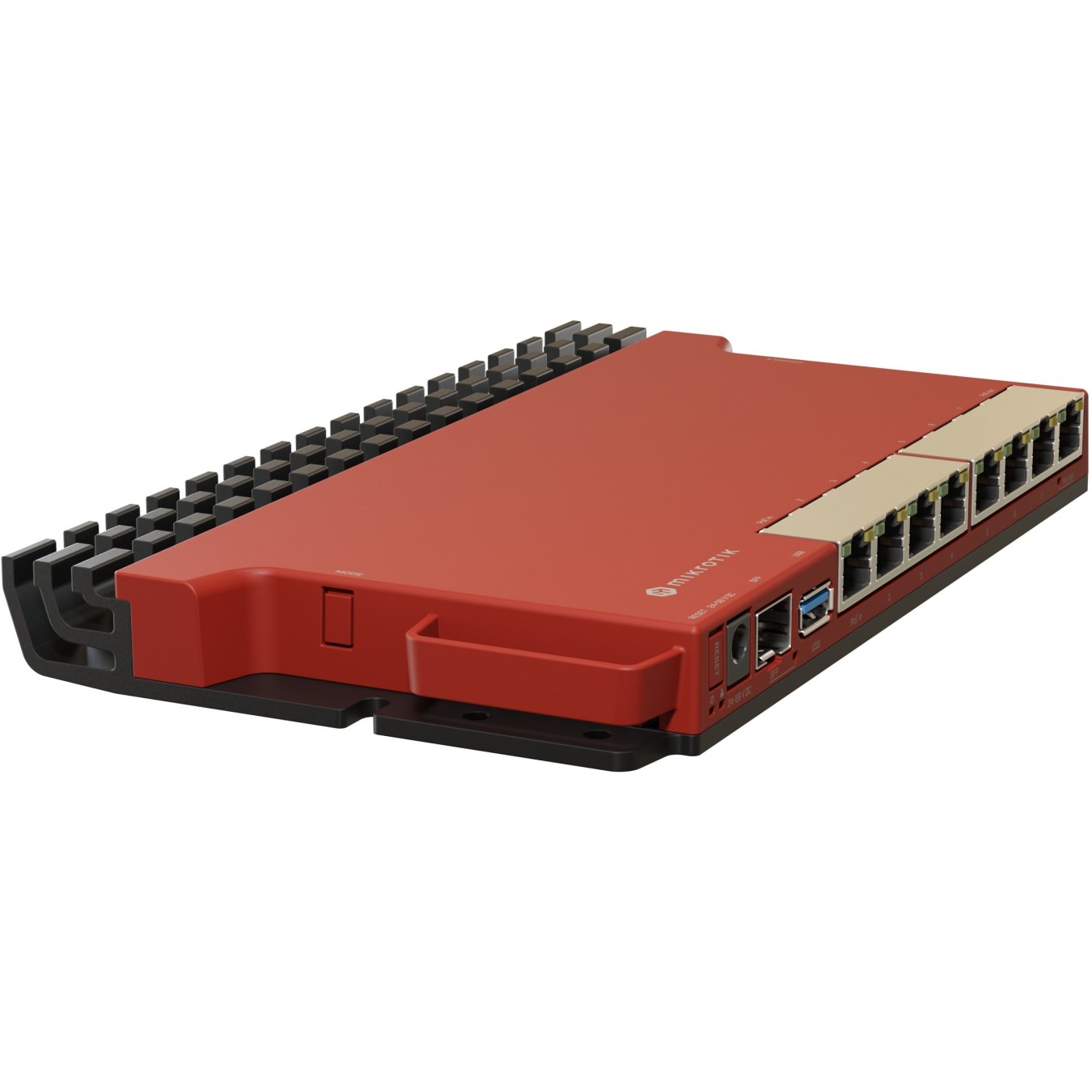

Mikrotik L009UiGS-RM 1U Rackmount Router 8x Gigabit 2.5G SFP USB (Boxed)
1U rackmount MikroTik L009UiGS-RM router with 8x Gigabit Ethernet ports (Ether8 PoE-out), 2.5G SFP, USB 3.0, dual-core 800MHz ARM CPU, 512MB RAM. Ideal for office networks with PoE-in, RouterOS v7, passive cooling.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Routers - Device Type | Wired Gateway |
|---|---|
| Routers - Special Features | Firewall PoE Support USB Sharing VLAN Support VPN Support |
| Routers - LAN Ports | 9-16 |
| Routers - Wi-Fi Standard | Wired Only |
The MikroTik L009UiGS-RM is a powerful 1U rackmount router designed for demanding network environments. It features a dual-core IPQ-5018 ARM CPU at 800 MHz, 512 MB DDR3L RAM, and 128 MB NAND storage, delivering up to 4x better performance than the RB2011 in routing, filtering, and IPsec encryption.
Connectivity includes 8x Gigabit Ethernet ports (Ether8 supports passive PoE-out), 1x 2.5G SFP port for fiber, USB 3.0 Type A, and RJ45 serial console. Powered via DC jack or PoE-in (802.3af/at, 24-56V), it offers passive cooling through its innovative enclosure that can mount up to four units in 1U space. Runs RouterOS v7 License Level 5 with container support.
- CPU: Dual-core IPQ-5018 800 MHz ARM
- RAM/Storage: 512 MB / 128 MB NAND
- Ports: 8x 10/100/1000 Ethernet, 1x 2.5G SFP, 1x USB 3.0
- Power: PoE-in, DC jack 24-56V, max 37W
- Dimensions: 220 x 125 x 22 mm
| Product code | L009UiGS-RM |
| CPU | IPQ-5018, 2 core, 800 MHz |
| CPU architecture | ARM 32bit |
| RAM size | 512 MB |
| RAM type | DDR3L |
| Storage size | 128 MB |
| Storage type | NAND |
| Number of 10/100/1000 Ethernet ports | 8 |
| Number of 1G Ethernet ports with PoE-out | 1 (Ether8, Passive PoE-out) |
| SFP ports | 1 (2.5G supported) |
| USB | 1 x 3.0 type A |
| Serial console port | RJ45 |
| Switch chip model | 88E6190 |
| Operating System | RouterOS v7 |
| RouterOS License | 5 |
| Dimensions | 220 x 125 x 22 mm |
| Number of DC inputs | 2 (DC jack, PoE-IN) |
| DC jack input Voltage | 24-56 V |
| PoE-in | 802.3af/at |
| PoE in input Voltage | 24-56 V |
| Max power consumption | 37 W |
| Max power consumption (w/o attachments) | 8 W |
| Cooling type | Passive |
