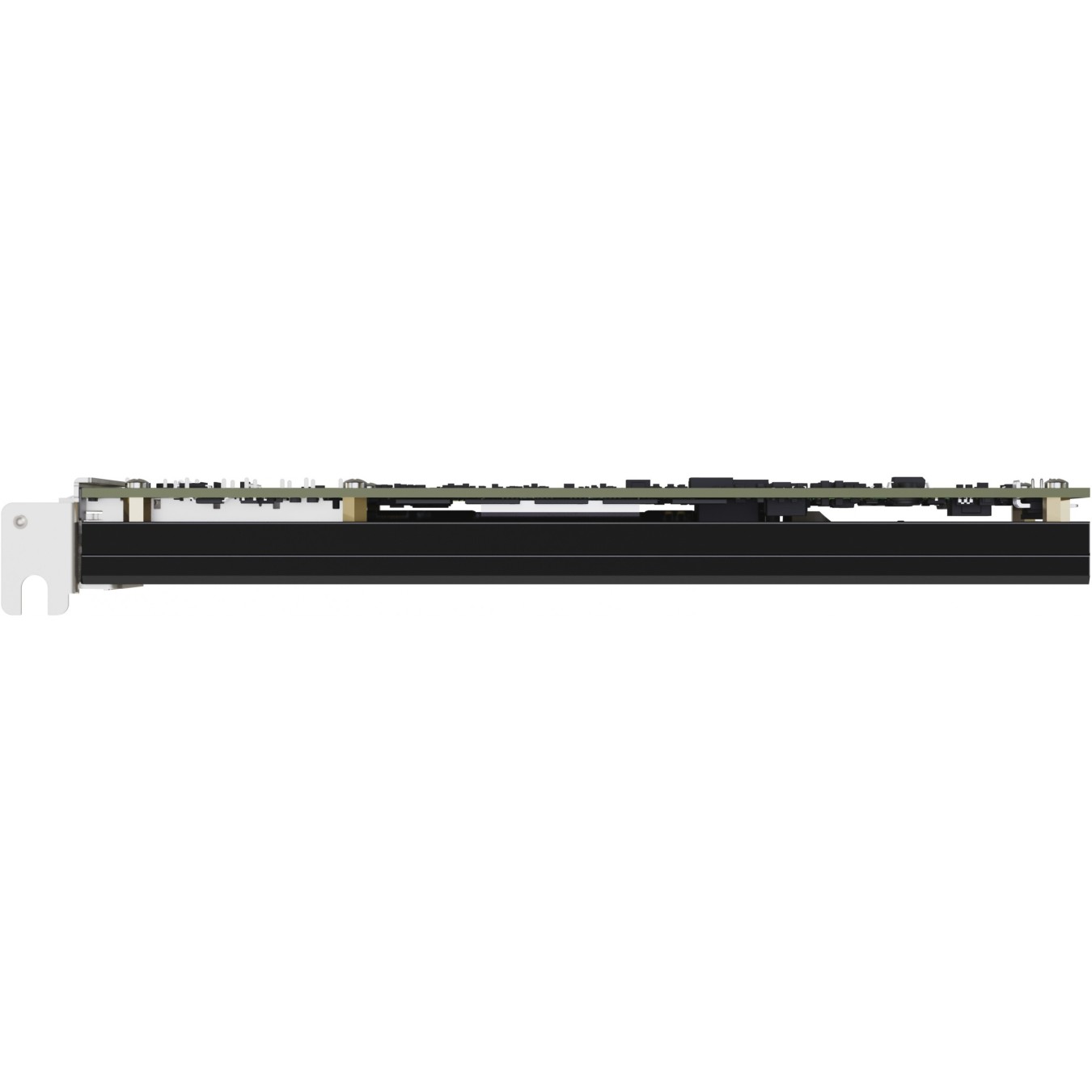

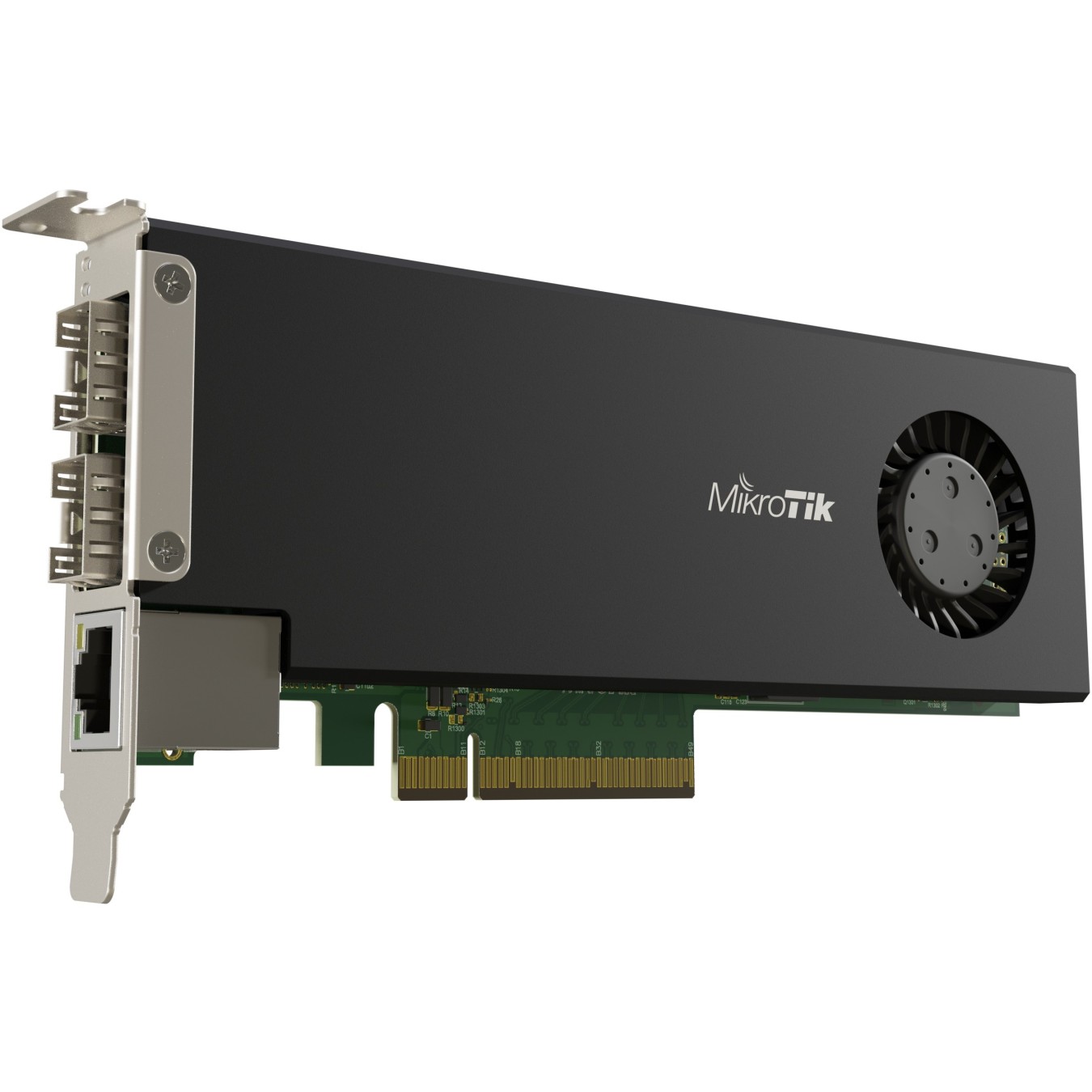

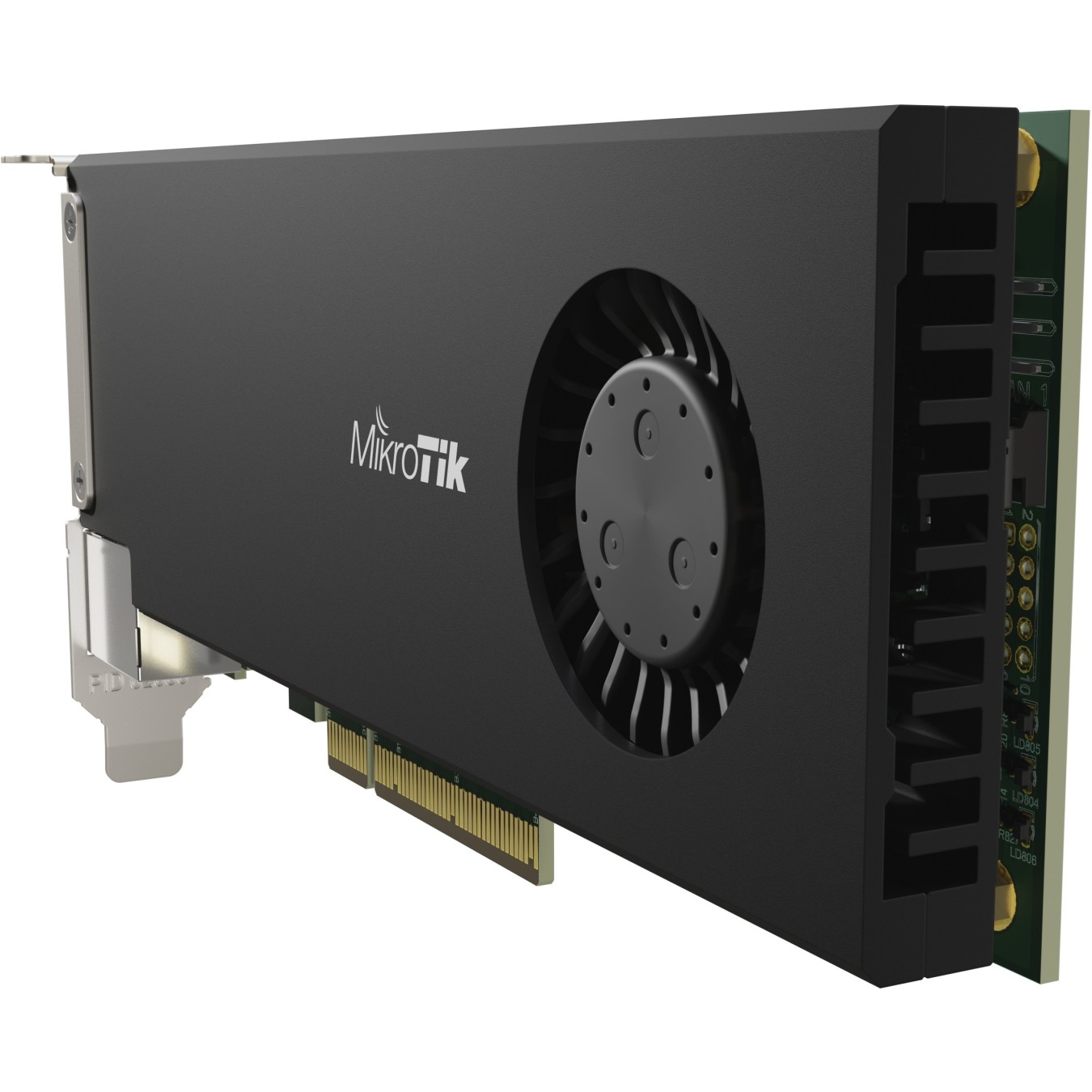

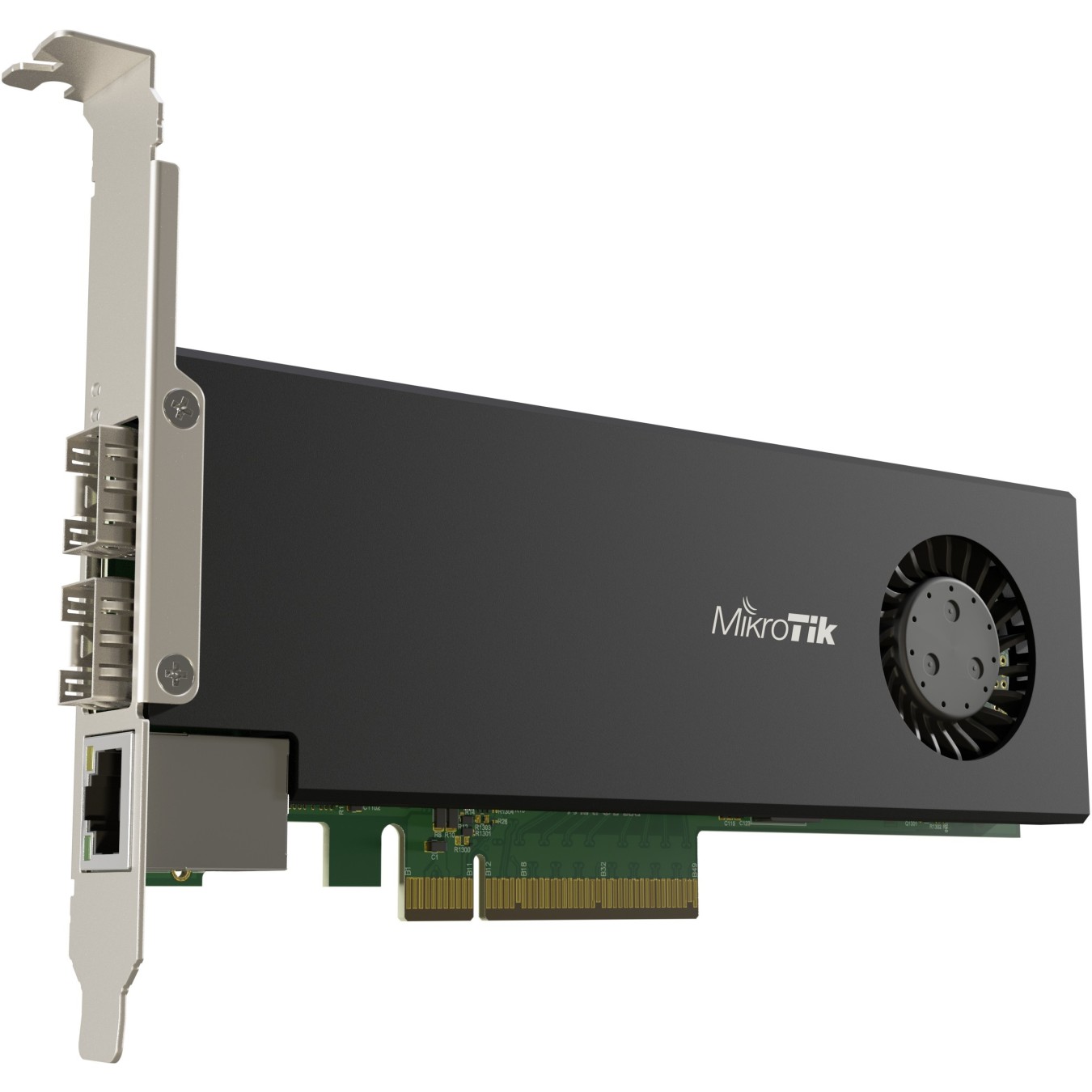

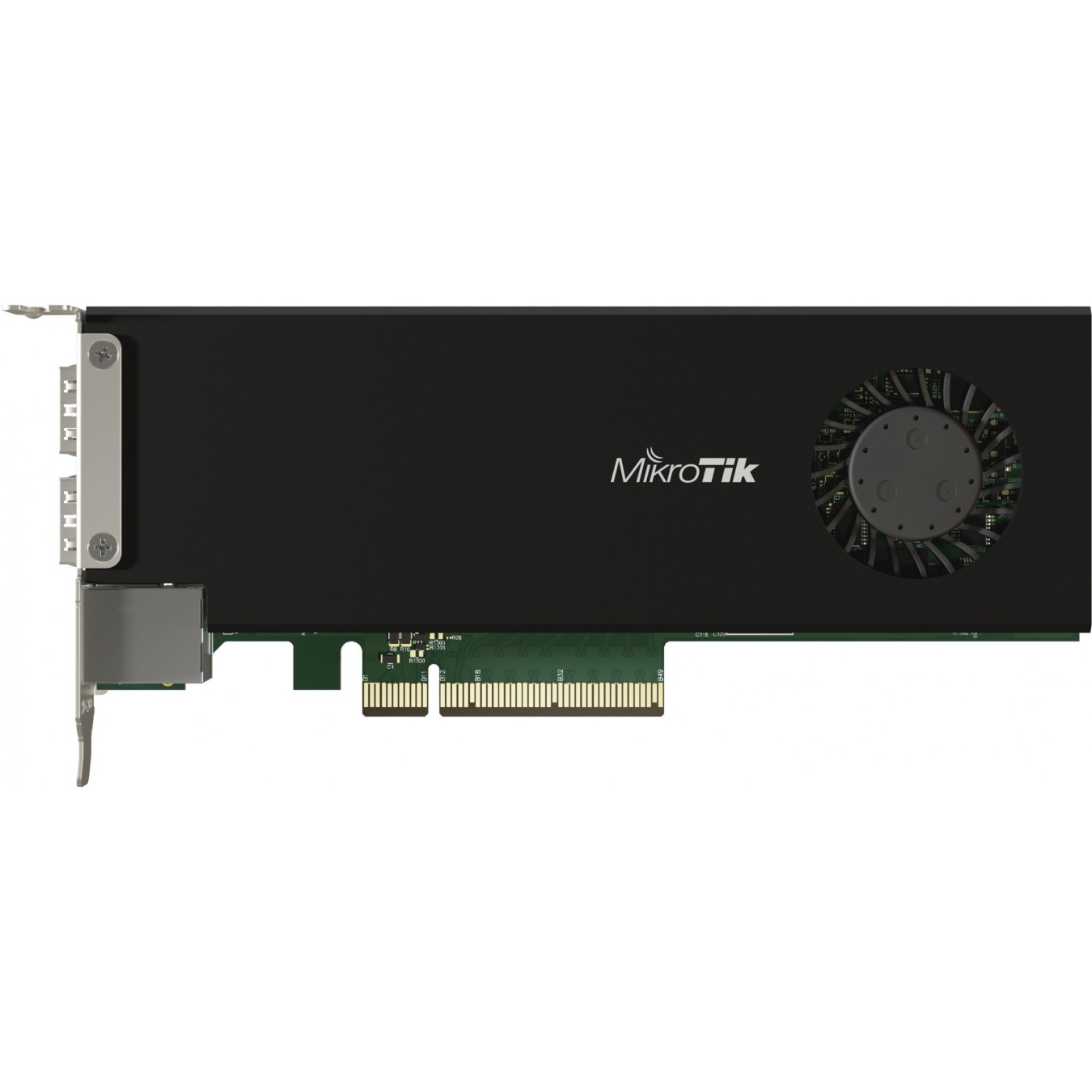

MikroTik CCR2004-1G-2XS-PCIe - 1G Ethernet 2x25G SFP28 PCIe Router (Boxed)
High-performance PCIe router card with 4-core 2GHz ARM CPU, 4GB RAM, 1x1G Ethernet, 2x25G SFP28. Ideal for servers needing integrated 25G routing, firewall, VPN. RouterOS L6, max 25W.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Routers - Device Type | Wired Gateway |
|---|---|
| Routers - Special Features | Firewall Load Balancing QoS VLAN Support VPN Support |
| Routers - LAN Ports | 1 |
| Routers - Wi-Fi Standard | Wired Only |
The MikroTik CCR2004-1G-2XS-PCIe is a powerful PCIe 3.0 x8 network interface card that integrates full router capabilities directly into servers and workstations. Featuring a quad-core AL32400 ARM 64-bit CPU at 2 GHz, 4 GB DDR4 RAM, and 128 MB NAND storage, it delivers wire-speed performance up to 100 Gbps across its ports. This compact card (170x69x18 mm) includes 1x Gigabit Ethernet port and 2x 25G SFP28 ports, perfect for high-speed data centers, enterprises, and multimedia environments requiring efficient space-saving networking solutions.
Running RouterOS with License Level 6, it supports advanced features like hardware-accelerated IPsec VPN, firewall rules, VLANs, QoS, load balancing, and traffic monitoring. The card appears as four virtual Ethernet interfaces by default: two passthrough 25G SFP28 and two bridged with the 1G port for management. Monitors for CPU/PCB temperature and voltage ensure reliability in -20°C to +60°C environments. Max power consumption is 25 W with active cooling fan.
- CPU: AL32400 4-core 2 GHz ARM 64bit
- Memory: 4 GB DDR4 RAM + 128 MB NAND
- Ports: 1x 1G Ethernet, 2x 25G SFP28
- Interface: PCIe 3.0 x8
- OS: RouterOS v7 License 6
- Power: Max 25 W, IP20 rated
| Product code | CCR2004-1G-2XS-PCIe |
| CPU | AL32400 2 GHz |
| CPU architecture | ARM 64bit |
| CPU core count | 4 |
| Size of RAM | 4 GB |
| RAM type | DDR4 |
| Storage | 128 MB, NAND |
| Number of 1G Ethernet ports | 1 |
| Number of 25G SFP28 ports | 2 |
| PCIe interface | PCIe 3.0 x8 |
| Operating system | RouterOS (License level 6) |
| Dimensions (device) | 170 x 69 x 18 mm |
| Operating temperature | -20°C to +60°C |
| Max power consumption | 25 W |
| Certifications | CE, EAC, ROHS, IP20 |
