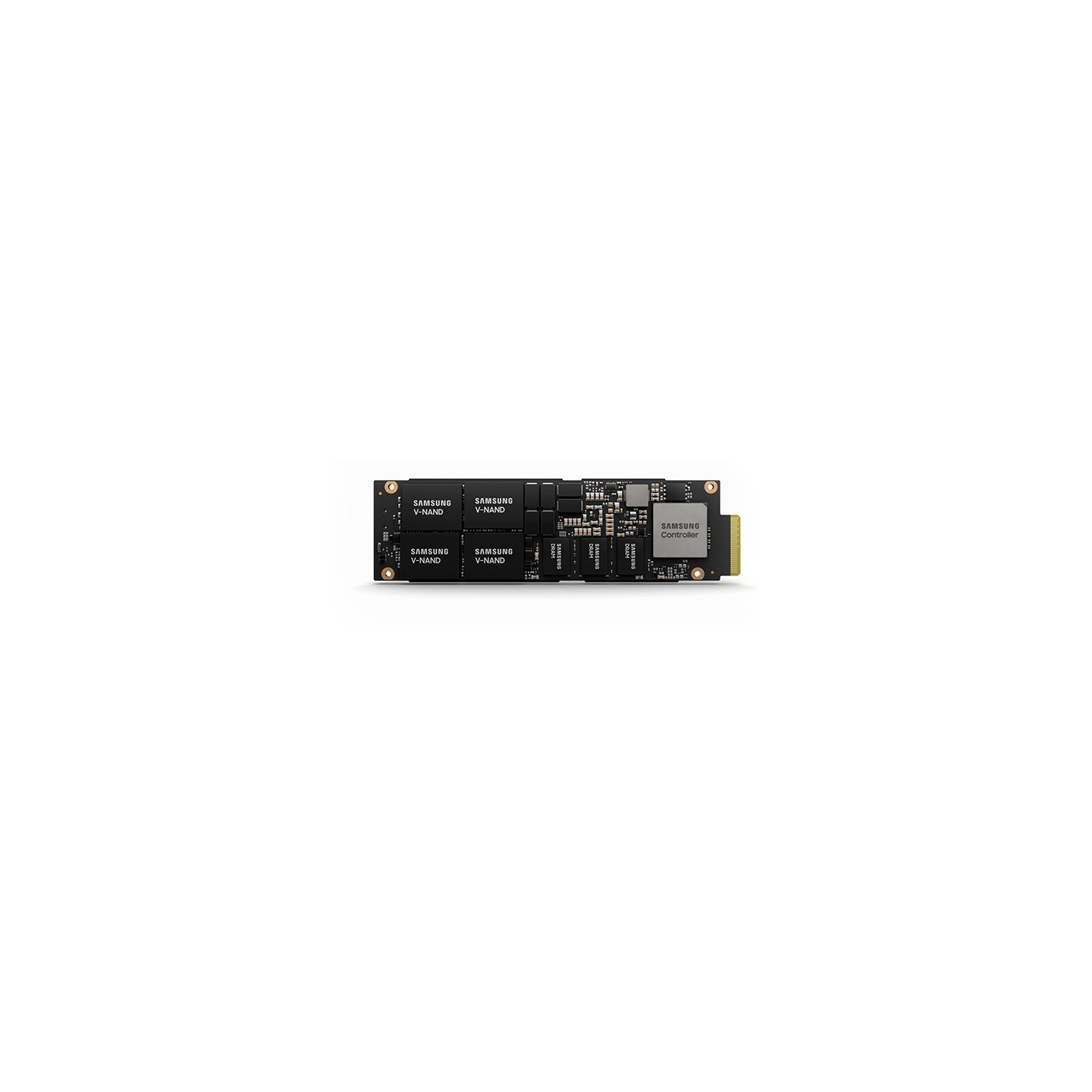

Samsung PM9A3 960GB NVMe PCIe 4.0 x4 2.5in U.2 SSD - MZ-QL296000 - Bulk
Enterprise 960GB Samsung PM9A3 NVMe SSD in 2.5in U.2 form factor. PCIe 4.0 x4 delivers up to 6,500 MB/s read, 1,500 MB/s write. Optimized for data centers with 1 DWPD endurance, low latency for cloud/HPC workloads.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Storage (SSD & HDD) - Device Type | Internal SSD |
|---|---|
| Storage (SSD & HDD) - Capacity | 1TB |
| Storage (SSD & HDD) - Sequential Read Speed (SSD) | 7001 to 10000 MB s |
| Storage (SSD & HDD) - DRAM Cache (SSD) | None (DRAM-less) |
| Storage (SSD & HDD) - Interface | PCIe 4.0 (Gen4) |
| Storage (SSD & HDD) - Heatsink (SSD) | Not Included |
| Storage (SSD & HDD) - Form Factor | 2.5 inch |
| Storage (SSD & HDD) - PCIe Lanes (SSD) | x4 |
The Samsung PM9A3 960GB is a high-performance enterprise NVMe SSD designed for data centers, hyperscale cloud, and demanding server applications. Featuring PCIe 4.0 x4 interface and NVMe 1.4 protocol, it provides sequential read speeds up to 6,500 MB/s and write speeds up to 1,500 MB/s, with random 4K read/write IOPS up to 580K/70K. This bulk unit uses Samsung's in-house controller and V-NAND TLC flash for superior reliability and power efficiency.
Ideal for mixed workloads including virtualization, AI/ML, and databases, the PM9A3 offers 1 DWPD endurance (1,752 TBW over 5 years) and advanced features like TCG encryption, S.M.A.R.T., and TRIM support. The 2.5-inch U.2 form factor ensures compatibility with standard enterprise servers and storage systems, operating reliably from 0°C to 70°C.
- Capacity: 960GB
- Form Factor: 2.5in U.2 (100.2 x 69.85 x 7 mm)
- Performance: Seq Read 6500 MB/s, Seq Write 1500 MB/s
- Power: Up to 13.5W active
- Warranty: 5 years limited
- MTBF: 2 million hours
| Capacity | 960GB |
| Interface | PCIe 4.0 x4, NVMe 1.4 |
| Form Factor | 2.5 inch U.2 |
| Dimensions | 100.20 x 69.85 x 7.0 mm |
| NAND Flash | Samsung V-NAND TLC |
| Controller | Samsung in-house Controller |
| Sequential Read | Up to 6,500 MB/s |
| Sequential Write | Up to 1,500 MB/s |
| 4KB Random Read (QD32) | Up to 580 KIOPS |
| 4KB Random Write (QD32) | Up to 70 KIOPS |
| Operating Temperature | 0°C to 70°C |
| MTBF | 2.0 million hours |
| TBW | 1,752 TB |
| Warranty | 5 year limited |
