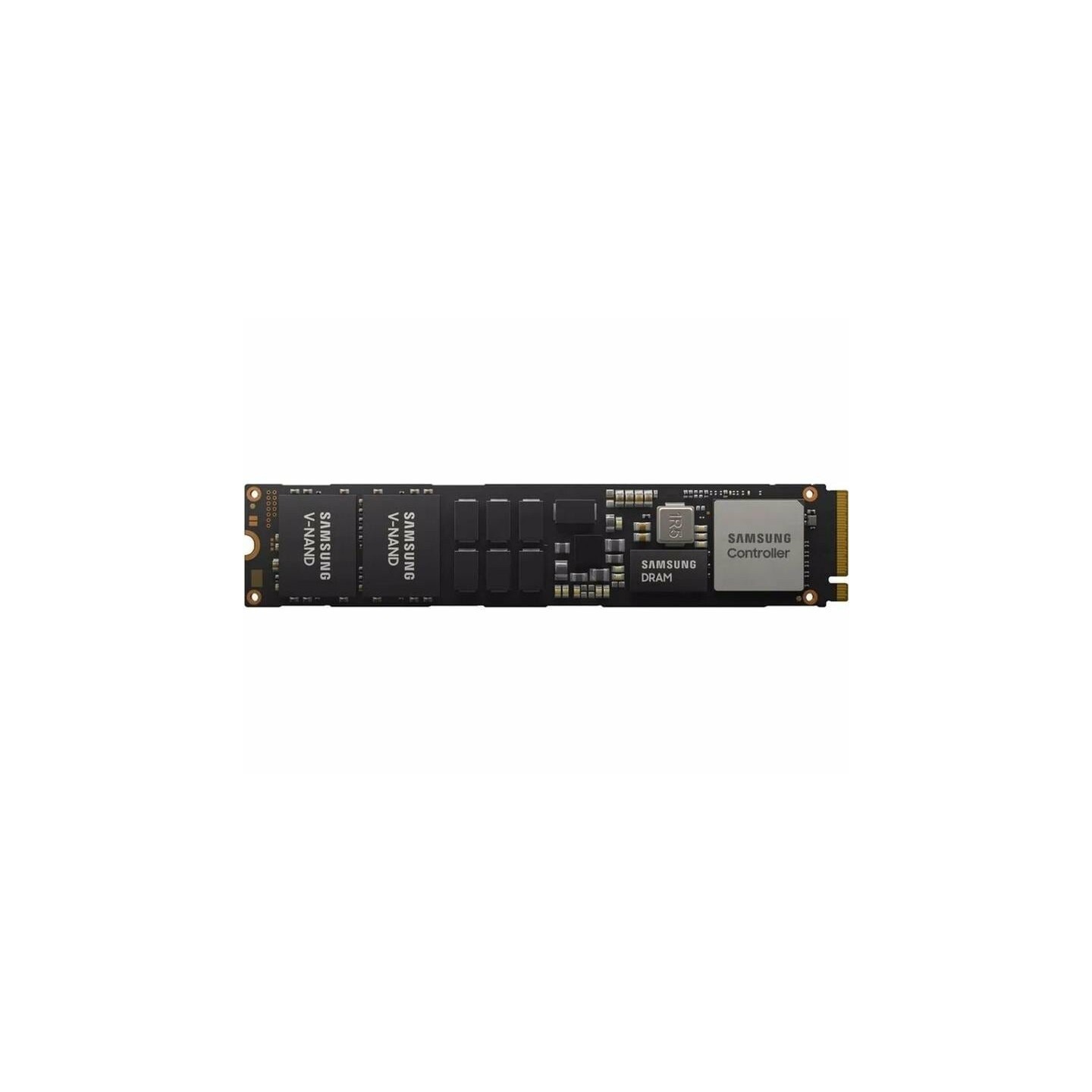

Samsung PM9A3 960GB M.2 NVMe SSD PCIe 4.0 x4 Enterprise (Bulk)
Enterprise Samsung PM9A3 M.2 2280 NVMe SSD. 960GB PCIe 4.0 x4, up to 6900MB/s read, 1M IOPS rand read. V-NAND TLC, NVMe 1.4, 1 DWPD/5yr, TCG encryption. Bulk pack, ideal for data centers.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Storage (SSD & HDD) - Device Type | Internal SSD |
|---|---|
| Storage (SSD & HDD) - Capacity | 1TB |
| Storage (SSD & HDD) - Sequential Read Speed (SSD) | 7001 to 10000 MB s |
| Storage (SSD & HDD) - Interface | PCIe 4.0 (Gen4) |
| Storage (SSD & HDD) - DRAM Cache (SSD) | Yes |
| Storage (SSD & HDD) - Heatsink (SSD) | Not Included |
| Storage (SSD & HDD) - Form Factor | M.2 2280 |
| Storage (SSD & HDD) - PCIe Lanes (SSD) | x4 |
The Samsung PM9A3 is a high-performance enterprise-grade M.2 NVMe SSD designed for data centers and servers. Featuring PCIe 4.0 x4 interface and NVMe 1.4 protocol, it delivers sequential read speeds up to 6,900 MB/s and write up to 4,100 MB/s for the 960GB model, with random 4K read performance reaching 1,000,000 IOPS and write up to 180,000 IOPS.
Built with Samsung V6 (128-layer) V-NAND TLC flash and in-house Elpis controller, it offers 1 Drive Writes Per Day (DWPD) endurance over 5 years (1,752 TBW), TCG Enterprise encryption, power-loss protection, and MTBF of 2 million hours. Optimized for mixed workloads with consistent low latency and QoS prioritization.
Form factor M.2 2280 (33.6 x 118.75 x 9.5 mm), no heatsink included. Bulk packaging for cost-effective deployment in high-duty cycle environments.
- ✅ PCIe Gen4 x4, NVMe 1.4
- ✅ Up to 6,900/4,100 MB/s sequential
- ✅ 1M/180k IOPS random 4K
- ✅ 1 DWPD / 5 years, 1,752 TBW
- ✅ TCG encryption, 2M hours MTBF
| Capacity | 960GB |
| Interface | PCIe 4.0 x4 (NVMe) |
| NVMe Version | 1.4 |
| Form Factor | M.2 2280 |
| NAND Flash | Samsung V-NAND TLC (V6 128-layer) |
| Controller | Samsung Elpis in-house |
| Sequential Read | Up to 6,900 MB/s |
| Sequential Write | Up to 4,100 MB/s |
| Random Read 4K (QD32) | Up to 1,000,000 IOPS |
| Random Write 4K (QD32) | Up to 180,000 IOPS |
| Endurance DWPD | 1 DWPD (5 years) |
| TBW | 1,752 TB |
| Power Consumption | Read <=11W, Write <=13.5W |
| MTBF | 2,000,000 hours |
| Encryption | TCG Enterprise, AES 256-bit |
| Dimensions (SSD) | 33.6 x 118.75 x 9.5 mm |
| DRAM Cache | Yes |
| Heatsink | Not Included |
