Fractal Design Meshify 2 XL Black Window FD-C-MES2X-02 (Boxed)
Full tower PC case with angular mesh front for superior airflow. Supports E-ATX/SSI-EEB motherboards, up to 480mm radiators, 549mm GPUs in open layout. Includes 3x 140mm fans, USB 3.2 Gen 2x2 Type-C. Tempered glass side window.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PC Cases - Motherboard Support | ATX EATX Micro ATX Mini ITX |
|---|---|
| PC Cases - Radiator Support | 120 mm 140 mm 240 mm 280 mm 360 mm 420 mm 480 mm |
| PC Cases - Included Fans | 3 |
| PC Cases - Front I/O | Audio Jacks USB A USB C Gen2 |
| PC Cases - GPU Orientation | Horizontal Vertical Supported |
| PC Cases - Form Factor | Full Tower |
| PC Cases - Max GPU Length | 450+ mm |
| PC Cases - Color | Black |
| PC Cases - CPU Cooler Clearance | 170+ mm |

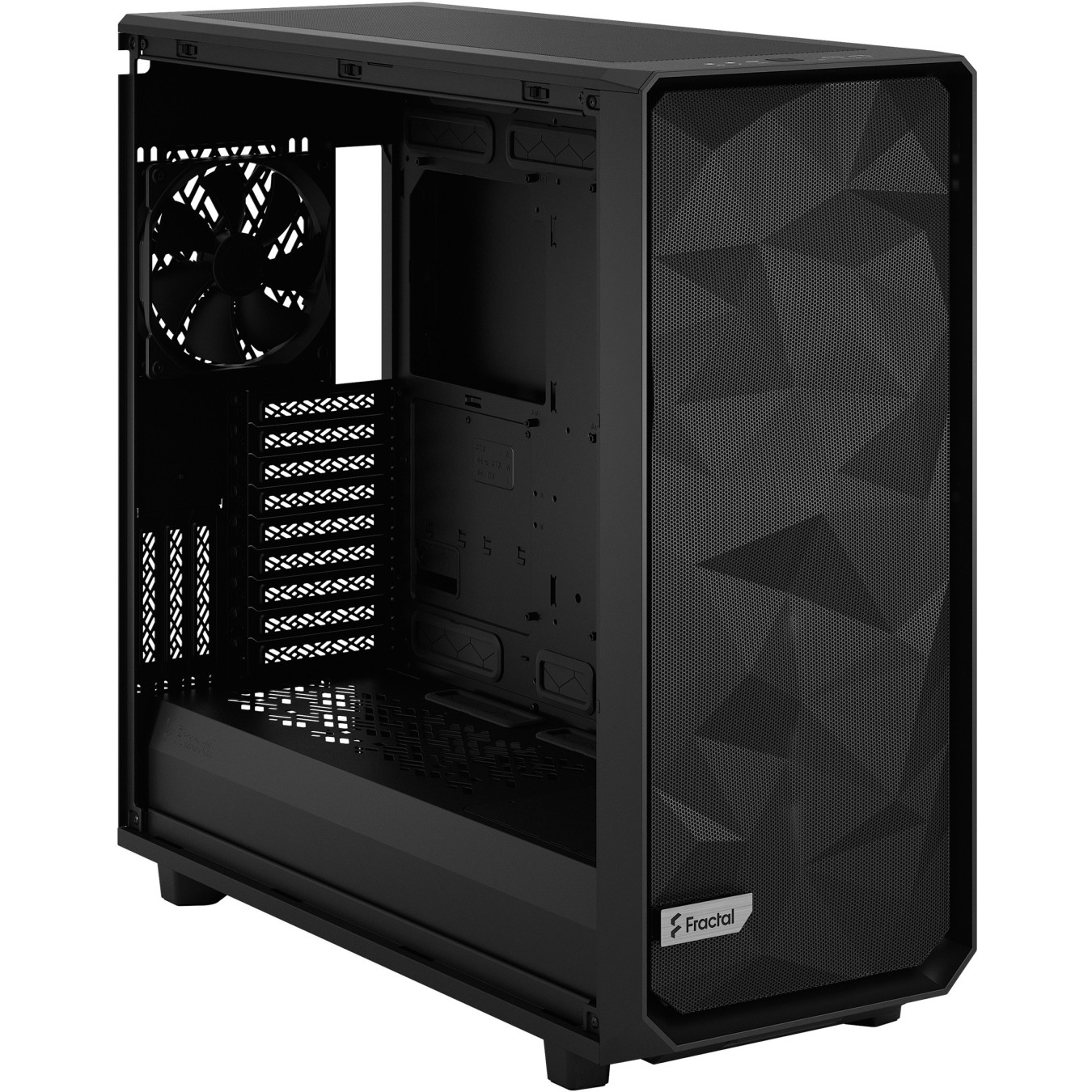

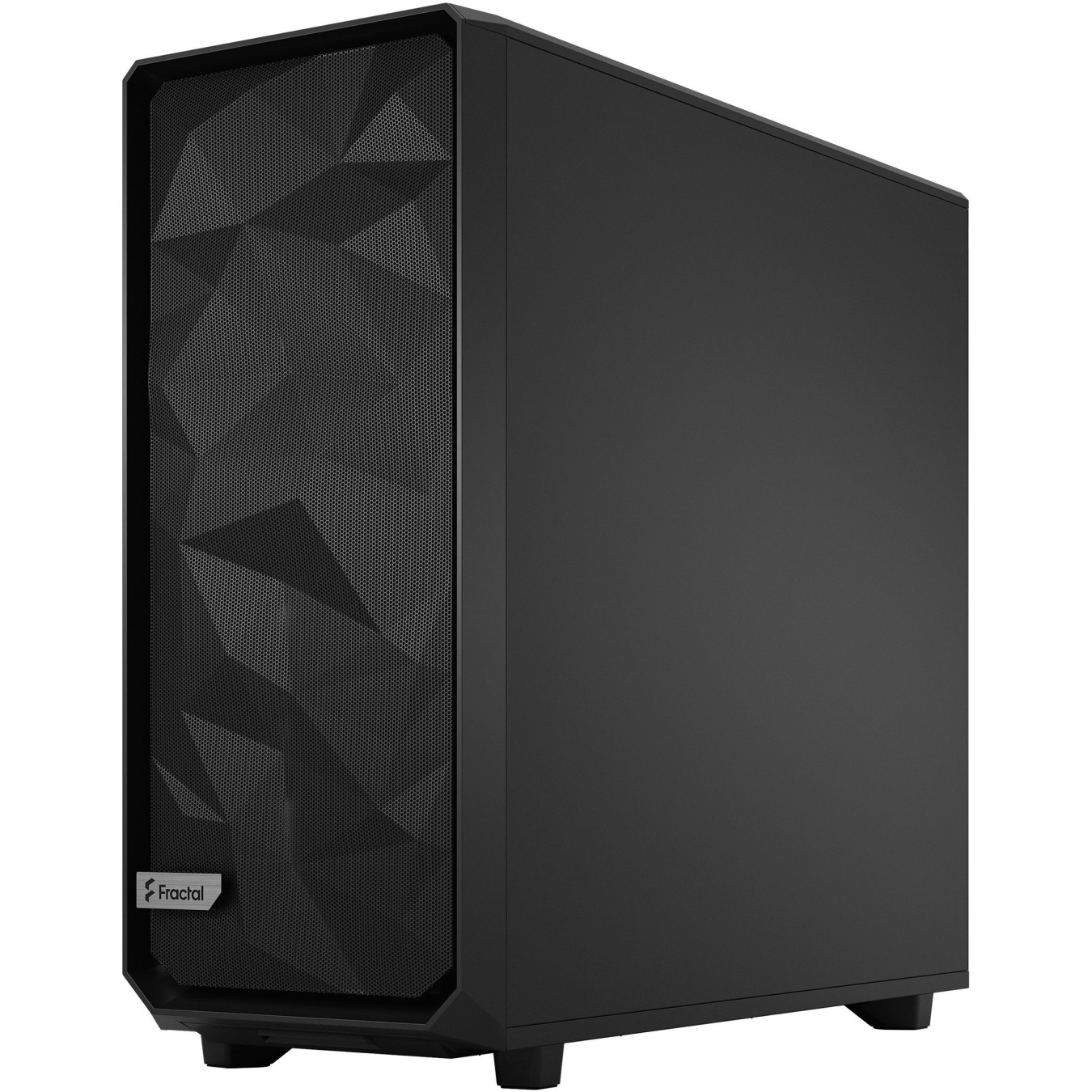

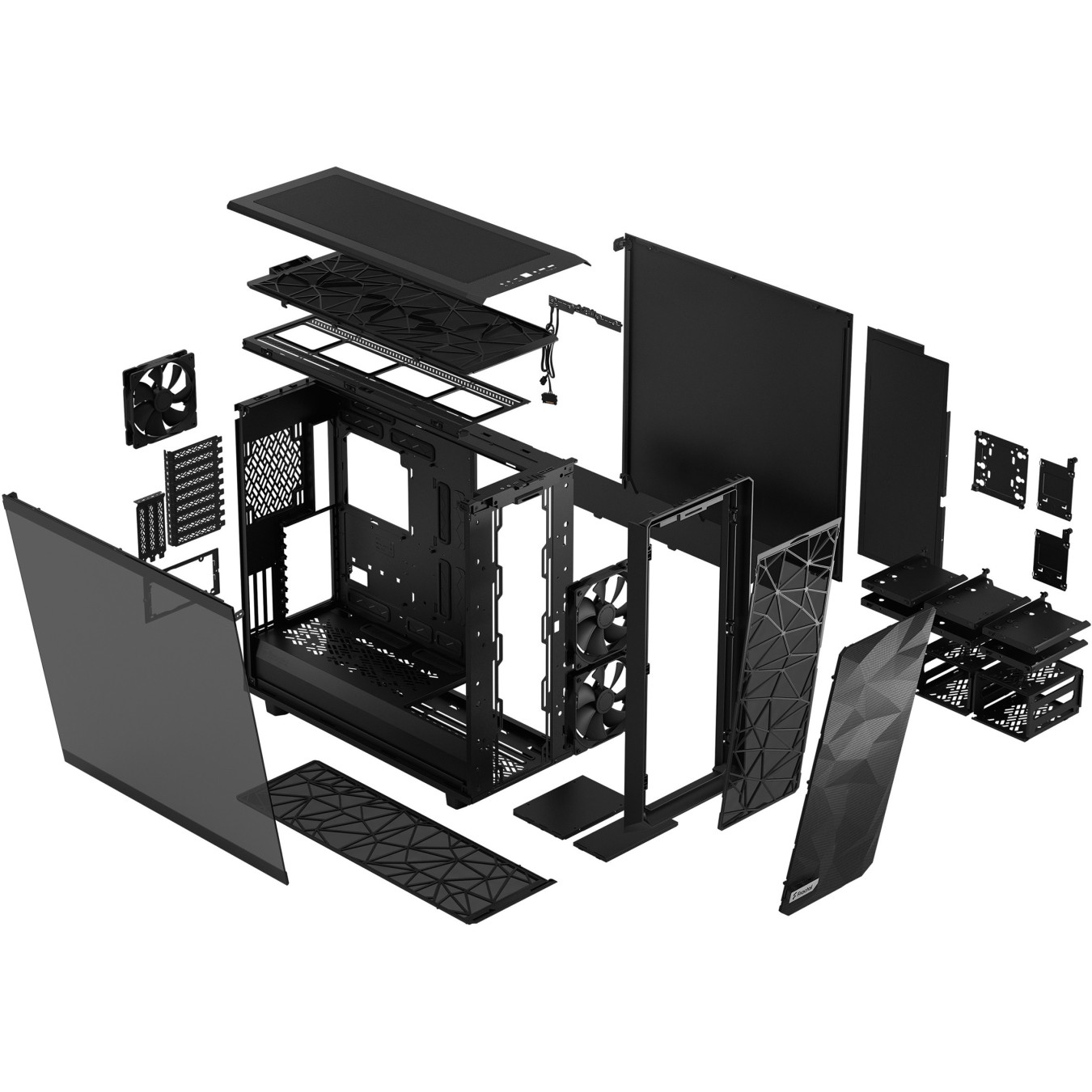

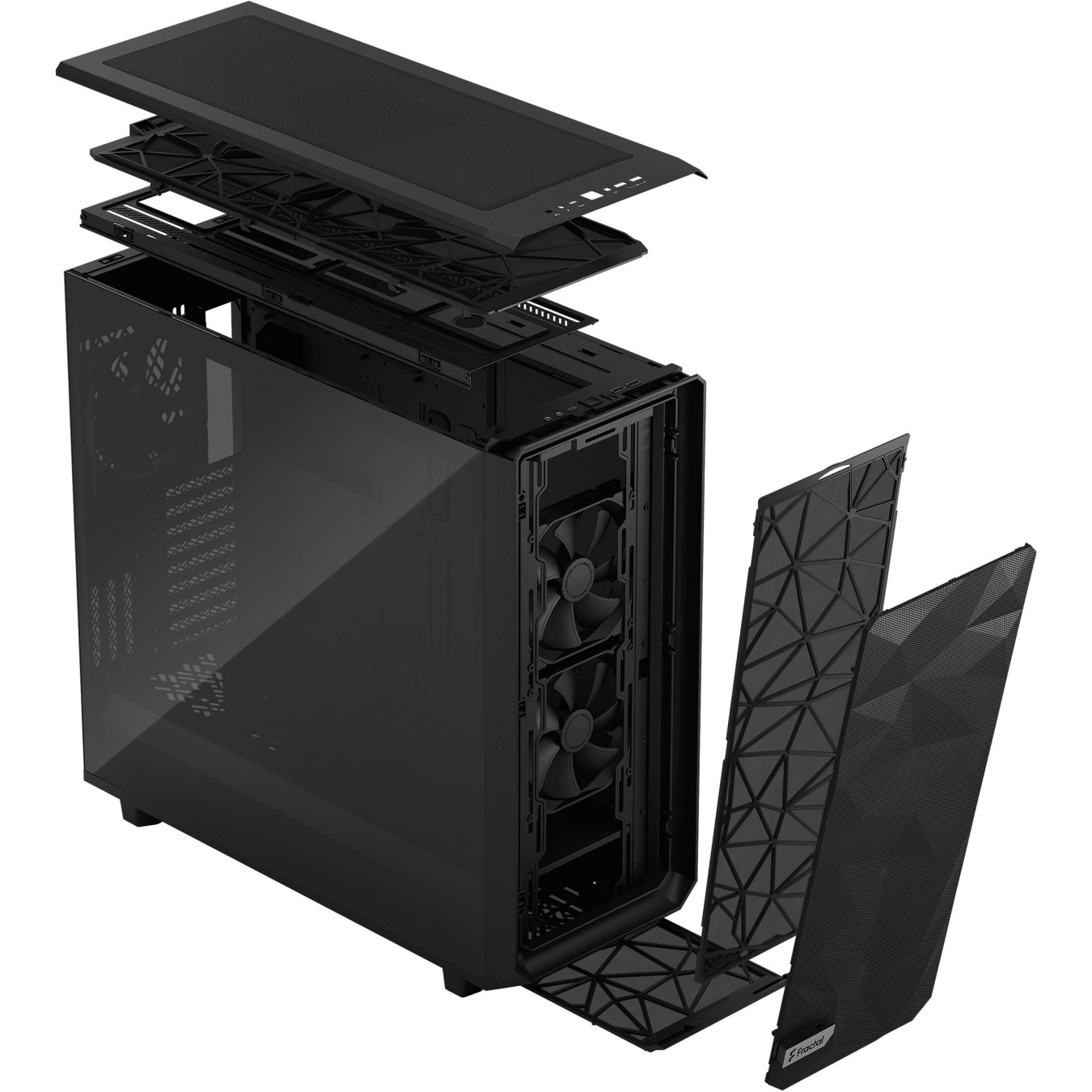

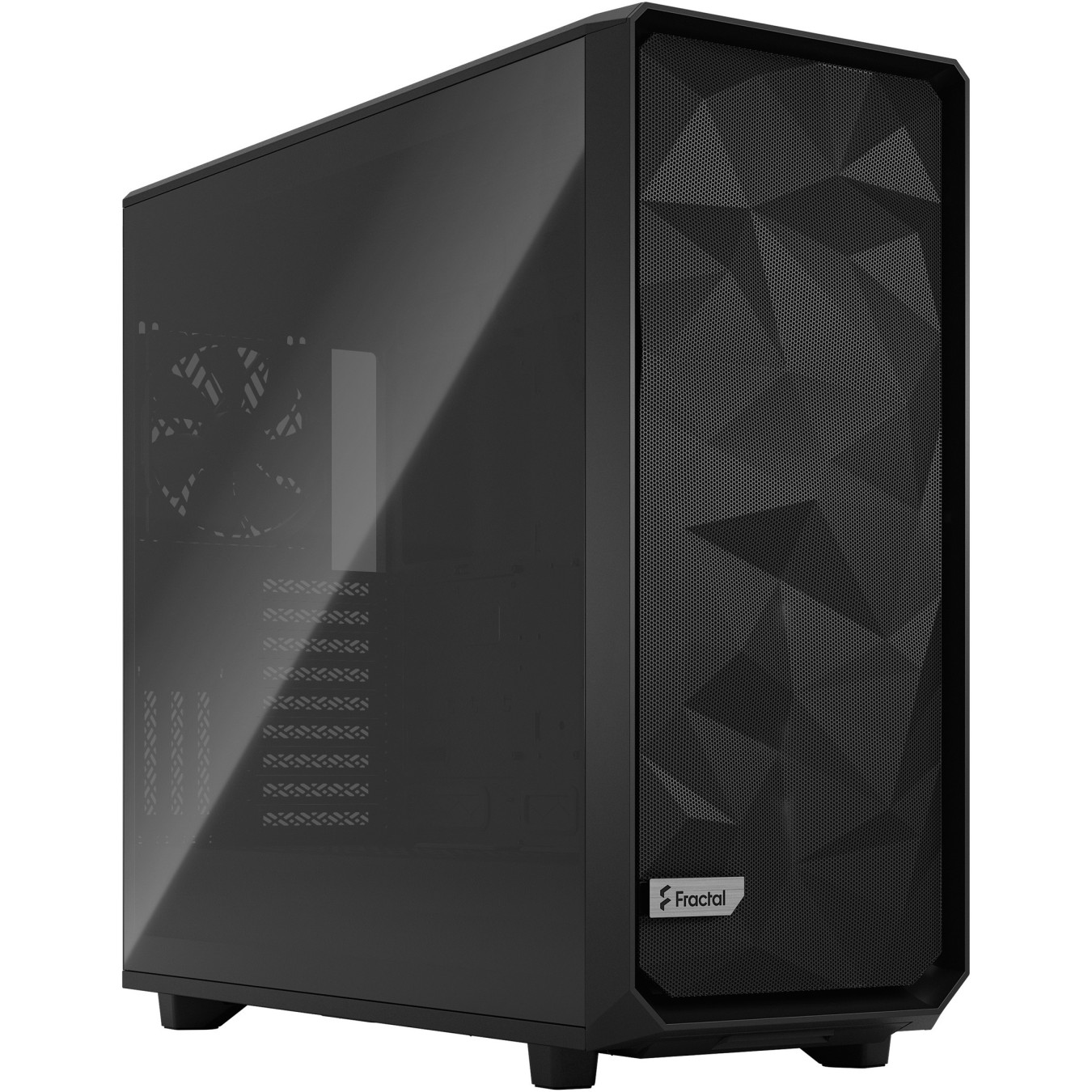

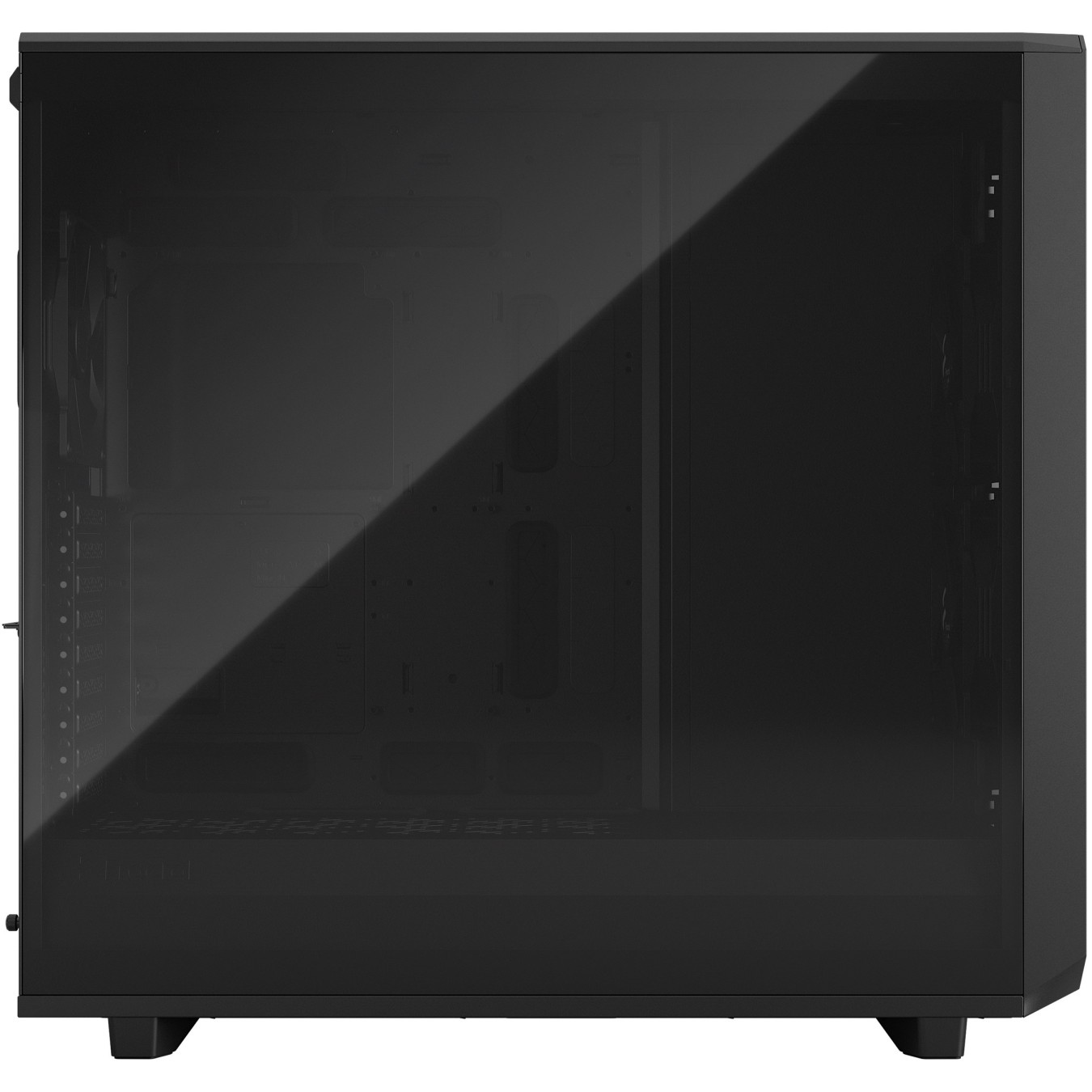

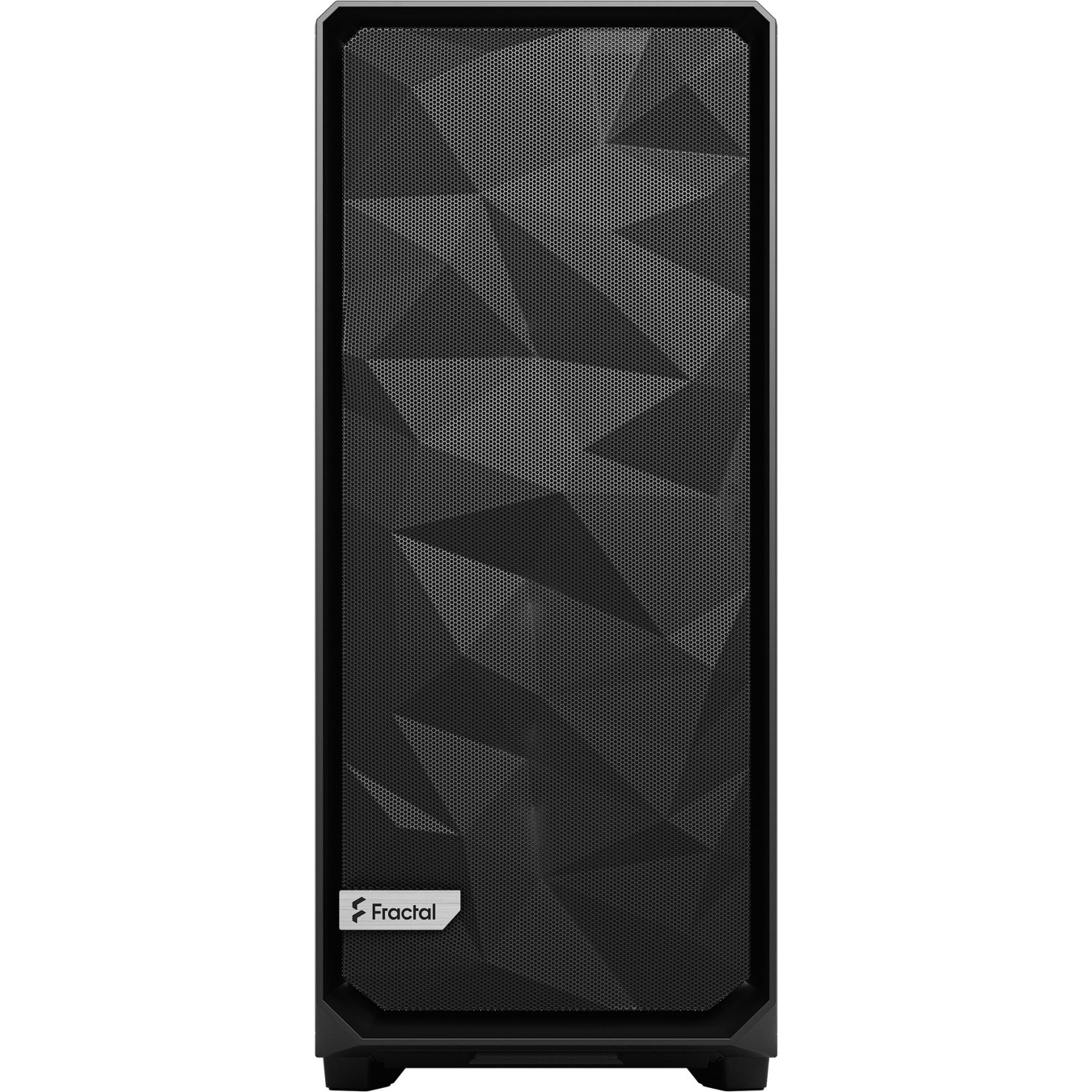

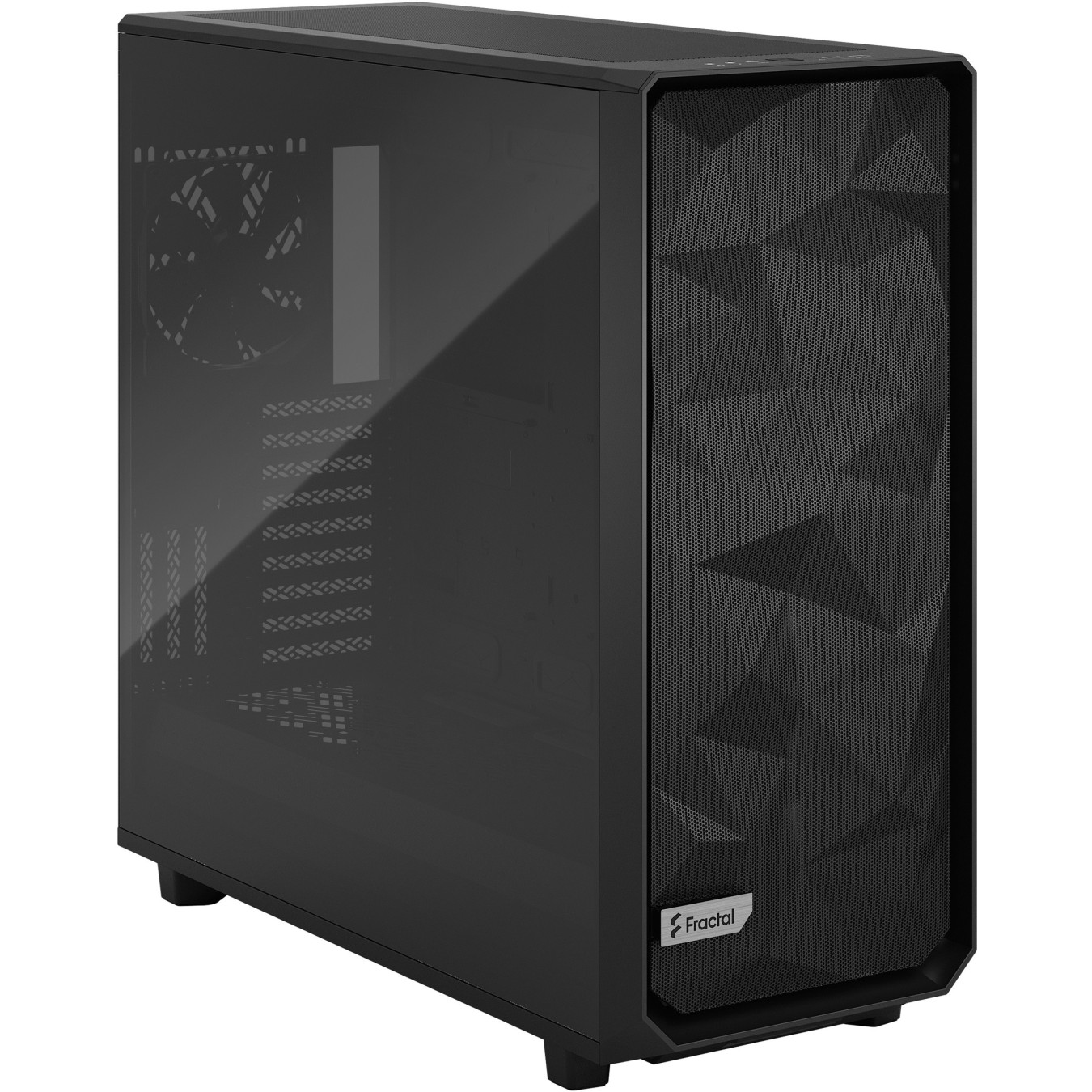

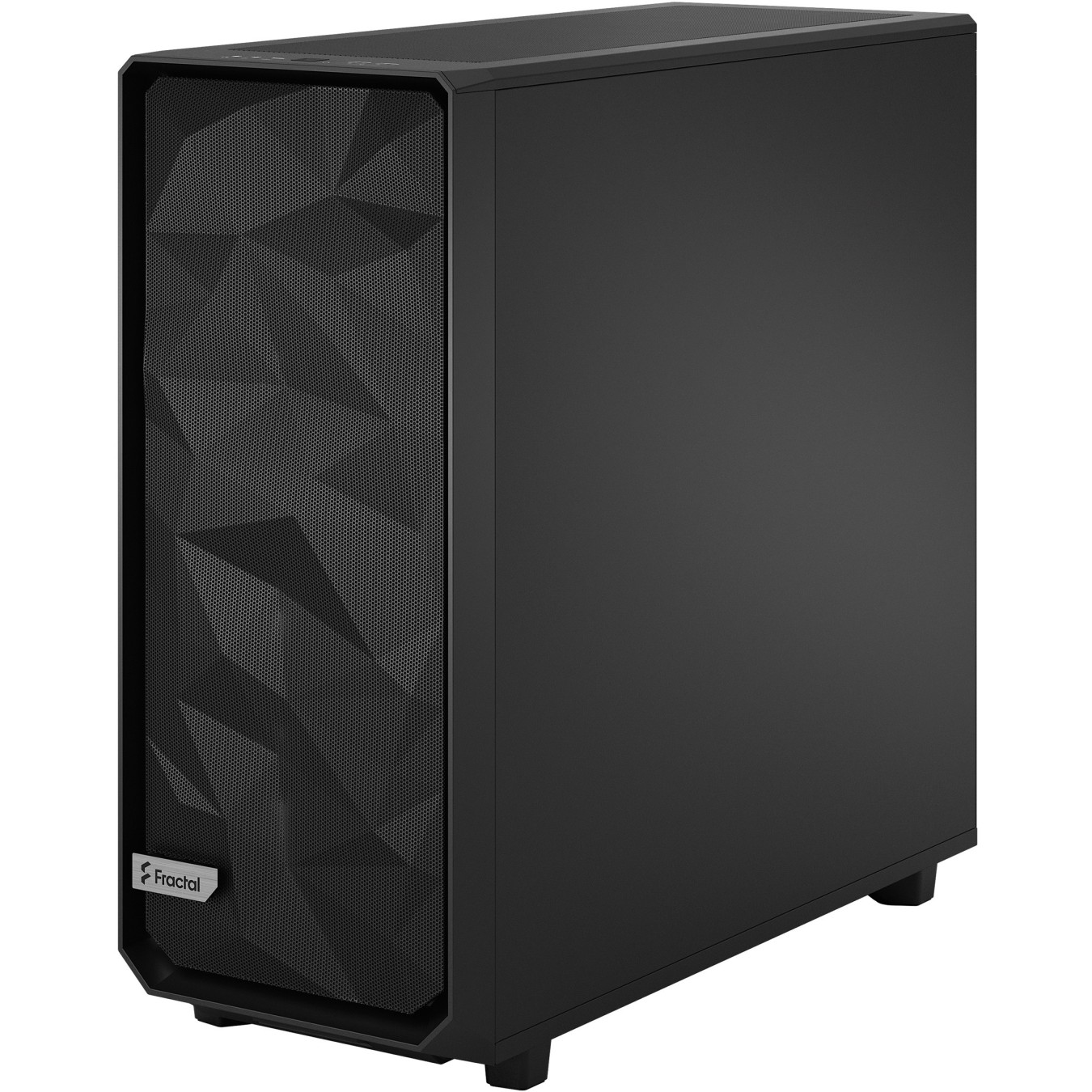

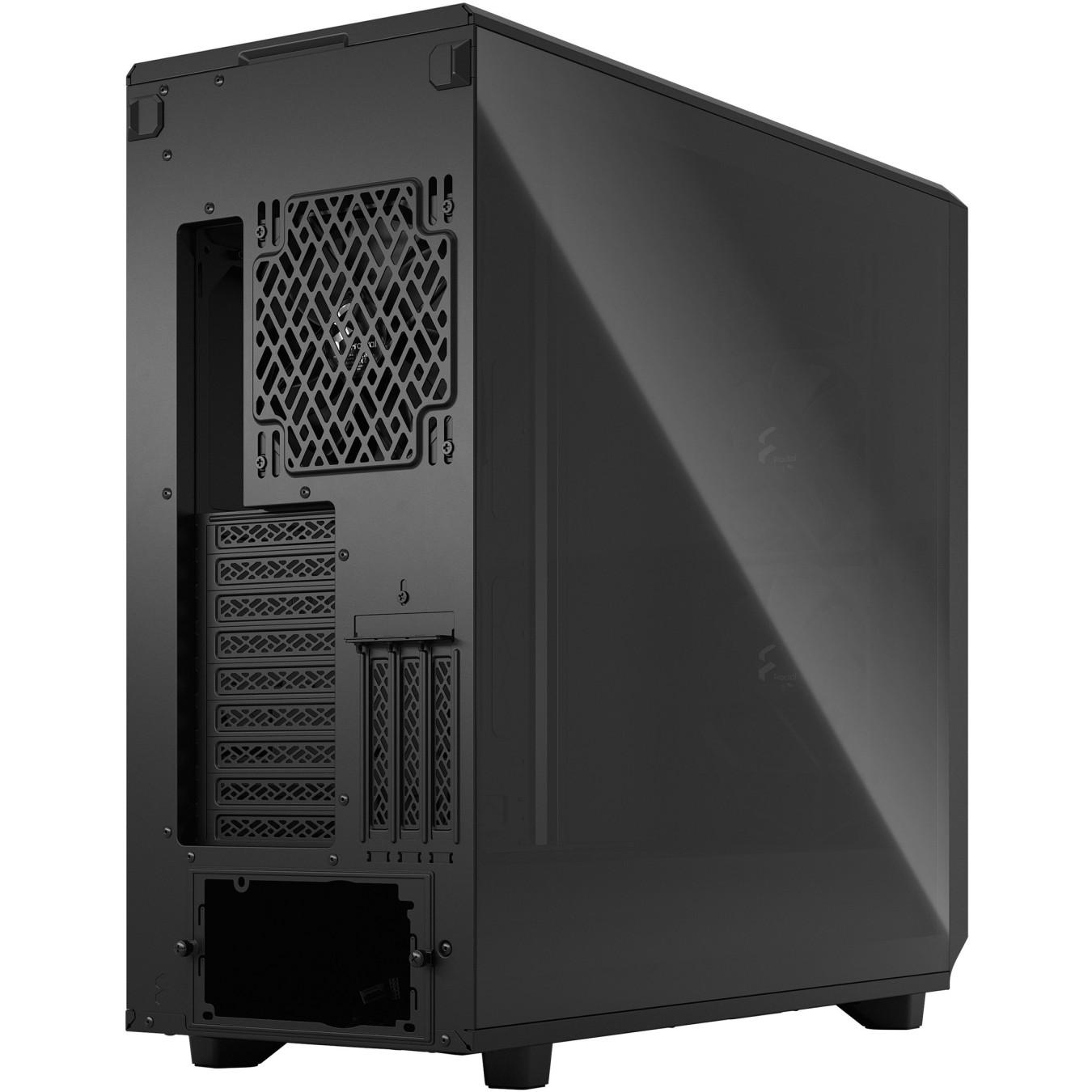

The Fractal Design Meshify 2 XL Black Window is a premium full tower case designed for high-end PC builds requiring maximum airflow, storage, and cooling flexibility. Its iconic angular mesh front panel delivers filtered airflow while maintaining a stealth-inspired aesthetic. The case features bolt-free flush tempered glass side panel for showcasing components, a fully removable top for easy access, and a redesigned front with hinged filter for simple maintenance.

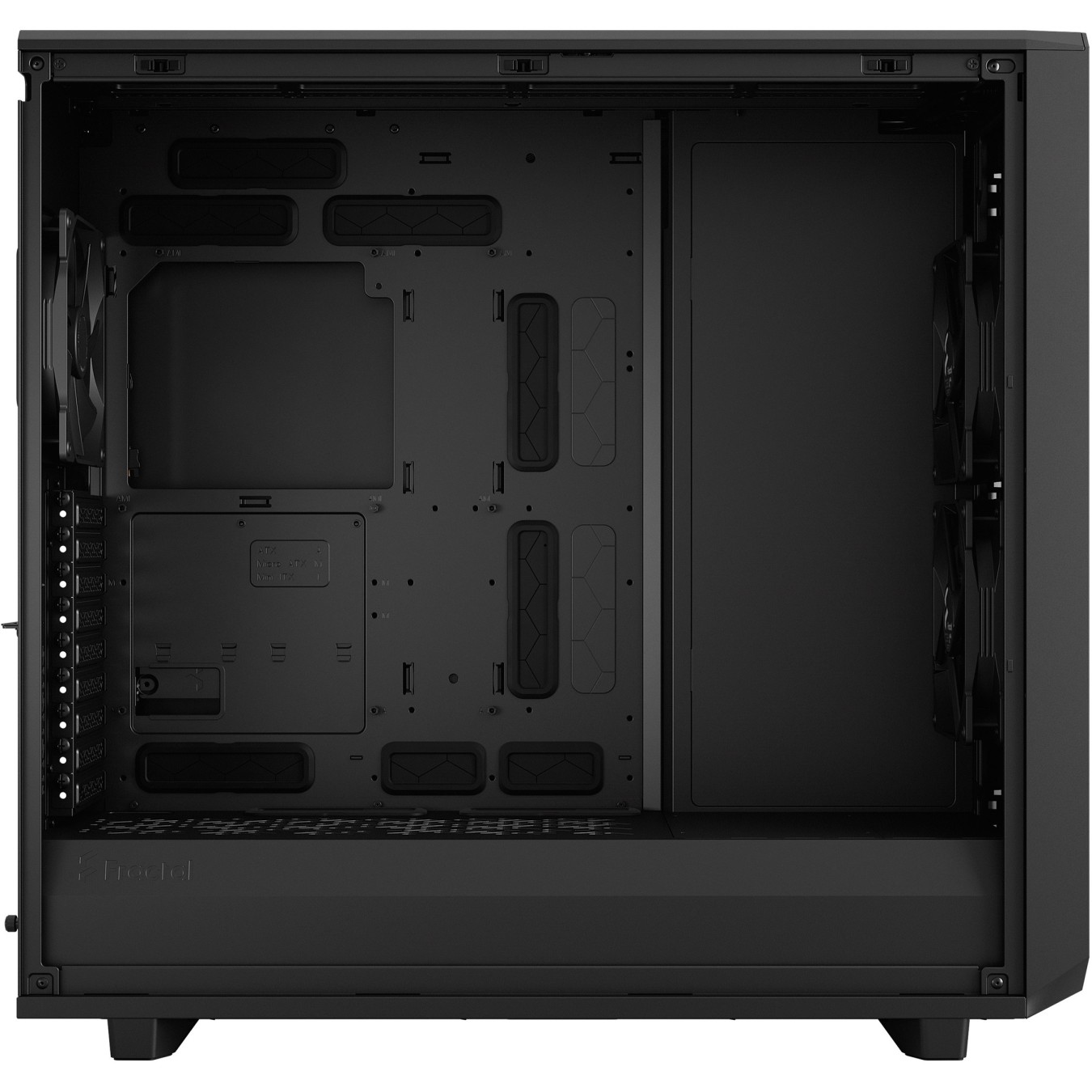

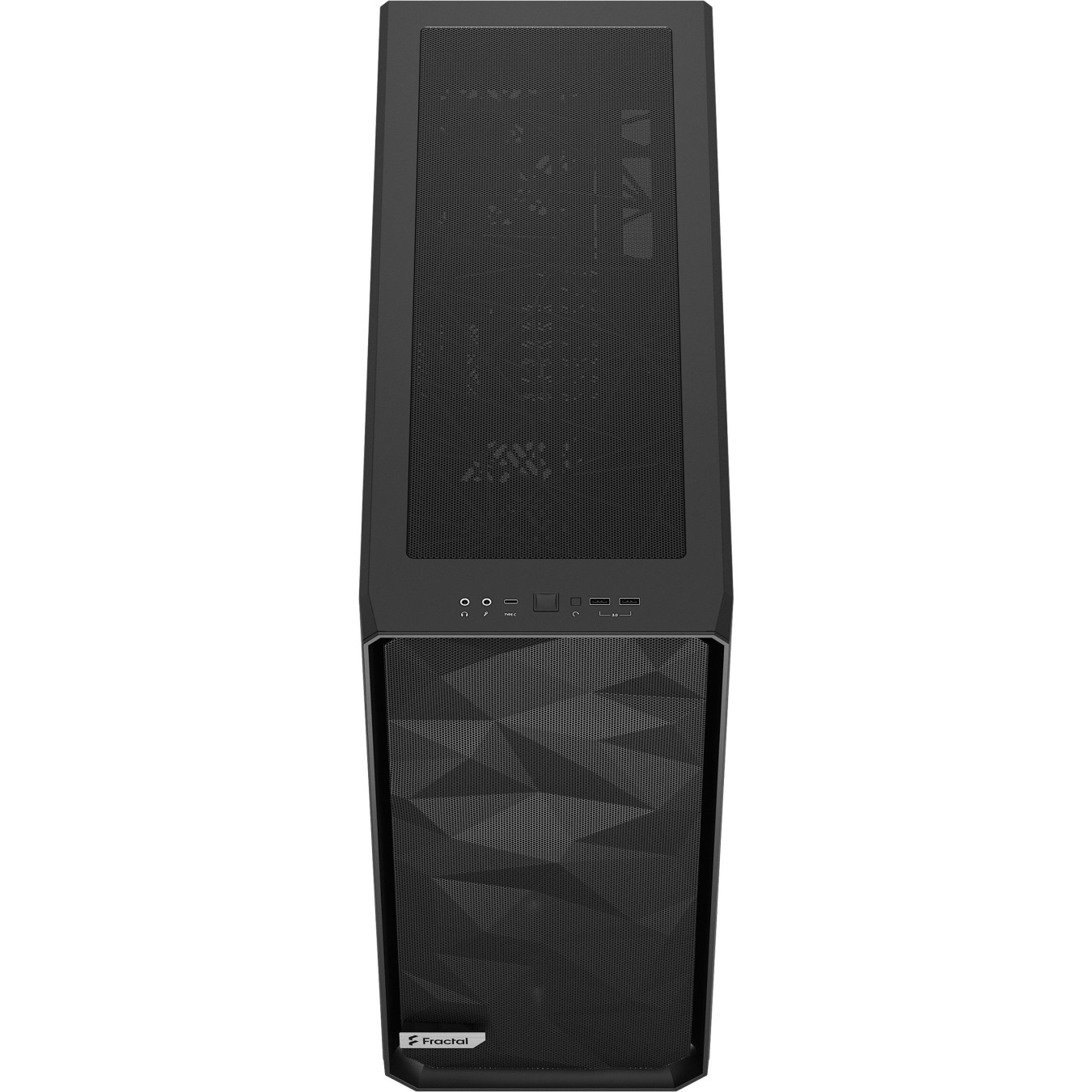

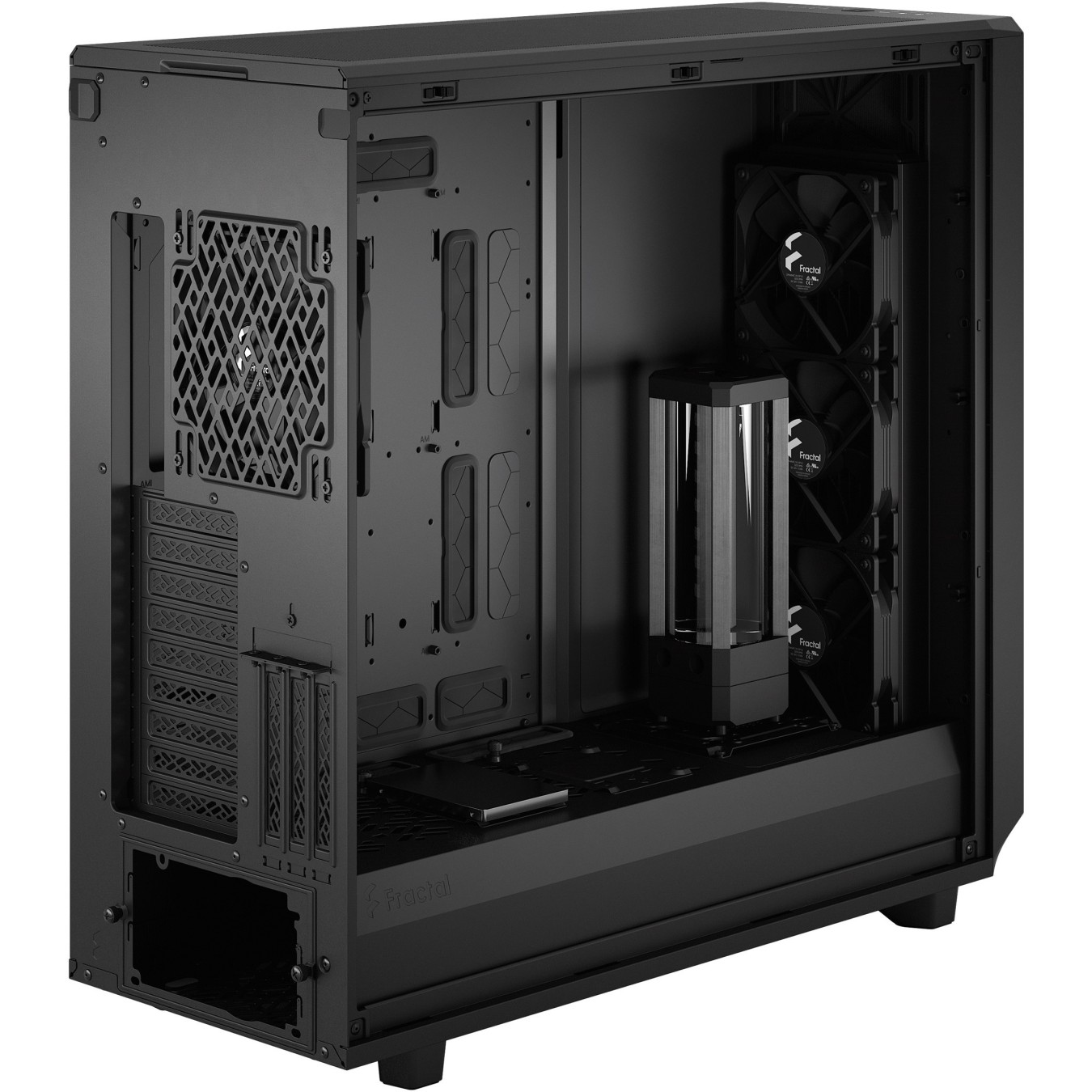

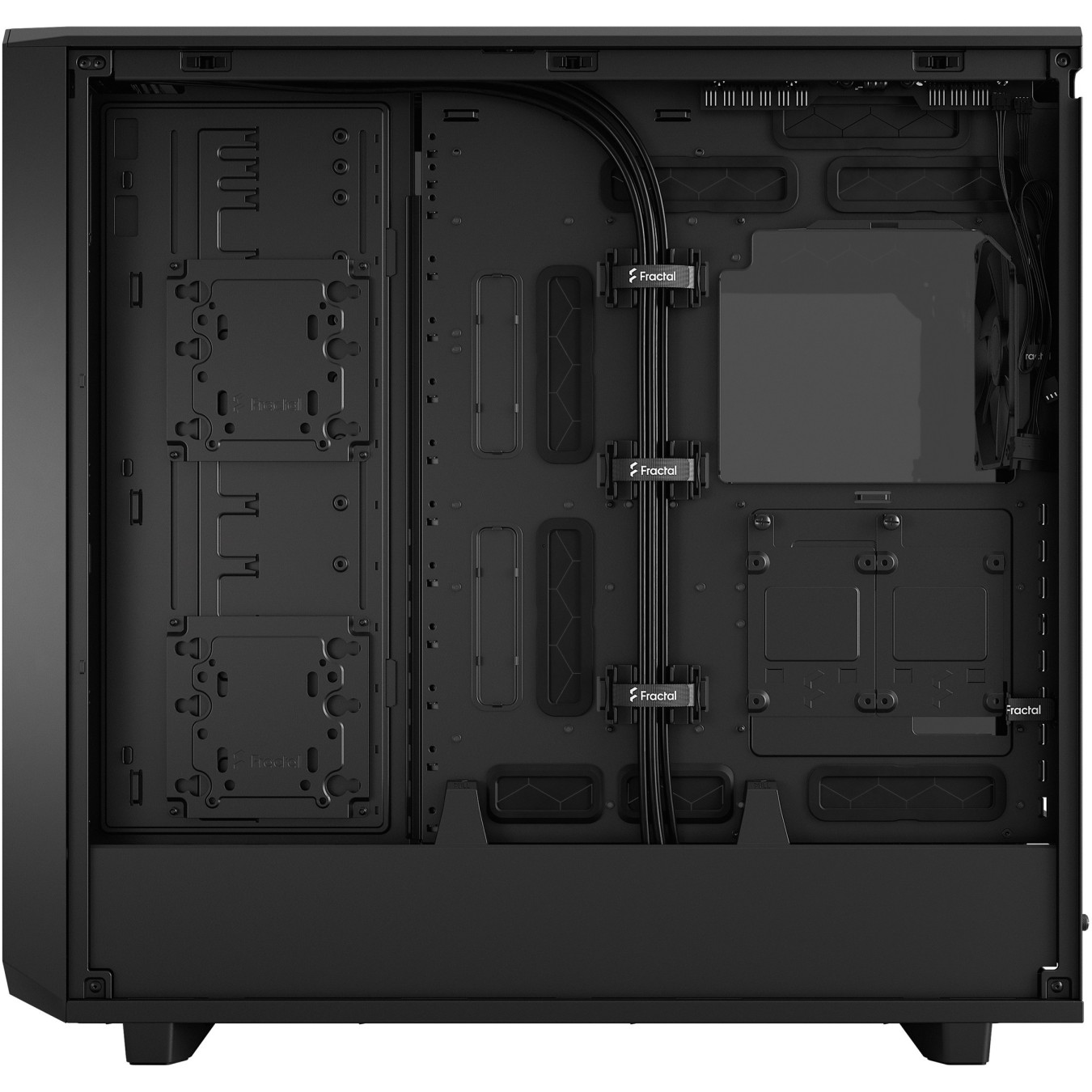

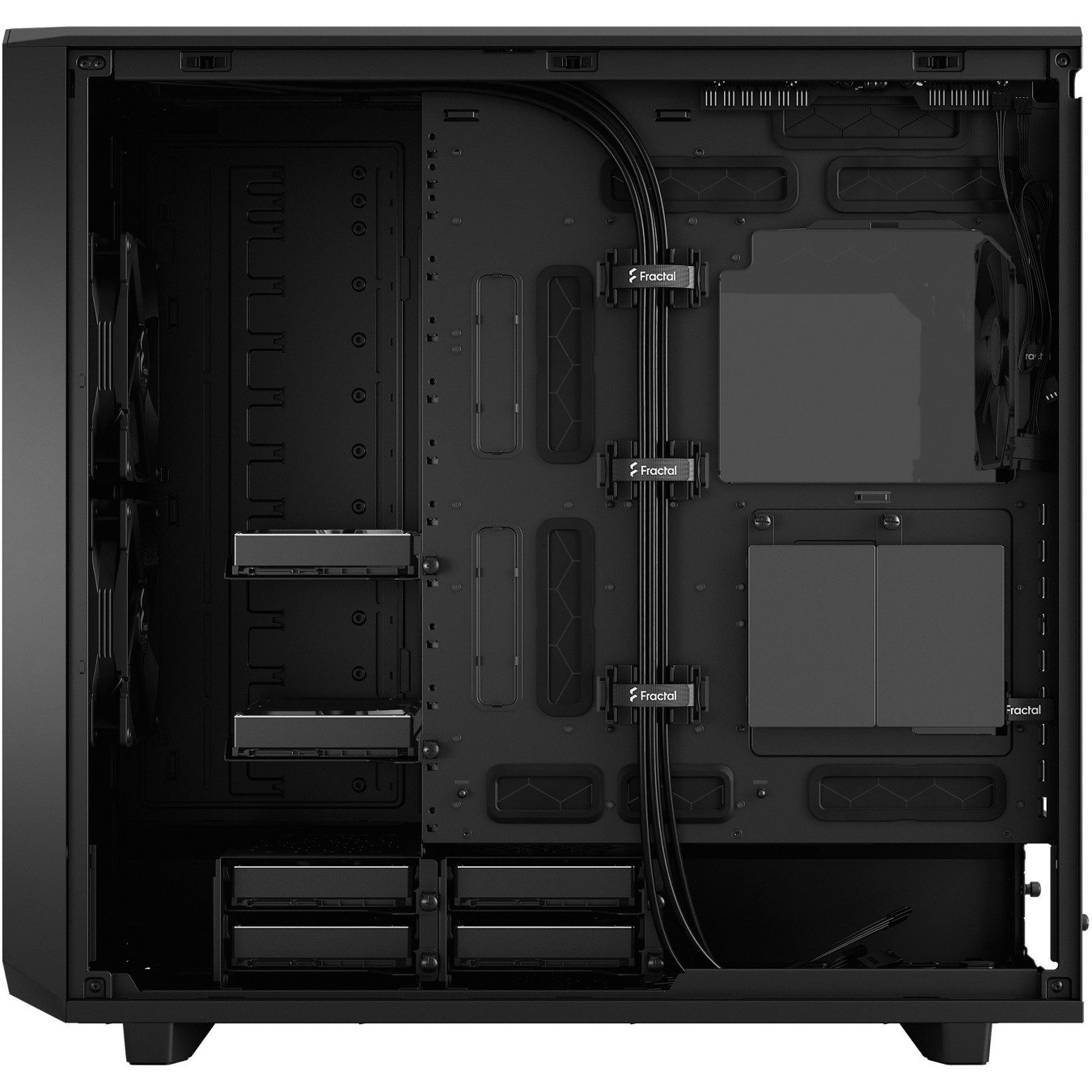

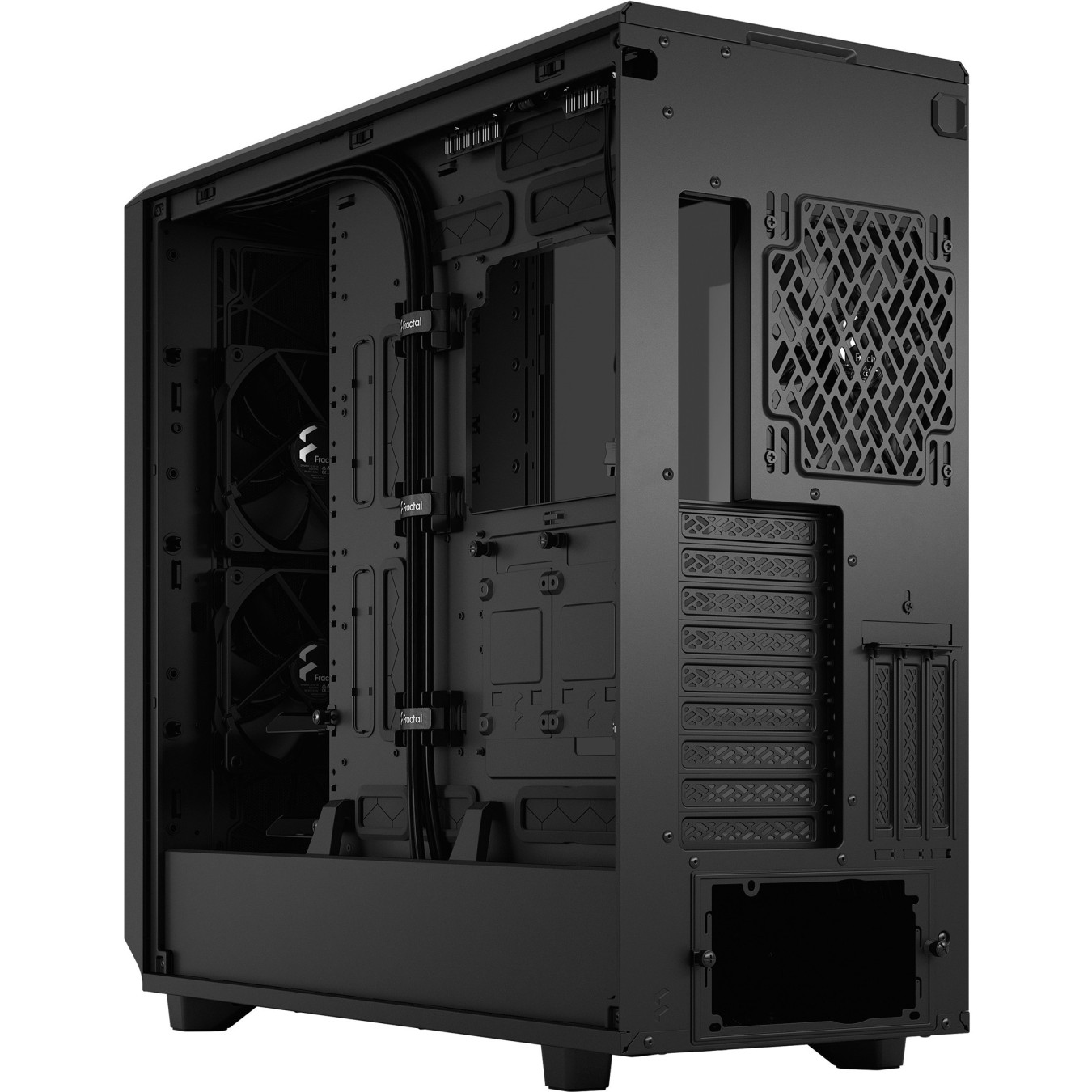

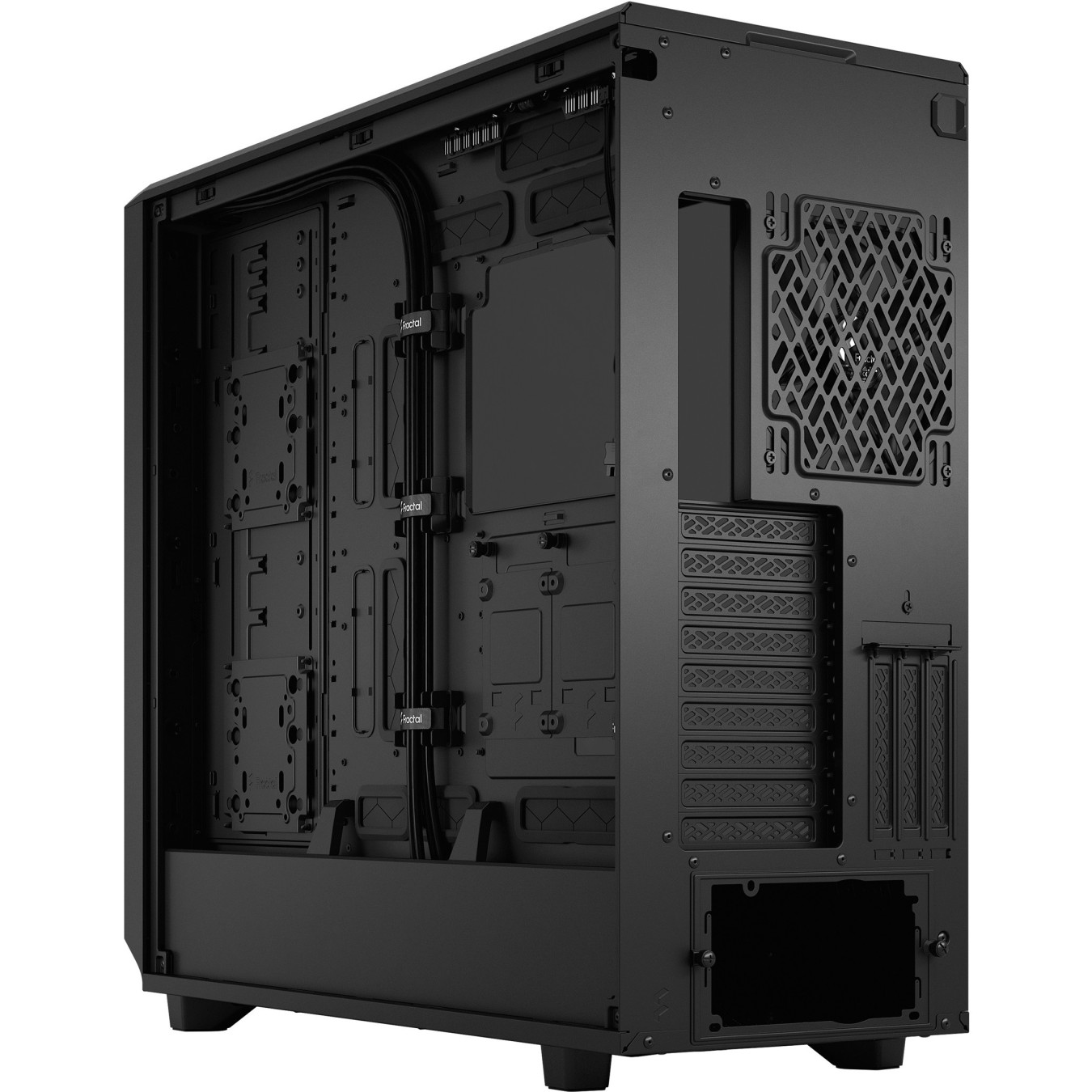

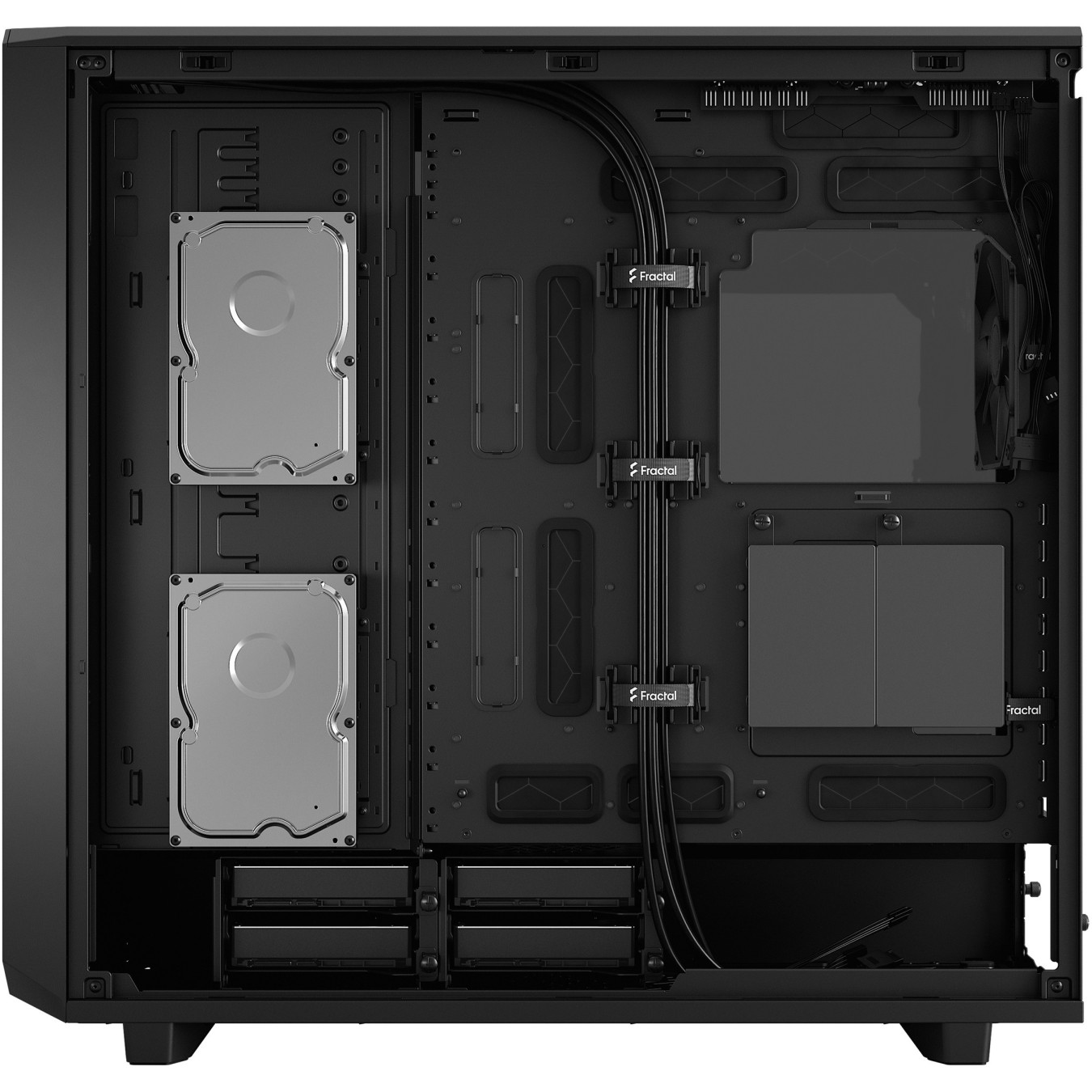

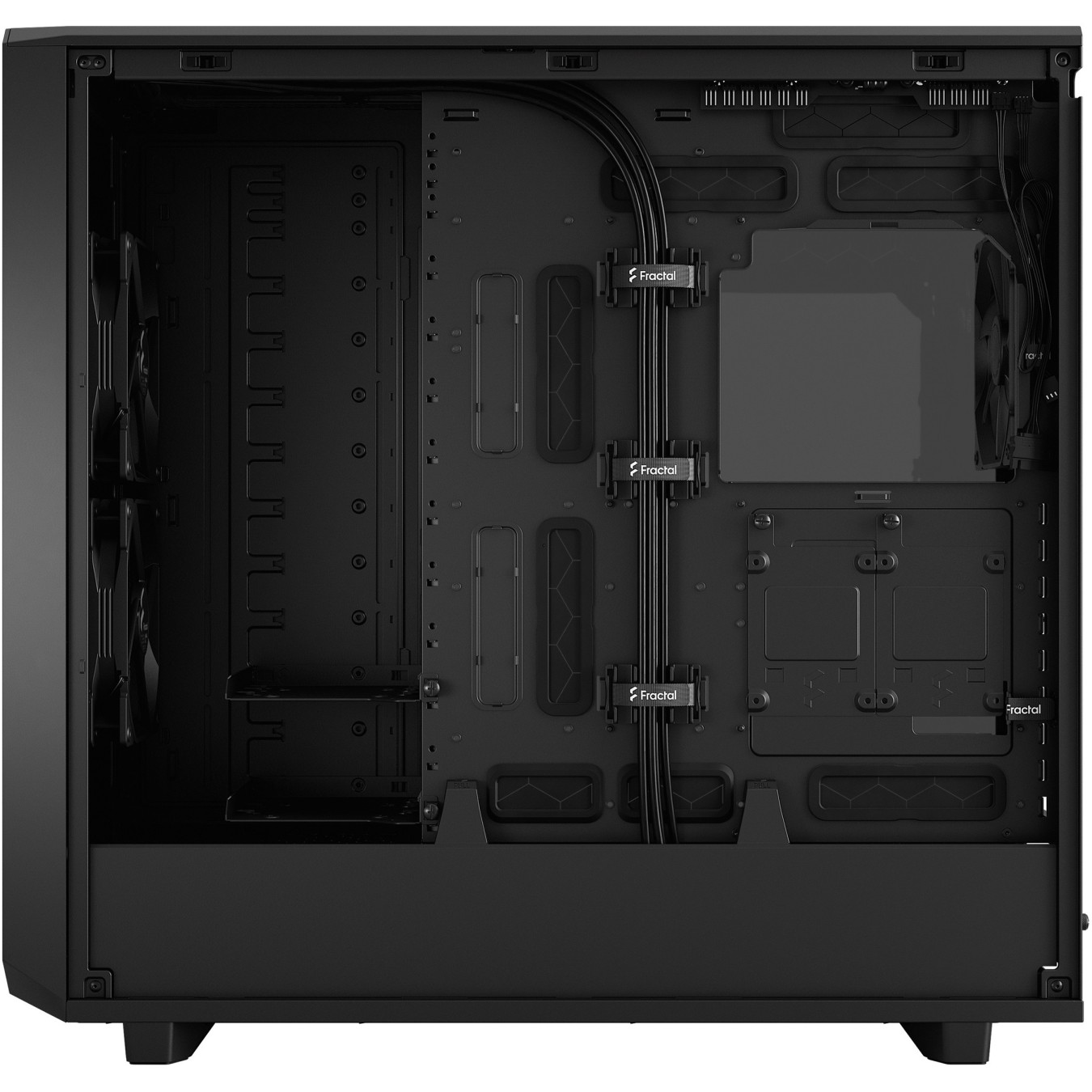

Inside, the dual-layout interior supports motherboards up to E-ATX and SSI-EEB, with exceptional compatibility for large GPUs (up to 549mm in open layout), CPU coolers (185mm height), and radiators up to 480mm front/top. It includes 3x Dynamic X2 GP-14 140mm fans (2 front, 1 rear) and Nexus+ 2 fan hub. Storage options are vast with 6 universal 3.5"/2.5" trays, 2 dedicated 2.5" mounts, expandable to 18 HDDs/5 SSDs. Front I/O includes USB 3.2 Gen 2x2 Type-C (20Gbps), 2x USB 3.0, and audio jack.
- 11 fan positions (9x140mm or 11x120mm max)
- 9+3 expansion slots
- 30mm cable routing space with velcro straps
- Supports vertical GPU with optional bracket
- 2-year warranty
| MPN | FD-C-MES2X-02 |
| Form Factor | Full Tower |
| Motherboard Compatibility | E-ATX, ATX, mATX, Mini-ITX, SSI-EEB, SSI-CEB |
| Included Fans | 3x Dynamic X2 GP-14 140mm (2 front, 1 rear) |
| Fan Positions | 11x120mm or 9x140mm |
| Radiator Support Front | Up to 480/420mm |
| Radiator Support Top | Up to 480/420mm |
| Radiator Support Rear | 120mm |
| Max GPU Length | 549mm (open layout) |
| CPU Cooler Height | 185mm |
| Expansion Slots | 9+3 |
| Drive Bays 3.5 | 6 included (18 max) |
| Drive Bays 2.5 | 2 included (5 max) |
| Front I/O | 1x USB 3.2 Gen 2x2 Type-C, 2x USB 3.0, Audio |
| Dimensions (HxWxD) | 566 x 240 x 600 mm |
| Weight | 14.1 kg |
| Material | Steel, Tempered Glass |
| Power Supply | ATX, max 250mm |
