Ubiquiti UniFi Cloud Gateway Max UCG-Max VPN Router (Boxed)
High-performance Ubiquiti UniFi Cloud Gateway Max (UCG-Max) offers 2.5G ports, 2.3 Gbps IPS routing, supports 30+ UniFi devices/300+ clients, VPN (WireGuard/OpenVPN), selectable NVR SSD, cloud-managed.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Routers - Device Type | Wired Gateway |
|---|---|
| Routers - Special Features | Cloud Managed Failover Support Firewall Intrusion Prevention Load Balancing QoS Traffic Monitoring VLAN Support VPN Support |
| Routers - LAN Ports | 4 |
| Routers - Wi-Fi Standard | Wired Only |

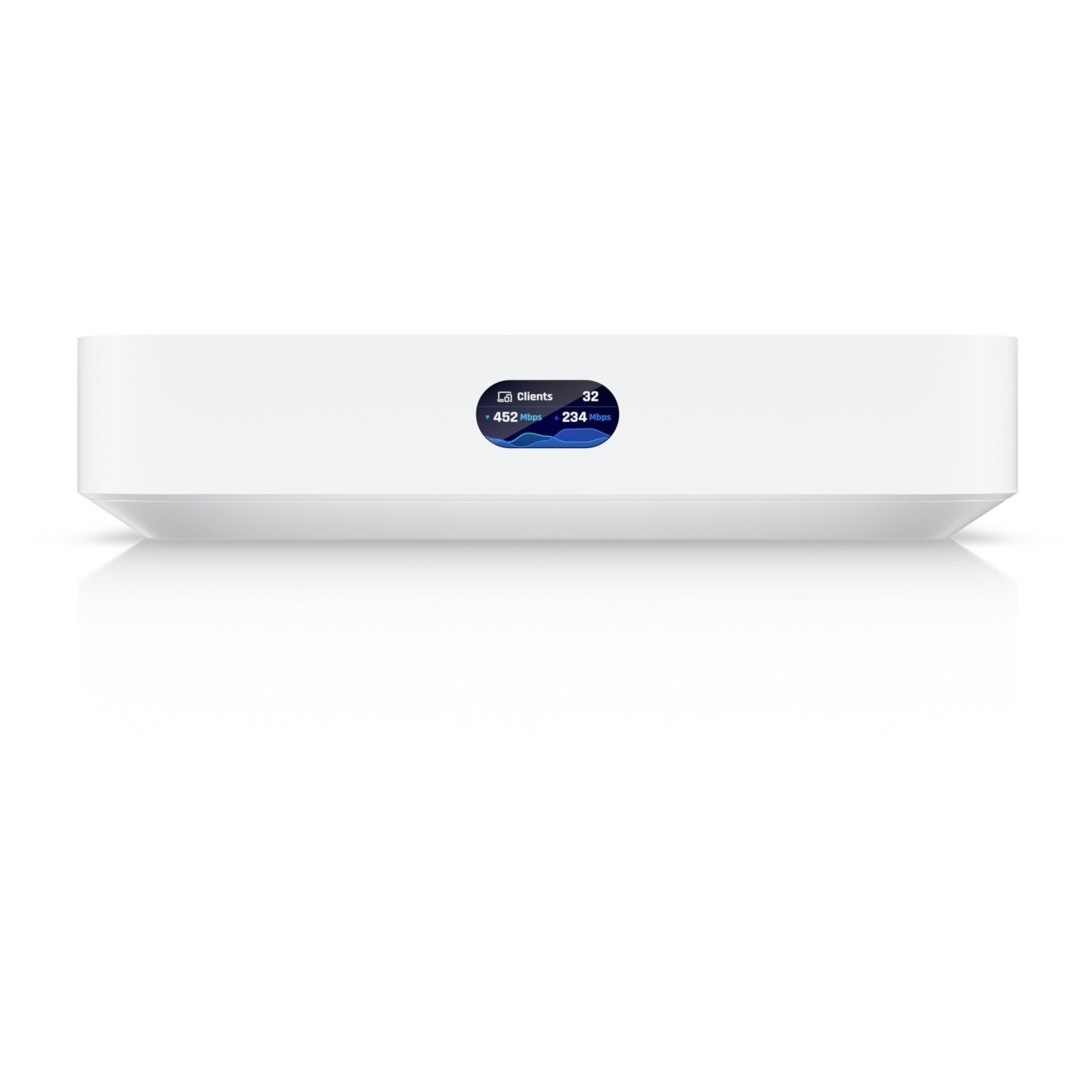

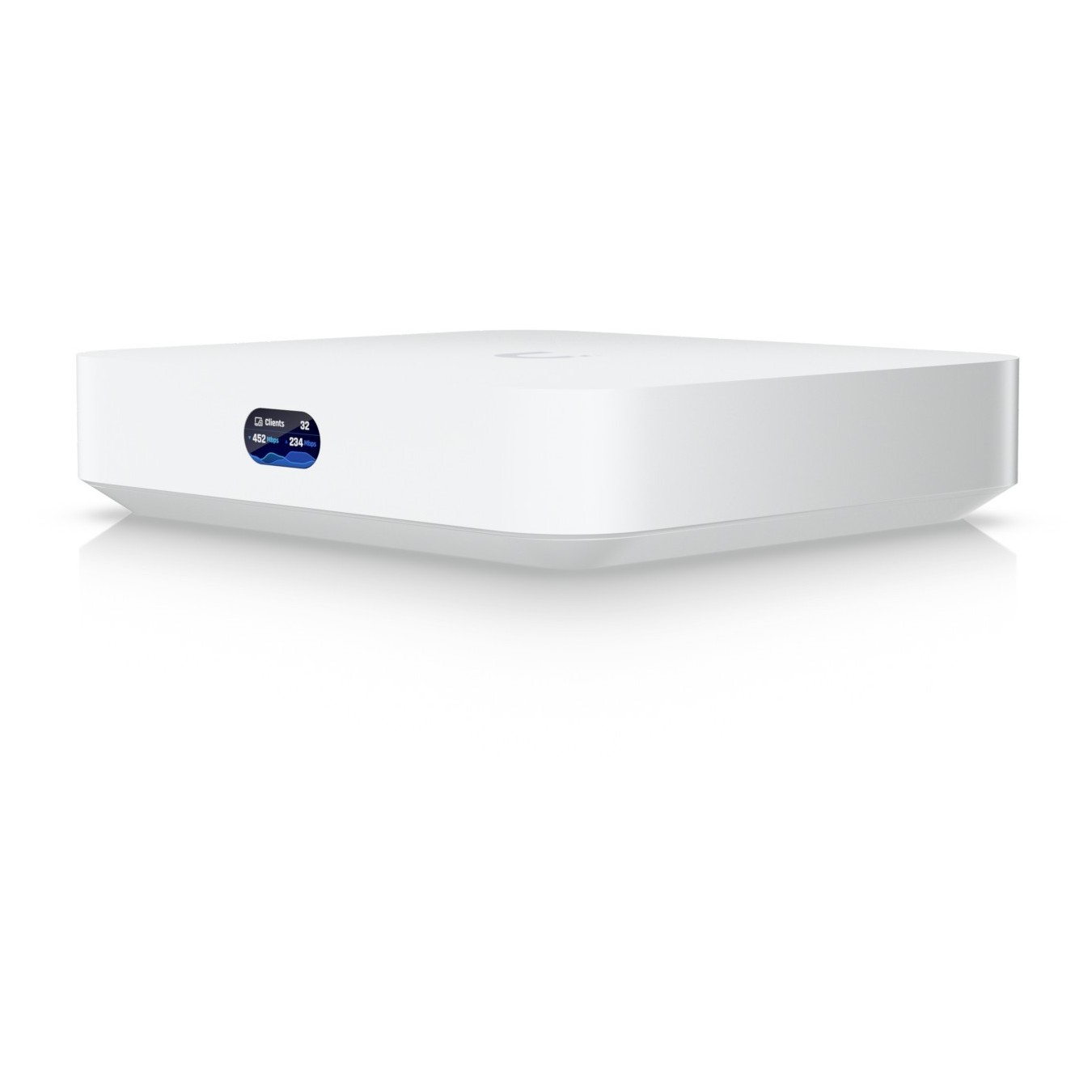

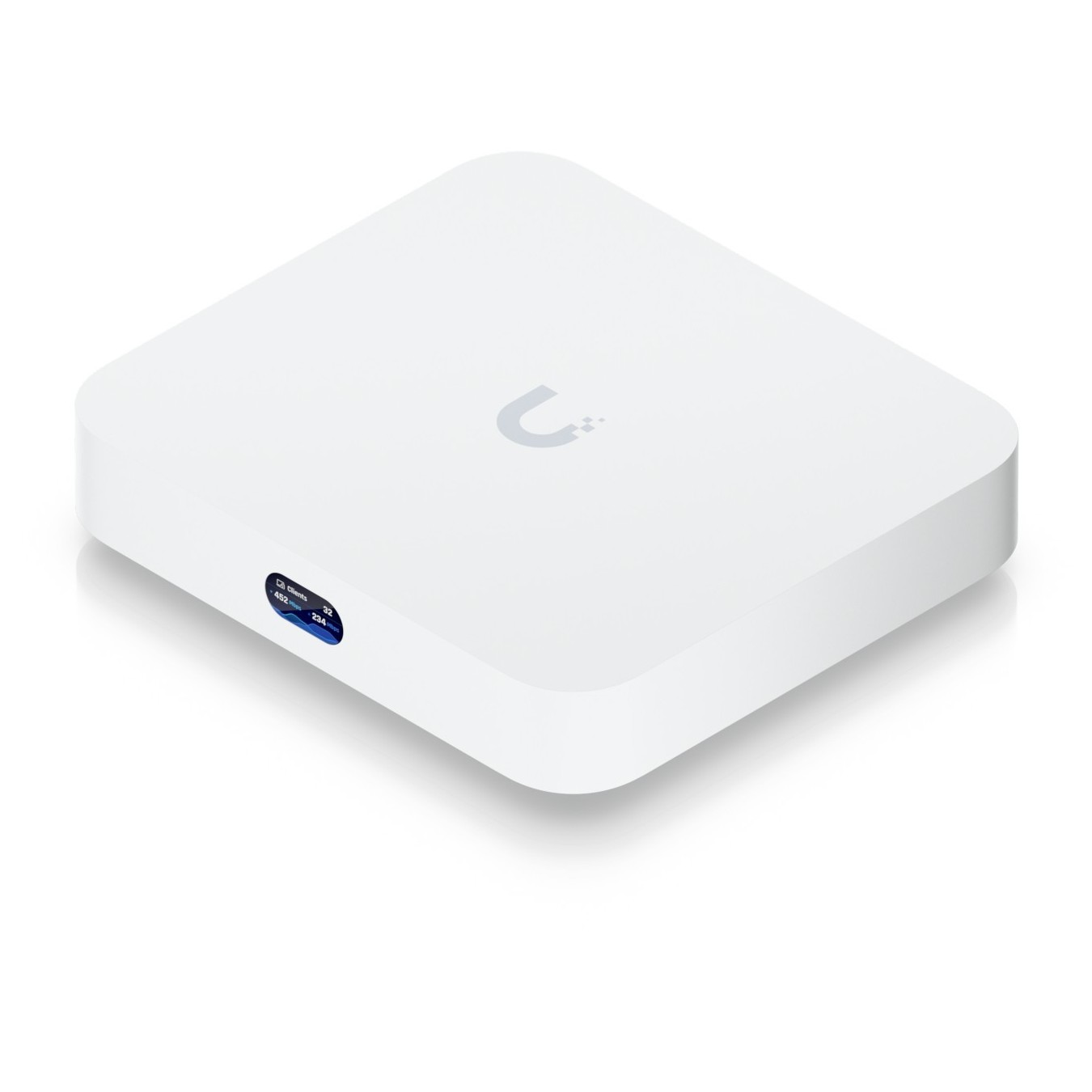

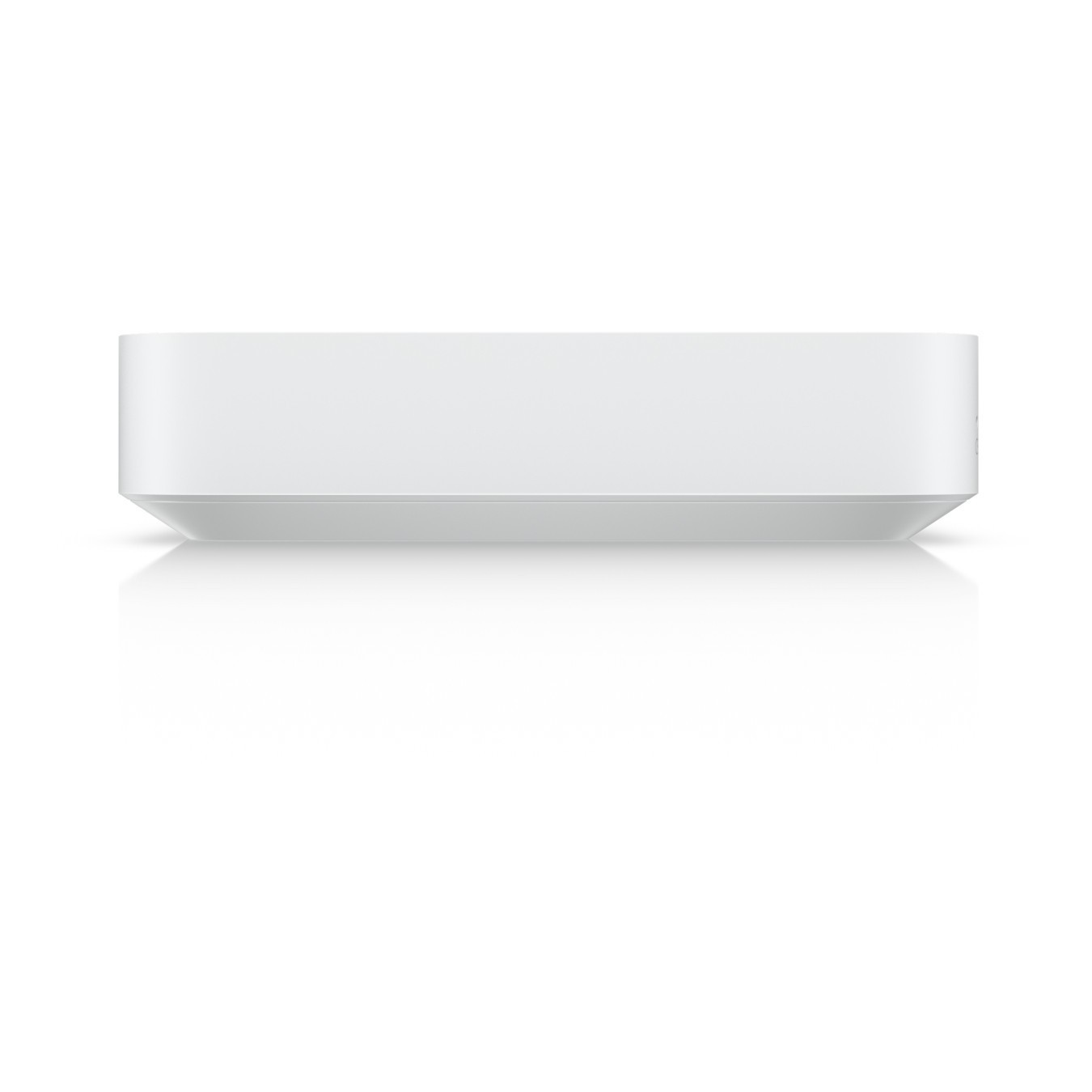

The Ubiquiti UniFi Cloud Gateway Max (UCG-Max) is a compact 2.5G cloud gateway designed for home and small business networks. It delivers 2.3 Gbps IPS routing throughput, supports over 30 UniFi devices and 300+ clients, with selectable NVMe SSD storage up to 2TB for NVR applications.
Featuring a 1.5 GHz quad-core CPU and 3GB RAM, it includes 1x 2.5 GbE WAN and 4x 2.5 GbE LAN ports (one remappable to WAN). Advanced security includes stateful firewall, DPI, intrusion prevention, and 55,000+ IDS/IPS signatures with CyberSecure. VPN support covers WireGuard, OpenVPN, IPsec, and more, plus multi-WAN load balancing and QoS.

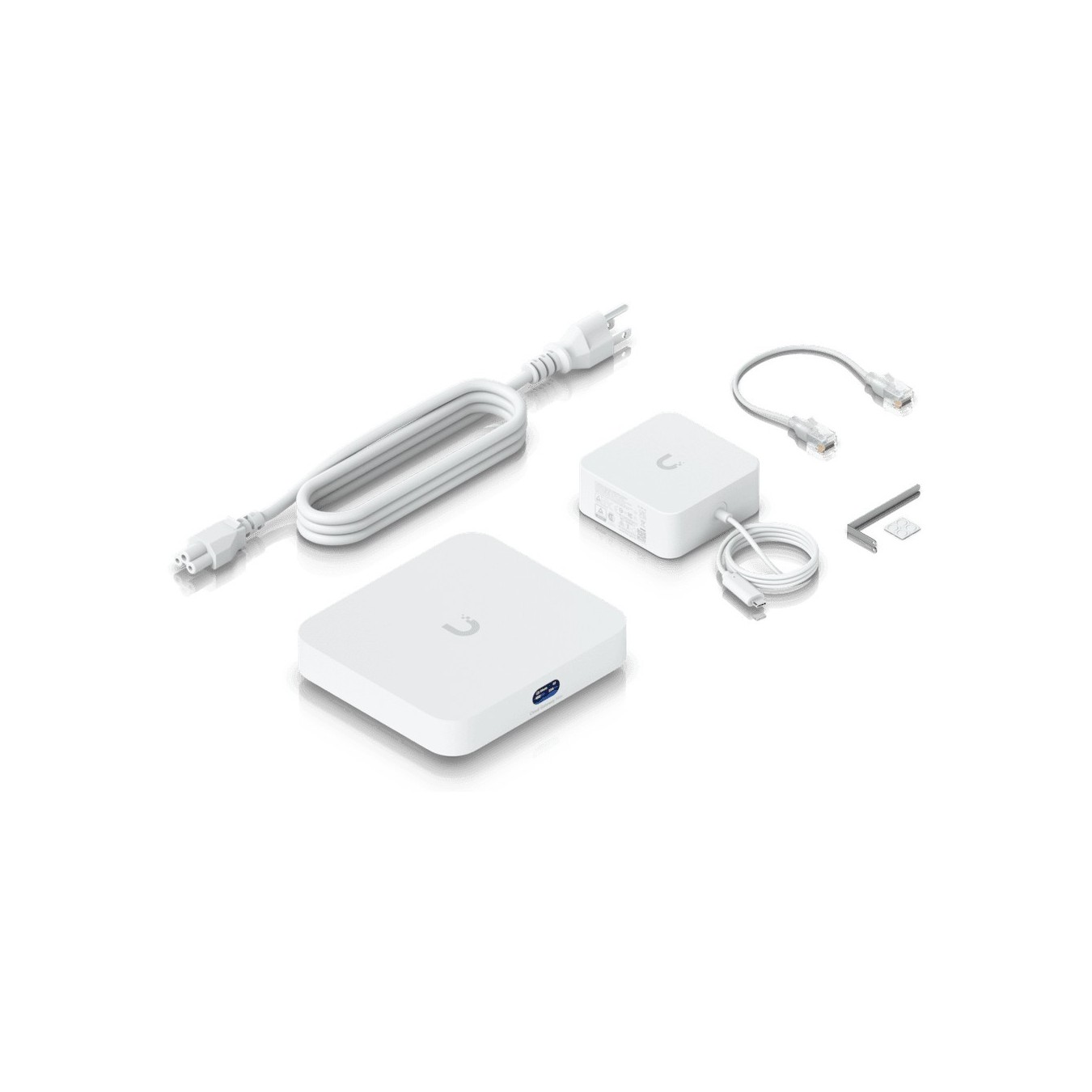

- Compact desktop form factor with USB-C power (adapter included)
- License-free SD-WAN and site-to-site VPN
- Cloud-managed via UniFi Network application
- Supports dynamic routing (OSPF), VLANs, and traffic segmentation
- Integrated RADIUS server and advanced NAT features
| Model | UCG-Max |
| CPU | 1.5 GHz Quad-Core |
| RAM | 3 GB |
| NVR Storage | Selectable NVMe SSD up to 2 TB |
| WAN Ports | 1 x 2.5 GbE RJ45 (default) |
| LAN Ports | 4 x 2.5 GbE RJ45 |
| Total Ports | 5 x 2.5G/1G/100M/10M |
| IDS/IPS Throughput | 2.3 Gbps |
| Max Devices | 30+ UniFi / 300+ clients |
| VPN Support | WireGuard, OpenVPN, IPsec, L2TP |
| Power Method | USB-C (5V DC/5A, adapter included) |
| Max Power Consumption | 16.1 W |
| Form Factor | Compact desktop |
