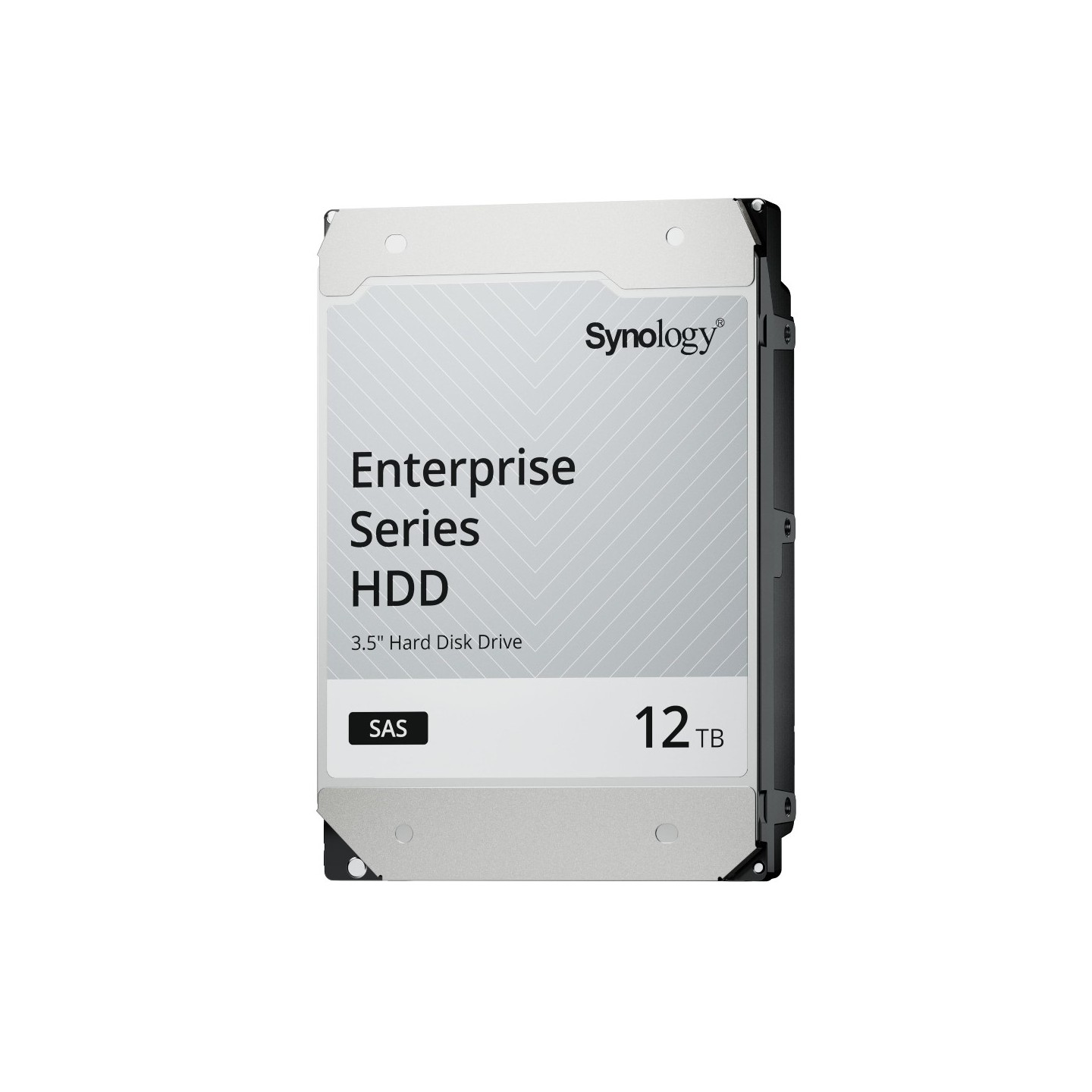

Synology HAS5300-12T 12TB SAS 12Gb/s 7200 RPM Enterprise HDD (Boxed)
Enterprise-class 12TB 3.5" SAS HDD with 7200 RPM, 256MB cache, and 254 MB/s transfer speed. Rated for 2.5M hour MTTF and 550TB annual workload. Optimized for Synology NAS systems.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Storage (SSD & HDD) - Device Type | Internal HDD |
|---|---|
| Storage (SSD & HDD) - Capacity | 12TB |
| Storage (SSD & HDD) - RPM (HDD) | 7200 RPM |
| Storage (SSD & HDD) - Interface | SAS 12Gb/s |
| Storage (SSD & HDD) - Cache (HDD) | 256MB |
| Storage (SSD & HDD) - Form Factor | 3.5 inch |
The Synology HAS5300-12T is a high-capacity enterprise-grade 3.5-inch hard drive designed specifically for demanding 24/7 NAS and storage environments. With 12TB of storage capacity, a SAS 12 Gb/s interface, and 7200 RPM rotational speed, this drive delivers sustained data transfer rates of 254 MB/s and is optimized for mission-critical workloads. The drive features 256MB cache and has been rigorously tested with over 200,000 cumulative testing hours on Synology hardware.
Built for reliability and durability, the HAS5300-12T carries a 2.5 million hour Mean Time to Failure (MTTF) rating and supports workloads up to 550TB per year. It includes persistent write cache technology to safeguard data integrity and firmware optimized for critical workloads. When integrated with Synology SA or UC series NAS systems, it enables RAID array repair up to 27% faster than comparable enterprise-class drives. The drive is backed by a 5-year limited warranty and supports automatic firmware updates through Synology's DSM interface.
- Capacity: 12TB
- Interface: SAS 12 Gb/s
- Form Factor: 3.5 inch
- Rotational Speed: 7200 RPM
- Cache: 256MB
- Max Sustained Transfer Speed: 254 MB/s
- MTTF Rating: 2.5 million hours
- Annual Workload: Up to 550TB
- Warranty: 5 years
- Power Consumption: 4.25W (idle), 7.83W (random R/W)
| Capacity | 12 TB |
| Form Factor | 3.5 inch |
| Interface | SAS 12 Gb/s |
| Rotational Speed | 7200 RPM |
| Cache | 256 MB |
| Maximum Sustained Data Transfer Speed | 254 MB/s |
| MTTF Rating | 2.5 million hours |
| Annual Workload Rating | 550 TB/year |
| Power Consumption (Idle) | 4.25 W |
| Power Consumption (Random Read/Write 4KB Q1) | 7.83 W |
| Warranty | 5 years |
| Sector Size | 512e |
| Buffer Size | 256 MiB |
| Operating Altitude | -305 m to 3,048 m |
| Operating Humidity | 5% to 90% R.H. (no condensation) |
| Physical Dimensions (H x W x D) | 26.1 mm x 101.85 mm x 147 mm |
| Weight | 770 g |
| Certifications | CE, RCM, BSMI, KC, EAC, UL, TUV, ICES, UKCA, RoHS |
