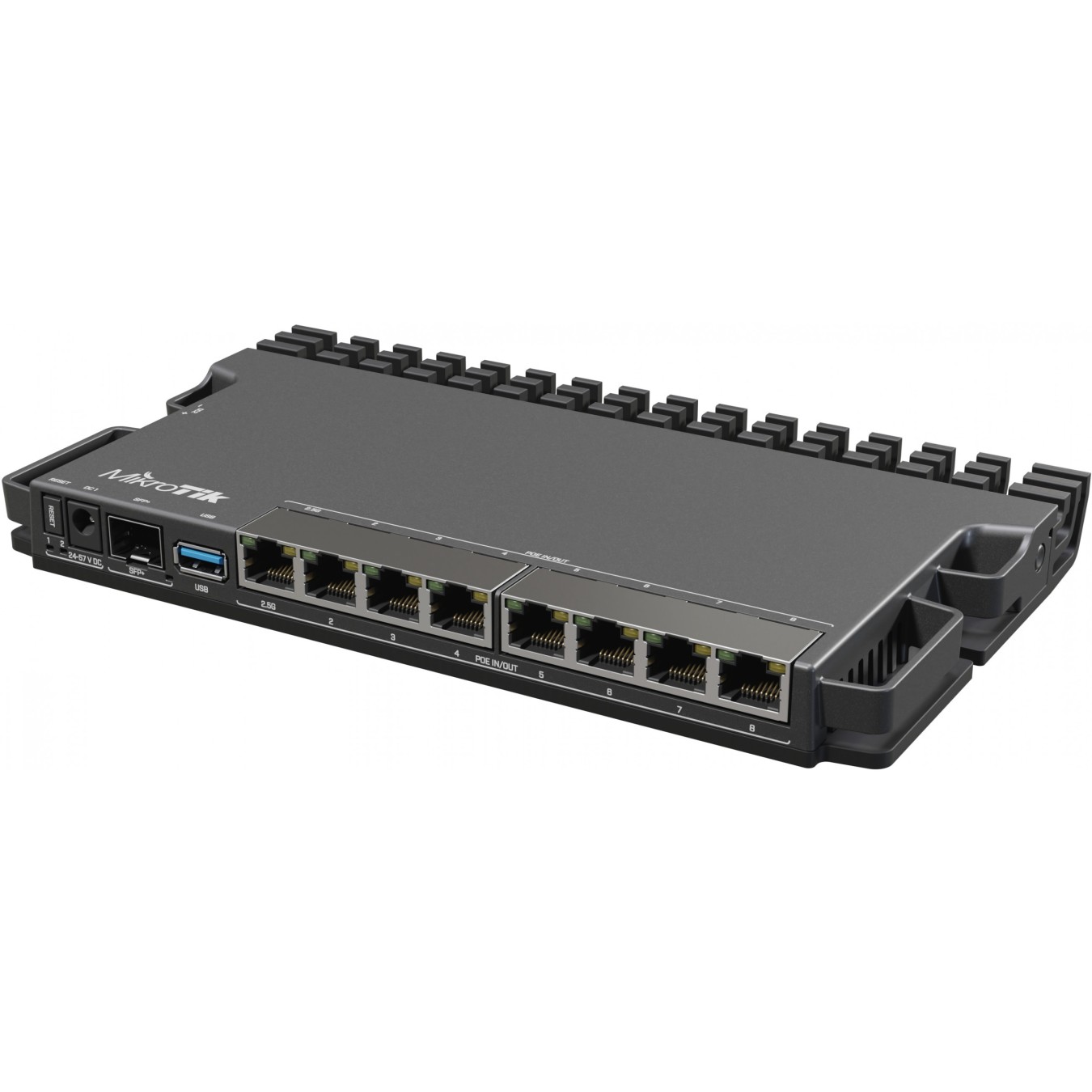

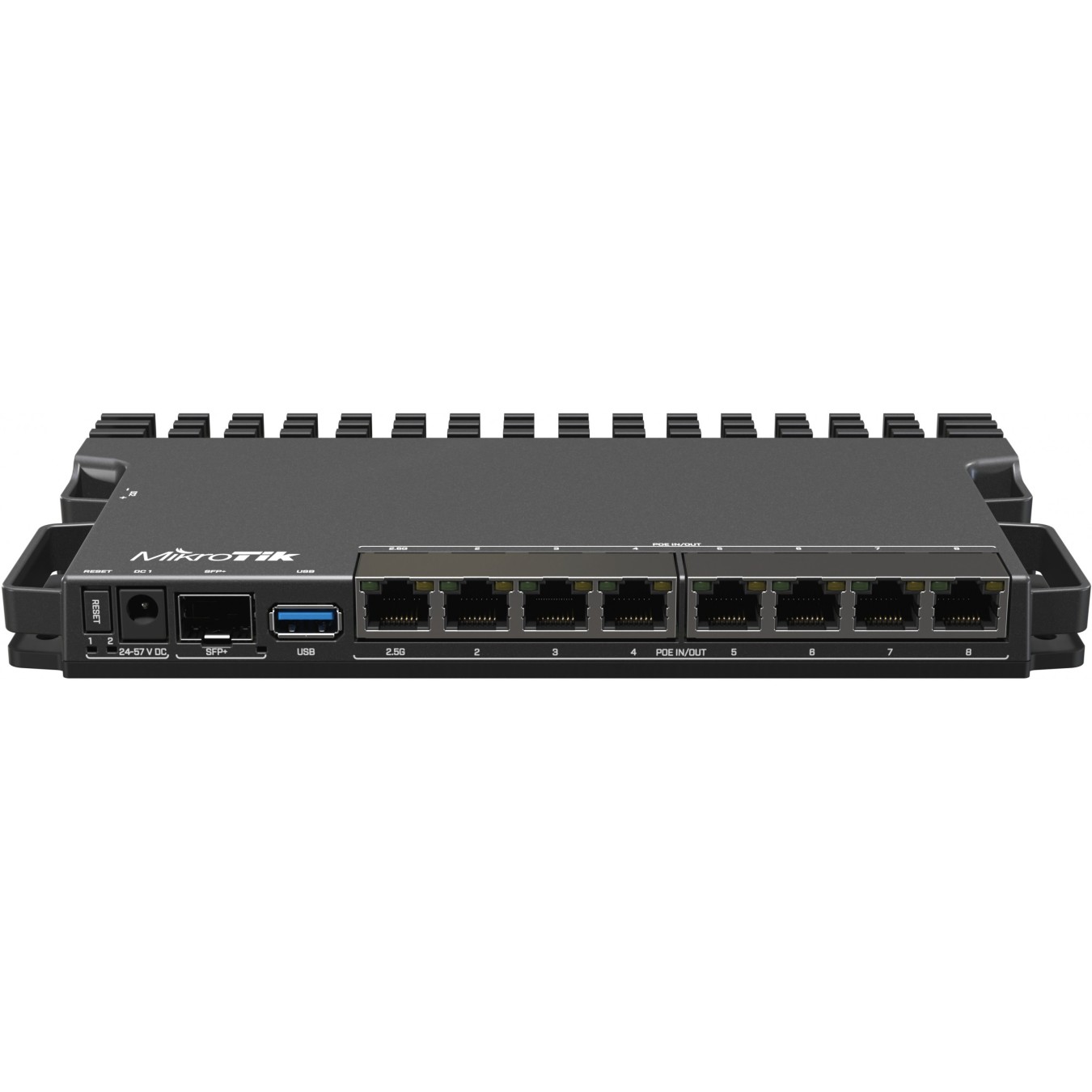

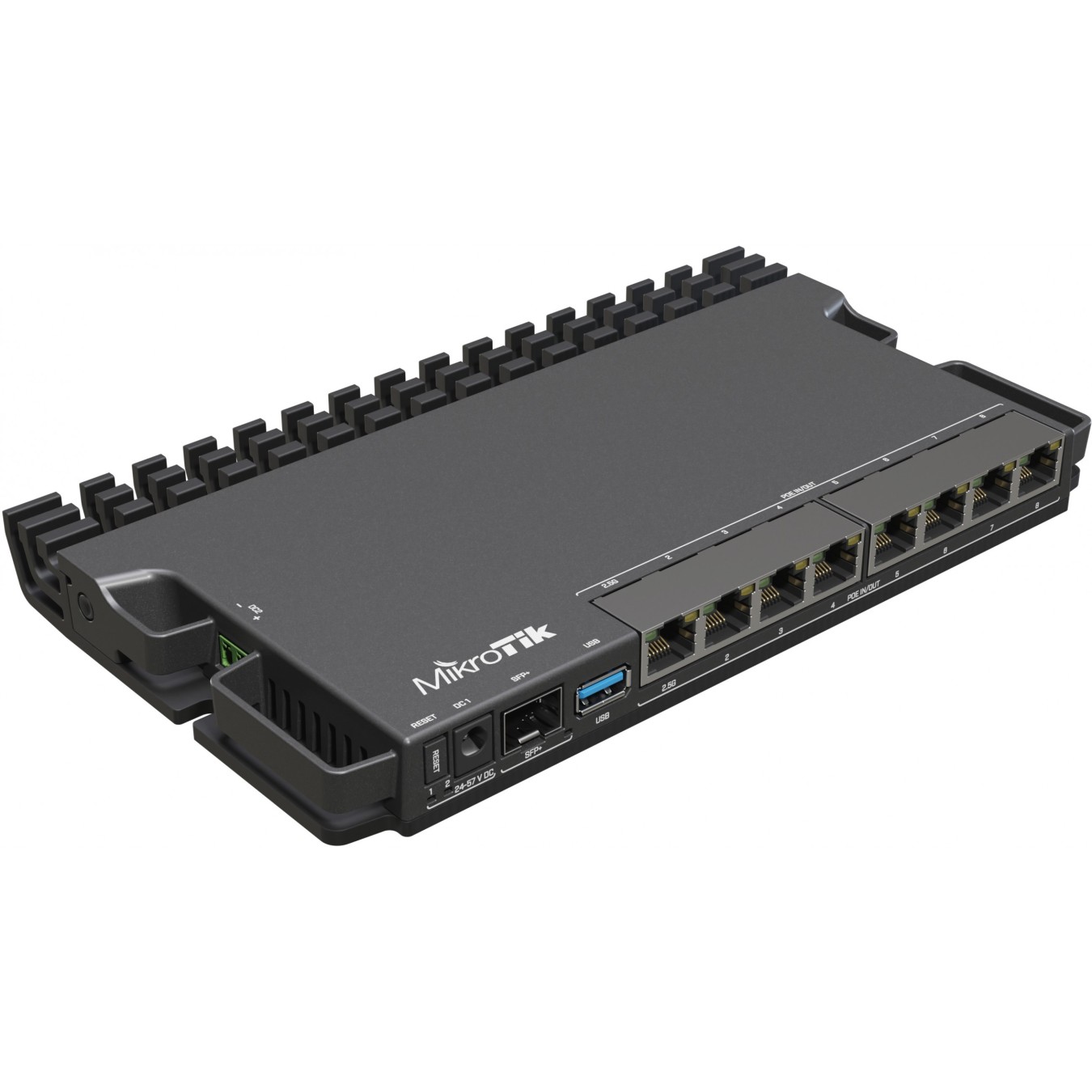

MikroTik RB5009UG+S+IN - 9-port Router with 10G SFP+ (Boxed)
MikroTik RB5009UG+S+IN is a high-performance wired router with quad-core ARM CPU, 1GB RAM, 7x Gigabit + 1x 2.5G Ethernet, 1x 10G SFP+, USB 3.0. Ideal for enterprise, home labs with PoE, VLAN, firewall support. Dimensions: 220x125x22mm.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Routers - Device Type | Wired Gateway |
|---|---|
| Routers - Special Features | Failover Support Firewall Load Balancing PoE Support QoS USB Sharing VLAN Support VPN Support |
| Routers - LAN Ports | 9-16 |
| Routers - Wi-Fi Standard | Wired Only |
The MikroTik RB5009UG+S+IN is a compact, powerful RouterBOARD designed for scalable enterprise networks, home labs, and SMB routing. Featuring a quad-core ARMv8 88F7040 CPU at 1.4 GHz, 1GB DDR4 RAM, and 1GB NAND storage, it delivers exceptional performance for heavy CPU loads with RouterOS v7 License Level 5.
It offers 9 wired ports: 7x Gigabit Ethernet, 1x 2.5 Gigabit Ethernet, and 1x 10G SFP+ for high-speed fiber uplinks. A full-size USB 3.0 port enables storage sharing or modem connectivity. Multiple powering options include PoE-in (802.3af/at on port 1), DC jack (24-57V), and 2-pin terminal. Passive cooling ensures silent operation in rackmount (4 units per 1U) or desktop setups.
- Quad-core ARM CPU (350-1400 MHz auto), 1GB DDR4 RAM, 1GB NAND
- Ports: 7x 1Gbps LAN, 1x 2.5Gbps LAN, 1x 10G SFP+, 1x USB 3.0
- Power: PoE-in, DC jack, 2-pin terminal (24-57V, max 25W)
- Features: VLAN, Firewall, VPN, QoS via RouterOS v7
- Dimensions: 220 x 125 x 22 mm, passive cooling
| Product code | RB5009UG+S+IN |
| Architecture | ARM 64bit |
| CPU | 88F7040 |
| CPU core count | 4 |
| CPU nominal frequency | 350-1400 (auto) MHz |
| RAM size | 1 GB |
| RAM type | DDR4 |
| Storage size | 1 GB |
| Storage type | NAND |
| RouterOS license | 5 |
| Operating System | RouterOS (v7 only) |
| Number of 10/100/1000 Ethernet ports | 7 |
| Number of 2.5G Ethernet ports | 1 |
| Number of 10G SFP+ ports | 1 |
| Number of USB ports | 1: USB 3.0 type A |
| Max USB current | 1.5 A |
| Number of DC inputs | 3 (DC jack, PoE-in, 2-pin terminal) |
| DC jack input Voltage | 24-57 V |
| PoE-in | 802.3af/at |
| PoE in input Voltage | 24-57 V |
| Max power consumption | 25 W |
| Max power consumption (no attachments) | 14 W |
| Cooling type | Passive |
| Dimensions | 220 x 125 x 22 mm |
| Tested ambient temperature | -40°C to 60°C |
| Switch chip model | 88E6393 |
