TP-Link Omada ER7206 Gigabit VPN Router - ER7206 - Black (Boxed)
TP-Link Omada ER7206 is a Gigabit VPN router for SMEs with up to 4 WAN ports (1 SFP, 3 RJ45), load balancing, IPSec VPN (100 tunnels), firewall, 150K sessions. Omada SDN compatible, fanless design.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Routers - Device Type | Wired Gateway |
|---|---|
| Routers - Special Features | Cloud Managed Failover Support Firewall Load Balancing QoS VLAN Support VPN Support |
| Routers - LAN Ports | 4 |
| Routers - Wi-Fi Standard | Wired Only |

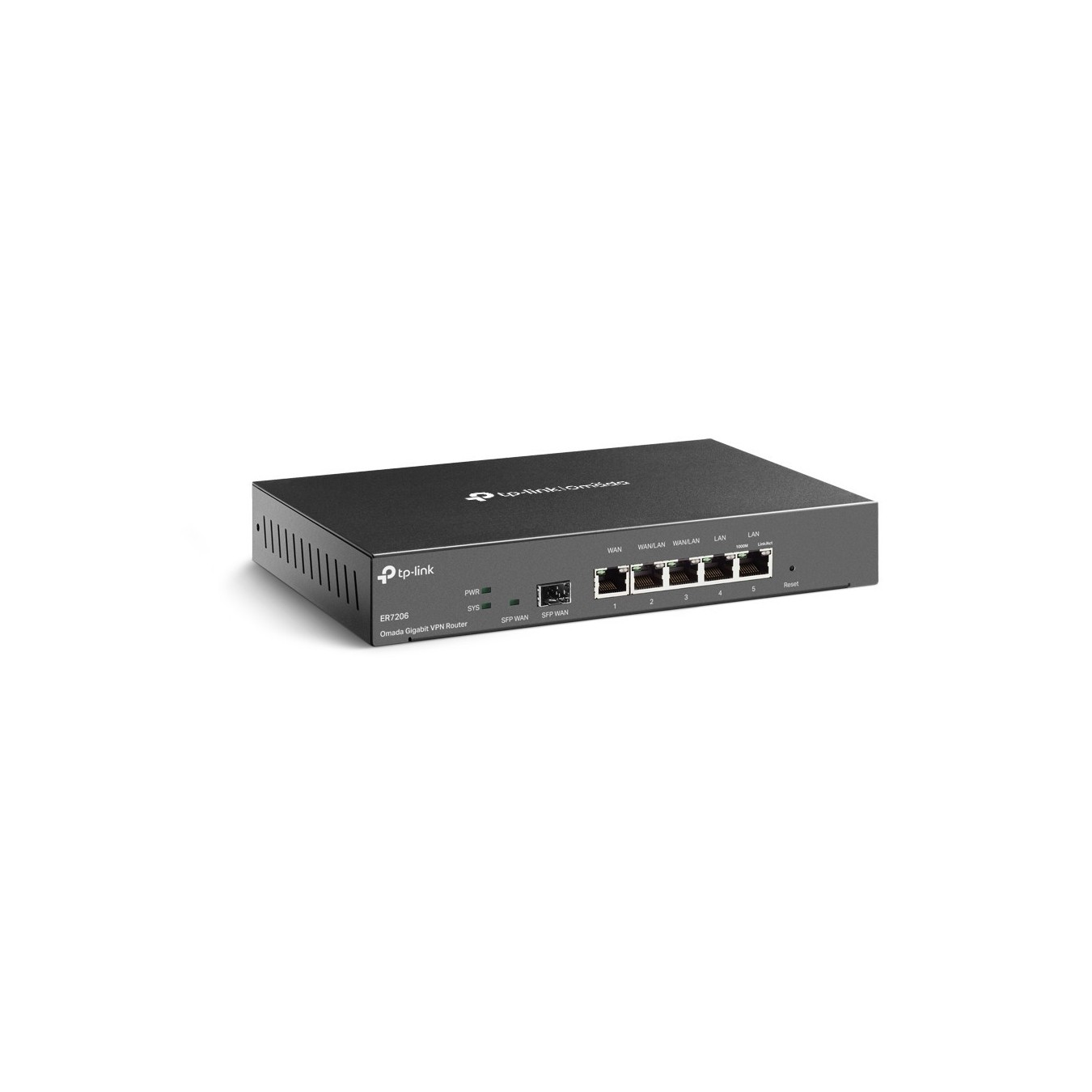

The TP-Link Omada ER7206 is an enterprise-grade Gigabit VPN router designed for small and medium enterprises. It features flexible port configuration including 1 fixed Gigabit SFP WAN port, 1 fixed Gigabit RJ45 WAN port, 2 fixed Gigabit RJ45 LAN ports, and 2 changeable Gigabit RJ45 WAN/LAN ports, enabling up to 4 WAN connections for optimized bandwidth usage through load balancing.
Equipped with advanced security features like SPI firewall, DoS defense, IP/MAC/URL filtering, and support for multiple VPN protocols including 100 LAN-to-LAN IPSec, 50 OpenVPN, L2TP, and PPTP connections. It handles 150,000 concurrent sessions and 5,500 new sessions per second, with high throughput for NAT (940 Mbps) and DPI (931 Mbps TCP). The fanless design ensures silent operation, and Omada SDN integration allows centralized cloud management.
Ideal for reliable business networking with 4kV surge protection, steel enclosure, and desktop mounting. Supports USB 3.0 for storage or LTE dongle failover.
- Up to 4 WAN ports with load balancing
- High-performance VPN: 100 IPSec tunnels
- Comprehensive security: Firewall, IPS, DoS protection
- Omada SDN compatible for centralized control
- Fanless, compact design (226x131x35 mm)
| Device Type | Wired Gateway |
| Interfaces | 1 Gigabit SFP WAN Port, 1 Gigabit RJ45 WAN Port, 2 Gigabit RJ45 LAN Ports, 2 Changeable Gigabit RJ45 WAN/LAN Ports, 1 USB 3.0 Port |
| DRAM | 512 MB |
| Flash | SPI 4MB + NAND 128MB |
| Dimensions (W x D x H) | 226 × 131 × 35 mm |
| Concurrent Sessions | 150,000 |
| New Sessions per Second | 5,500 |
| NAT Throughput | 940.3 Mbps (Static IP) |
| DPI Throughput | TCP: 931 Mbps; UDP: 902 Mbps |
| IPSec VPN Throughput | 291.6 Mb/s |
| VPN Tunnels | 100 LAN-to-LAN IPSec, 50 OpenVPN, 50 L2TP, 50 PPTP |
| Power Supply | 100–240 V~ 50/60 Hz |
| Max Power Consumption | 8.95 W |
| Fan | Fanless |
| Mounting | Desktop |
| Protection | 4 kV surge protection |
| Enclosure | Steel |
