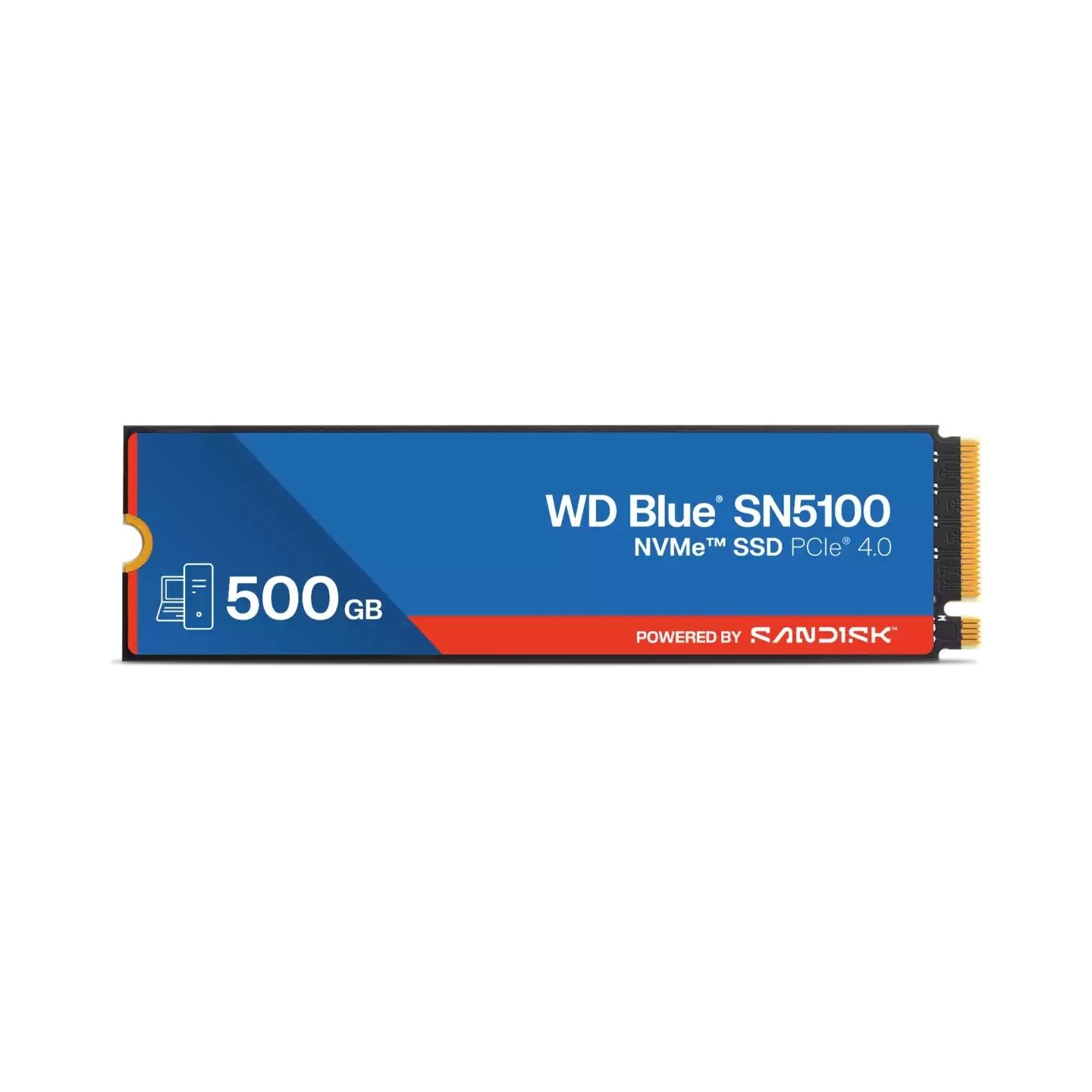

Western Digital Blue SN5100 500GB M.2 NVMe SSD - PCIe 4.0 x4 - WDS500G5B0E-00CPE0
WD Blue SN5100 500GB M.2 NVMe SSD with PCIe 4.0 x4 interface delivers 6,600 MB/s read speeds. DRAM-less design, BiCS8 QLC NAND, ideal for desktops and laptops requiring fast storage.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Storage (SSD & HDD) - Device Type | Internal SSD |
|---|---|
| Storage (SSD & HDD) - Capacity | 256GB - 512GB |
| Storage (SSD & HDD) - Sequential Read Speed (SSD) | 5001 to 7000 MB s |
| Storage (SSD & HDD) - DRAM Cache (SSD) | None (DRAM-less) |
| Storage (SSD & HDD) - Interface | PCIe 4.0 (Gen4) |
| Storage (SSD & HDD) - Heatsink (SSD) | Not Included |
| Storage (SSD & HDD) - Form Factor | M.2 2280 |
| Storage (SSD & HDD) - PCIe Lanes (SSD) | x4 |
The Western Digital Blue SN5100 is a high-performance NVMe SSD designed for users seeking fast, reliable storage in a compact M.2 2280 form factor. With PCIe 4.0 x4 interface support, this 500GB drive delivers sequential read speeds up to 6,600 MB/s and write speeds up to 5,600 MB/s, making it 30% faster than its predecessor. The drive utilizes SanDisk BiCS8 218-layer QLC NAND technology paired with the Polaris 3 4-channel controller for efficient performance.
Built as a DRAM-less SSD, the SN5100 reduces power consumption and heat generation while maintaining excellent performance through advanced caching technology (nCache 4.0). This makes it an excellent choice for content creators, gamers, and professionals working with large files and demanding applications. The drive is compatible with any system featuring an M.2 2280 slot and PCIe 4.0 or earlier support, including desktops, laptops, and gaming consoles.
Key features and specifications:
- Capacity: 500GB with options up to 4TB
- Interface: PCIe 4.0 x4, NVMe 2.0
- Performance: 6,600 MB/s read, 5,600 MB/s write (500GB model)
- Form Factor: M.2 2280 (80mm x 22mm x 2.38mm)
- NAND Type: SanDisk BiCS8 QLC (218-layer)
- Controller: SanDisk Polaris 3 (4-channel)
- DRAM: None (DRAM-less architecture)
- Included Software: SanDisk Dashboard for monitoring and Acronis True Image for data migration
| Model Number | WDS500G5B0E-00CPE0 |
| Capacity | 500GB |
| Form Factor | M.2 2280 |
| Interface | PCIe 4.0 x4 NVMe 2.0 |
| Controller | SanDisk Polaris 3 (4-channel) |
| NAND Type | SanDisk BiCS8 218-layer QLC |
| Sequential Read Speed | 6,600 MB/s |
| Sequential Write Speed | 5,600 MB/s |
| Random Read (IOPS) | 660,000 IOPS |
| Random Write (IOPS) | 1,100,000 IOPS |
| DRAM Cache | None (DRAM-less) |
| Power Consumption (Active R/W) | 3.8W |
| Dimensions (L x W x H) | 80mm x 22mm x 2.38mm |
| Weight | 5.7g |
| Operating Temperature | 0°C to 70°C |
| Storage Temperature | -40°C to 85°C |
| Vibration (Operating) | 5 gRMS, 10-2000 Hz, 3 axes |
| Shock | 1,500G @ 0.5ms half-sine |
| Security | TCG Pyrite 2.01, ATA Security passthrough over NVMe |
| Certifications | BSMI, CAN ICES-3(B)/NMB-3(B), CB-Scheme, CE, FCC, KCC, Morocco, RCM, TÜV, UL, VCCI, UKCA |
| RoHS Compliant | Yes |
| Included Accessories | SanDisk Dashboard software, Acronis True Image for data migration |
