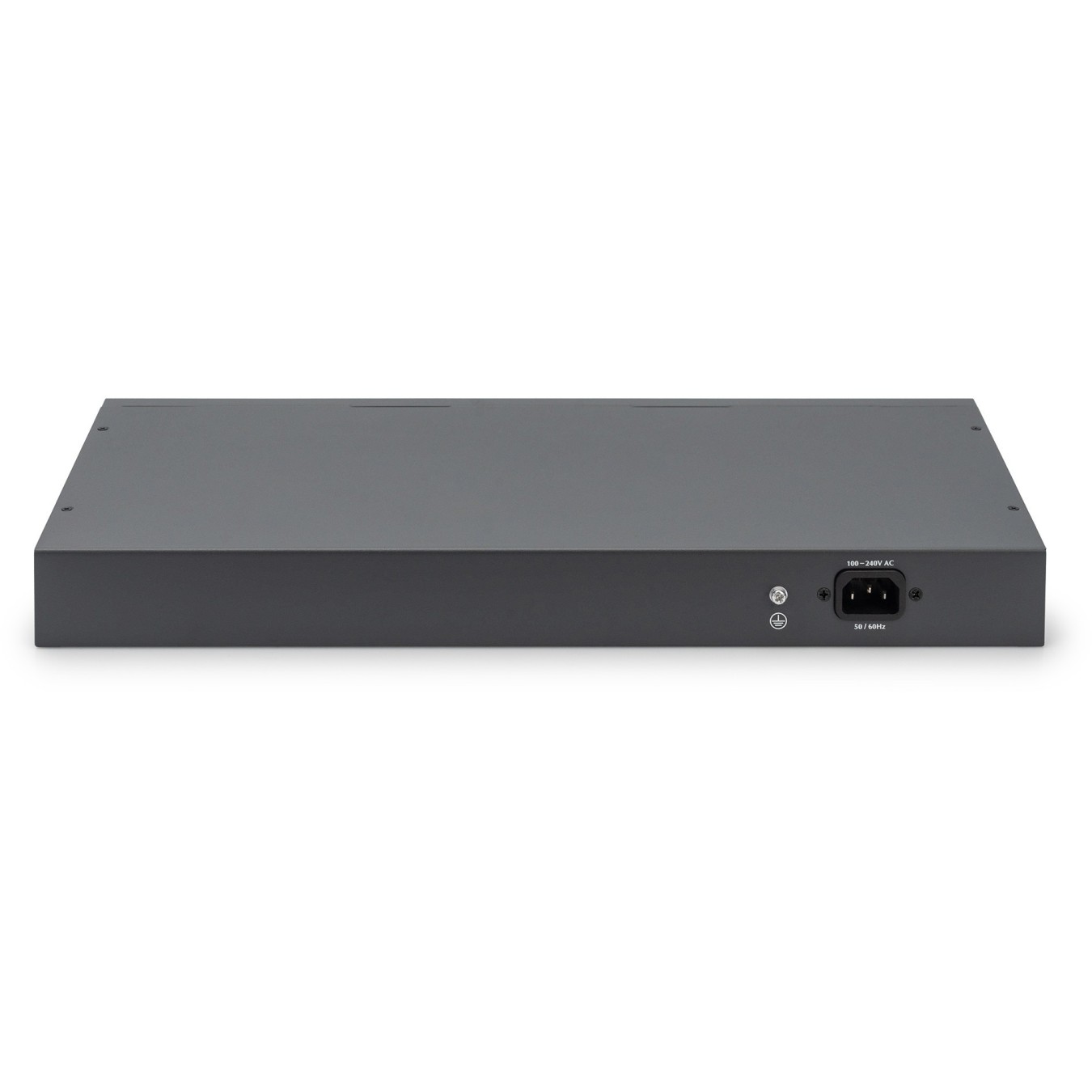

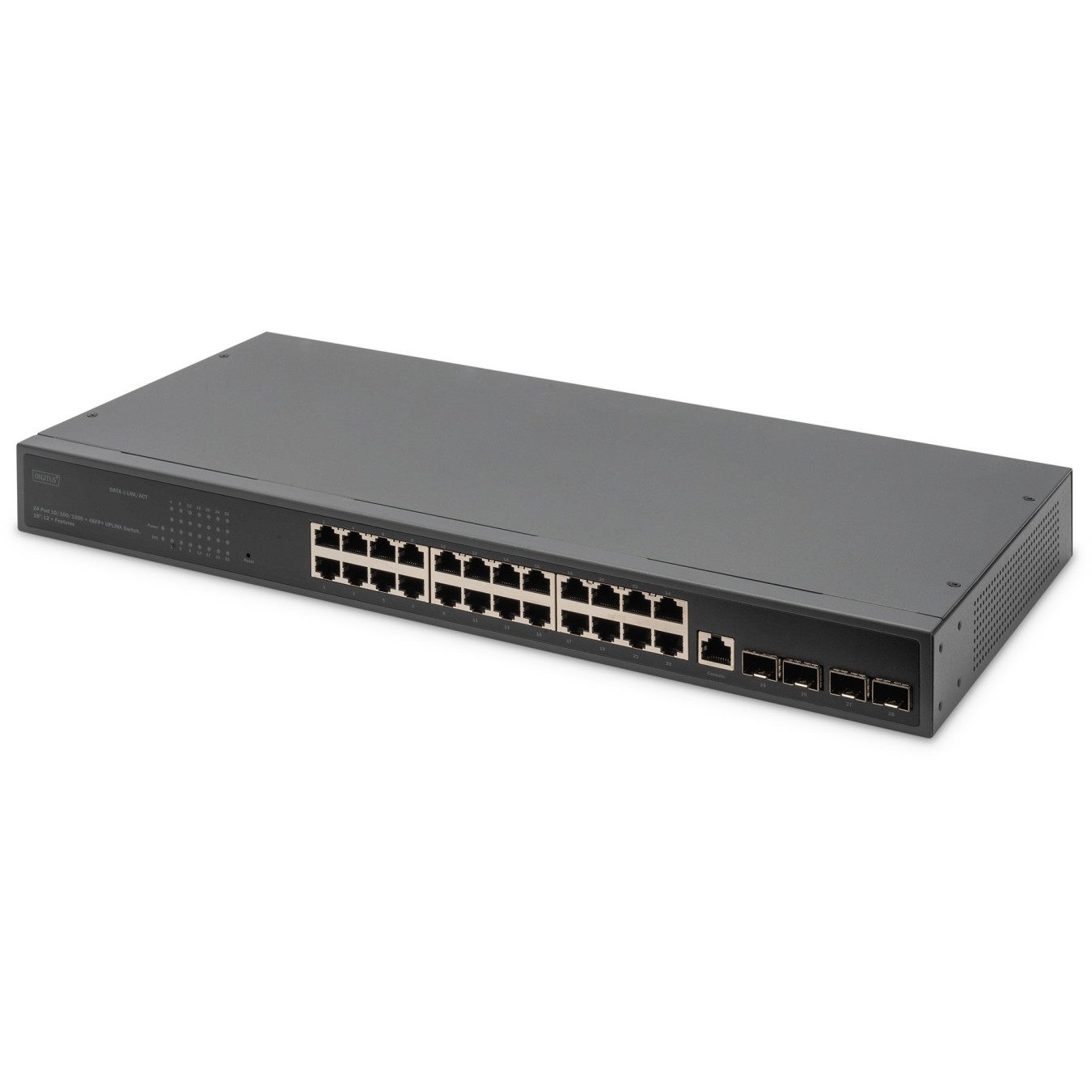

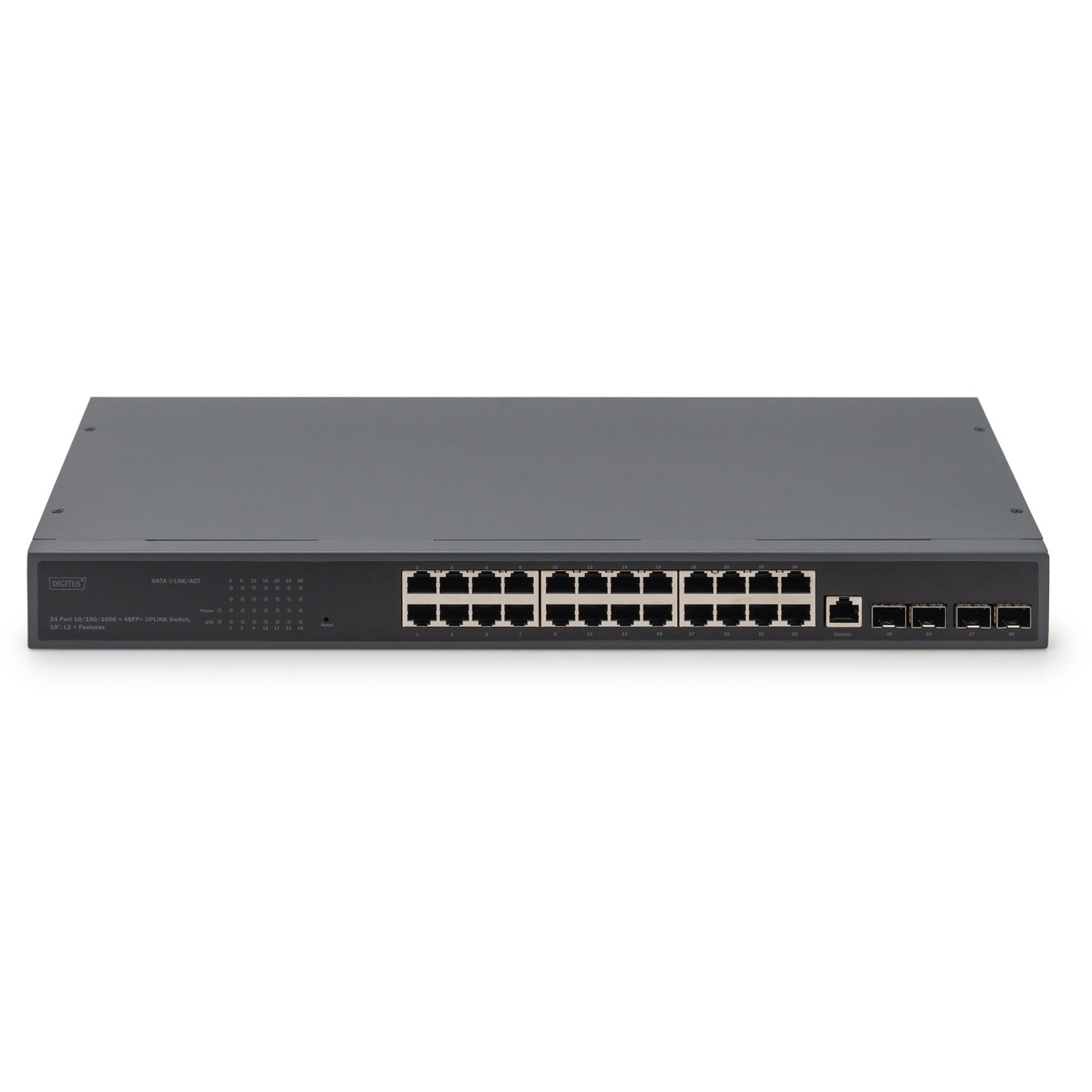

Digitus 24-Port Gigabit Managed Switch with 4 SFP+ Uplinks - 19-inch Rack Mount - Black, L3 Capable
Managed 24x Gigabit ports with 4x SFP+ uplinks, L2/L3 capable, 1U rack-mount, black metal chassis.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
Digitus 24 Port 10/100/1000 + 4SFP+ UPLINK Switch. 19". L2+ Features. Switch type: Managed. Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000). Basic switching RJ-45 Ethernet ports quantity: 24. Console port: RJ-45. MAC address table: 16000 entries. Switching capacity: 128 Gbit/s. Networking standards: IEEE 802.1D. IEEE 802.1Q. IEEE 802.1p. IEEE 802.1w. IEEE 802.1x. IEEE 802.3. IEEE 802.3ab. IEEE.... Rack mounting. Form factor: 1U
| Switch type | Managed |
| Switch layer | L3 |
| Feature | Manual |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 24 |
| SFP+ module slots quantity | 4 |
| Console port | RJ-45 |
| Networking standards | IEEE 802.1D. IEEE 802.1Q. IEEE 802.1p. IEEE 802.1w. IEEE 802.1x. IEEE 802.3. IEEE 802.3ab. IEEE 802.3ad. IEEE 802.3u. IEEE 802.3x. IEEE 802.3z |
| Copper ethernet cabling technology | 10BASE-T. 100BASE-TX. 1000BASE-T |
| Cable types supported | Cat3. Cat4. Cat5. Cat5e |
| Ethernet LAN data rates | 10.100.1000 Mbit/s |
| Fiber ethernet cabling technology | 10GBASE-X. 1000BASE-X |
| Switching capacity | 128 Gbit/s |
| Forwarding rate | 95.23 Mpps |
| MAC address table | 16000 entries |
| Jumbo frames | 12000 |
| Packet buffer memory | 12 MB |
| DHCP features | DHCP relay. DHCP server. DHCP snooping |
| Security algorithms | SNMP. SNMPv2. SNMPv3 |
| Form factor | 1U |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Activity. Link. Power. System |
| Power source | AC |
| Input current | 2 A |
| Input voltage | 12 V |
| Power consumption (typical) | 24 W |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Width | 260 mm |
| Depth | 440 mm |
| Height | 44 mm |
| Cables included | AC |
| Package width | 318 mm |
| Package depth | 495 mm |
| Package height | 77 mm |
| Package volume | 12120.6 cm³ |
| Package weight | 3.61 kg |
| UK Trade Tariff code | 85176200 |
| Country of origin | China |
