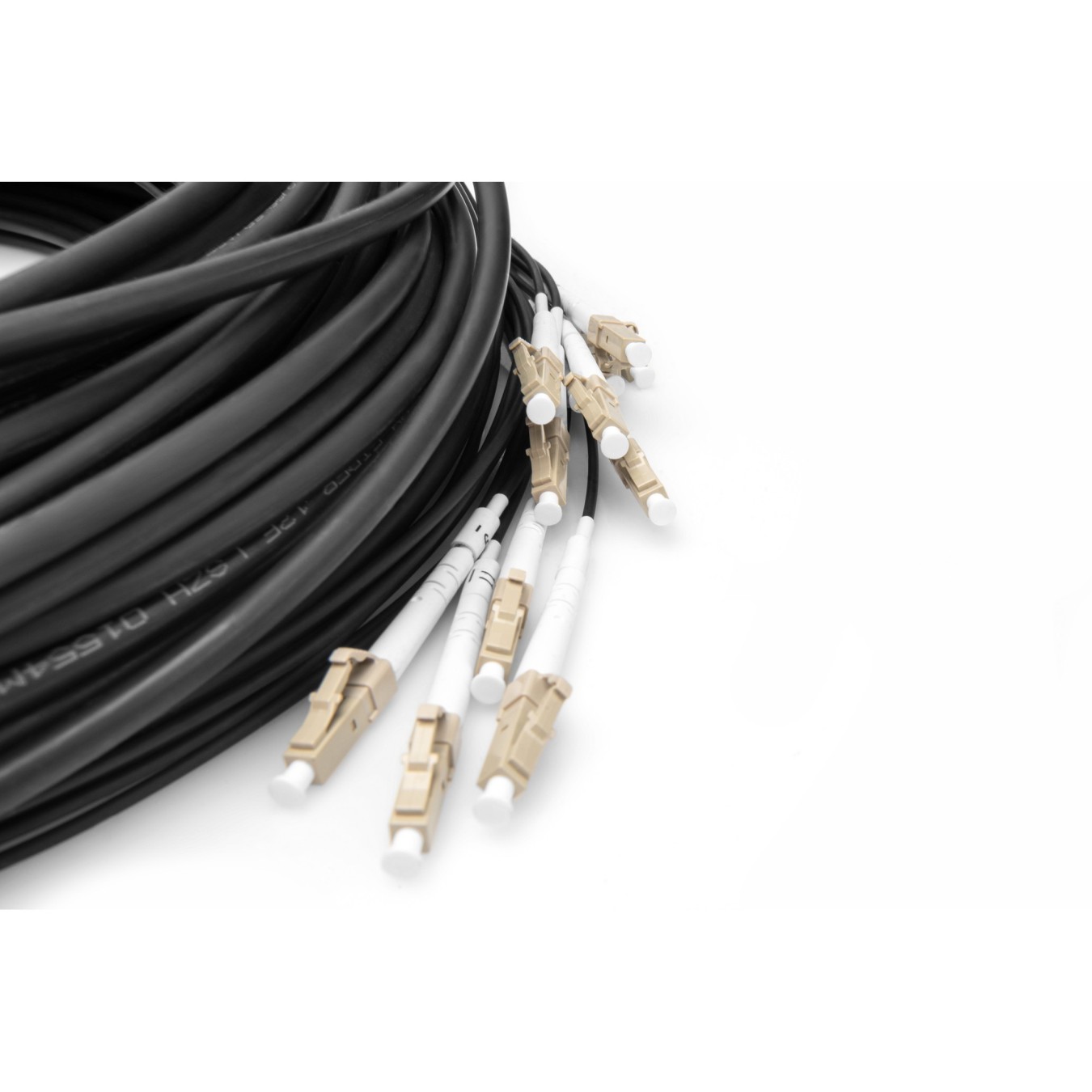

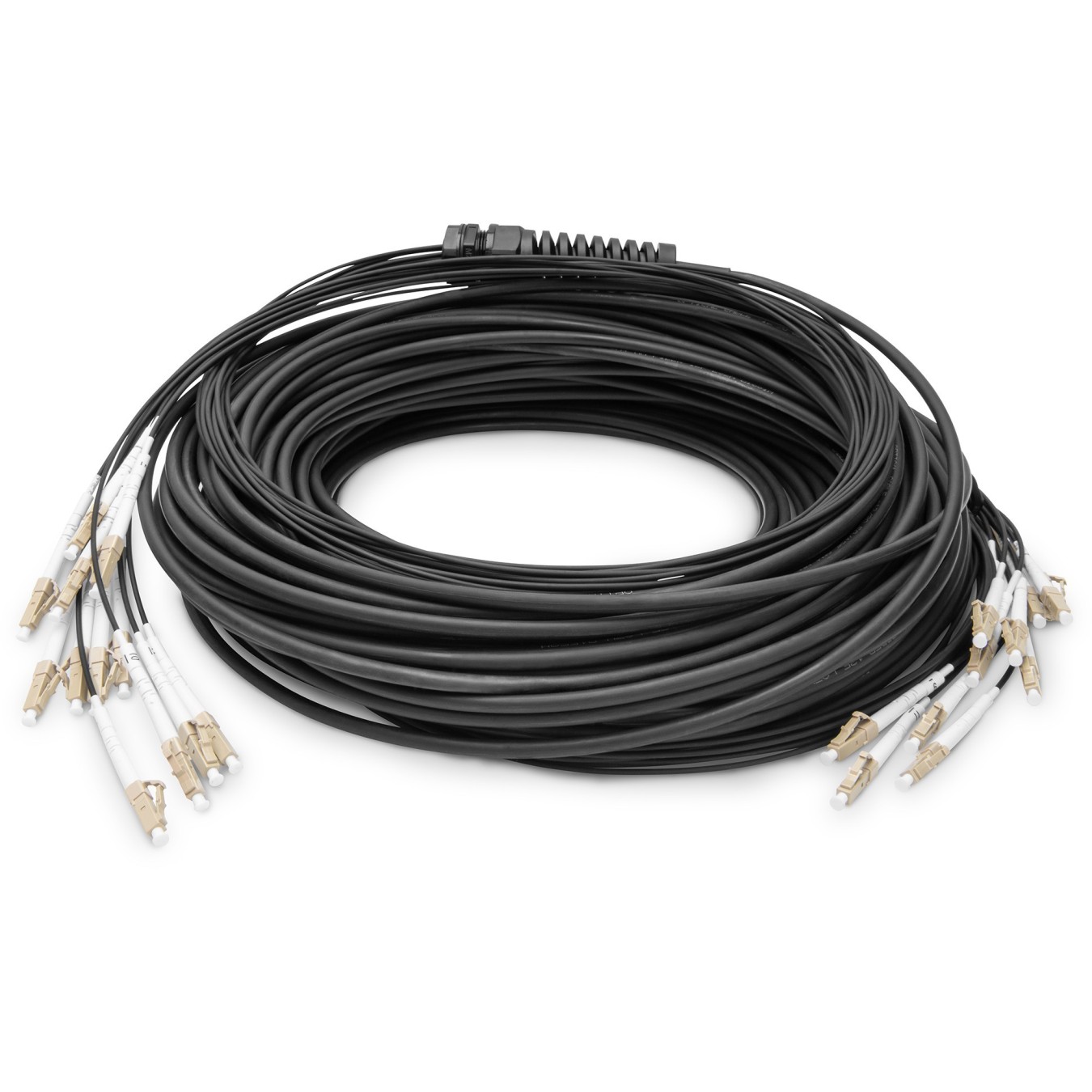

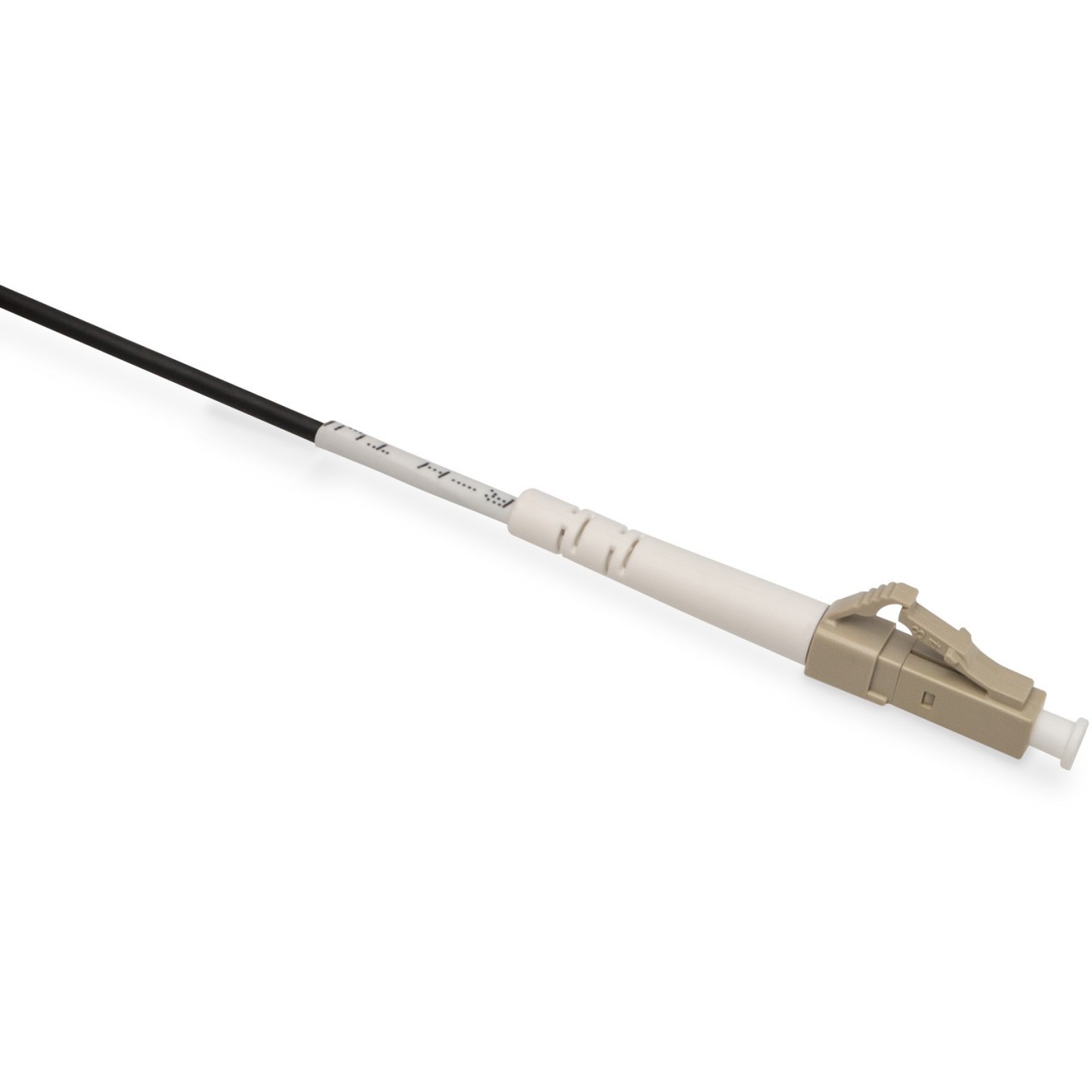

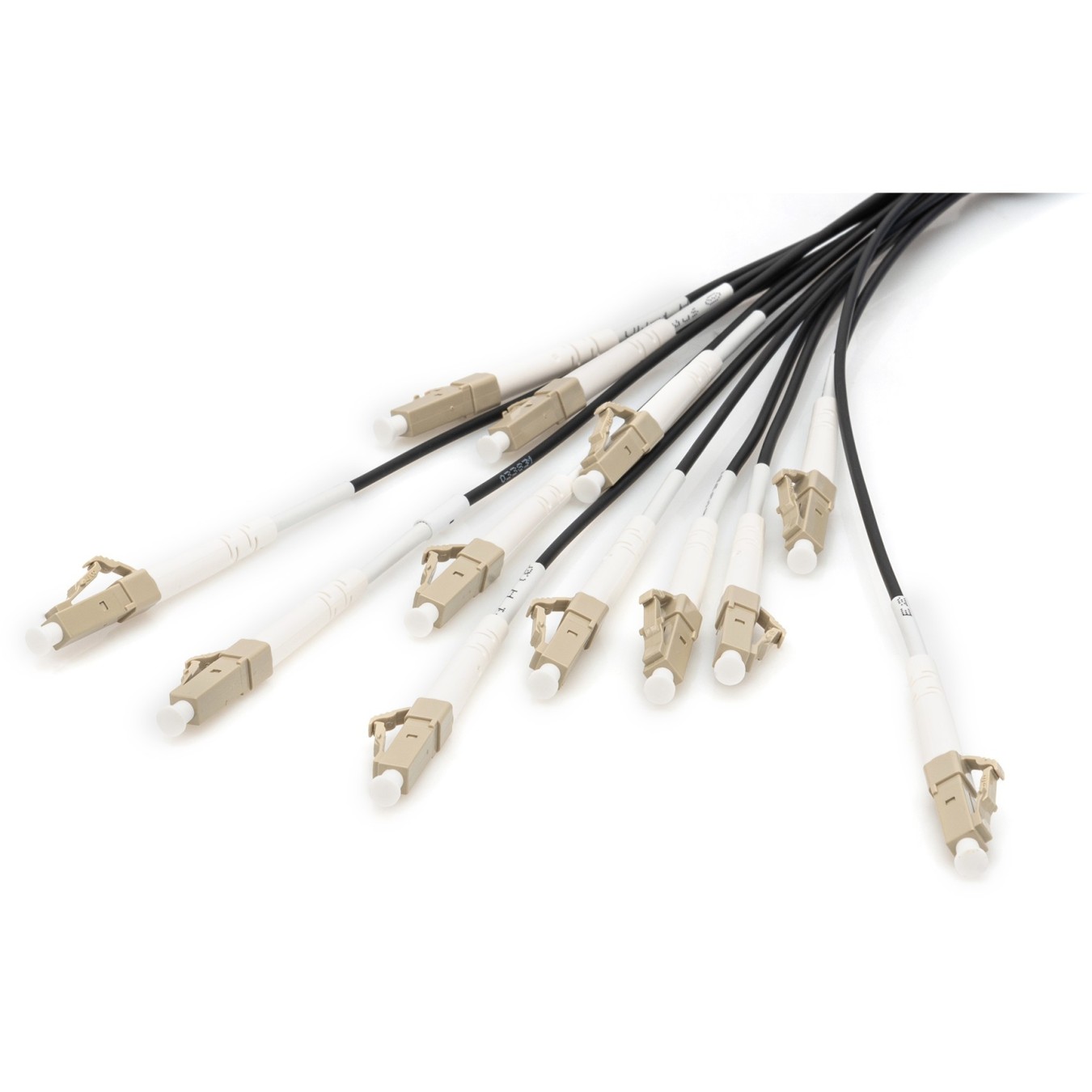

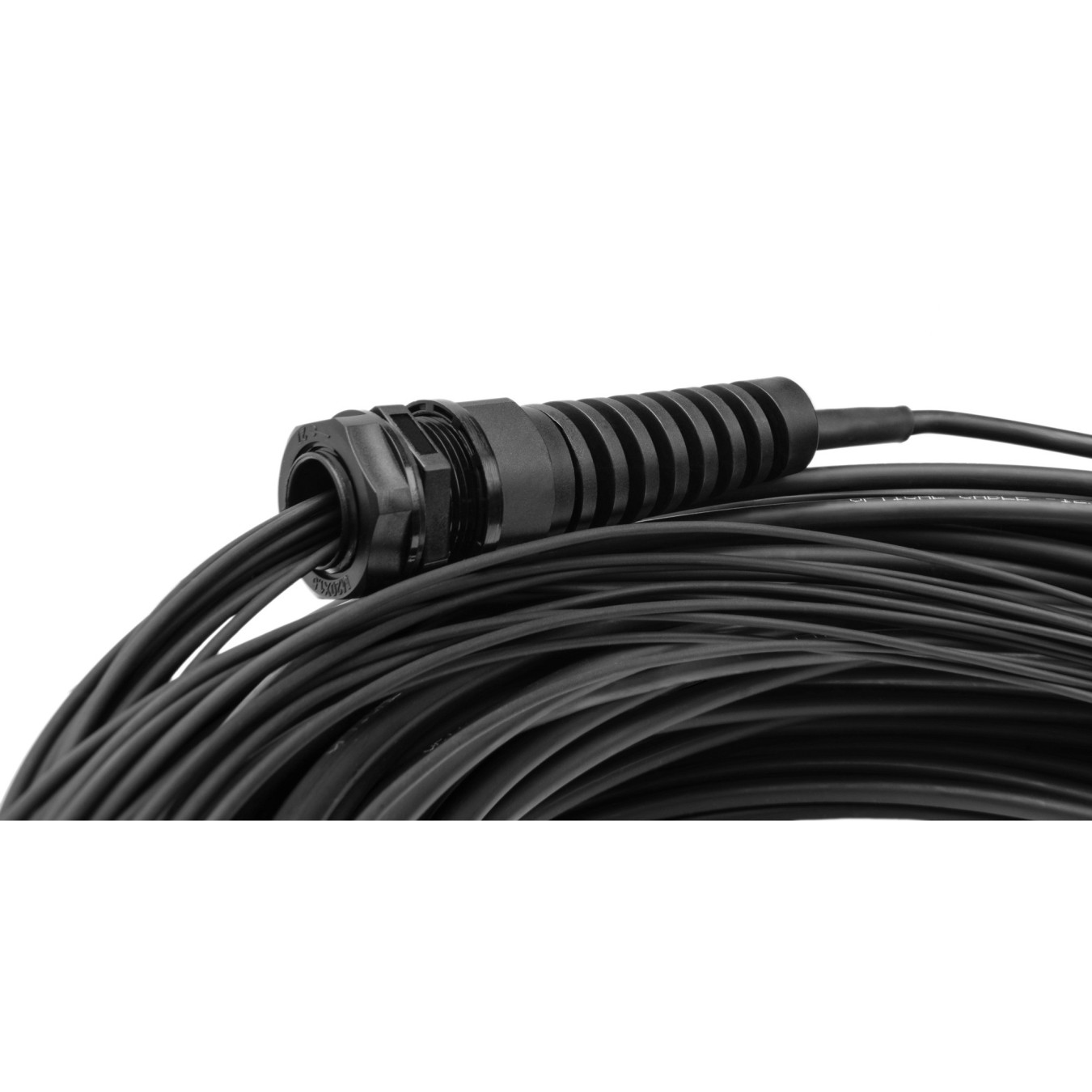

DIGITUS Fiber Patch Cable LC to UPC 30 m OM4 12-Fiber - Black
Pre-assembled OM4 12-fiber LC to LC UPC patch cable, 30 m, LSZH jacket, black, multi-mode.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
Digitus Pre-assembled Fiberglass Universal Breakout Cable. Multi Mode OM4. 12 Fibers. LC/UPC - LC/UPC. Cable length: 30 m. Cable type: U-DQ(ZN) BH. Fibre optic type: OM4. Connector 1: LC. Connector 2: LC. Core diameter: 50 µm
| Cable length | 30 m |
| Fibre optic type | OM4 |
| Connector 1 | LC |
| Connector 2 | LC |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Connector polish type | UPC |
| Cable type | U-DQ(ZN) BH |
| Product colour | Black |
| Core diameter | 50 µm |
| Cladding diameter | 125 µm |
| Fiber mode structure | Multi-mode |
| Insertion loss | 0.3 dB |
| Return loss | 30 dB |
| Jacket material | Low smoke zero halogen (LSZH) |
| Feature | Plug and Play |
| Operating temperature (T-T) | -20 - 70 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Package width | 360 mm |
| Package depth | 360 mm |
| Package volume | 23328 cm³ |
| Package weight | 2.75 kg |
| Quantity per pack | 1 pc(s) |
| Number of optical fibres | 12 |
| UK Trade Tariff code | 85447000 |
| Country of origin | China |
