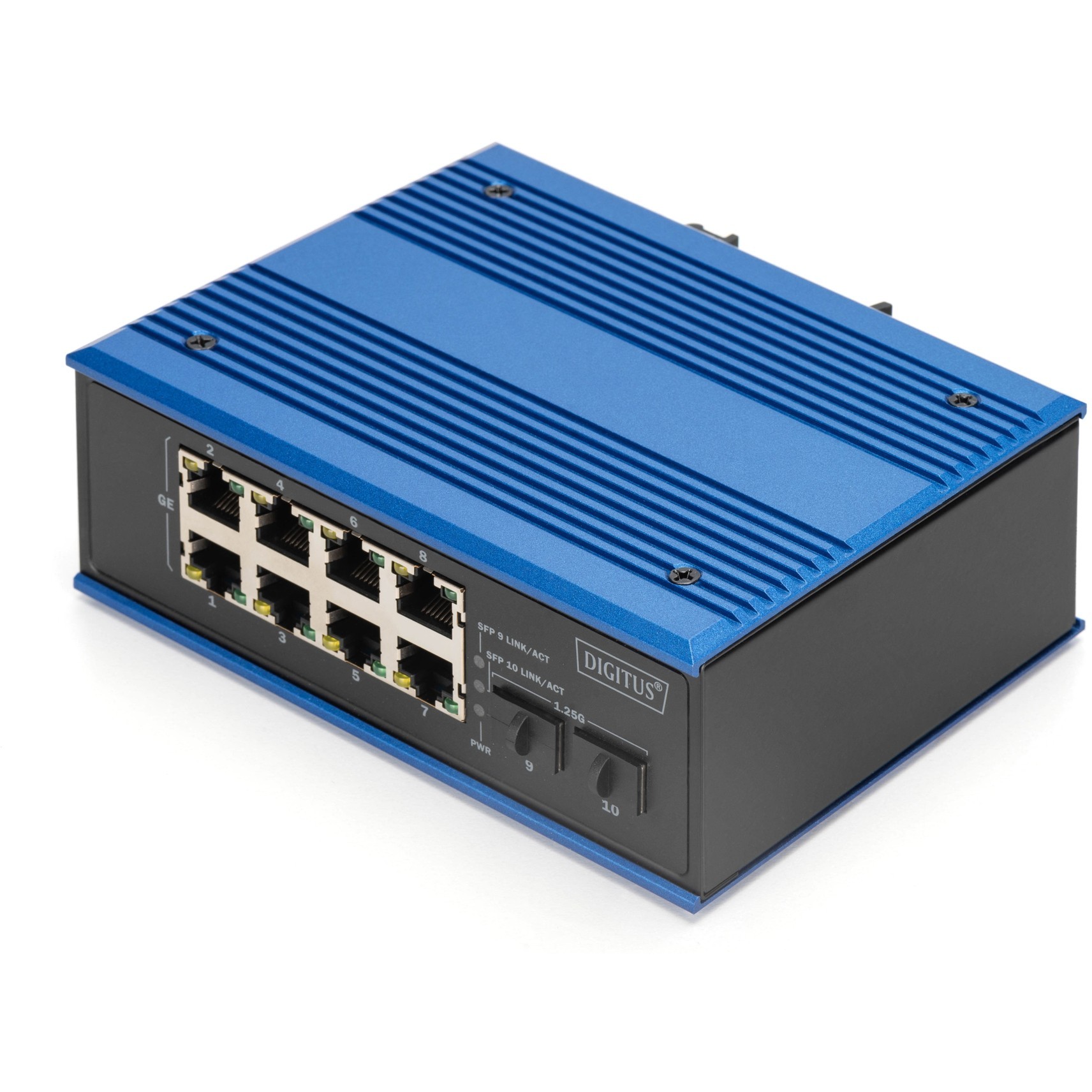

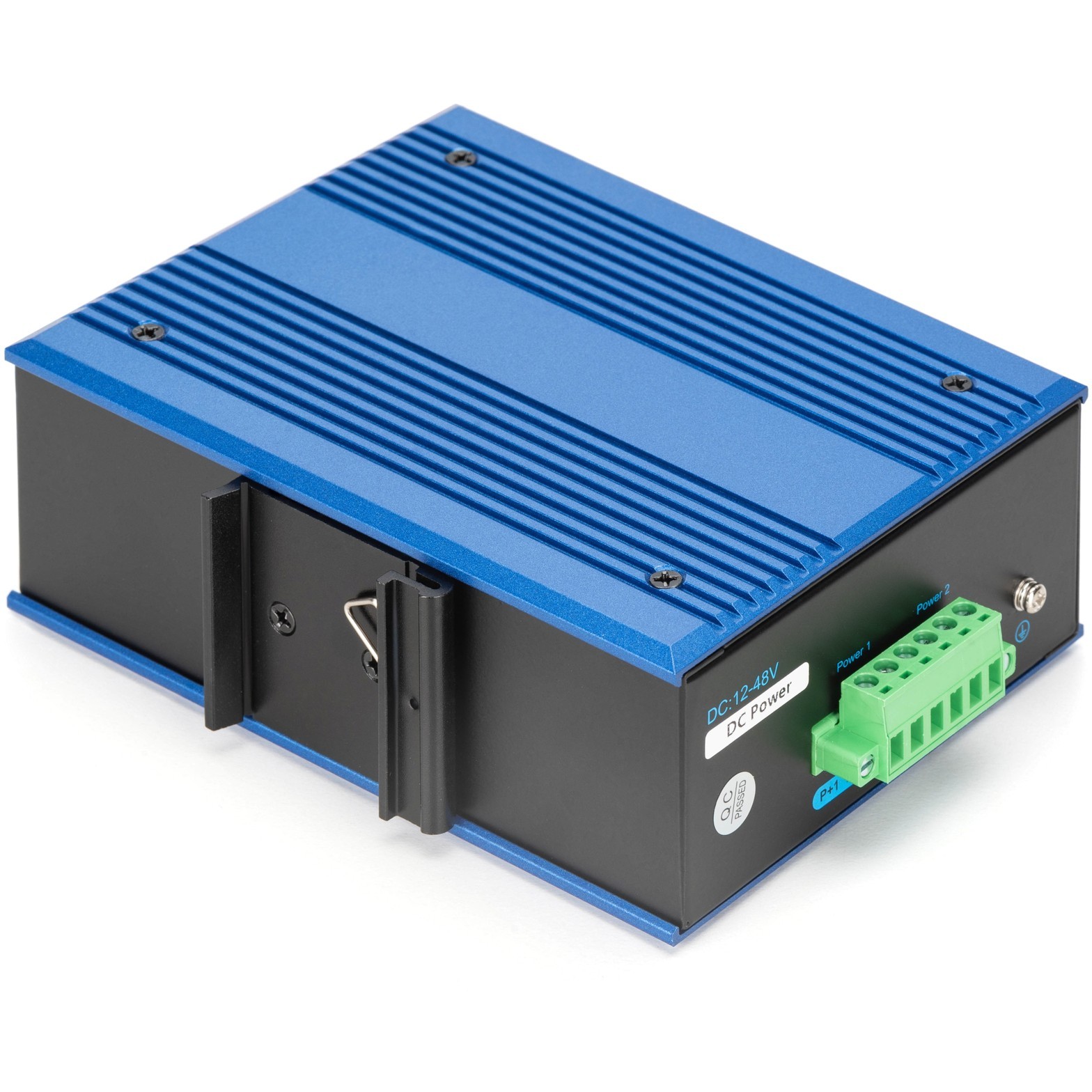

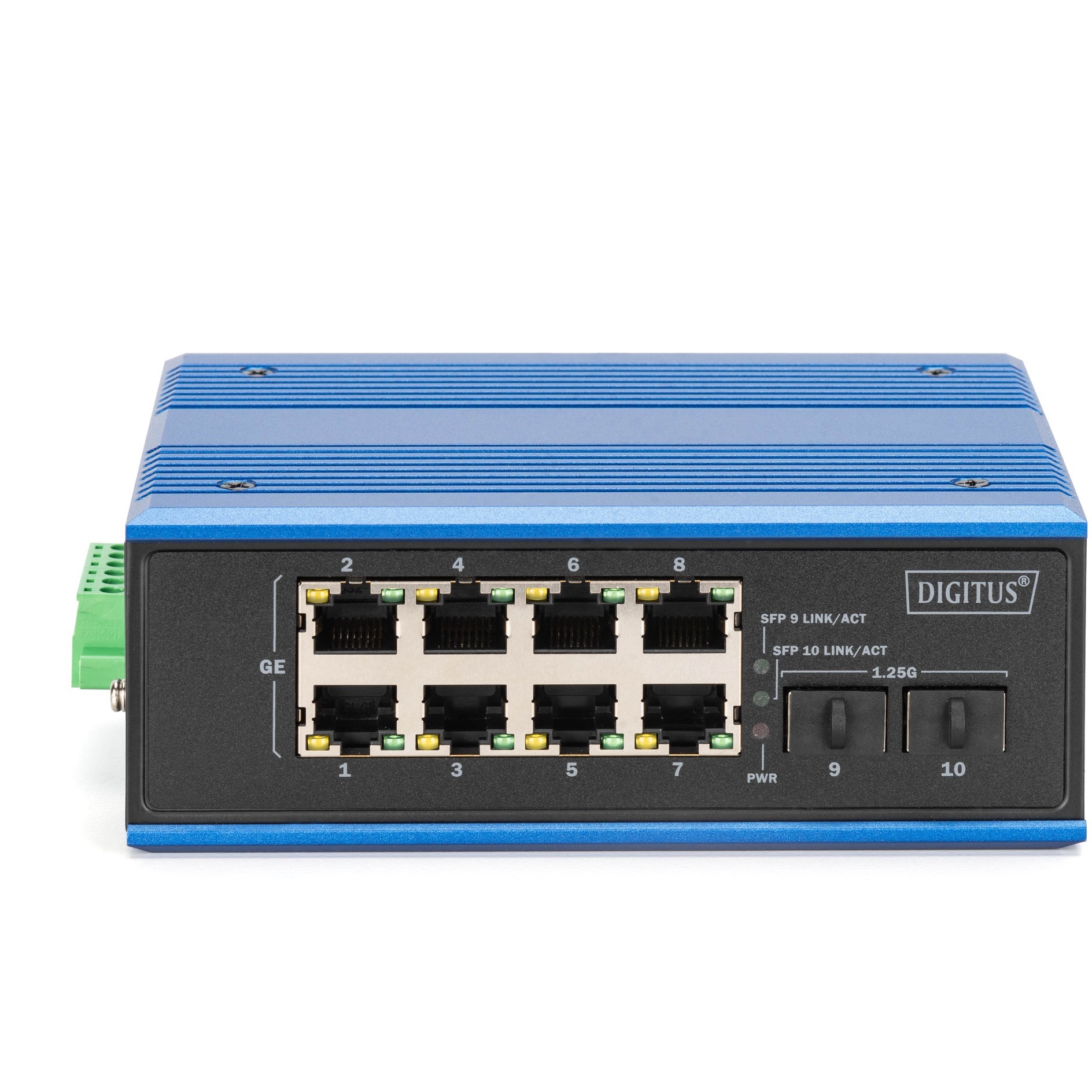

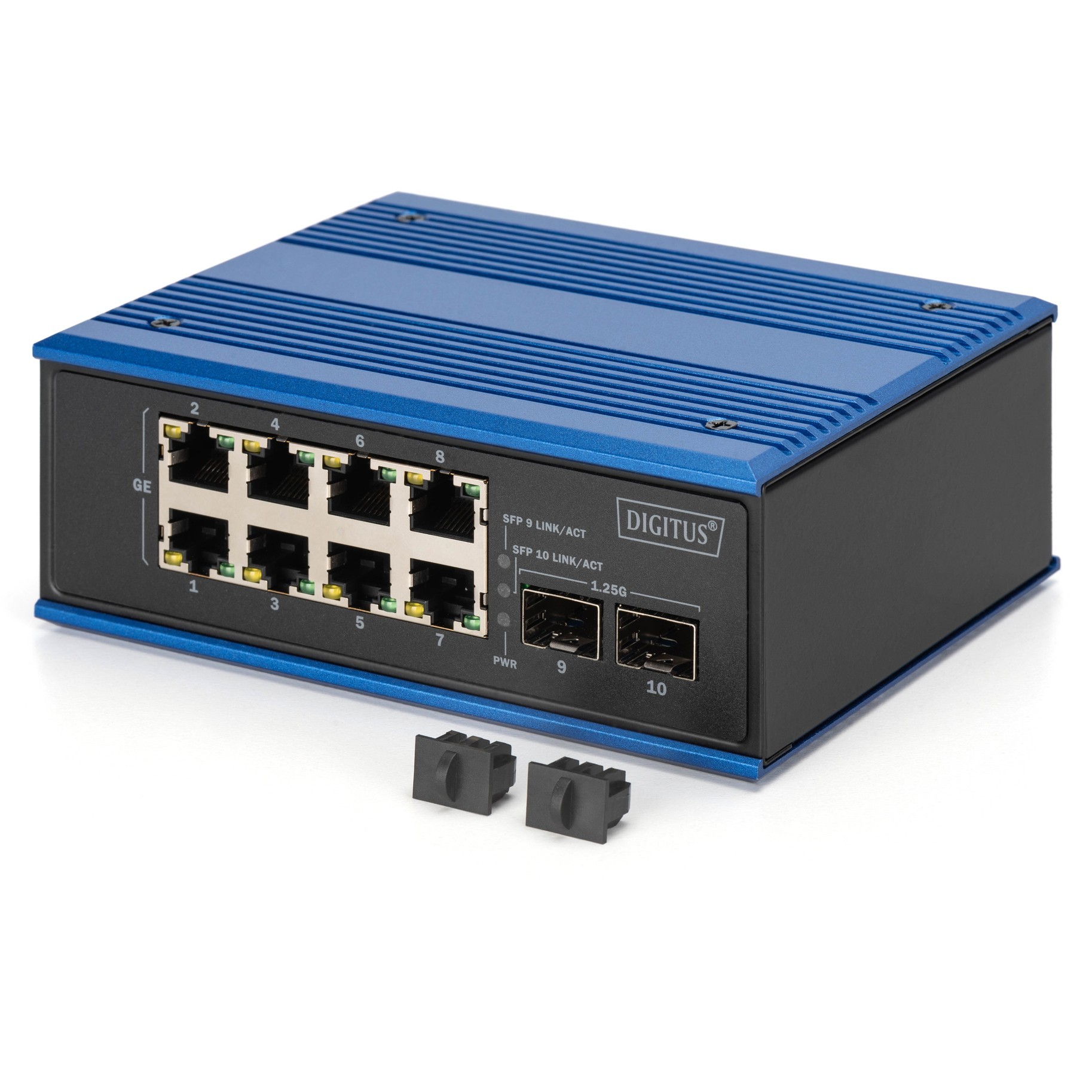

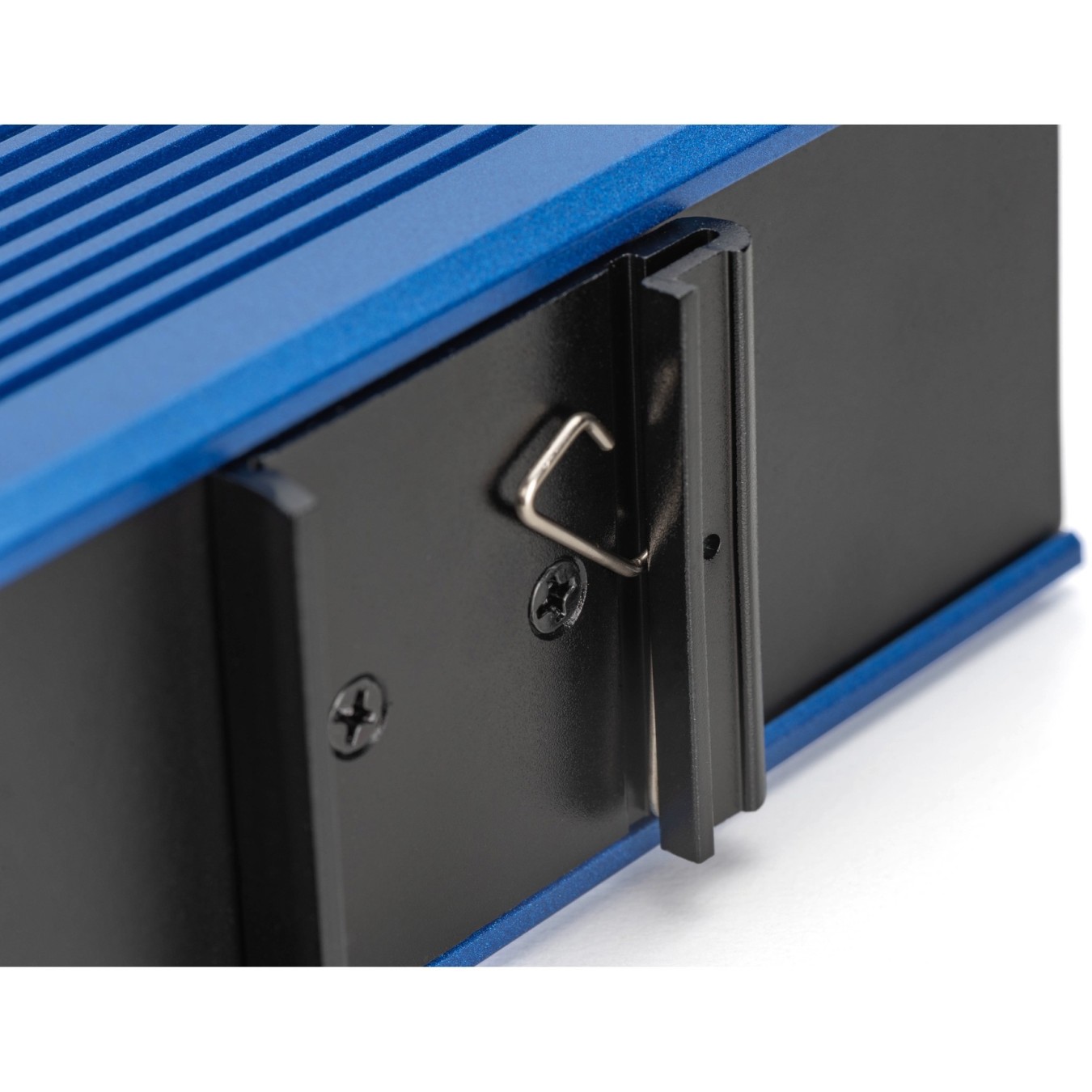

Digitus 8+2P Industrial Gigabit PoE Switch - Black/Blue - Unmanaged, 8x RJ45 + 2x SFP, 802.3af
Unmanaged industrial PoE switch: 8 Gigabit RJ45 ports + 2 SFP slots, 802.3af PoE, rugged metal housing, wide operating temp (-40 to 80 C), IP40.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Network Switches - Fanless | Yes |
|---|
Digitus Industrial 8 + 2-port Gigabit Ethernet PoE switch. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000). Basic switching RJ-45 Ethernet ports quantity: 8. Installed SFP modules quantity: 2. Full duplex. MAC address table: 4000 entries. Switching capacity: 1 Gbit/s. Networking standards: IEEE 802.3af. DC input voltage: 48 - 57 V. Power over Ethernet (PoE)
| Switch type | Unmanaged |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 8 |

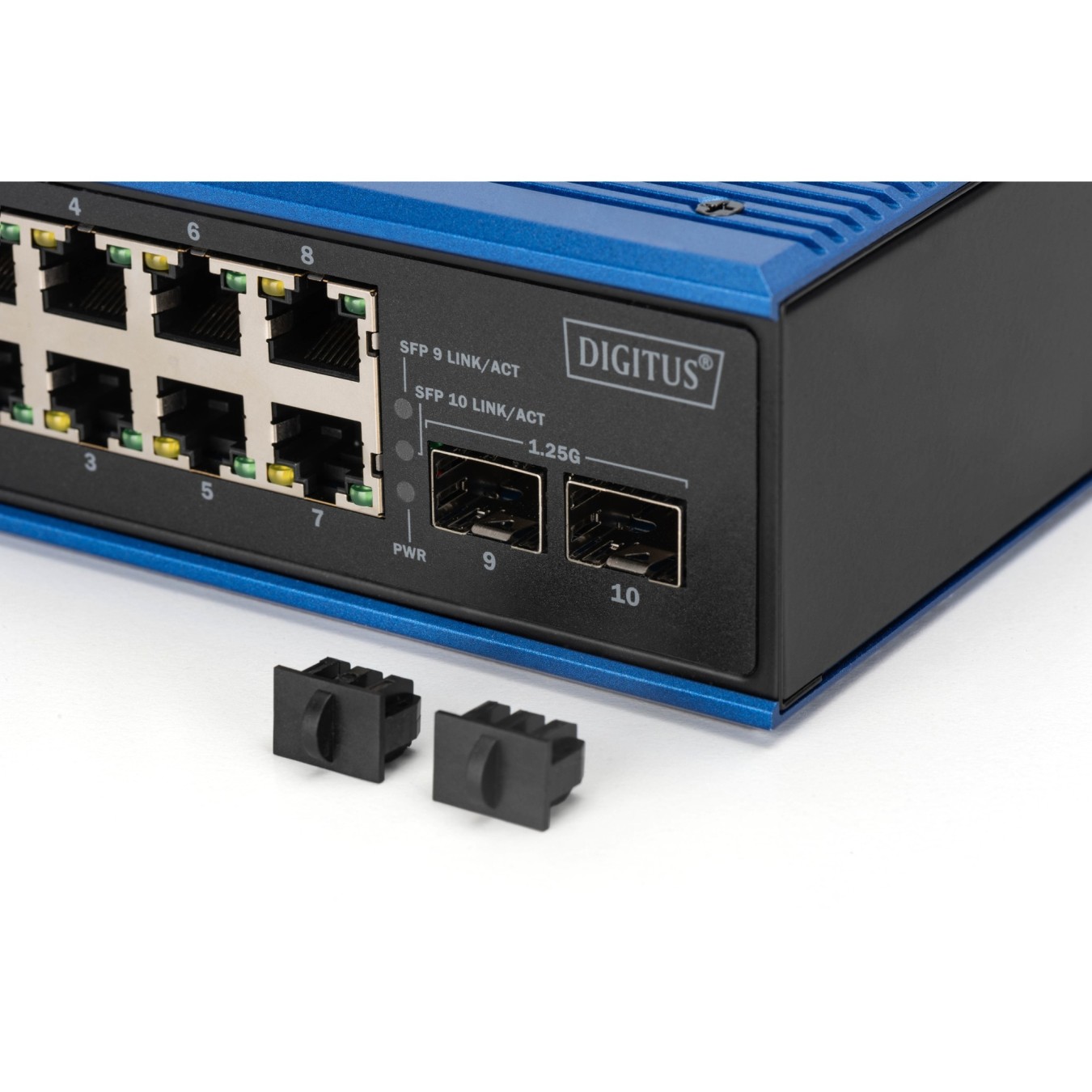

| Installed SFP modules quantity | 2 |
| Fiber optic connector | SFP |
| Networking standards | IEEE 802.3af |
| Feature | Manual |
| Ethernet LAN data rates | 10.100.1000 Mbit/s |
| Switching capacity | 1 Gbit/s |
| Forwarding rate | 15 Mpps |
| MAC address table | 4000 entries |
| Jumbo frames | 9000 |
| Packet buffer memory | 2 MB |
| Product colour | Black. Blue |
| Housing material | Metal |
| International Protection (IP) code | IP40 |
| Mean time between failures (MTBF) | 300000 h |
| Power source | DC/PoE |

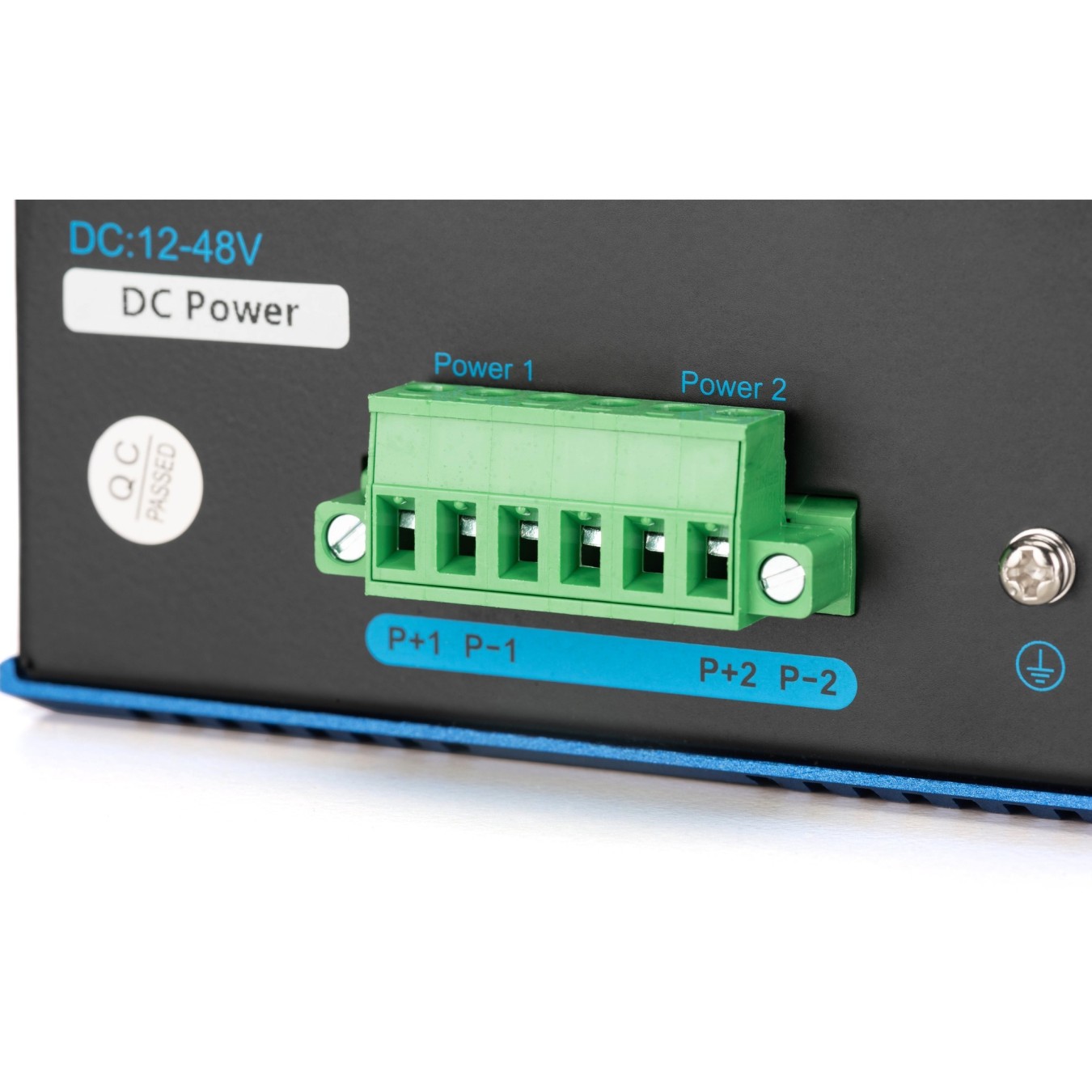

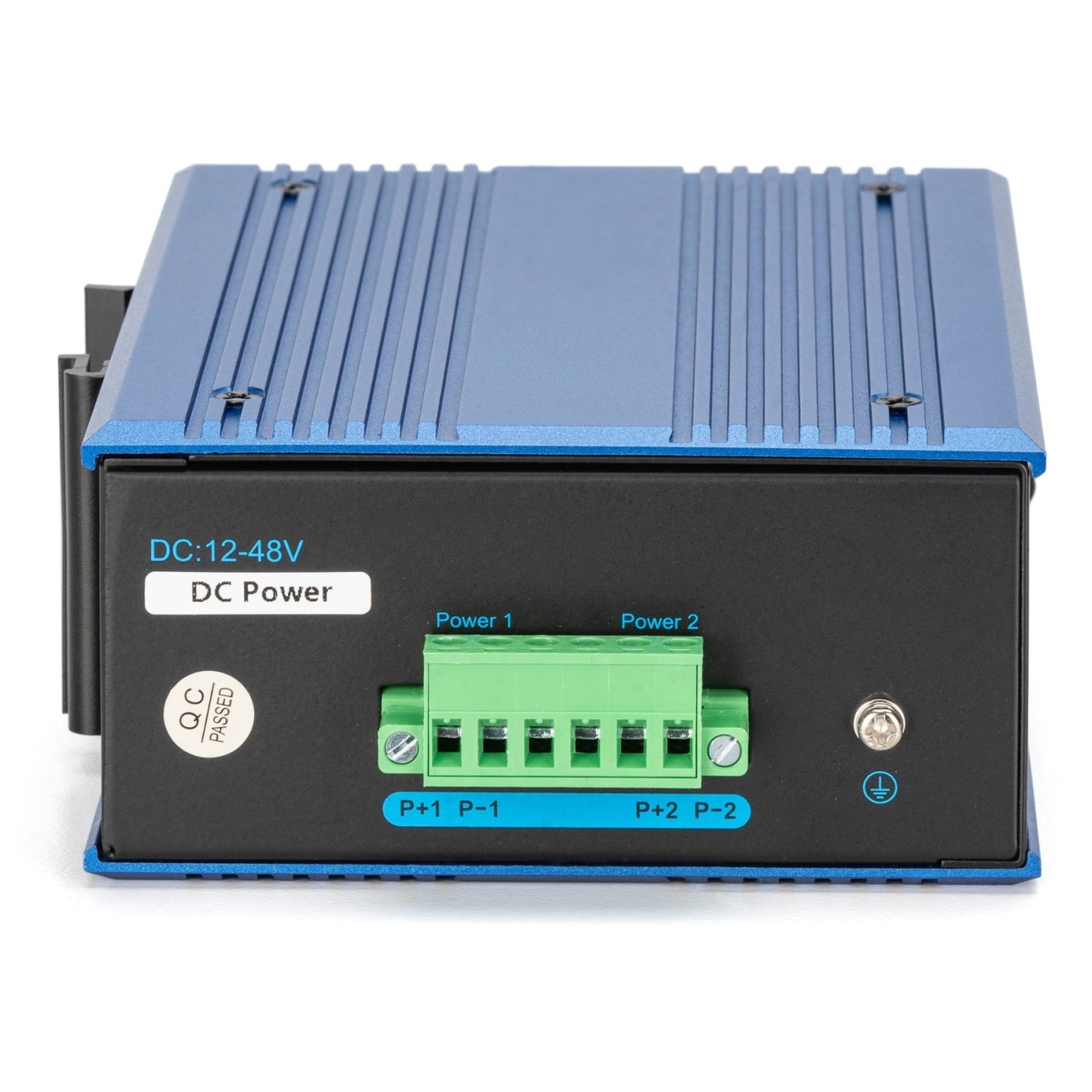

| DC input voltage | 48 - 57 V |
| Power consumption (typical) | 8 W |
| Surge protection voltage | 4 kV |
| Bandwidth | 20 Gbit/s |
| Ethernet interface type | Gigabit Ethernet |
| Operating temperature (T-T) | -40 - 80 °C |
| Storage temperature (T-T) | -40 - 80 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Width | 142.5 mm |
| Depth | 107.1 mm |
| Height | 53 mm |
| Weight | 620 g |
| Package width | 158 mm |
| Package depth | 66 mm |
| Package height | 213 mm |
| Package volume | 2221.16 cm³ |
| Package weight | 917.857 g |
| UK Trade Tariff code | 85176200 |
| Country of origin | China |
