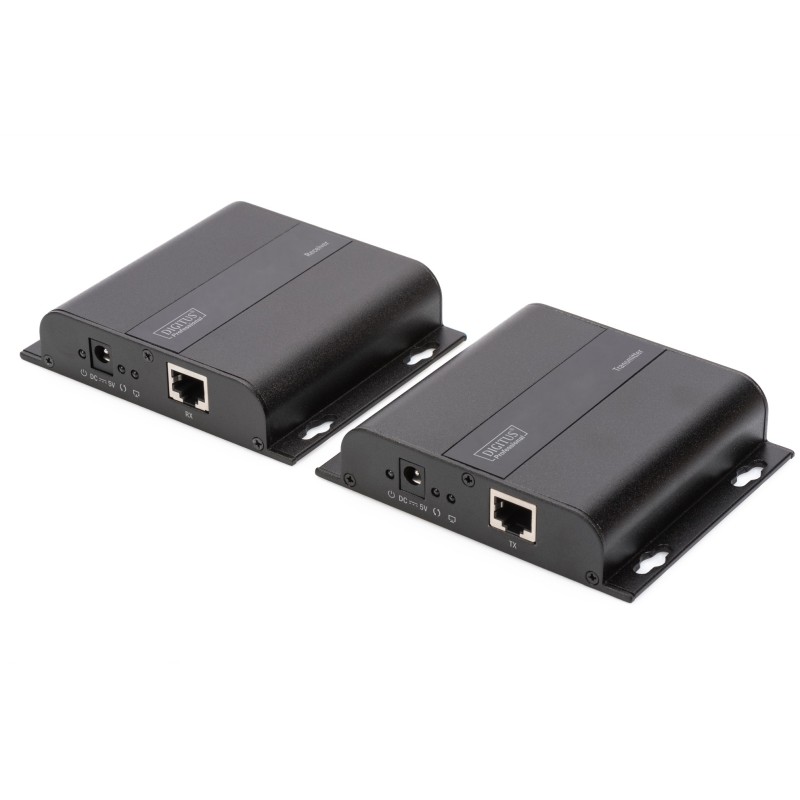

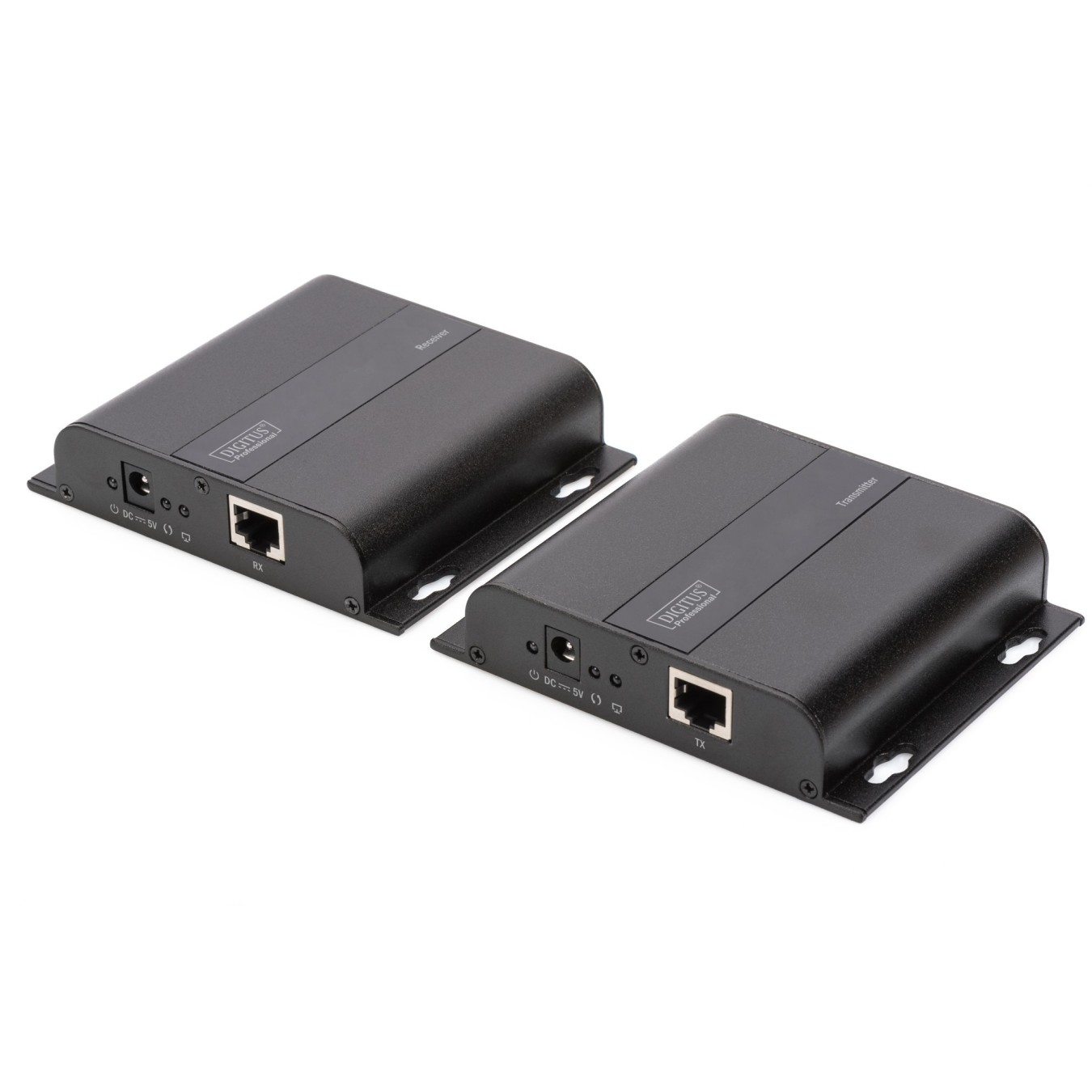

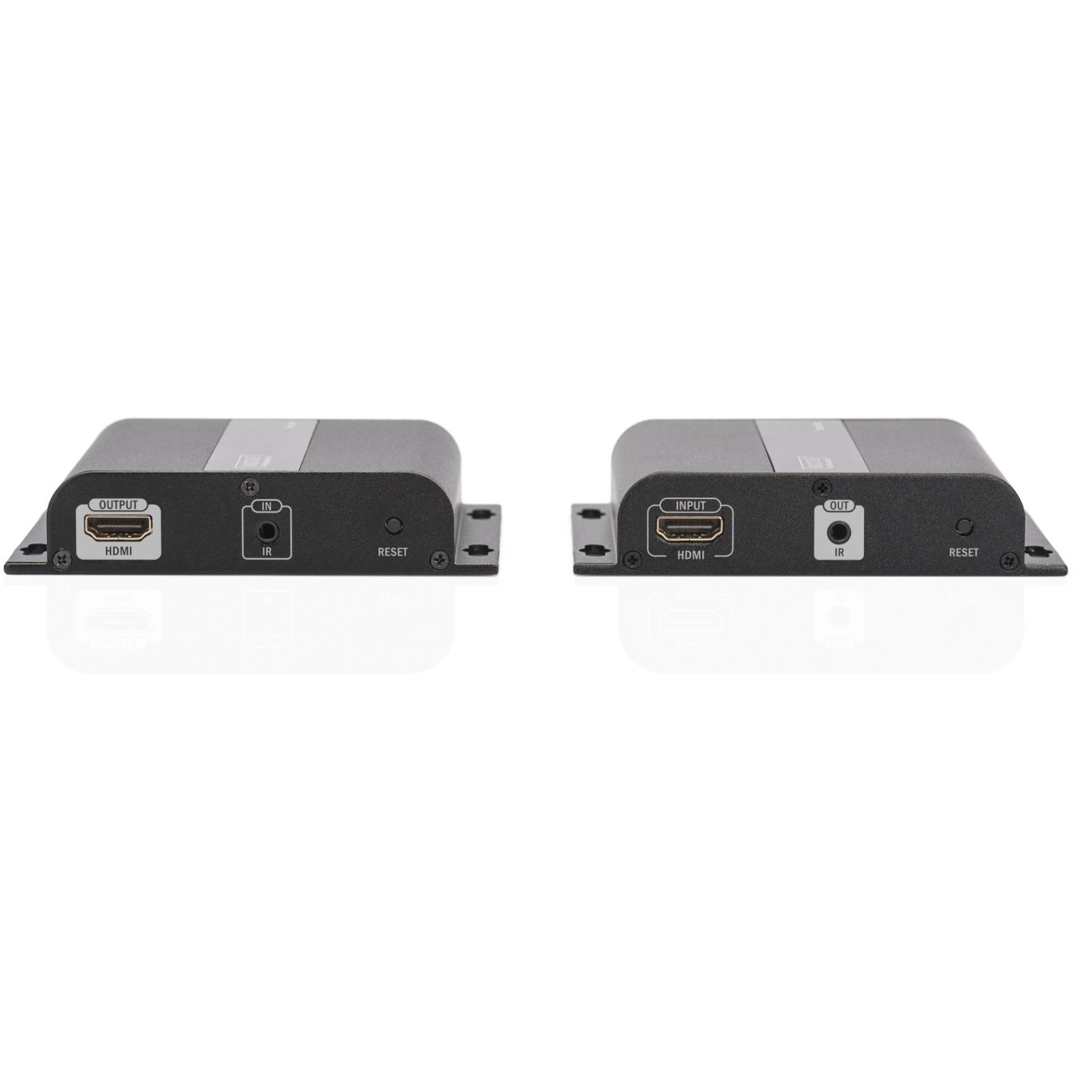

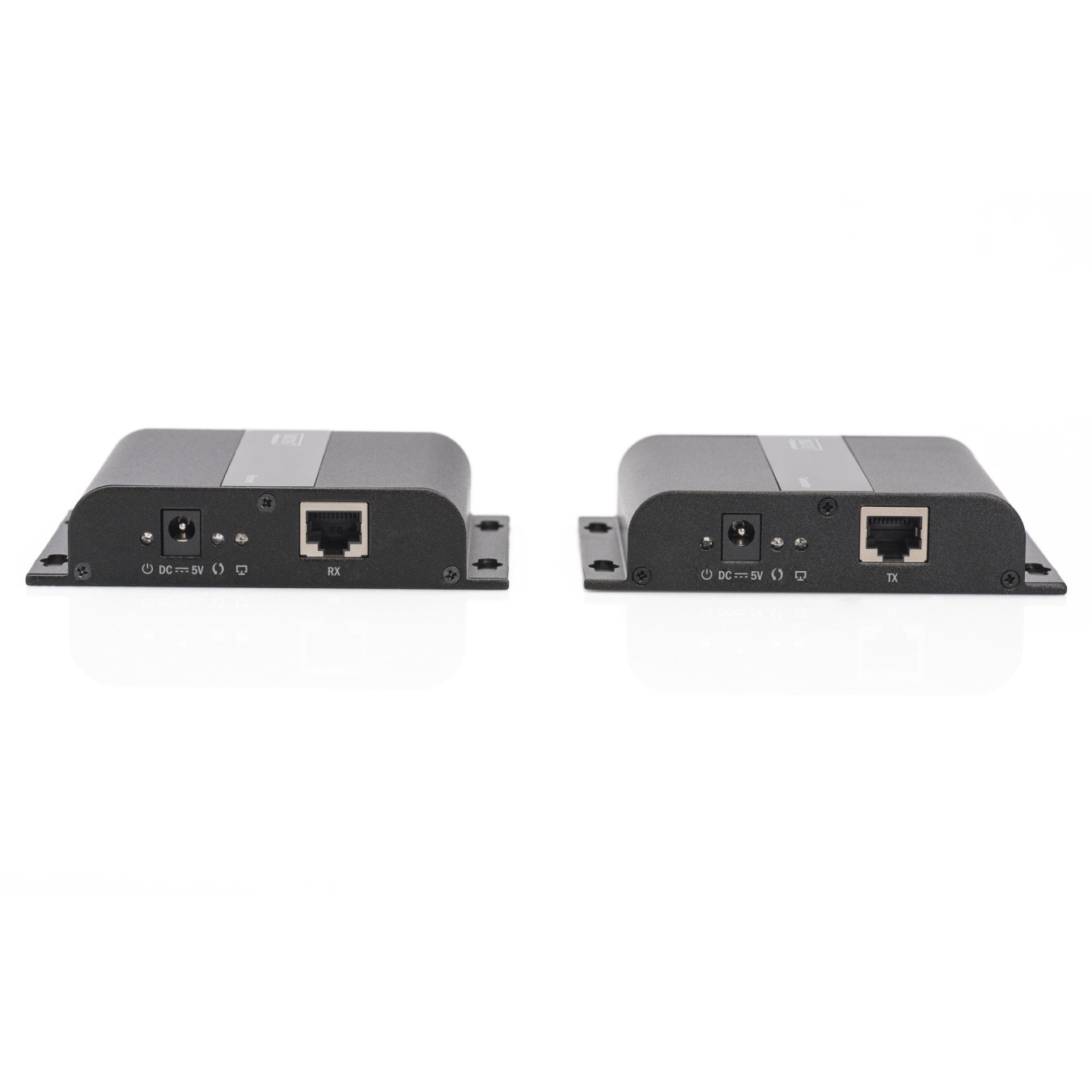

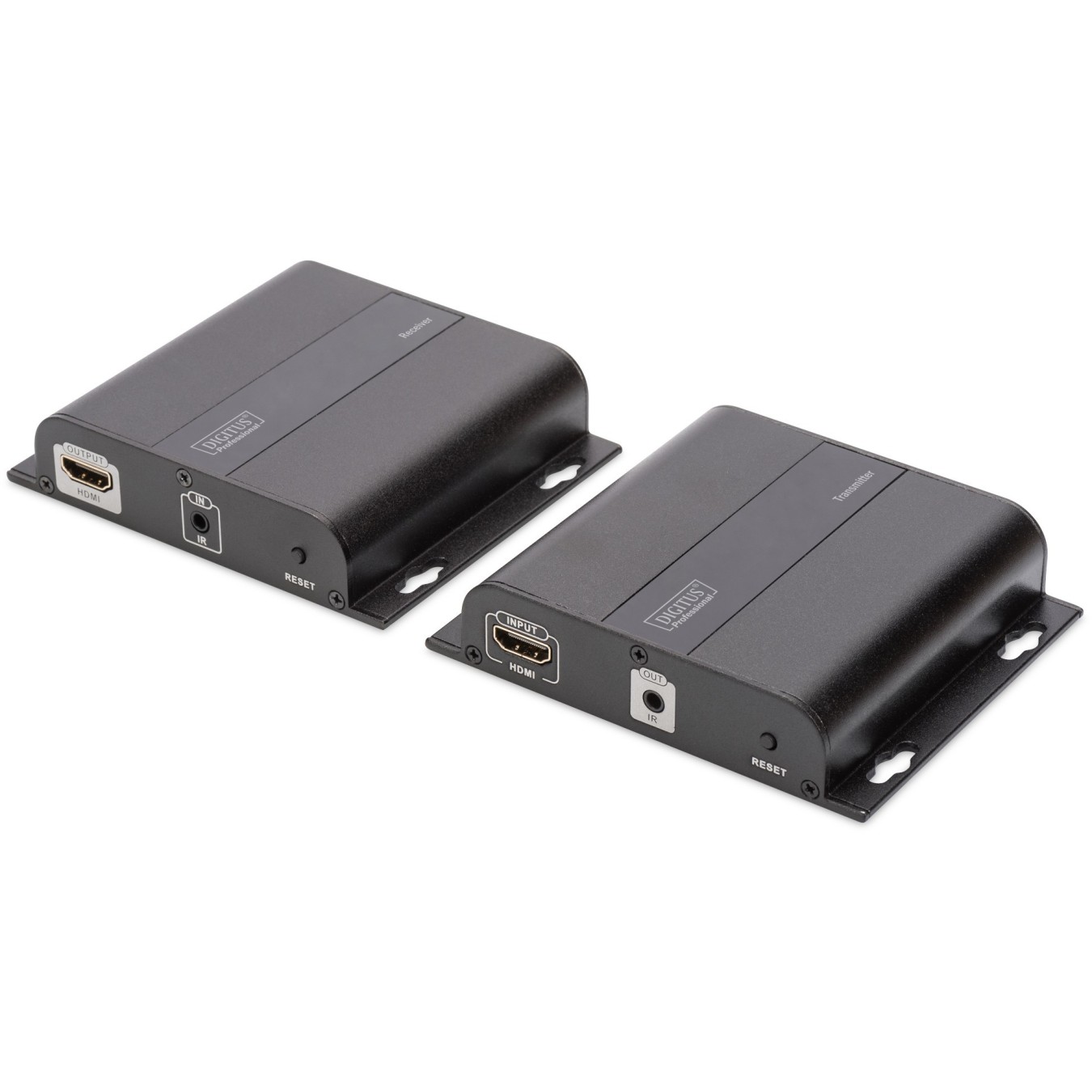

DIGITUS Extender Set HDMI IP Cat5 5e 6 7 - Black - 4K
Digitus 4K HDMI Extender kit via CAT5/6 (TX/RX), up to 3840x2160, 120 m, IR in/out, metal housing, 24-bit color.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| HDMI Cables - Version | 1.4 |
|---|---|
| HDMI Cables - Bandwidth | High Speed |
Digitus 4K HDMI Extender via CAT / IP (Set). Type: AV transmitter & receiver. Maximum resolution: 3840 x 2160 pixels. Cable types supported: Cat5. Cat5e. Cat6. Connectivity technology: Wired. Operating voltage (transmitter): 5 V. Output current: 2 A. Operating voltage (receiver): 5 V. Width: 107.3 mm. Depth: 94 mm. Height: 23.7 mm. Package width: 199 mm. Package depth: 149 mm. Package height: 80 mm
| Type | AV transmitter & receiver |
| Maximum resolution | 3840 x 2160 pixels |
| Cable types supported | Cat5. Cat5e. Cat6 |
| Maximum transfer distance | 120 m |
| Supported video modes | 480i. 480p. 576i. 576p. 720p. 1080i. 1080p. 2160p |
| Bandwidth | 10.2 Gbit/s |
| Feature | IR receiver included |
| Material | Metal |
| Colour depth | 24 bit |
| Product colour | Black |
| Connectivity technology | Wired |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
| HDMI in | 1 |
| Number of HDMI outputs | 1 |
| HDMI version | 1.4 |
| Remote (IR) input | 1 |
| Remote (IR) output | 1 |
| Operating voltage (transmitter) | 5 V |
| Output current | 2 A |
| Operating voltage (receiver) | 5 V |
| Power consumption (typical) | 4 W |
| Operating temperature (T-T) | 0 - 60 °C |
| Width | 107.3 mm |
| Depth | 94 mm |
| Height | 23.7 mm |
| Weight | 167 g |
| Package width | 199 mm |
| Package depth | 149 mm |
| Package height | 80 mm |
| Package weight | 845 g |
| Country of origin | China |
| Package volume | 2372.08 cm³ |
| UK Trade Tariff code | 85176200 |
