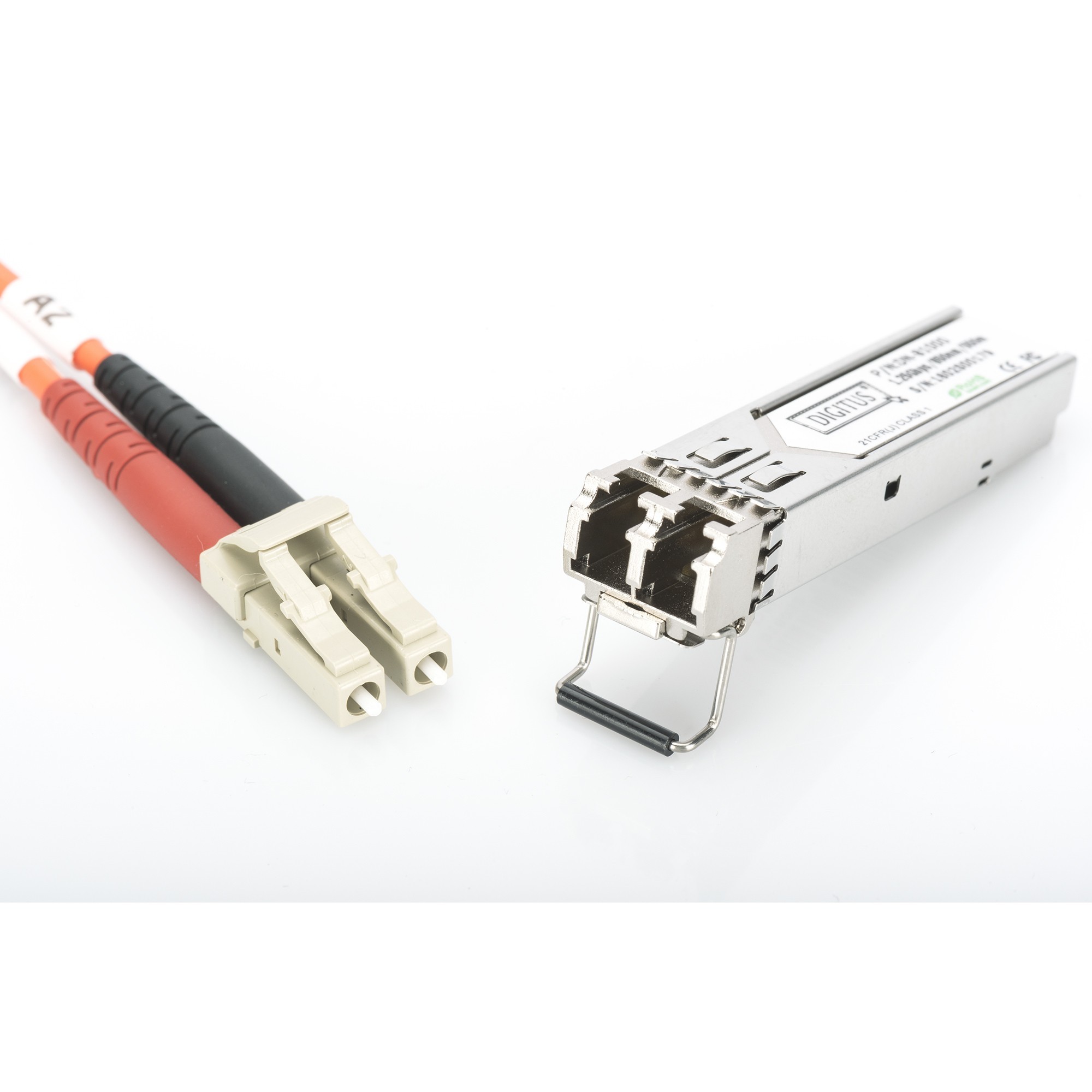

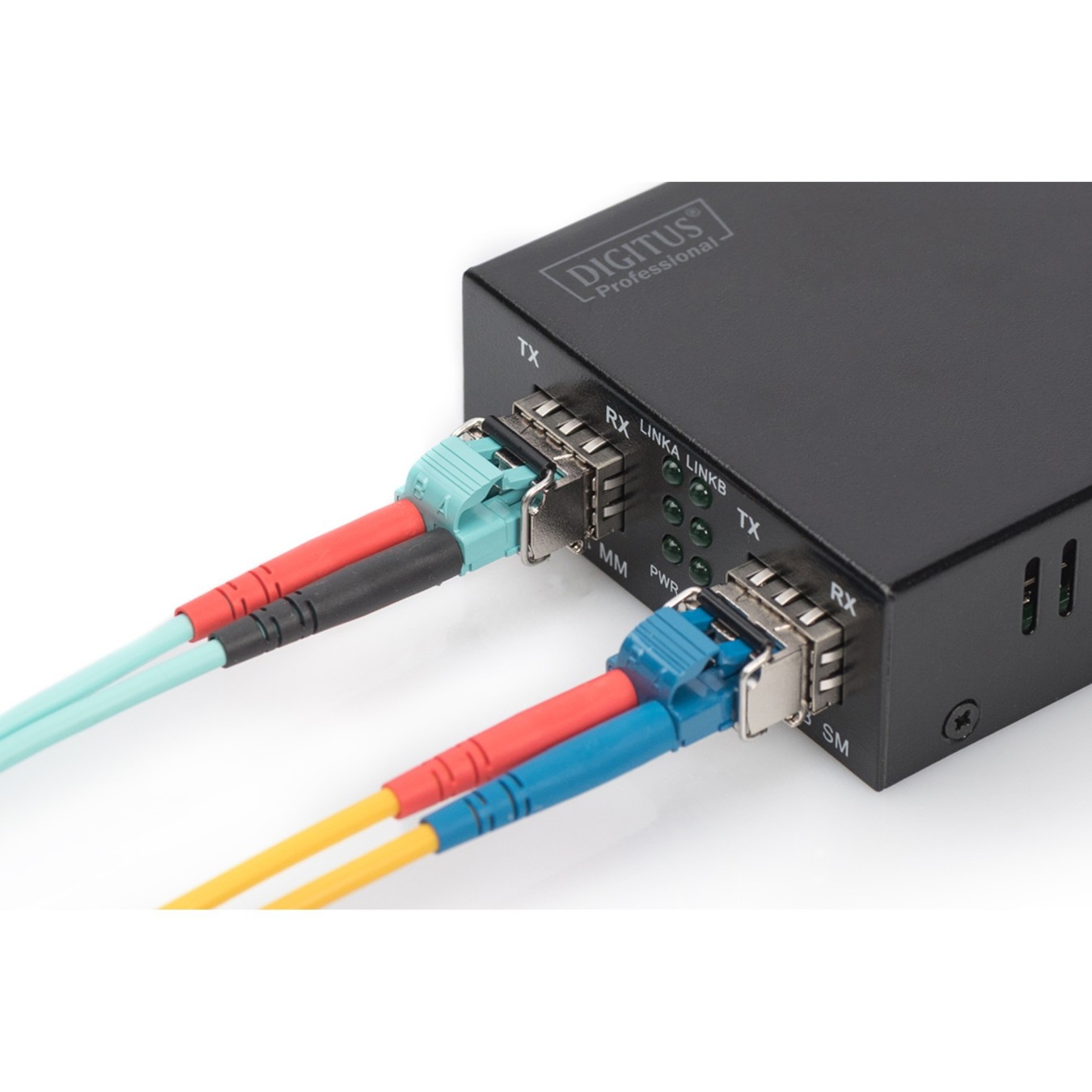

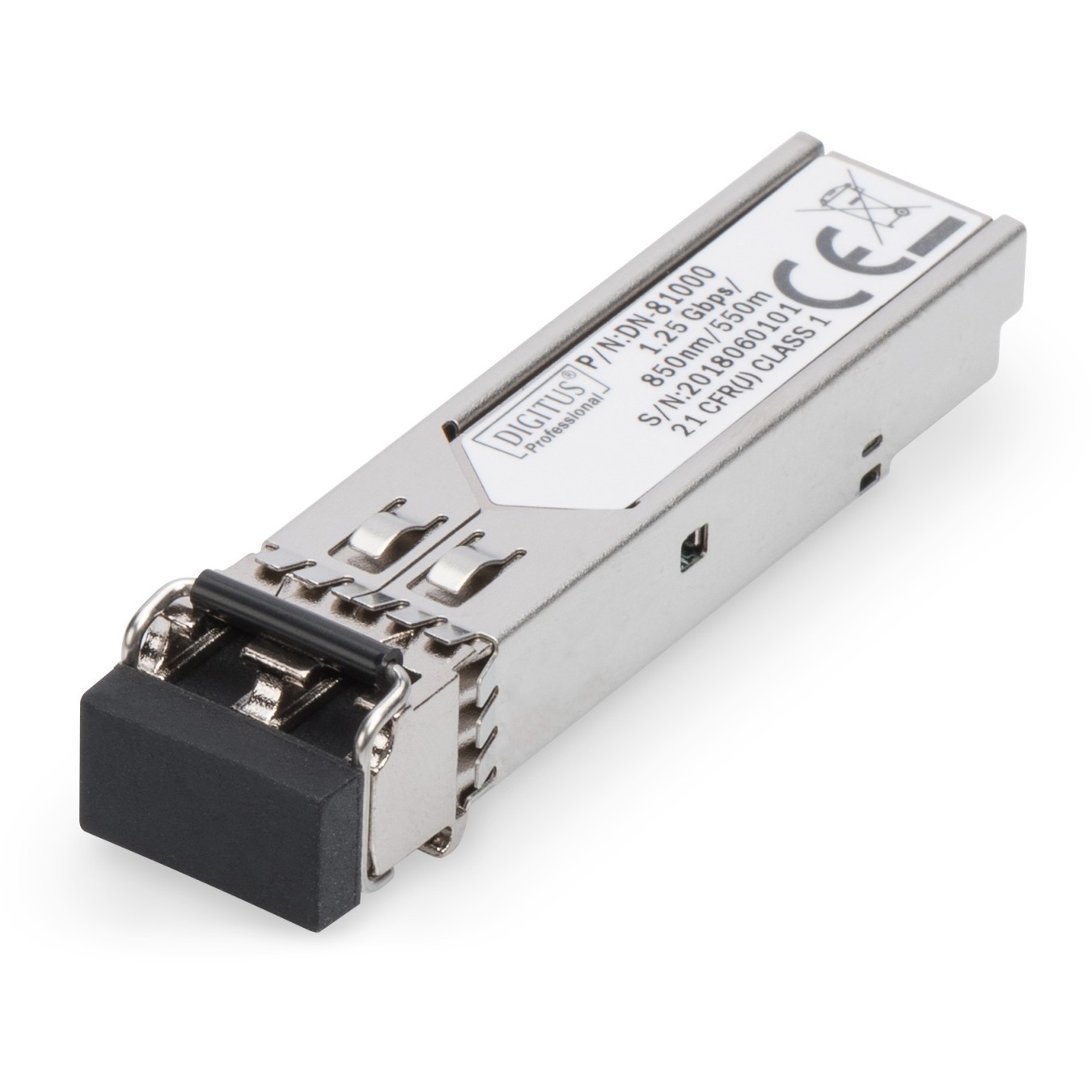

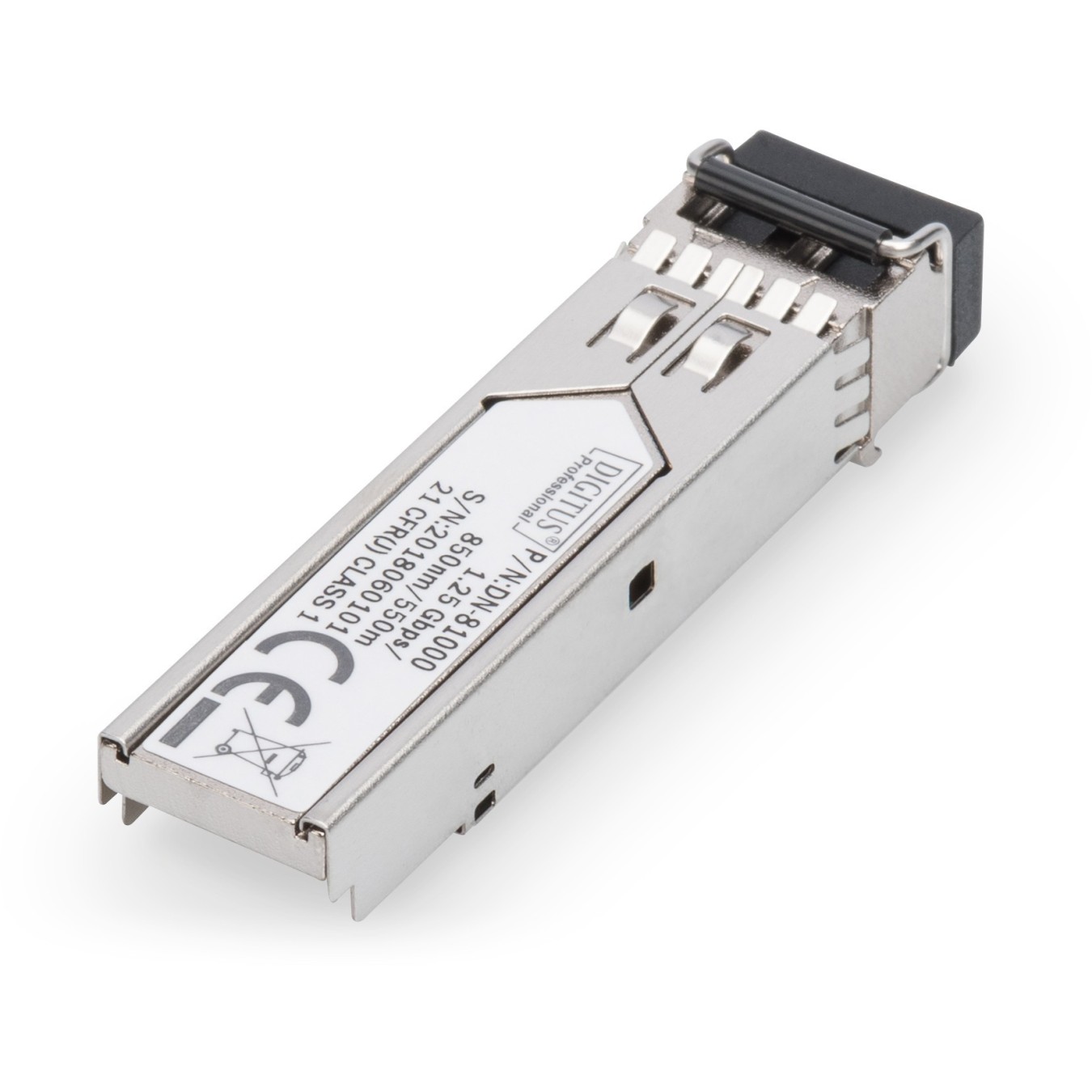

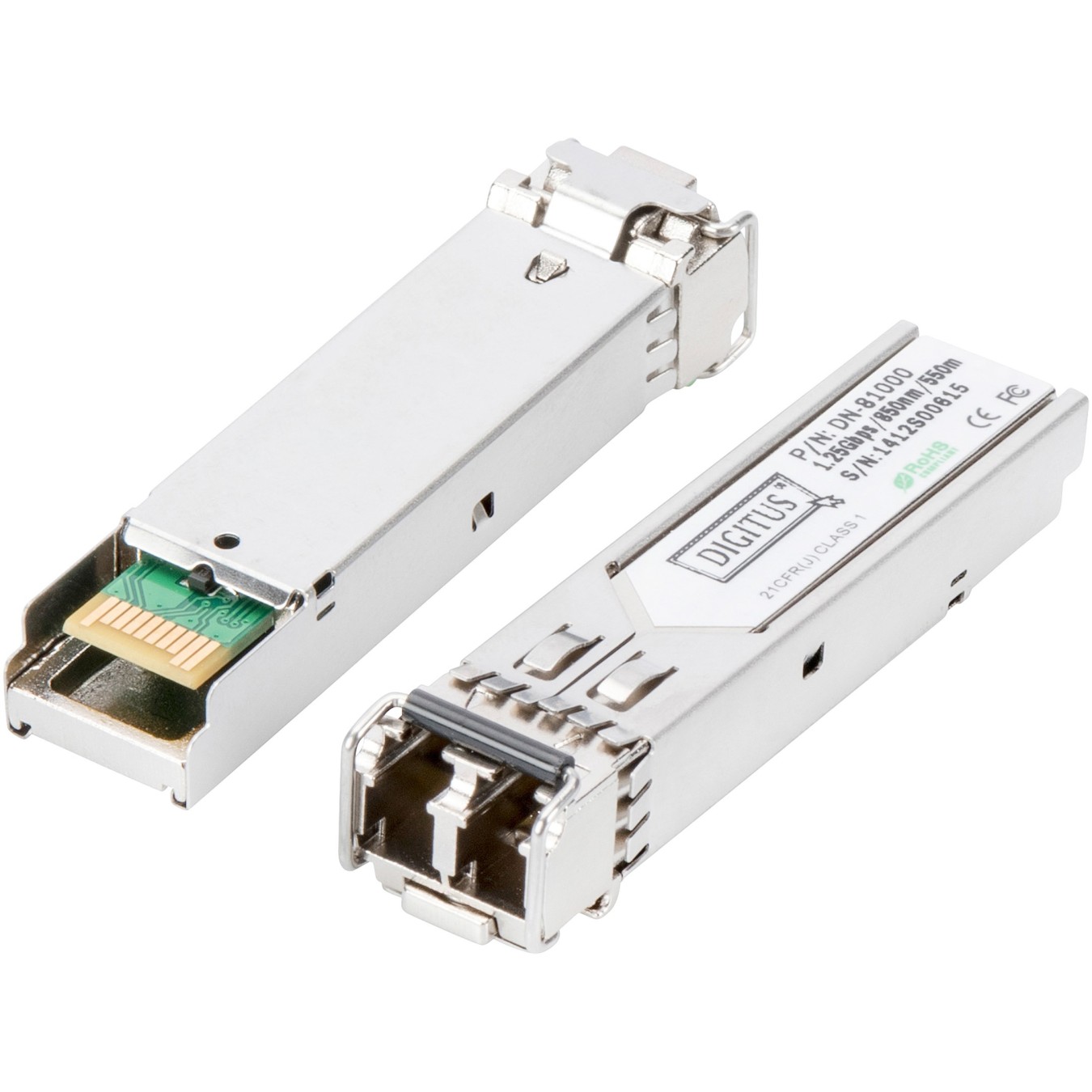

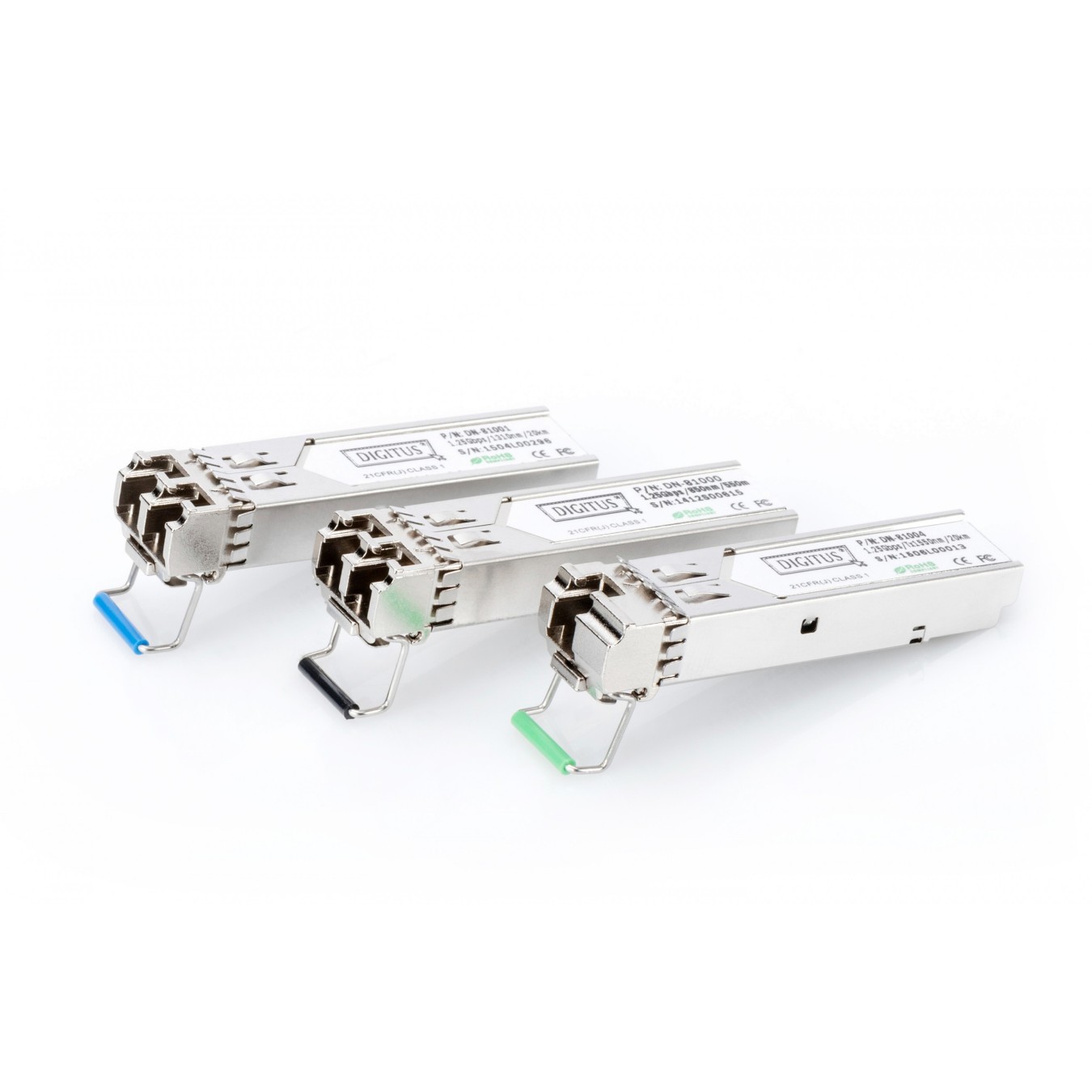

DIGITUS LWL SFP Module - LC Duplex SX 850 nm, MMF, 1.25 Gbps, 500 m
Digitus fiber SFP transceiver for MMF (50/125 µm), LC duplex, 850 nm SX, 1.25 Gbps, up to 500 m.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
Digitus mini GBIC (SFP) Module. 1.25 Gbps. 0.55km. SFP transceiver type: Fiber optic. Interface type: SFP. Fiber optic connector: LC. Brand compatibility: MSA Compliant. Maximum voltage: 3.3 V. Package width: 118 mm. Package depth: 31 mm. Package volume: 340.194 cm³. Country of origin: China
| SFP transceiver type | Fiber optic |
| Interface type | SFP |
| Feature | Plug and Play |
| Fiber optic connector | LC |
| Fiber cable diameters supported (core/cladding) | 50/125 µm |
| SFP transceiver standard | SX |
| Maximum transfer distance | 500 m |
| Wavelength | 850 nm |
| Tx power (min) | -8 dBmW |
| Tx power (max) | -3 dBmW |
| Rx power (min) | -20 dBmW |
| Ethernet interface type | Gigabit Ethernet |
| Networking standards | IEEE 802.3z |
| Brand compatibility | MSA Compliant |
| Maximum voltage | 3.3 V |
| Package width | 118 mm |
| Package depth | 31 mm |
| Package volume | 340.194 cm³ |
| Package weight | 35.417 g |
| UK Trade Tariff code | 85176200 |
| Harmonized System (HS) code | 85369010 |
| Country of origin | China |
