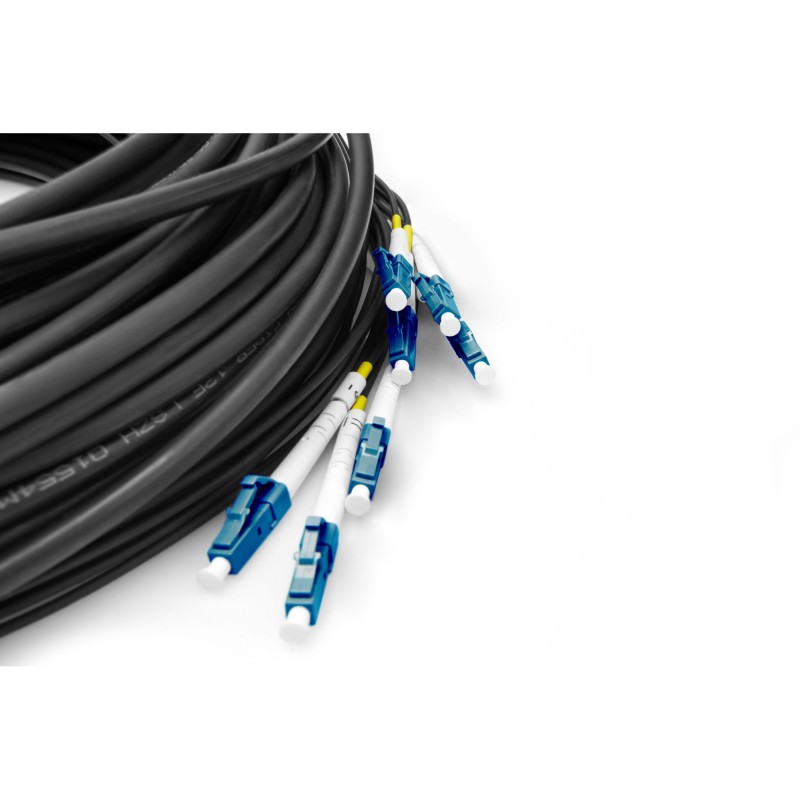

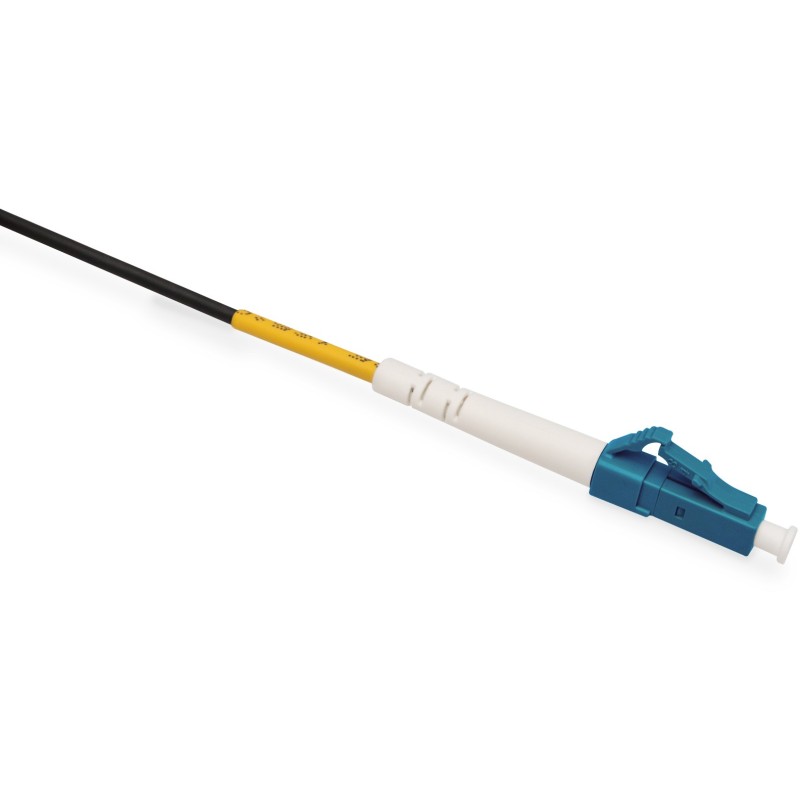

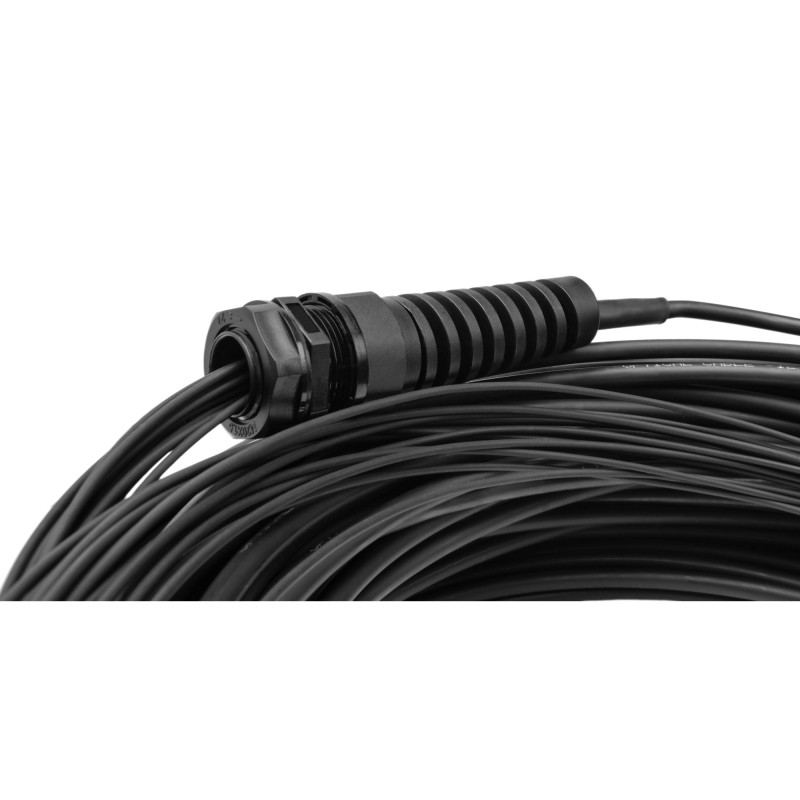

DIGITUS LWL Patch Cable LC-UPC OS2, 100 m, 8-fiber, black, pre-terminated
Pre-terminated OS2 8-fiber patch cable, LC UPC to LC UPC, 100 m, black LSZH jacket.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
| Ethernet Cables - Length | Other |
|---|
Digitus Pre-assembled Fiberglass Universal Breakout Cable. Single Mode OS2. 8 Fibers. LC/UPC - LC/UPC. Cable length: 100 m. Cable type: U-DQ(ZN) BH. Fibre optic type: OS2. Connector 1: LC. Connector 2: LC. Core diameter: 9 µm
| Cable length | 100 m |
| Fibre optic type | OS2 |
| Connector 1 | LC |
| Connector 2 | LC |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Connector polish type | UPC |
| Cable type | U-DQ(ZN) BH |
| Product colour | Black |
| Core diameter | 9 µm |
| Cladding diameter | 125 µm |
| Fiber mode structure | Single-mode |
| Insertion loss | 0.3 dB |
| Return loss | 50 dB |
| Jacket material | Low smoke zero halogen (LSZH) |
| Feature | Plug and Play |
| Operating temperature (T-T) | -20 - 70 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Package width | 350 mm |
| Package depth | 350 mm |
| Package volume | 30625 cm³ |
| Package weight | 7.54 kg |
| Quantity per pack | 1 pc(s) |
| Number of optical fibres | 8 |
| UK Trade Tariff code | 85447000 |
| Country of origin | China |
