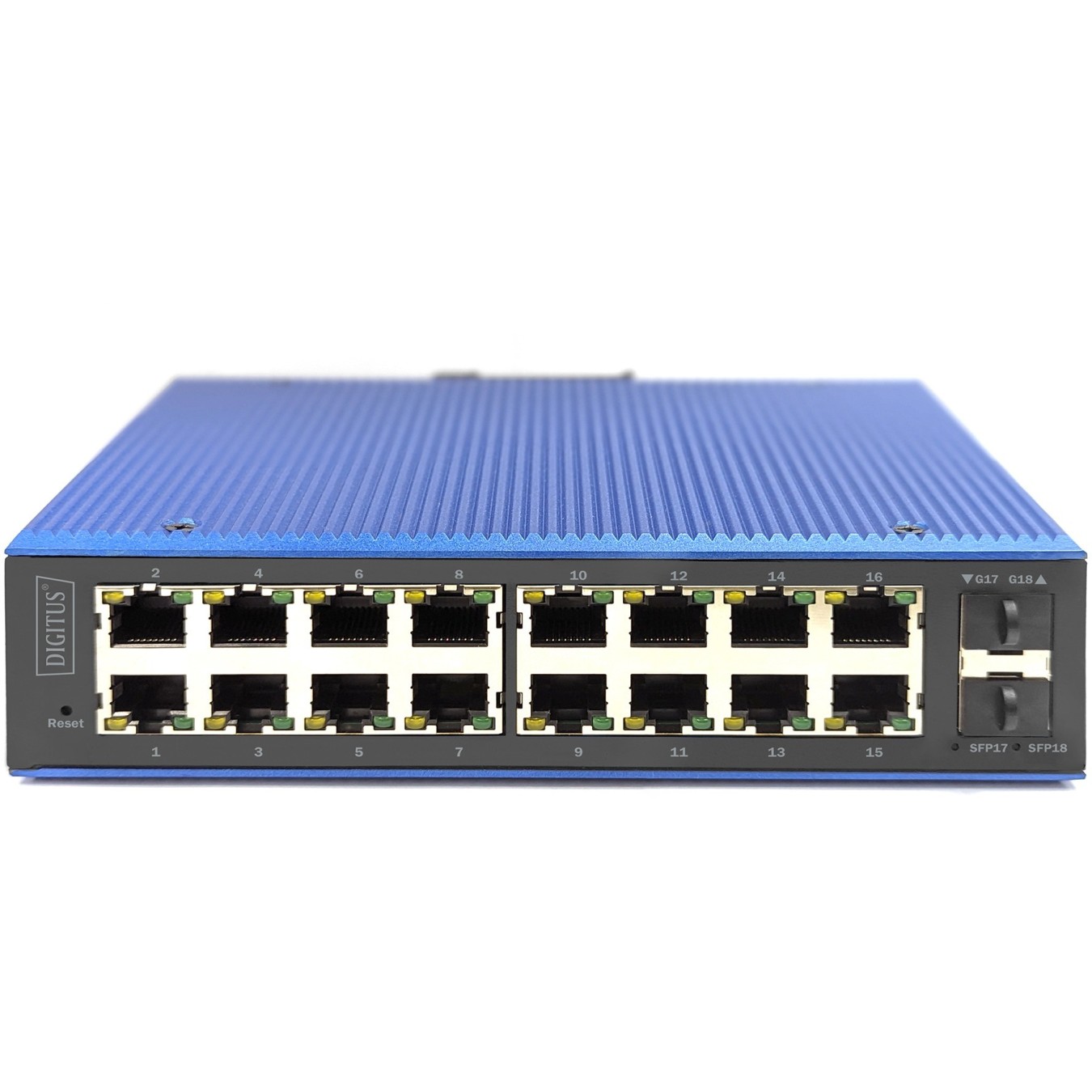

Digitus 16+2P Industrial Gigabit Ethernet PoE Switch L2 Managed - 16x Gigabit Copper + 2x SFP
Industrial L2 managed PoE switch with 16x RJ45 and 2x SFP ports, 30W PoE budget, IP40 metal enclosure, wide operating temp range.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
Digitus Industrial 16+2 port L2 managed Gigabit Ethernet PoE switch. Switch type: Managed. Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000). Basic switching RJ-45 Ethernet ports quantity: 16. Installed SFP modules quantity: 2. Full duplex. MAC address table: 8000 entries. Switching capacity: 1 Gbit/s. Networking standards: IEEE 802.3af. DC input voltage: 48 - 57 V. Power over Ethernet (PoE)
| Switch type | Managed |
| Switch layer | L2 |
| Feature | Quick start guide |
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 16 |
| Installed SFP modules quantity | 2 |
| Fiber optic connector | SFP |
| Networking standards | IEEE 802.3af |
| Ethernet LAN data rates | 10.100.1000 Mbit/s |
| Virtual LAN features | IP subnet–based VLAN. MAC address-based VLAN. Port-based VLAN. Protocol-based VLAN. Voice VLAN |
| Number of VLANs | 4094 |
| Switching capacity | 1 Gbit/s |
| Forwarding rate | 42 Mpps |
| MAC address table | 8000 entries |
| Jumbo frames | 10240 |
| Packet buffer memory | 4.1 MB |
| Product colour | Black. Blue |
| Housing material | Metal |
| International Protection (IP) code | IP40 |
| Mean time between failures (MTBF) | 300000 h |
| Power source | DC/PoE |
| DC input voltage | 48 - 57 V |
| Power consumption (typical) | 15 W |
| Surge protection voltage | 4 kV |
| Total Power over Ethernet (PoE) budget | 30 W |
| Bandwidth | 56 Gbit/s |
| Ethernet interface type | Gigabit Ethernet |
| Operating temperature (T-T) | -40 - 80 °C |
| Storage temperature (T-T) | -40 - 80 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Width | 175.6 mm |
| Depth | 135 mm |
| Height | 45.5 mm |
| Weight | 1.2 kg |
| Package width | 186 mm |
| Package depth | 72.5 mm |
| Package height | 208 mm |
| Package volume | 2804.88 cm³ |
| Package weight | 75 g |
| UK Trade Tariff code | 85176200 |
| Country of origin | China |
