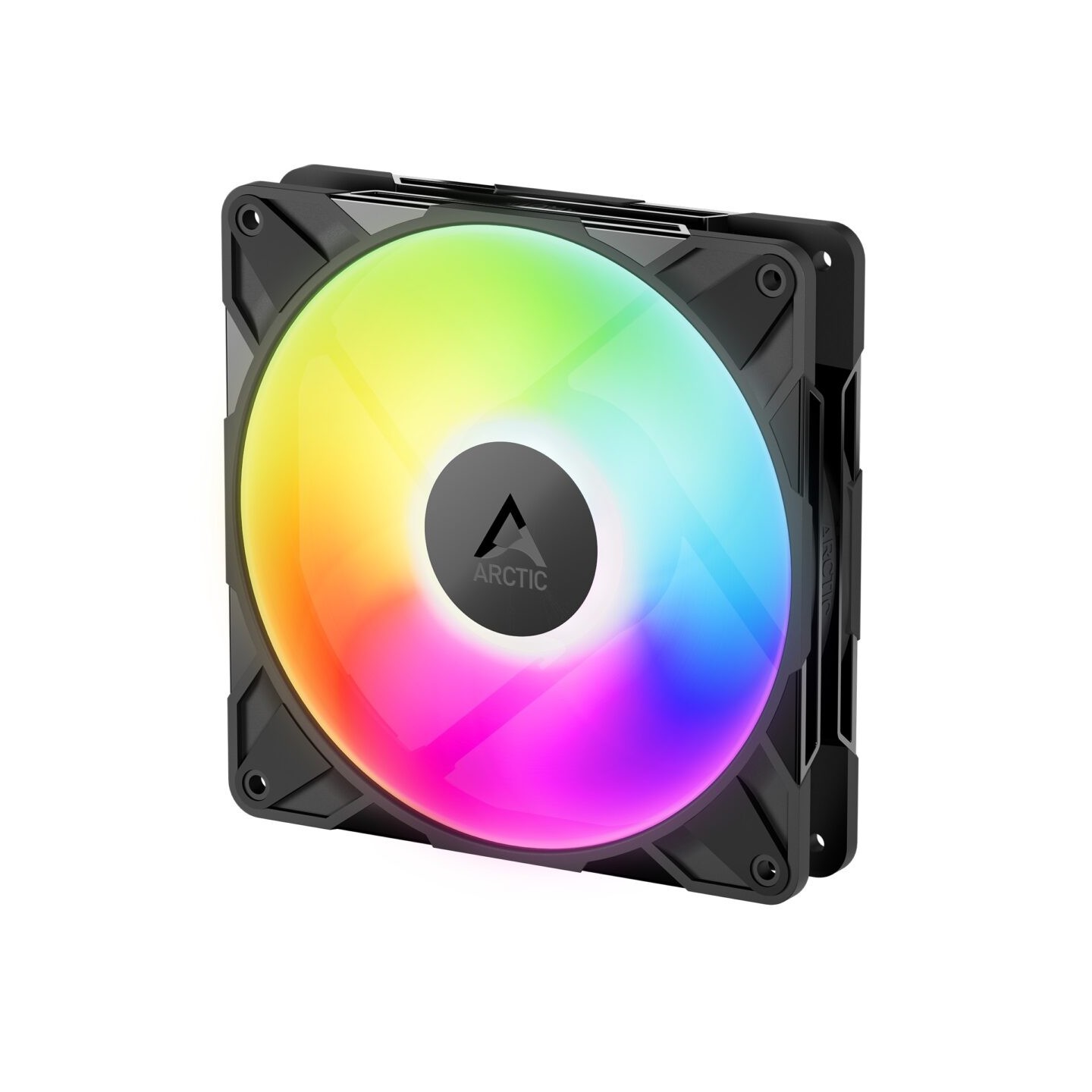

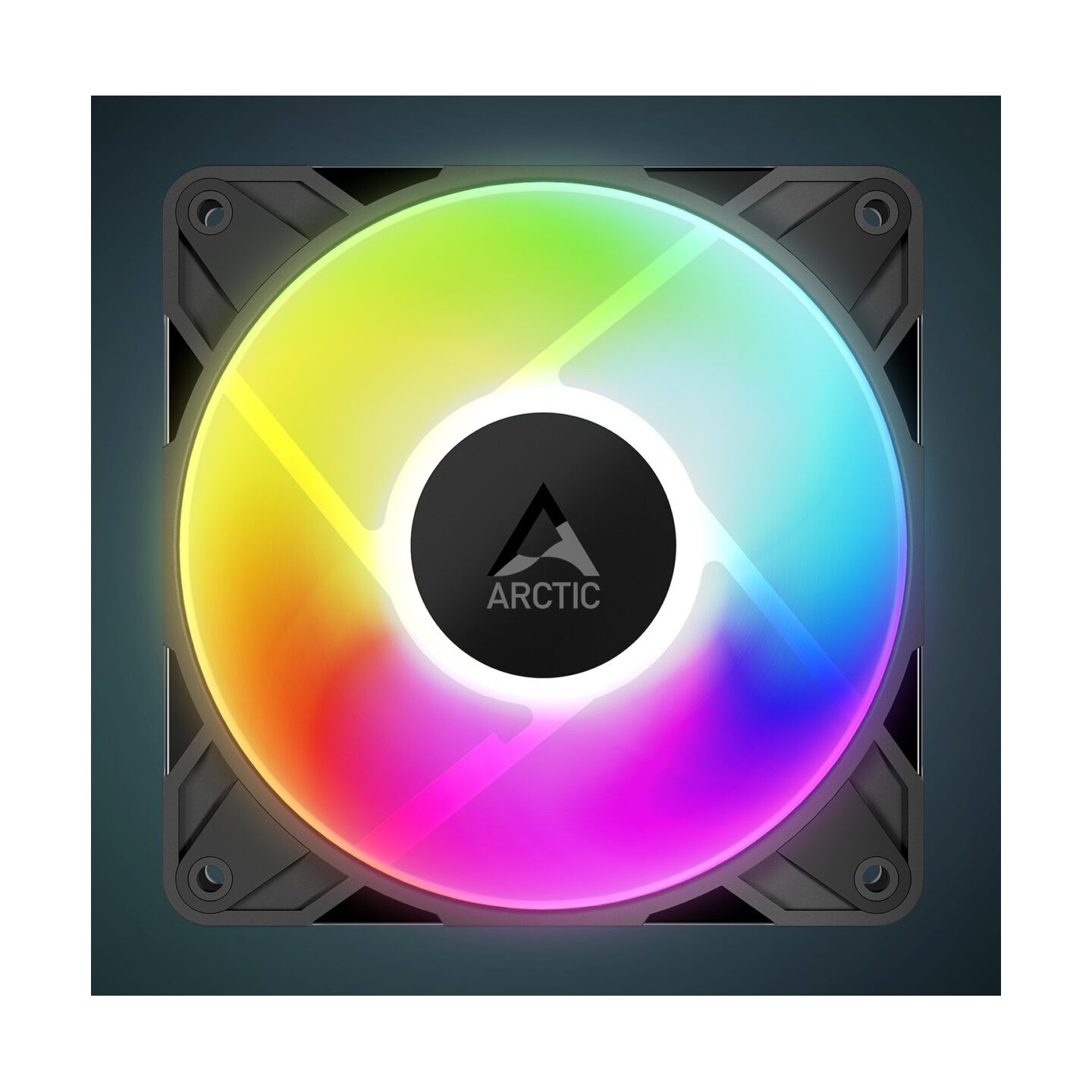

Arctic P14 Pro A-RGB PWM 140mm Case Fan - ACFAN00315A (Boxed)
High-static-pressure 140mm A-RGB PWM case fan with FDB bearing, 2500 RPM max, 110 CFM airflow, 5.2 mmH2O pressure. Includes daisy-chain cables for PWM/RGB sync. Quiet at 25dB(A), 6-year warranty.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Cooling (CPU & Case) - Device Type | Case Fan |
|---|---|
| Cooling (CPU & Case) - Fan Size | 140 mm |
| Cooling (CPU & Case) - Lightning | RGB |
| Cooling (CPU & Case) - Connector | 4-Pin PWM |
| Cooling (CPU & Case) - Color | Black |
| Cooling (CPU & Case) - Special Features | Daisy-Chain Industrial / High Speed Low Noise |

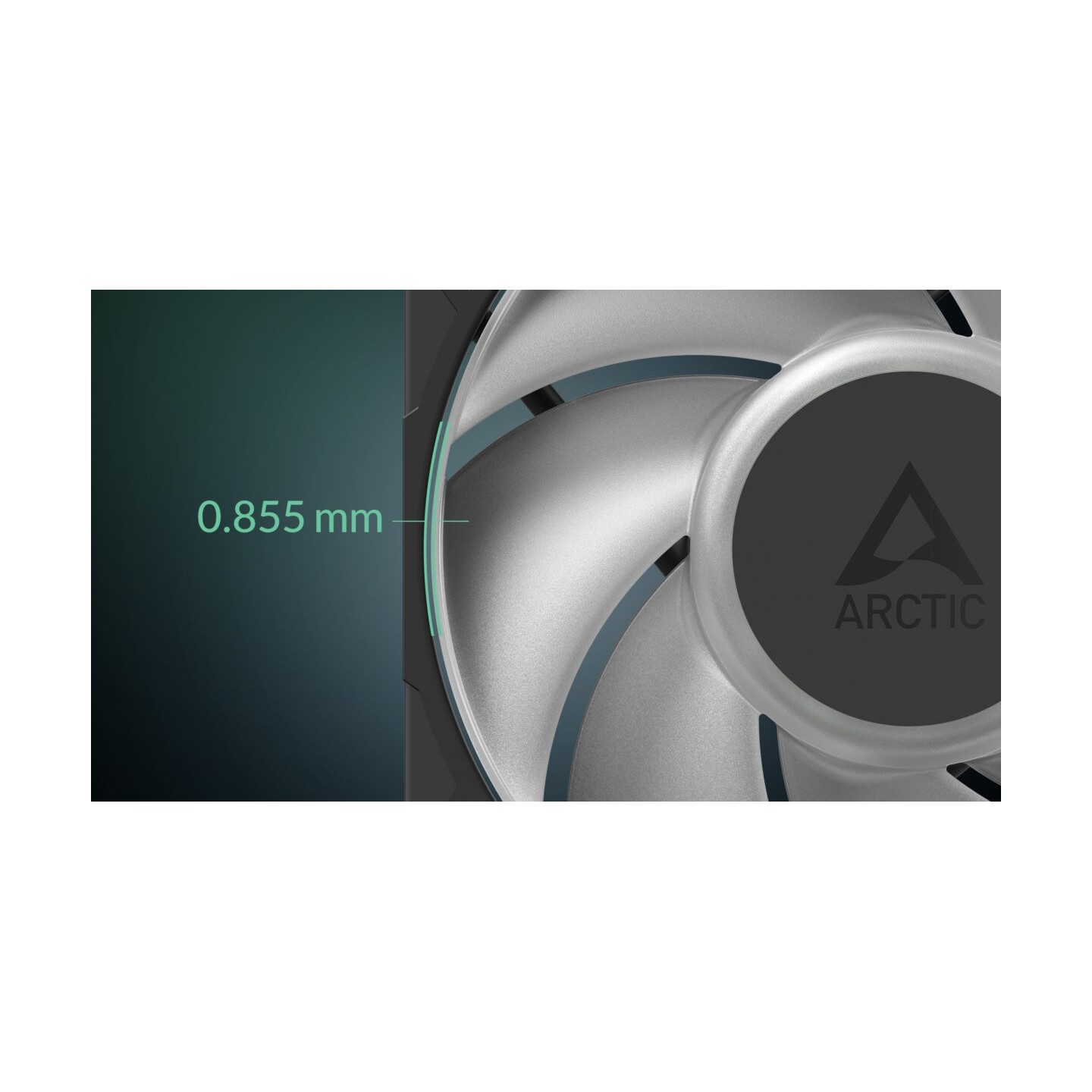

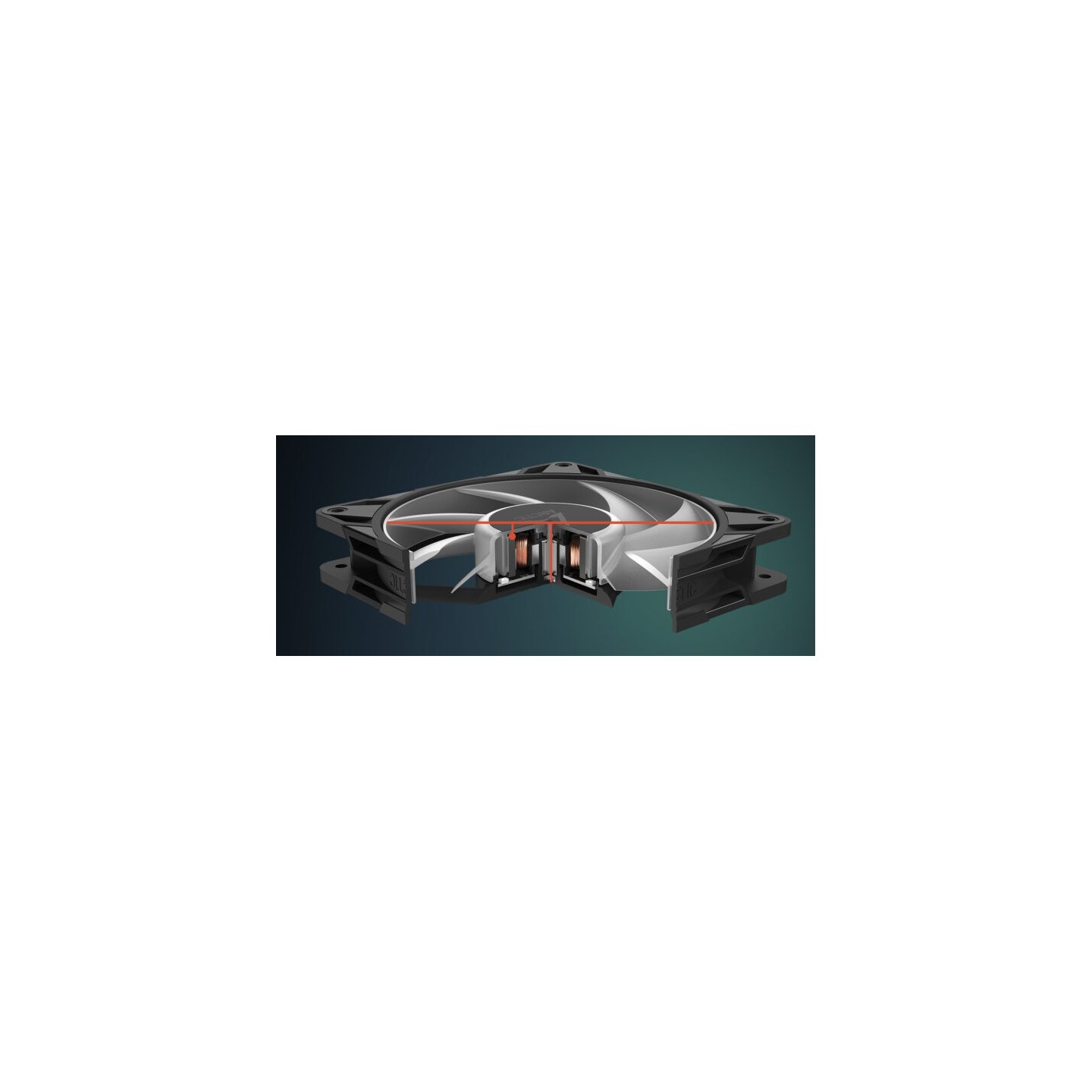

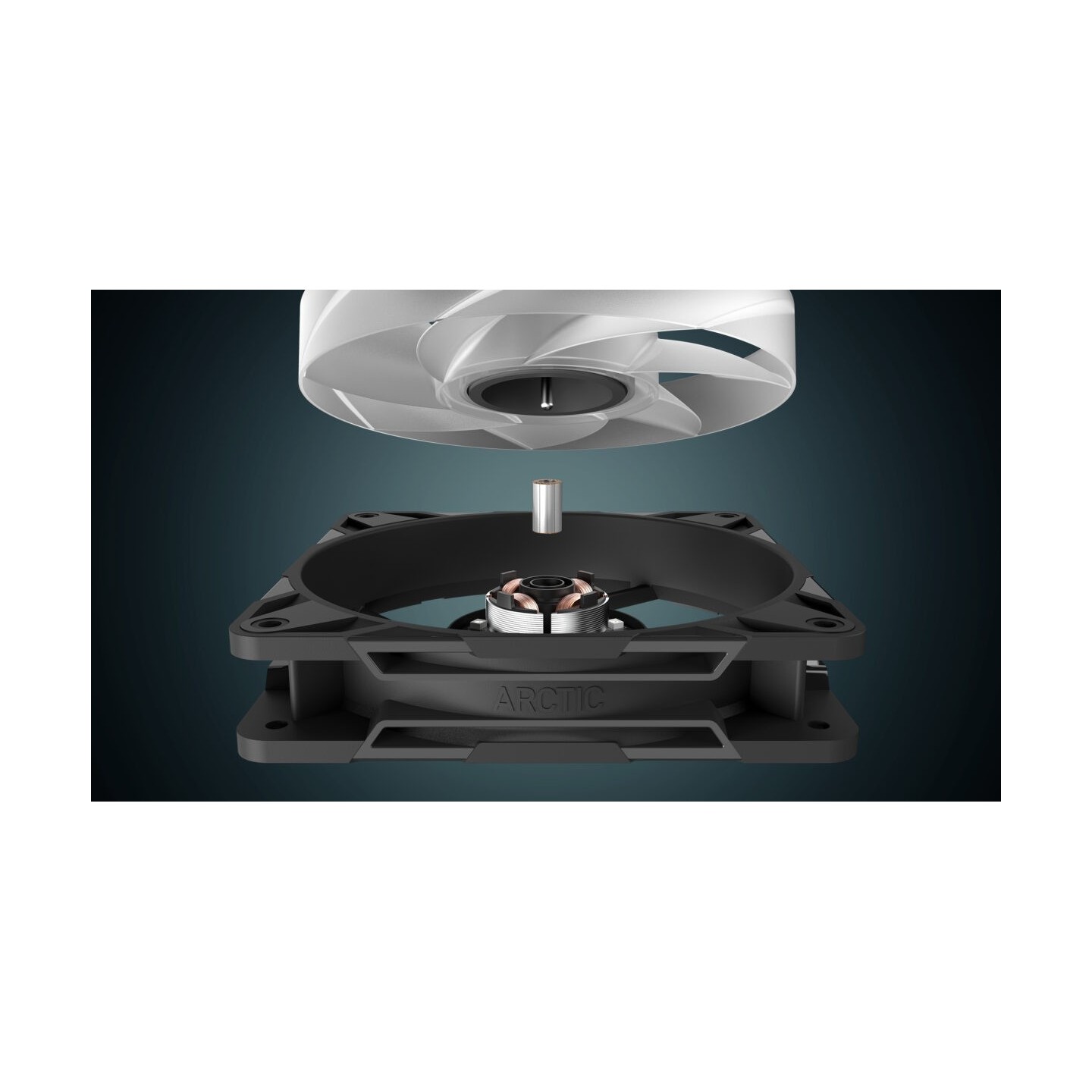

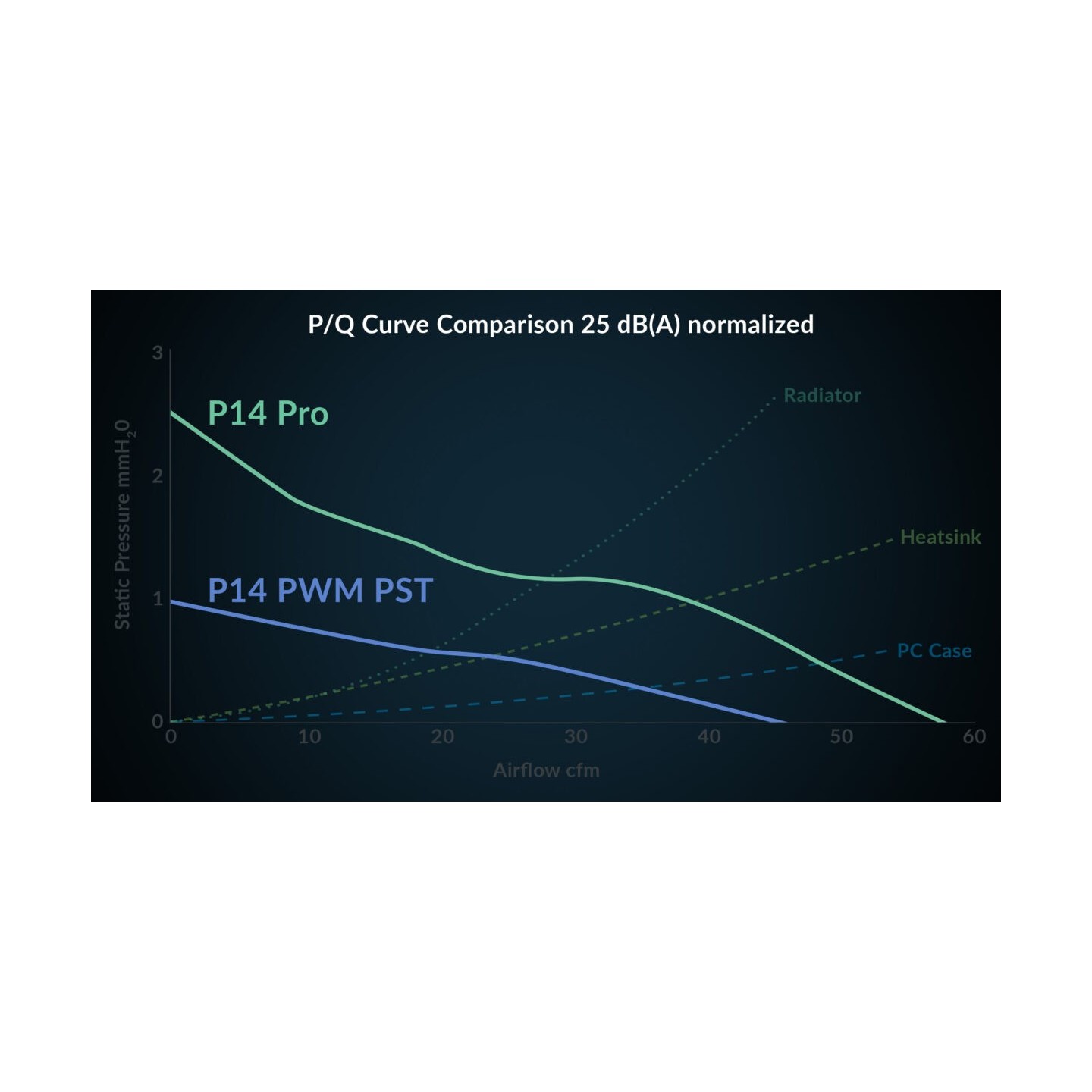

The Arctic P14 Pro A-RGB PWM 140mm Case Fan delivers exceptional cooling performance with high static pressure optimized for radiators, mesh filters, and tight spaces. Featuring a redesigned 7-blade impeller, Fluid Dynamic Bearing (FDB), and SOTA microcontroller, it achieves 110 CFM airflow and 5.2 mmH2O pressure at up to 2500 RPM while maintaining quiet operation at just 25 dB(A).

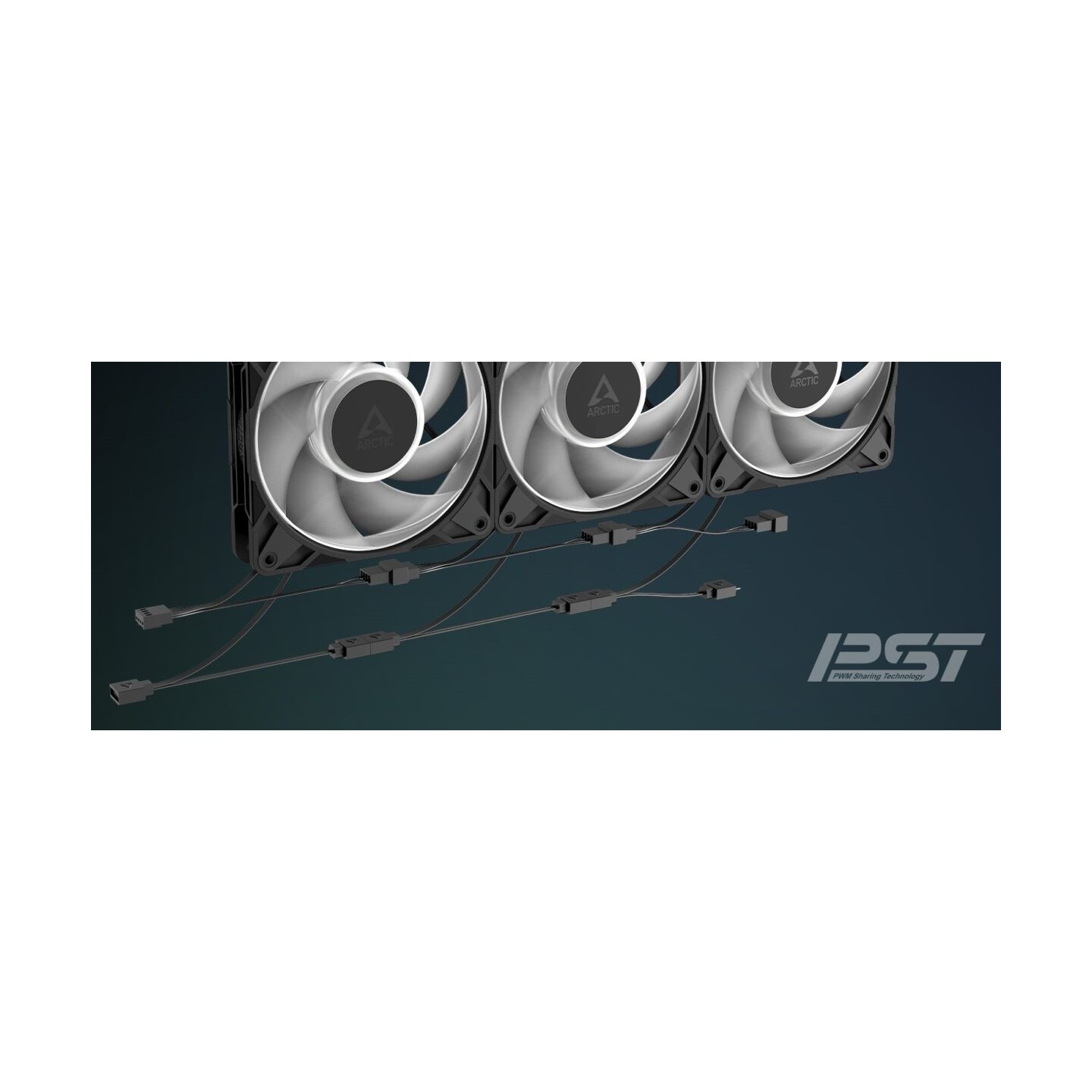

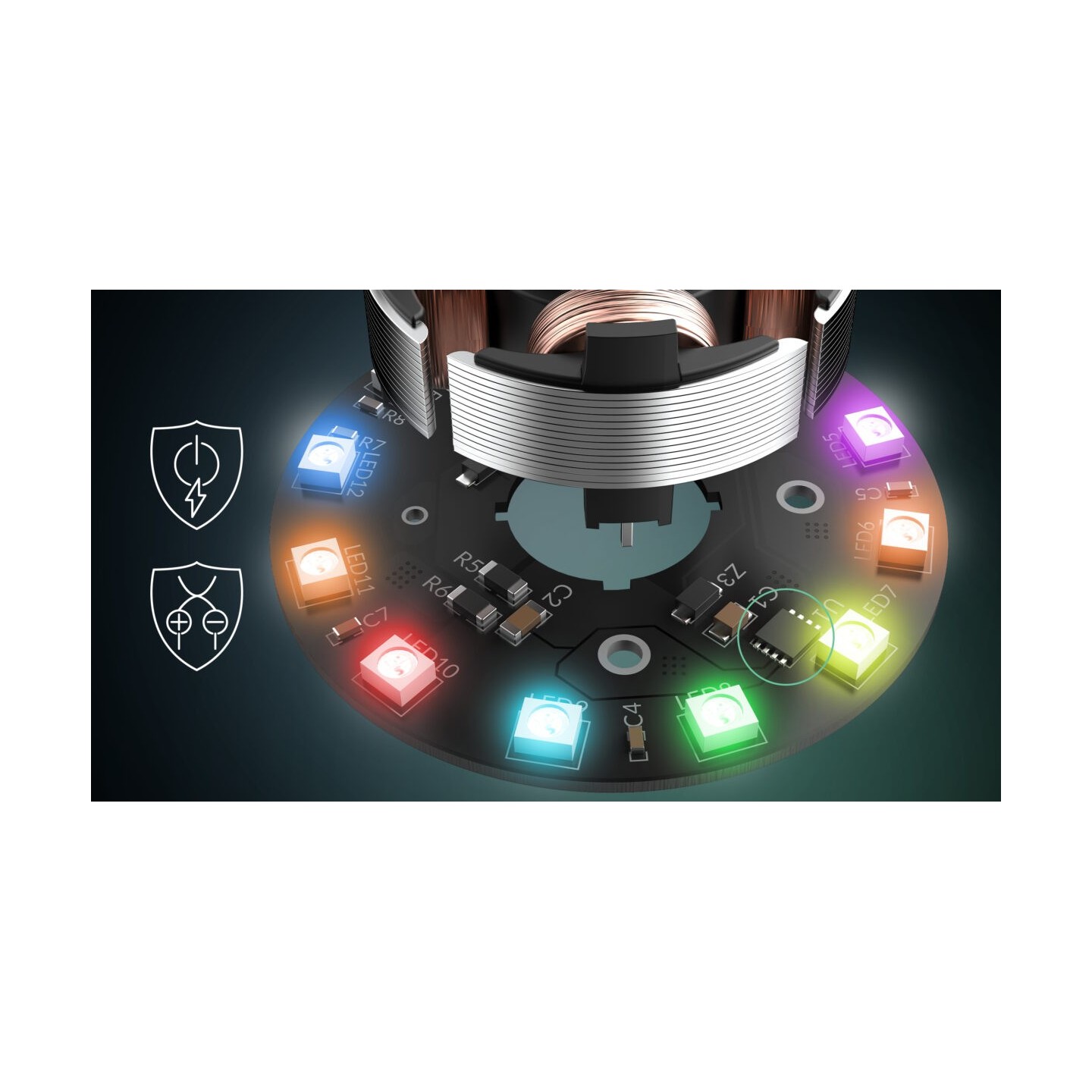

Equipped with 12x addressable Gen2 RGB LEDs compatible with major motherboards (Aura Sync, Mystic Light, etc.), it includes splitter cables for easy daisy-chaining of multiple fans via single PWM and 3-pin ARGB headers. PWM control stops the fan below 5% duty cycle for zero RPM silence. Net weight 237g, dimensions 140x140x27mm.
- ✅ High static pressure for radiators & filters
- ✅ 400-2500 RPM PWM, 0 RPM <5% PWM
- ✅ 12x A-RGB LEDs + daisy-chain cables
- ✅ FDB bearing, 6-year warranty
- ✅ Current: 0.35A (fan) + 0.40A (RGB)
| Warranty | 6 Years |
| Operating Ambient Temperature | 0–40 °C |
| Dimensions (Fan) | 140 (L) x 140 (W) x 27 (H) mm |
| Net Weight | 237 g |
| Fan Speed | 400–2500 rpm, PWM controlled, 0 rpm below 5 % PWM |
| Airflow | 110 cfm | 186 m³/h |
| Static Pressure | 5.2 mmH₂O |
| Fan Bearing | Fluid Dynamic Bearing |
| Typical Voltage | 12 V DC |
| Start Up Voltage | 5 V DC |
| Current (Fan) | 0.35 A |
| Cable Length | 400 mm + 80 mm Daisy-Chain Cable |
| Connector (Fan) | 4-Pin Fan Plug + 4-Pin Socket |
| LEDs | 12x A-RGB Gen2 LEDs |
| Current (RGB) | 0.40 A | 5 V DC |
| Connector (RGB) | 3-Pin A-RGB Plug + 3-Pin Socket |
| Packaging Width | 145 mm |
| Packaging Height | 30 mm |
| Packaging Length | 147 mm |
| Packaging Weight | 0.288 kg |
| MPN | ACFAN00315A |
