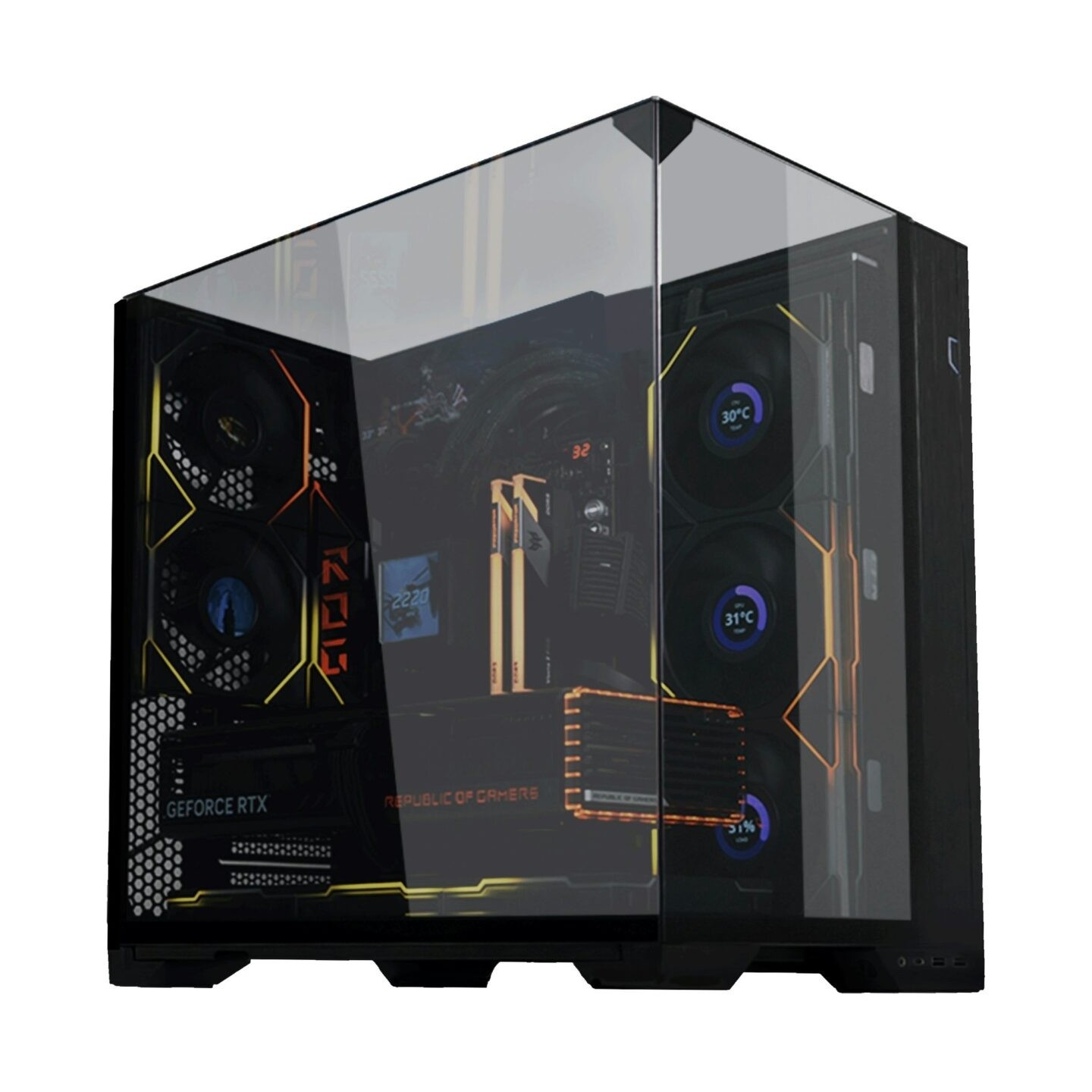

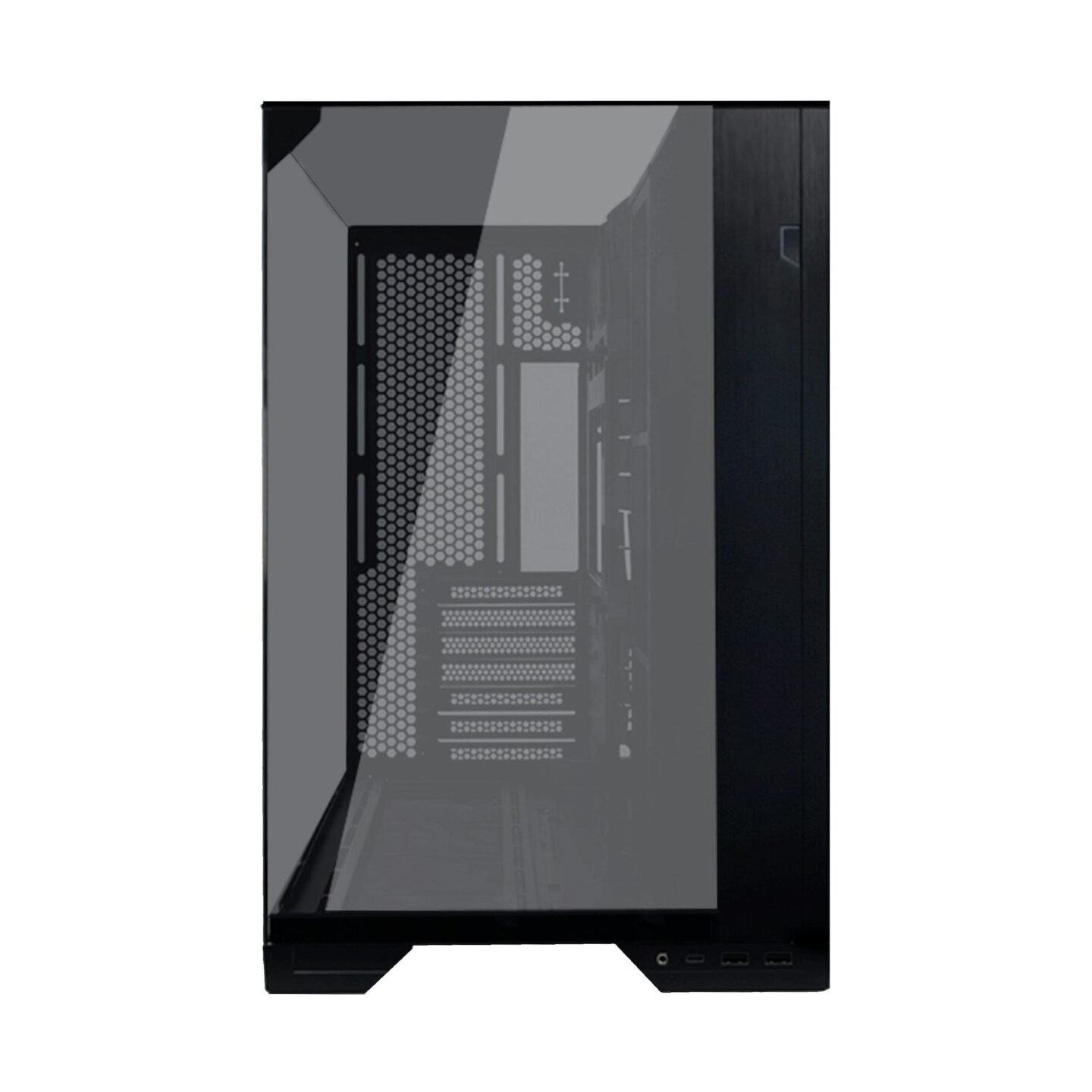

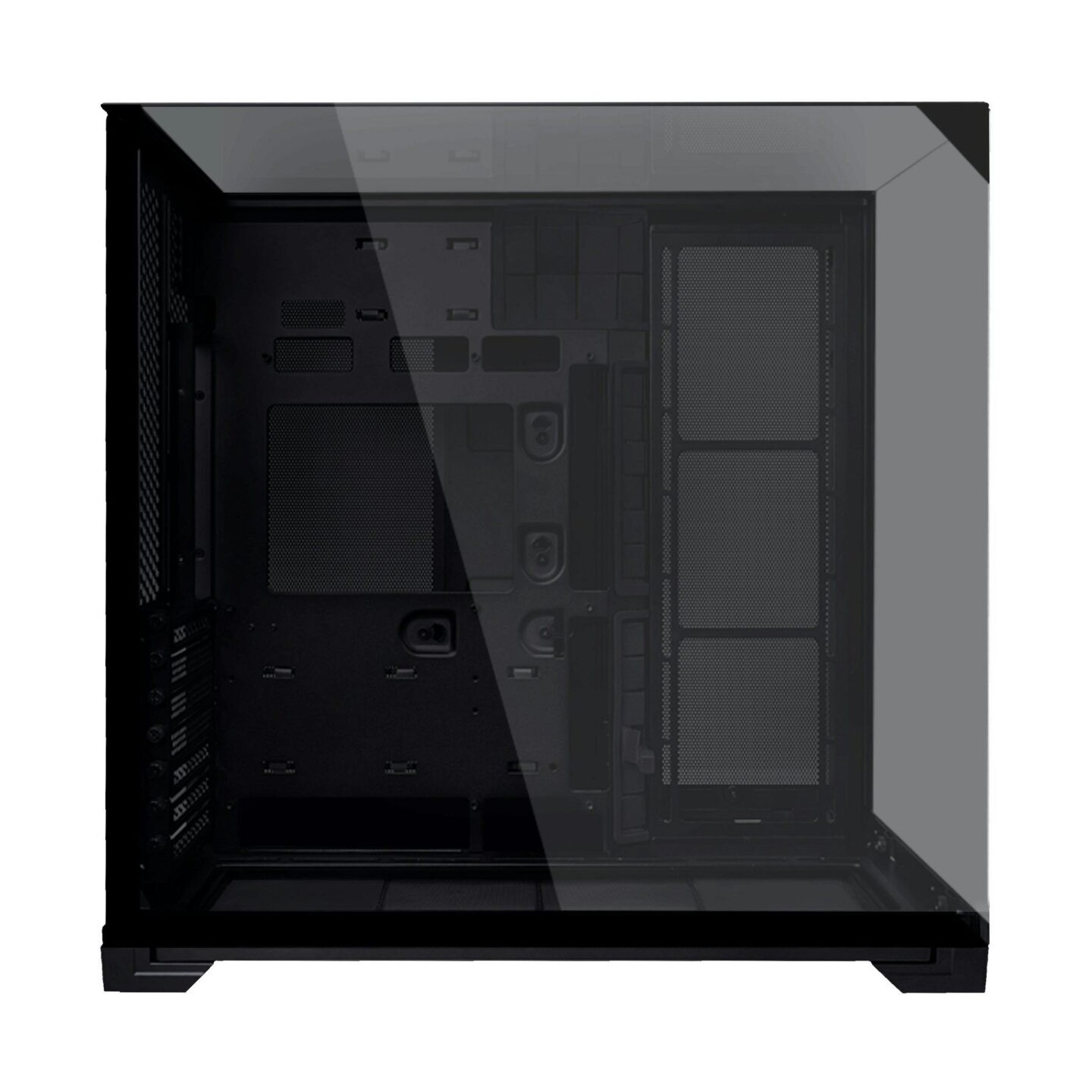

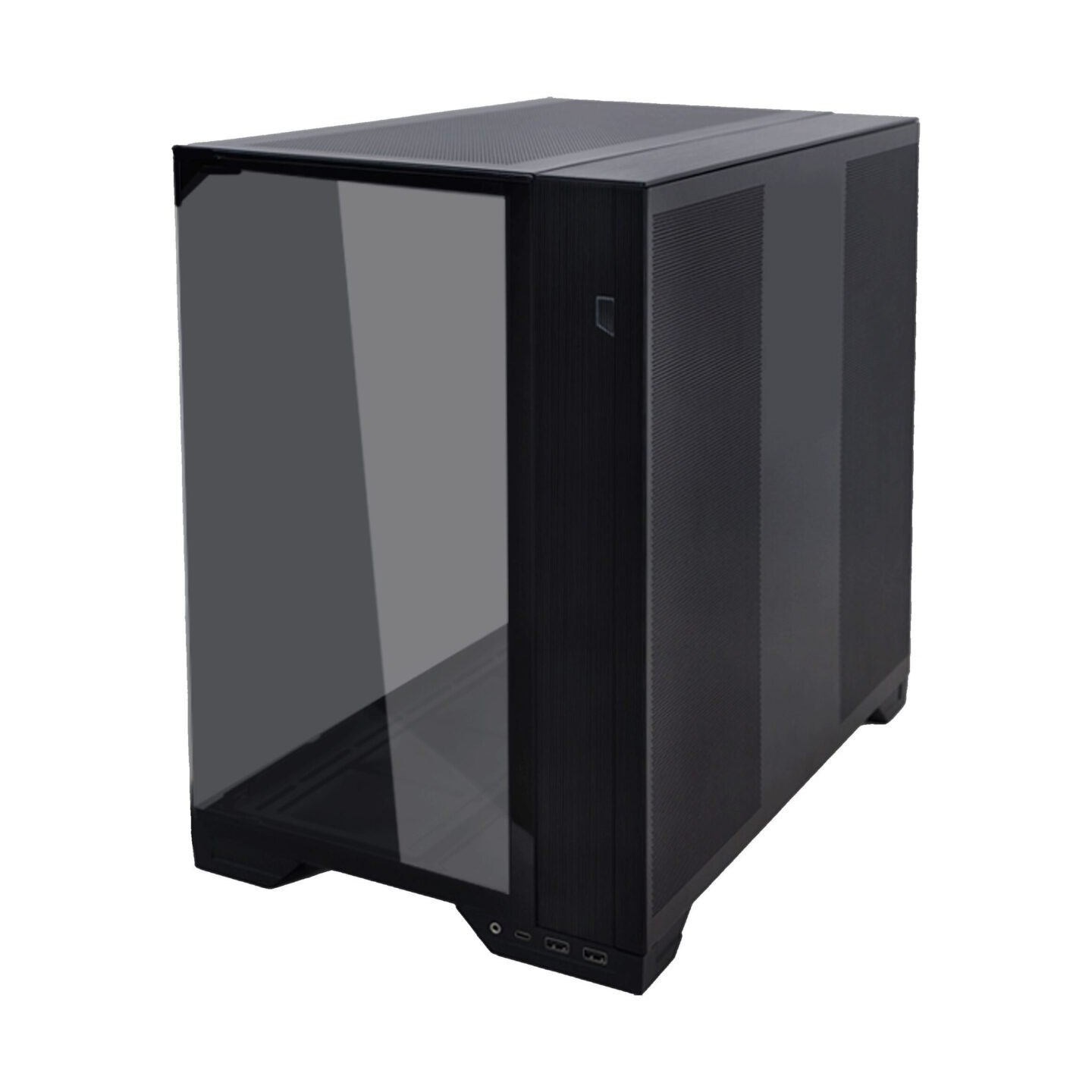

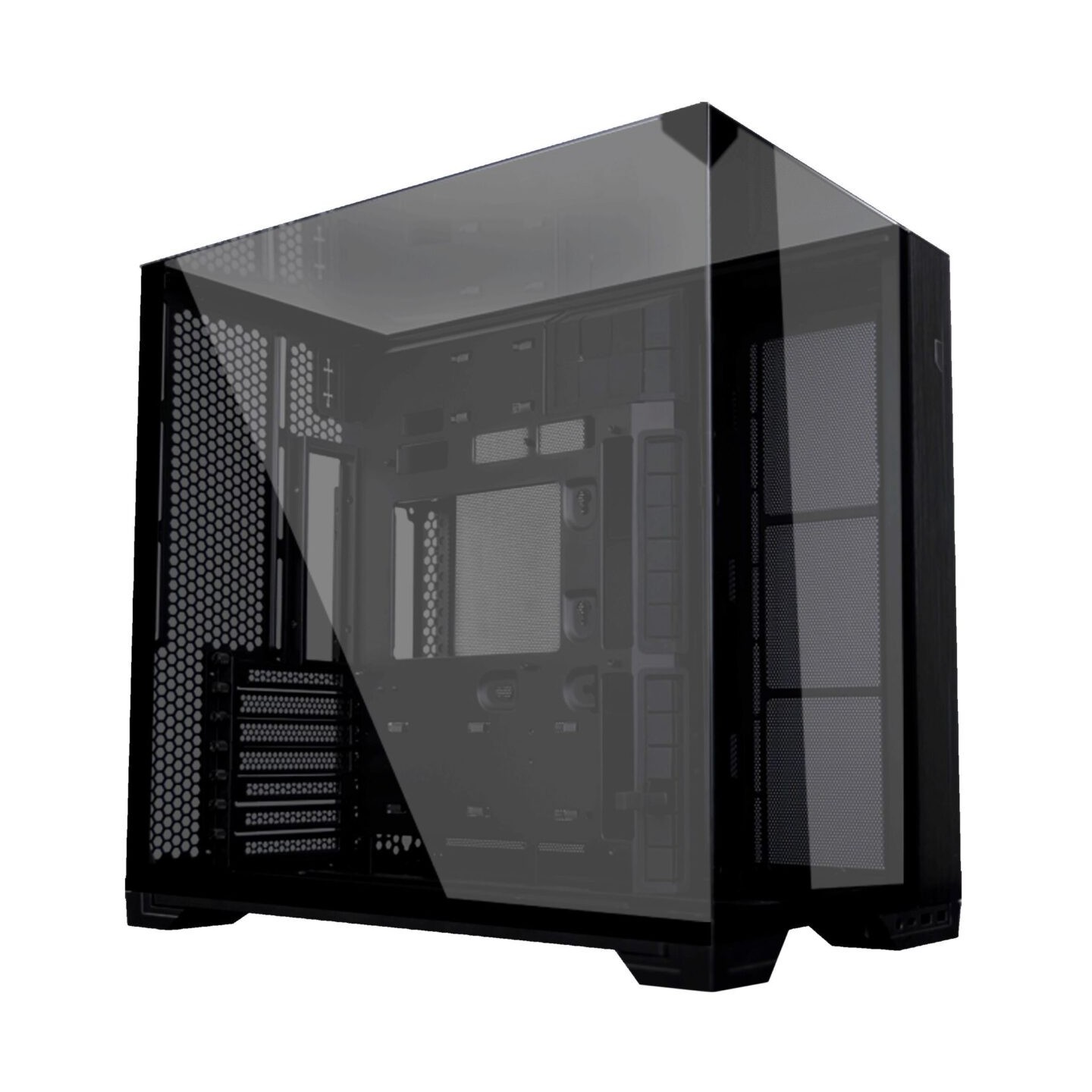

LIAN LI O11 Vision Compact Black - E-ATX under 280mm ATX 360AIO Tower PC Case (O11VPX)
Elegant tempered glass PC case with 3-4mm panels on front/side/top (swappable mesh top). Supports E-ATX
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PC Cases - Motherboard Support | ATX EATX Micro ATX Mini ITX |
|---|---|
| PC Cases - Radiator Support | 360 mm |
| PC Cases - Included Fans | 0 |
| PC Cases - Front I/O | Audio Jacks USB A USB C |
| PC Cases - GPU Orientation | Horizontal |
| PC Cases - Form Factor | Mid Tower |
| PC Cases - Max GPU Length | 450+ mm |
| PC Cases - Color | Black |
| PC Cases - CPU Cooler Clearance | 166-170 mm |
The Lian Li O11 Vision Compact Black (O11VPX) is a premium mid-tower case blending stunning aesthetics with excellent cooling and build quality. Featuring 4mm tinted tempered glass on front/side and 3mm top glass for 270° component visibility without support pillars. Swap the top for mesh panel to boost airflow and add fans/radiators.
Designed for modern builds, it supports back-connect ATX motherboards (like ASUS BTF) and E-ATX under 280mm, hiding most cables in a dedicated rear chamber with clips and tie points. Pre-installed adjustable anti-sag bracket secures GPUs up to 408mm (e.g., RTX 4090). Ample cooling: up to 11 fans (3x top/side/bottom 120mm, 2x rear), 360mm radiators on top/side/bottom. Reversible side bracket simplifies AIO installs. Bottom magnetic dust filter and elevated feet ensure optimal intake.
Hardware compatibility includes 164mm CPU coolers, ATX PSUs <220mm, 2x 2.5" SSD behind MB tray, 2x 3.5"/2.5" HDD cage. I/O: 2x USB 3.0, 1x USB-C 3.1, audio jack with backlit power button. Volume: 57.4L. Dimensions: 447.5 x 287.5 x 446.4mm.
- ✅ Swappable glass/mesh top panel
- ✅ Back-connect mobo & hidden cable support
- ✅ GPU anti-sag bracket (278-408mm)
- ✅ 360mm radiator support (top/side/bottom)
- ✅ 6+1 expansion slots
- ✅ No pre-installed fans
| Model | O11 Vision Compact (O11VPX Black) |
| Case Type | Mid Tower |
| Dimensions | (D)447.5mm x (W)287.5mm x (H)446.4mm |
| Material | Steel, 4.0mm tempered glass, 3.0mm tempered glass, Aluminium |
| Motherboard Support | Back-Connect ATX / E-ATX (Under 280mm) / ATX / Micro-ATX / Mini-ITX |
| Expansion Slots | 6+1 |
| GPU Length Clearance | 408mm (Max.) |
| CPU Cooler Height Clearance | 164mm (Max.) |
| PSU Support | ATX (Under 220mm) |
| Storage | Behind MB Tray: 2 x 2.5″ SSD; Hard drive cage: 2 x 3.5″ HDD or 2.5″ SSD |
| Fan Support | Top: 120mm x 3 or 140mm x 2; Side: 120mm x 3; Bottom: 120mm x 3; Rear: 120mm x 2 |
| Radiator Support | Top: 240/280/360mm; Side: 240/360mm; Bottom: 240/360mm |
| Front I/O Ports | Power Button x 1; USB 3.0 x 2; USB 3.1 Type-C x 1; Audio x 1 |
| Dust Filter | Bottom x 1 (Magnetic) |
| Included Fans | 0 |
| GPU Anti-Sag Bracket | Included (Adjustable 278-408mm) |
| Top Panel | Swappable Tempered Glass / Mesh |
