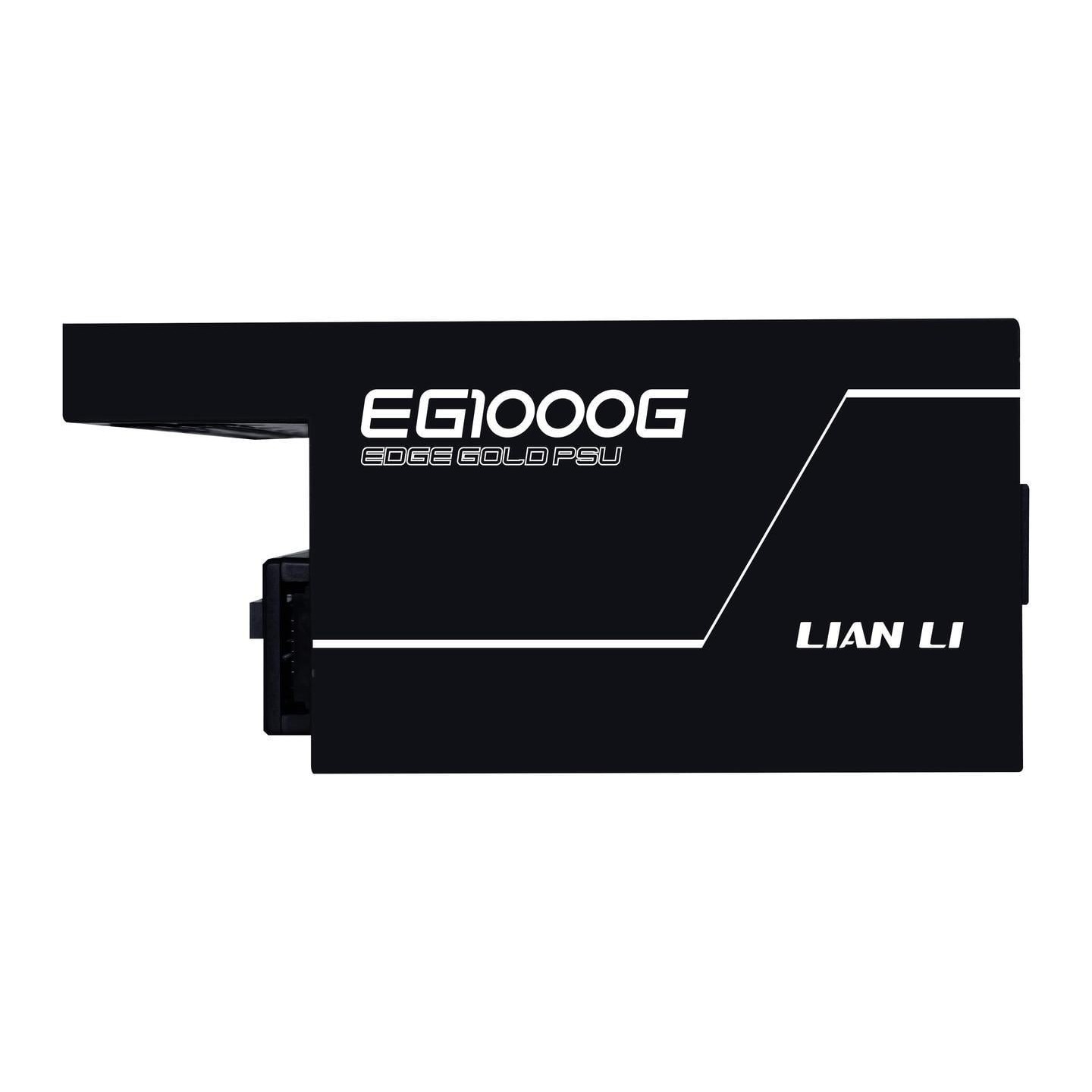

Lian Li Edge EG1000G 1000W - 80+ Gold Fully Modular ATX 3.1 L-Shape USB Hub (Boxed)
Lian Li Edge 1000W Gold PSU with L-shaped design for dual-chamber cases, removable USB/PWM hub, 120mm fan, magnetic dust filter, longer braided cables, ATX 3.1 compliant, 80+ Gold certified.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PSU (Power Supplies) - Wattage | 1000 - 1199 W |
|---|---|
| PSU (Power Supplies) - Efficiency Rating | 80 Plus Gold Cybenetics Platinum |
| PSU (Power Supplies) - Color | Black |
| PSU (Power Supplies) - Modularity | Fully modular |
| PSU (Power Supplies) - PCIe GPU Connectors | 1x 12V-2x6 4x 8/6 pins |
| PSU (Power Supplies) - Length | 180+ mm |
| PSU (Power Supplies) - EPS CPU Connectors | 2x 4+4pin EPS/ATX12V |

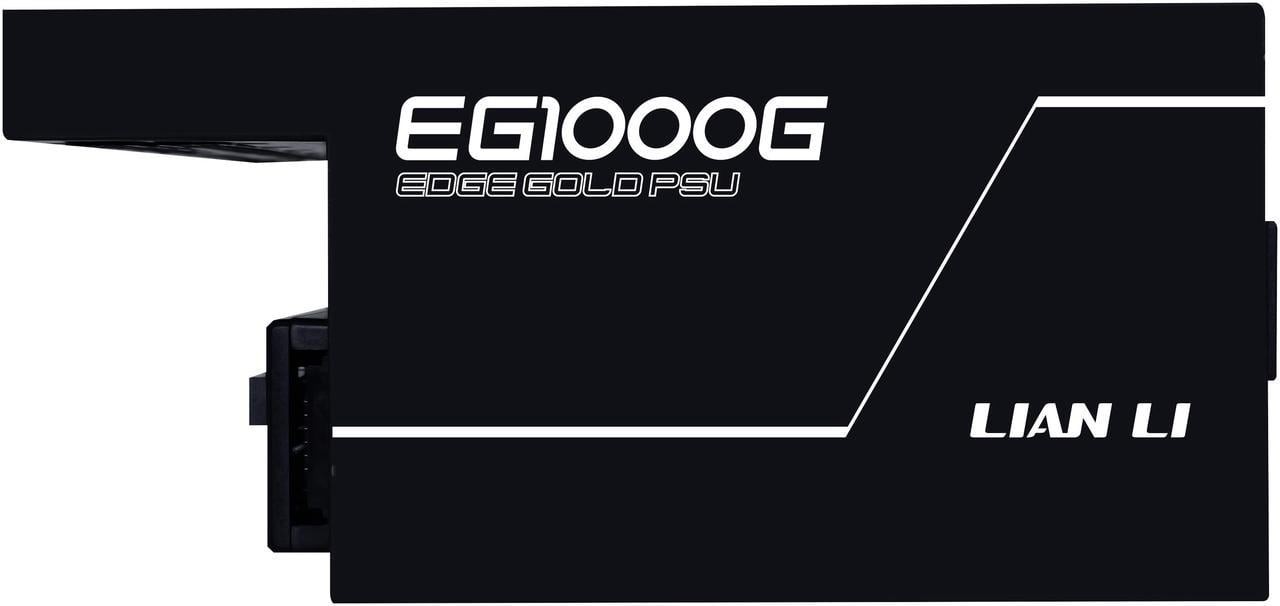

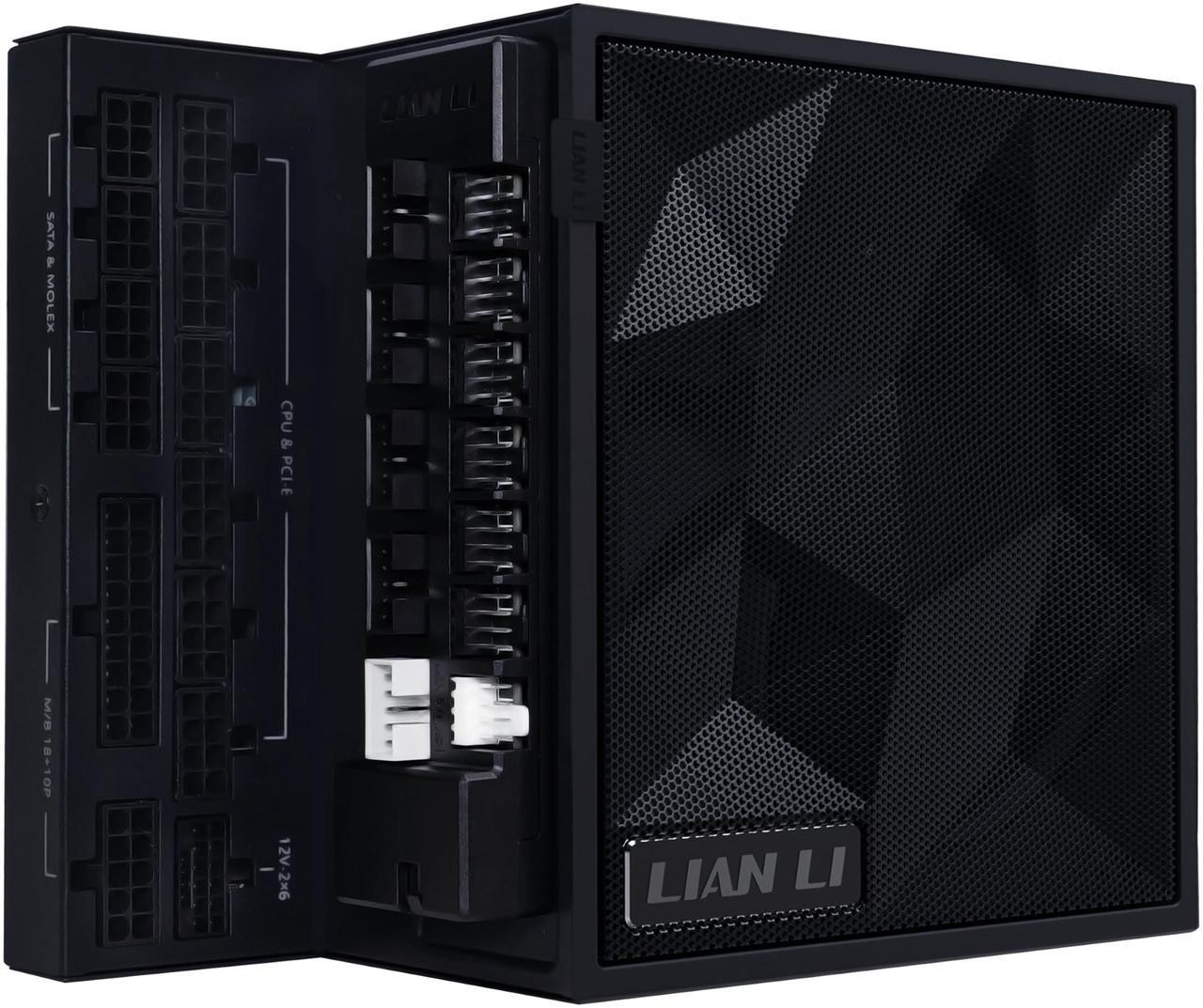

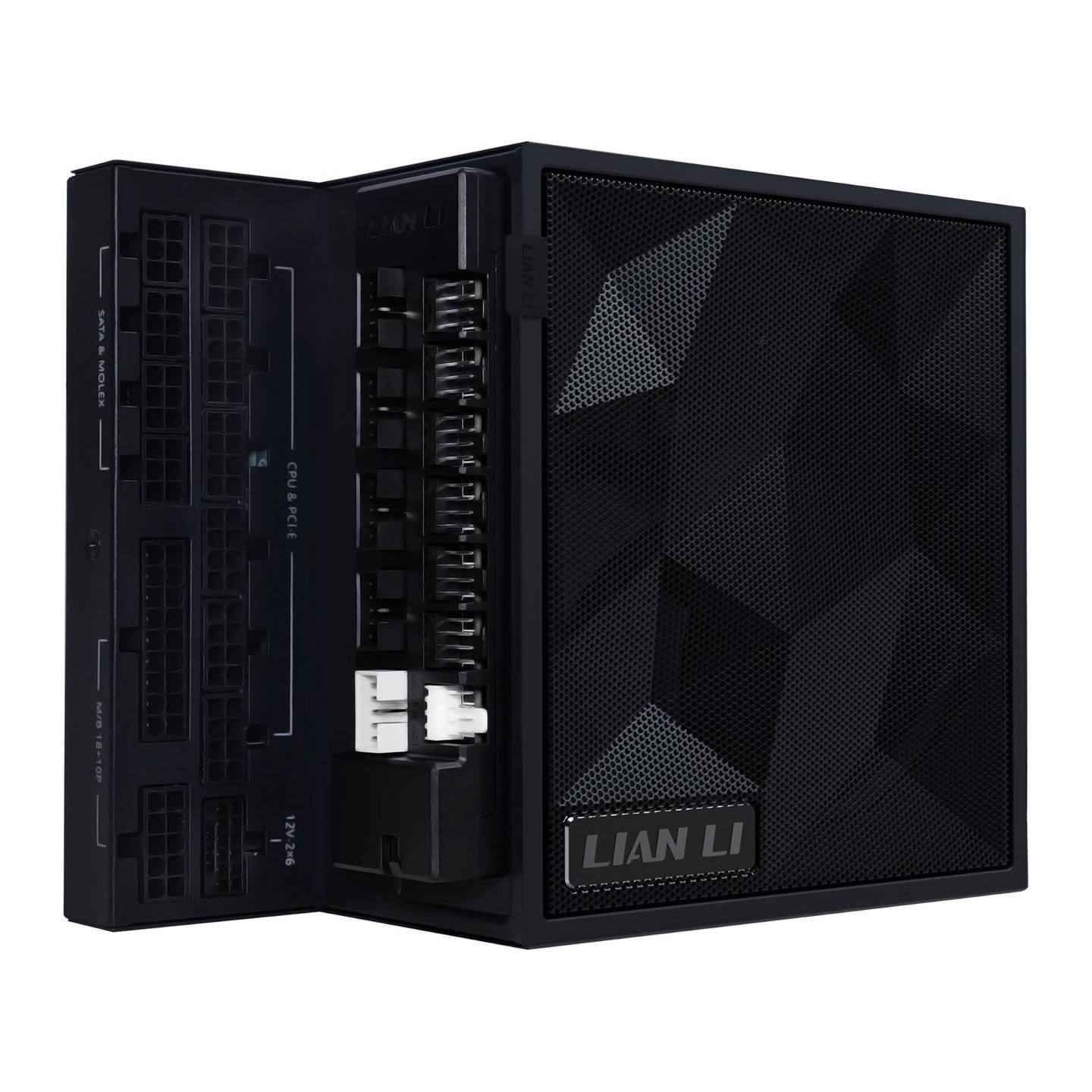

The Lian Li Edge EG1000G 1000W PSU features a unique L-shaped design optimized for dual-chamber cases like the O11 series, allowing vertical mounting with outward-facing ports for easy cable management. It includes a detachable modular USB & PWM fan hub, longer braided cables with combs, and a magnetic dust filter for simple cleaning.
Certified 80 PLUS Gold, Cybenetics Platinum, and PPLP Gold, it delivers efficient power with a single 12V rail (996W), supporting ATX 3.1 and PCIe 5.1 standards. Equipped with a quiet 120mm PWM FDB fan, industrial-grade capacitors (EPCOS/Japanese), and full protections (OCP/OVP/OTP/OPP/SCP/UVP). The 12V-2x6 connector ensures stable power for modern GPUs.
- L-shaped design for dual-chamber cases

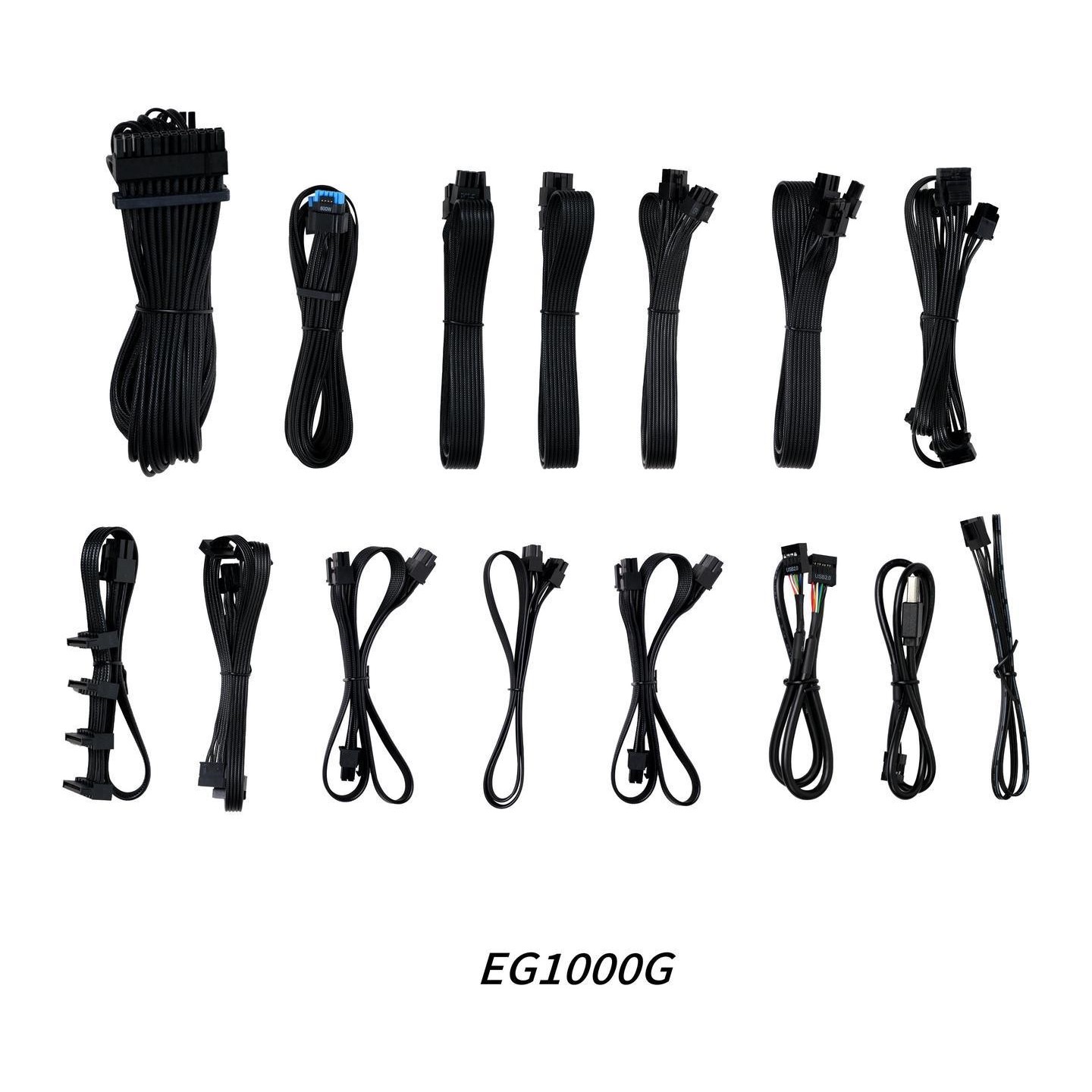

- Fully modular with braided cables

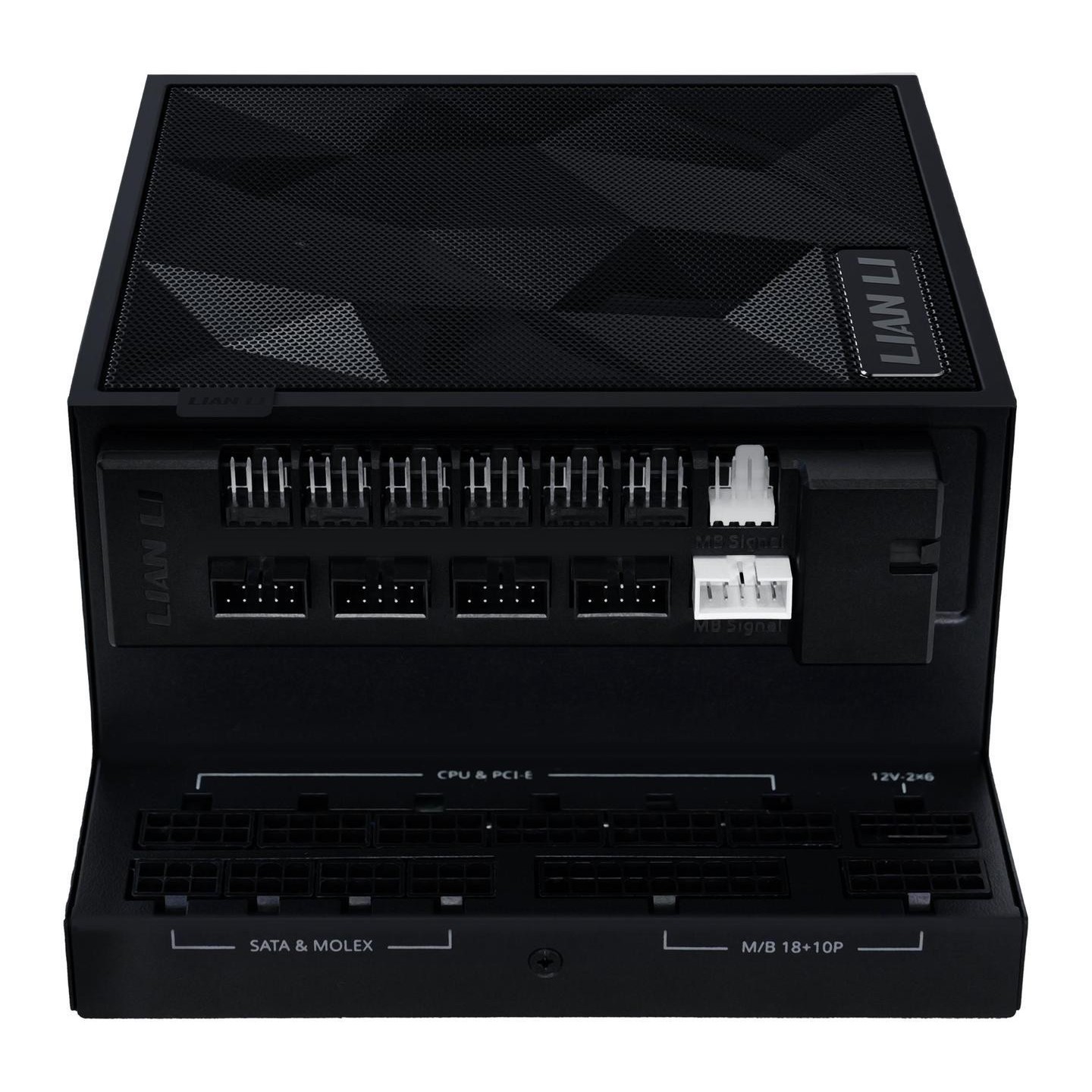

- Removable USB/PWM hub
- Magnetic dust filter (66.9% porosity)
- 80+ Gold efficiency, 10-year warranty
- ATX 3.1 / PCIe 5.1 compliant

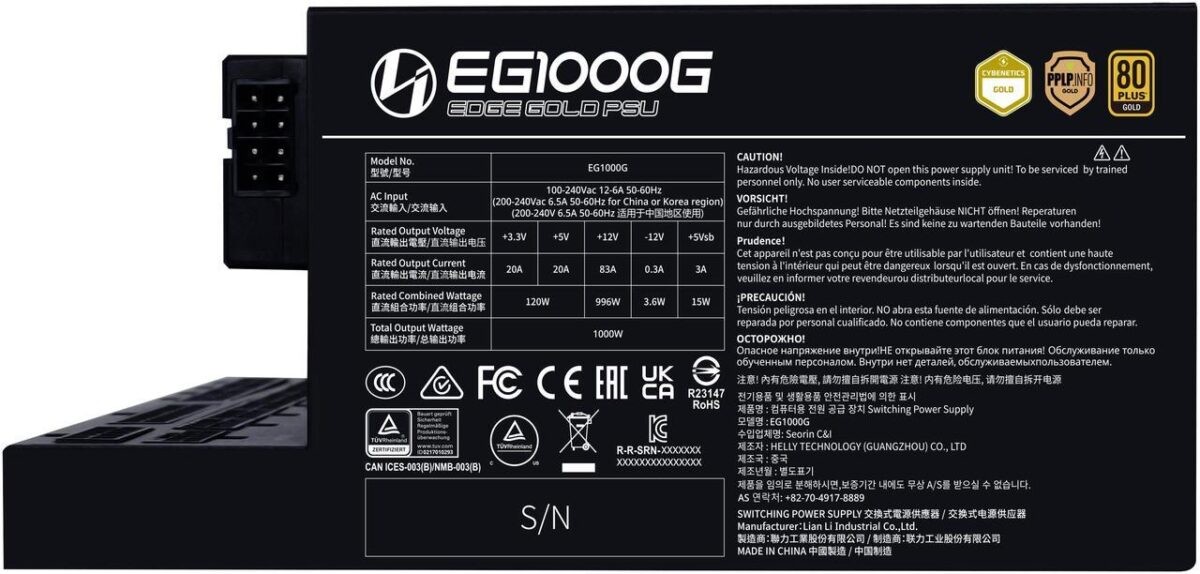

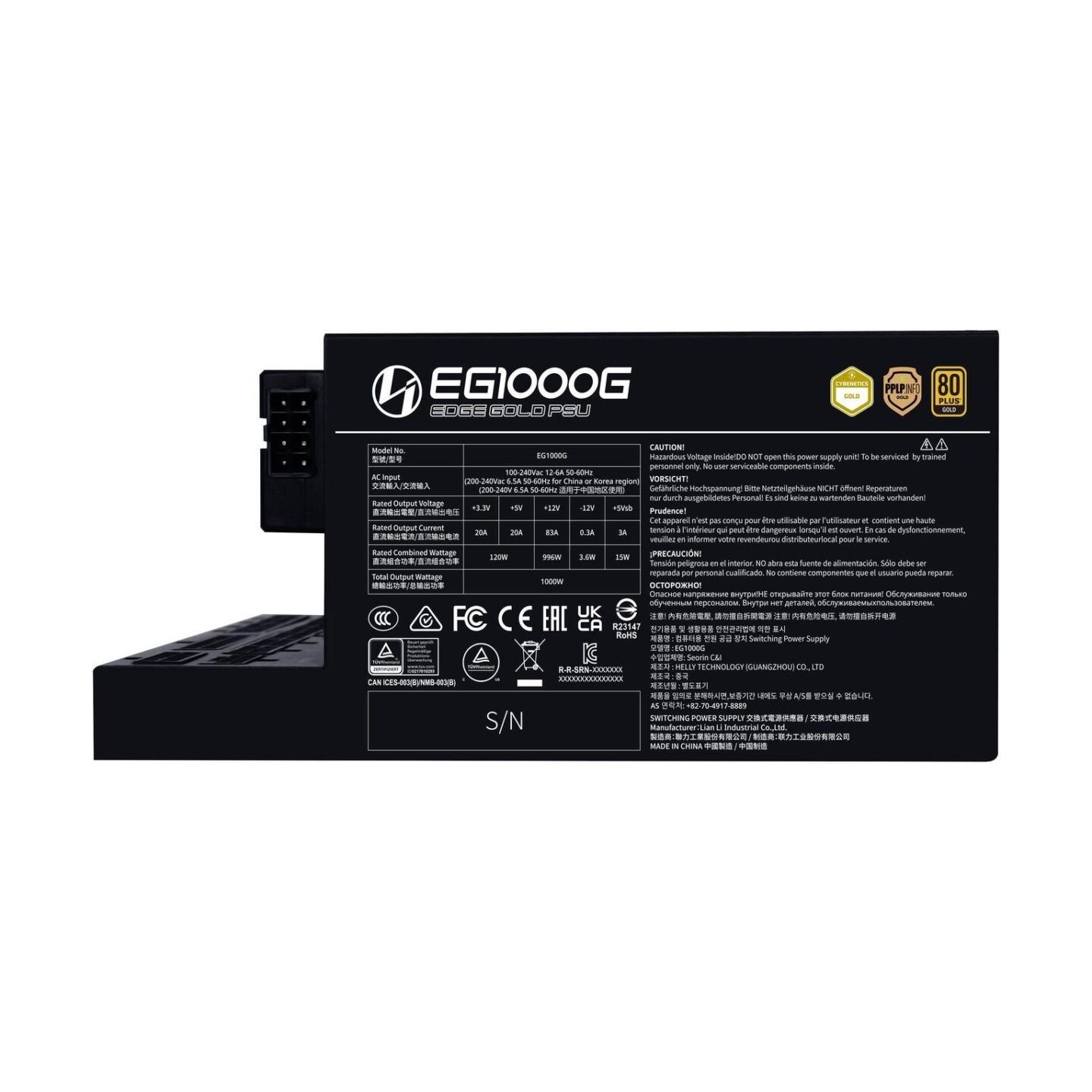

| Model | EG1000G |
| Wattage | 1000W |
| Form Factor | ATX (L-shaped) |
| Dimensions (WxHxD) | 150 x 86 x 182 mm |
| Fan | 120mm PWM FDB |
| Efficiency | 80 PLUS Gold / Cybenetics Platinum |
| ATX Version | ATX 3.1 / PCIe 5.1 |
| Main Power | +12V Single Rail 83A (996W) |
| PCIe Connectors | 12V-2x6 (PCIe 5.1) + 4x 6+2-pin PCIe |
| EPS Connectors | 2x 4+4pin |
| Modularity | Fully Modular |
| Capacitors | EPCOS 820uF 420V (Japanese equivalent) |
| Protections | OCP/OVP/OTP/OPP/SCP/UVP/SIP/NLO |
| Warranty | 10 Years (2 years on USB Hub) |
| Color | Black |
