ARCTIC Alpine 17 95W CPU Cooler LGA1700/LGA1851 ACALP00040A (Boxed)
Compact CPU air cooler for Intel LGA1700/LGA1851. 92mm PWM fan 100-2000RPM, 0.3 Sone noise. Tool-free install with pre-applied MX-4. Unlimited RAM clearance, 6-year warranty.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Cooling (CPU & Case) - Device Type | CPU Air Cooler |
|---|---|
| Cooling (CPU & Case) - Socket Support | Intel LGA1700 Intel LGA1851 |
| Cooling (CPU & Case) - Fan Size | 92 mm |
| Cooling (CPU & Case) - Air Cooler Height | Under 120 mm |
| Cooling (CPU & Case) - Lightning | None |
| Cooling (CPU & Case) - Connector | 4-Pin PWM |
| Cooling (CPU & Case) - Color | Silver / Grey |
| Cooling (CPU & Case) - Special Features | Low Noise Low Profile |
Designed for Intel LGA1700 & LGA1851
The Alpine 17 is exclusively compatible with Intel Socket LGA1700/LGA1851 and latest Alder Lake CPUs. Its compact 77mm height fits most SFF cases and AIO setups.
Full PWM Control & Low Noise
92mm fan with 100-2000 RPM range via PWM ensures minimal noise (0.3 Sone) and optimal cooling. Fluid Dynamic Bearing extends fan life with German-engineered alloy/lubricant.
Innovative Y-Shaped Heatsink
Extra-fine aluminum fins in Y-shape maximize surface area and airflow for superior heat dissipation in a small footprint. Pre-applied MX-4 paste and push-pin mounting make installation tool-free.
- Intel Sockets: LGA1700, LGA1851
- RAM Clearance: Unlimited
- Warranty: 6 Years
Fan Specs
- Diameter: 92 mm
- Speed: 100-2000 RPM
- Bearing: Fluid Dynamic Bearing
- Noise: 0.3 Sone
- Connector: 4-Pin PWM

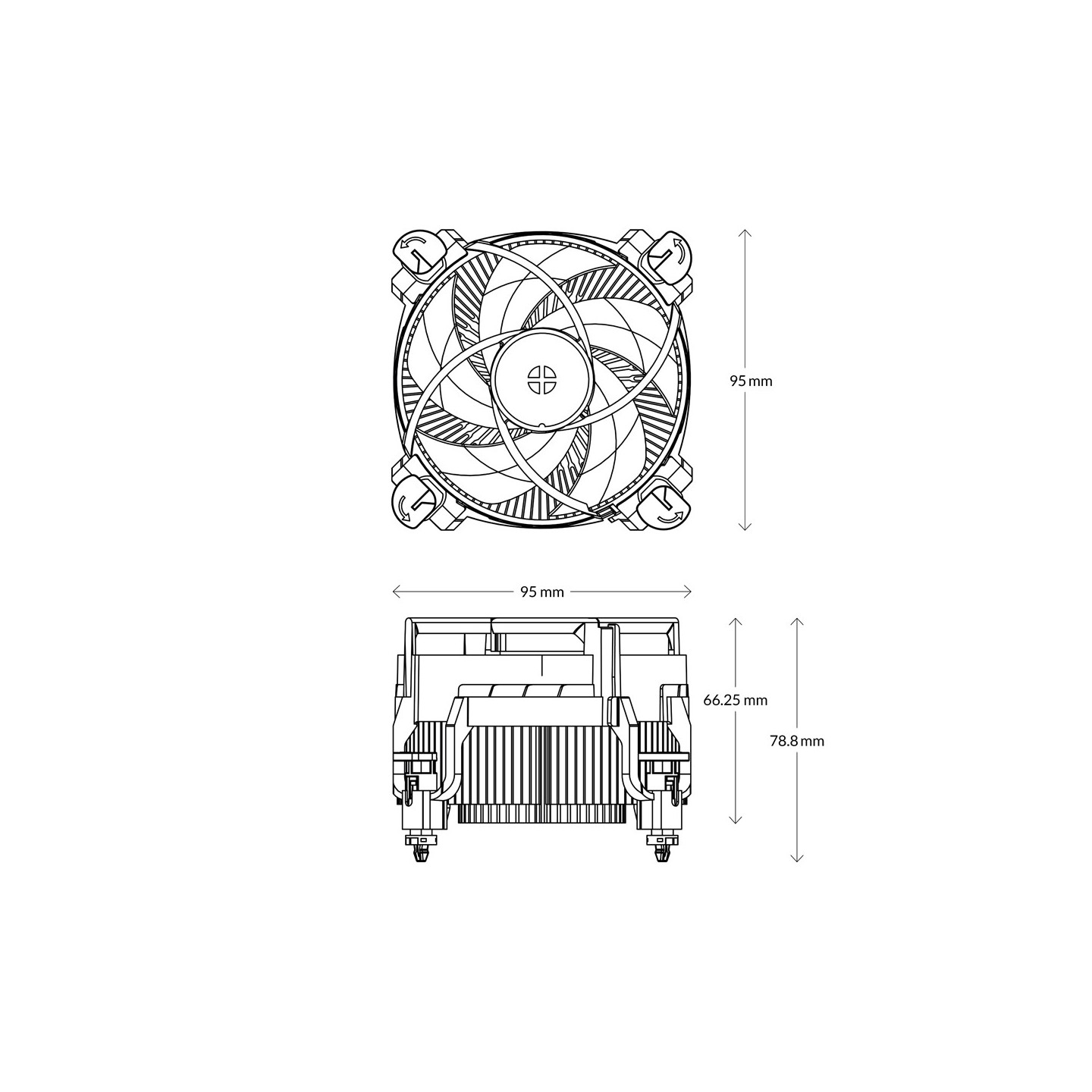

Dimensions & Weight
- Size: 95 x 95 x 77 mm
- Weight: 288 g
| MPN | ACALP00040A |
| EAN | 4895213703895 |
| UPC | 840033401708 |
| Compatibility | Intel LGA1700, LGA1851 |
| RAM Clearance | Unlimited |
| Warranty | 6 Years |
| Thermal Paste | MX-4 Pre-applied |
| Fan Diameter | 92 mm |
| Fan Speed | 100-2000 RPM |
| Fan Bearing | Fluid Dynamic Bearing |
| Noise Level | 0.3 Sone |
| Fan Current | 0.06 A / 12 V |
| Connector | 4-Pin PWM |
| Heatsink Material | Aluminum |
| Dimensions | 95 x 95 x 77 mm |
| Installation Height | 66.25 mm |
| Weight | 288 g |
| Box Dimensions | 99 x 99 x 82 mm |
| Box Weight | 319 g |
