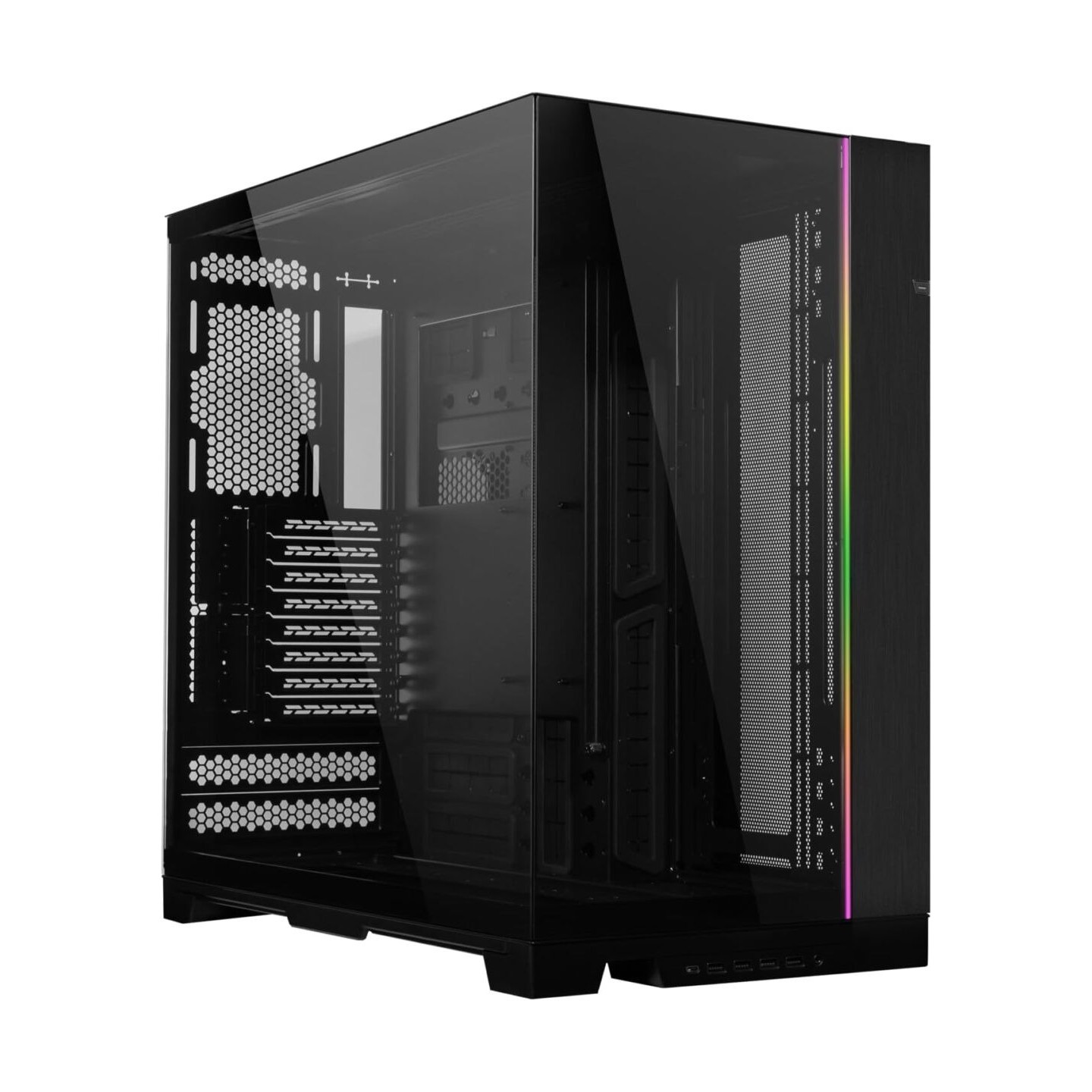

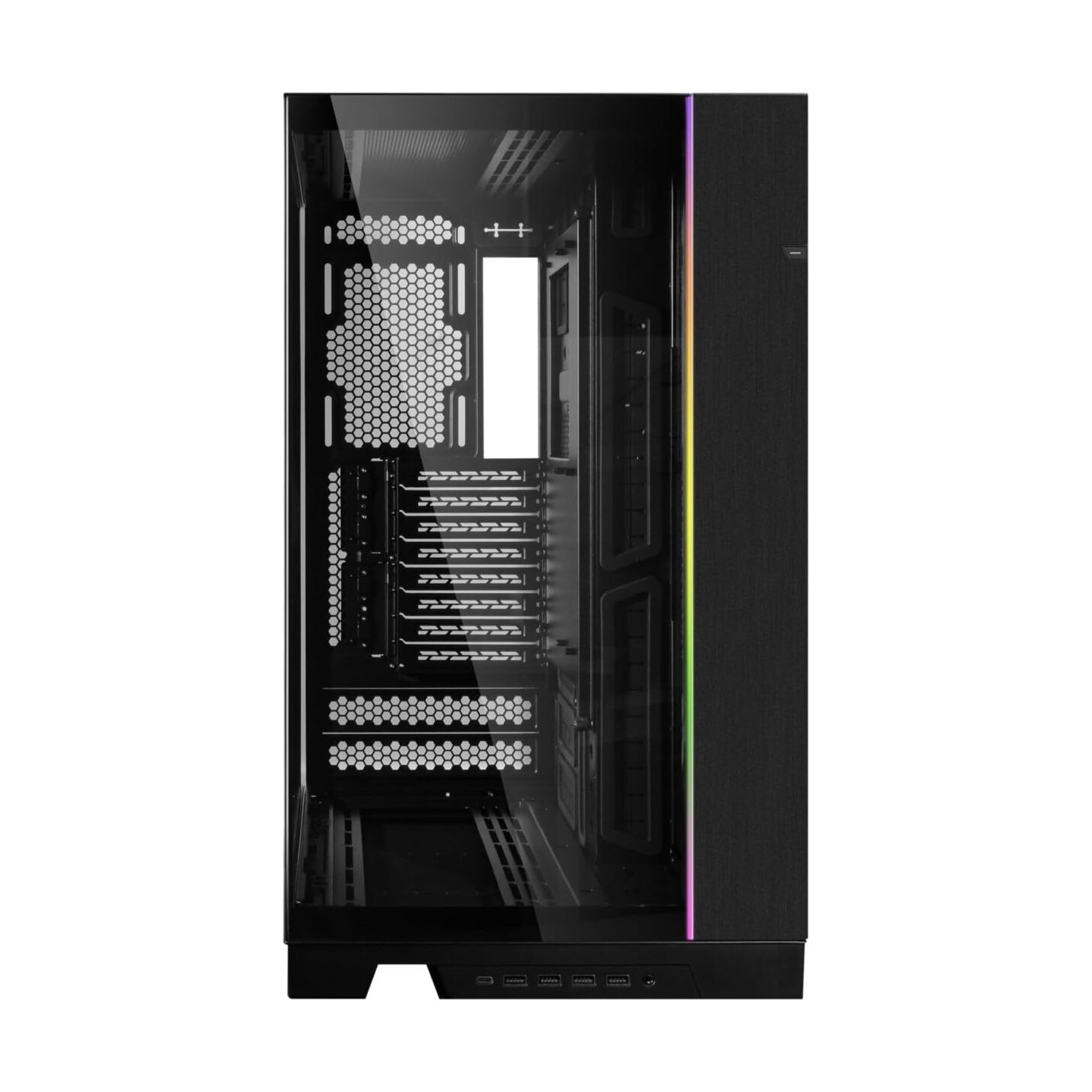

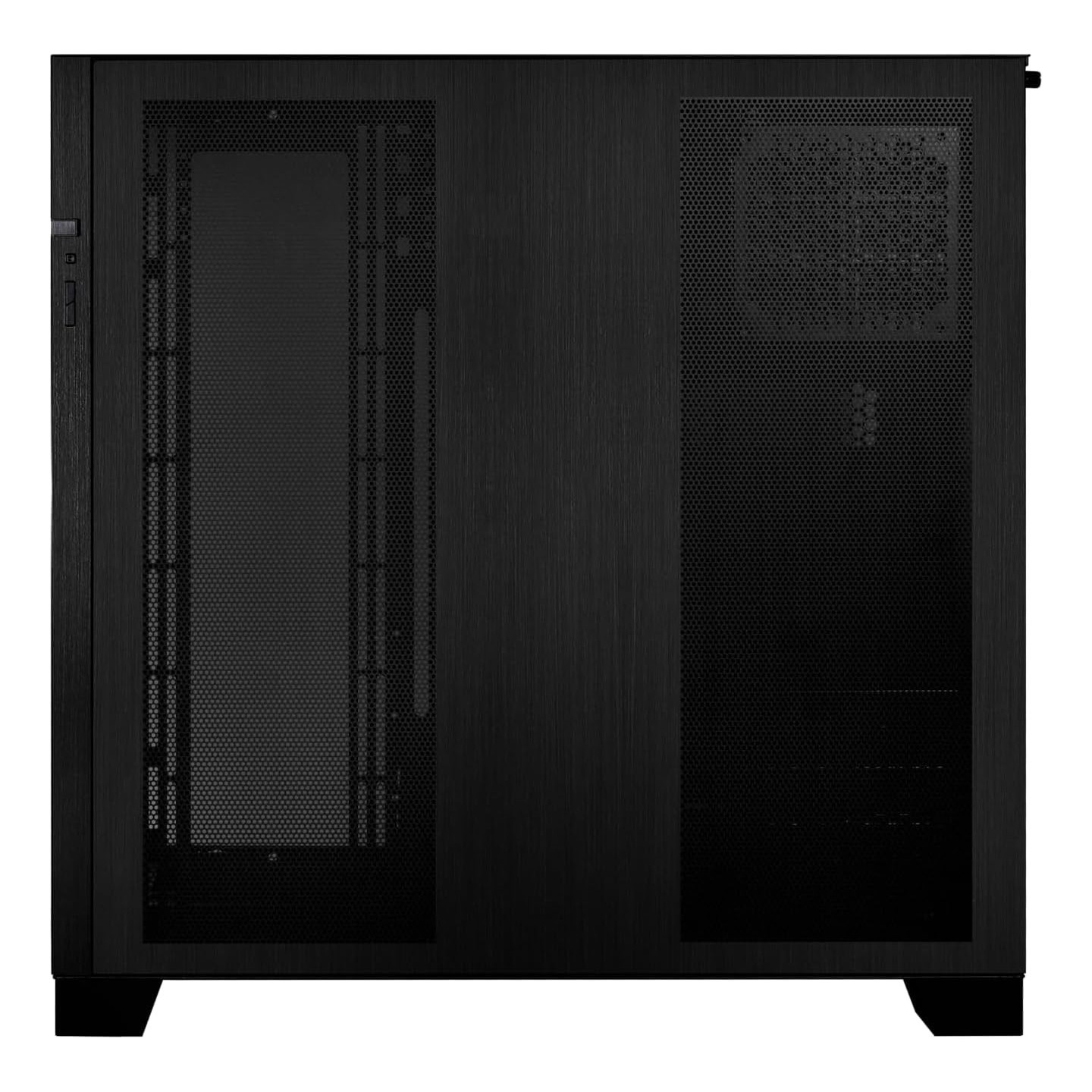

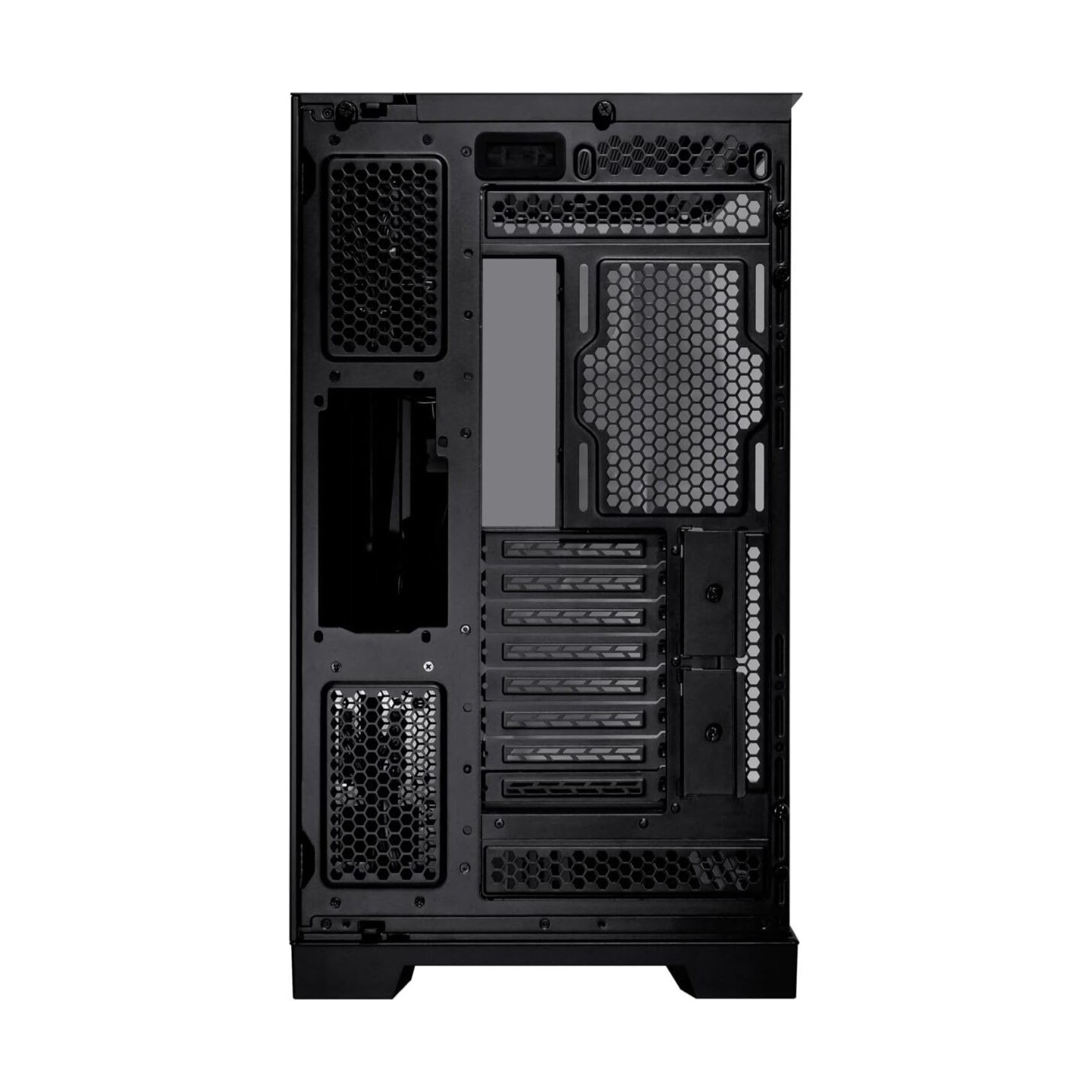

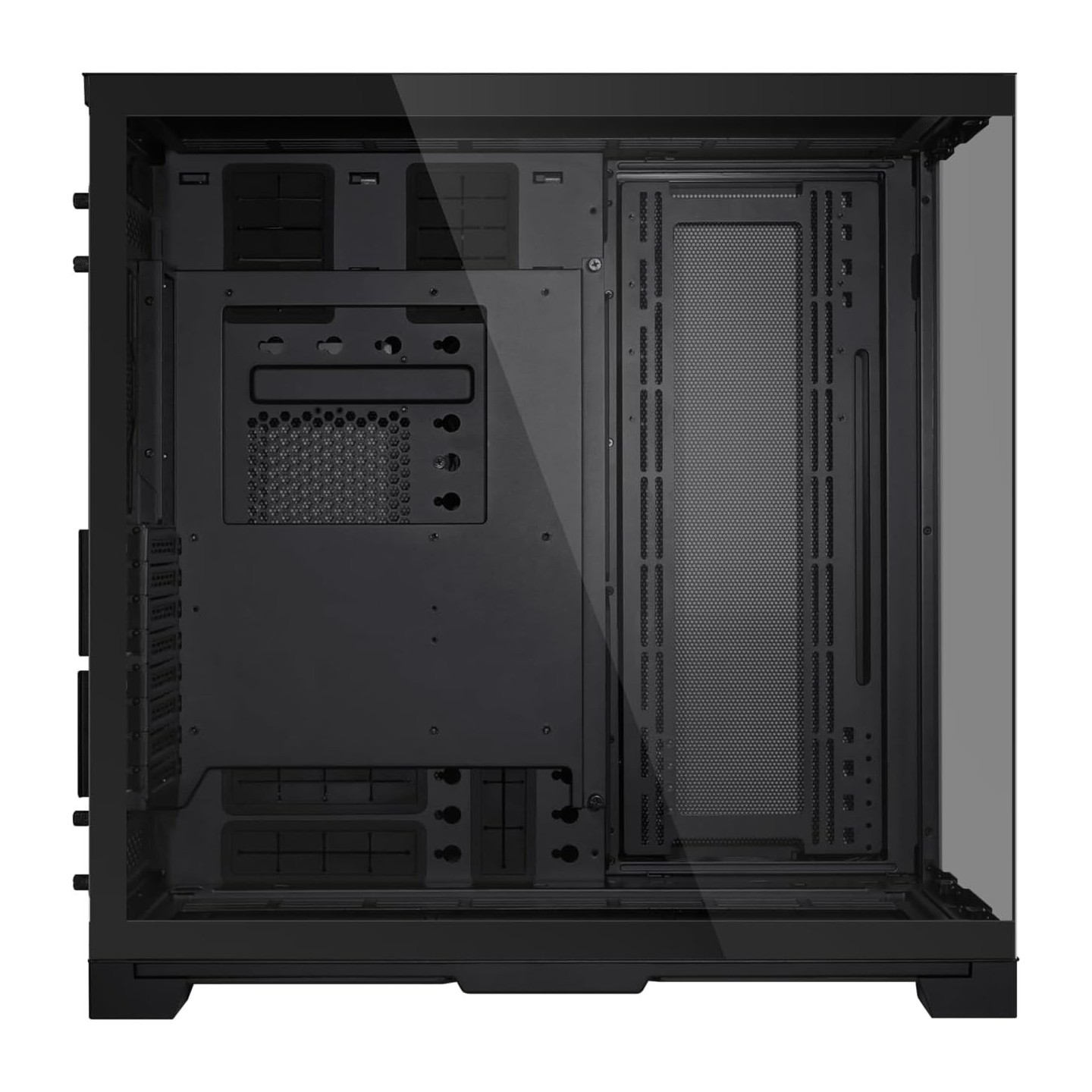

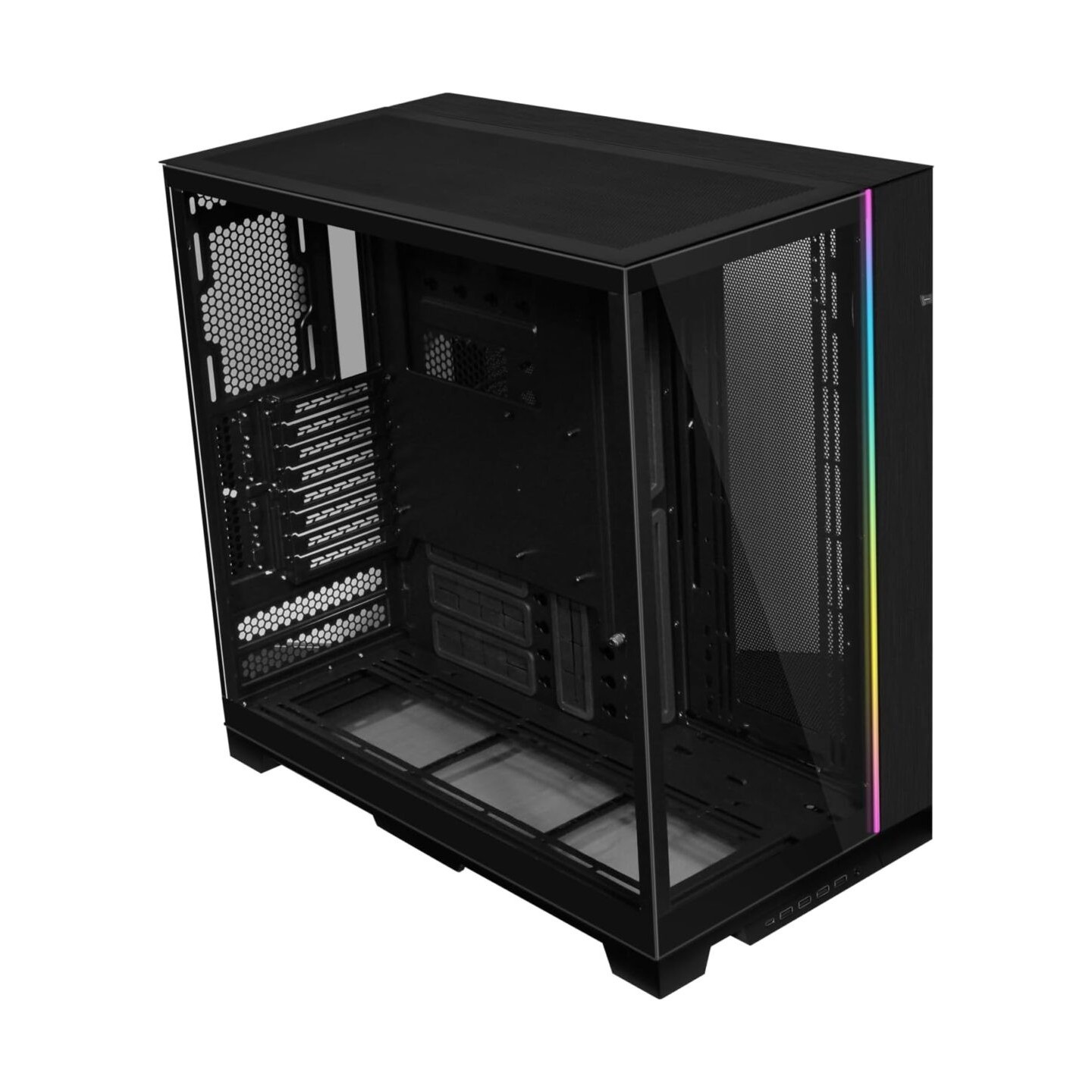

Lian Li O11D EVO XL Black E-ATX Full Tower (Boxed)
Enlarged E-ATX full tower PC case with reversible dual-sided glass display, aluminum mesh panels, ARGB front strip, and support for 3x 420mm radiators. Ideal for high-end cooling and showcase builds with tool-less GPU install.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PC Cases - Motherboard Support | ATX EATX Micro ATX Mini ITX |
|---|---|
| PC Cases - Radiator Support | 120 mm 140 mm 240 mm 280 mm 360 mm 420 mm |
| PC Cases - Included Fans | 0 |
| PC Cases - Front I/O | Audio Jacks USB A USB C |
| PC Cases - GPU Orientation | Horizontal Vertical Supported |
| PC Cases - Form Factor | Full Tower |
| PC Cases - Max GPU Length | 450+ mm |
| PC Cases - Color | Black |
| PC Cases - CPU Cooler Clearance | 170+ mm |
The Lian Li O11D EVO XL is an enlarged full-tower chassis derived from the popular O11D EVO, designed for PC enthusiasts seeking maximum modularity and cooling. It features a reversible design allowing display from left or right side with simple steps, perfect for showcase builds. Aluminum mesh panels on top and sides provide premium aesthetics and superior airflow compared to the standard O11D XL.
Key highlights include a removable front pillar for unobstructed hardware views, adjustable motherboard tray with three height positions supporting E-ATX (up to 280mm width), and tool-less GPU installation with anti-sag bracket. It supports massive cooling setups with up to three 420mm radiators on top, side, or bottom, plus flexible storage for 7 drives. The movable I/O panel offers 1x USB-C, 4x USB-A, audio jack, and ARGB controls.
- Dimensions: 522 x 304 x 531.9 mm
- Max GPU length: 460 mm
- Max CPU cooler height: 167 mm
- Fan support: 3x120/140mm (top/side/bottom), 2x120mm (rear)
- Included fans: None
- Materials: Steel, 4mm tempered glass, aluminum
| Dimensions | 522mm x 304mm x 531.9mm (D x W x H) |
| Material | Steel, 4.0mm Tempered Glass, Aluminum |
| Motherboard Support | E-ATX (Under 280mm)/ATX/Micro-ATX/Mini-ITX |
| Expansion Slots | 8 |
| Storage | Behind MB Tray: 3 x 2.5 |
| GPU Length Clearance | 460mm (Max.) |
| CPU Cooler Height Clearance | 167mm (Max.) |
| PSU | ATX (Under 220mm) |
| Fan Support | Top: 3 x 120mm / 3 x 140mm; Side: 3 x 120mm / 3 x 140mm; Bottom: 3 x 120mm / 3 x 140mm; Rear: Up to 2x 120mm |
| Radiator Support | Top/Side/Bottom: 360 / 420 / 240 / 280mm |
| I/O Ports | 1 x Power Button; 1 x Reset Button; 4 x USB 3.0; 1 x USB Type C; 1 x Audio; 1 x LED Color Button; 1 x LED Mode Button |
| Dust Filters | 1 x Bottom; 1 x Top; 2 x Side |
| Included Fans | 0 |
| Color | Black |
| Form Factor | Full Tower |
