Lian Li Edge EG1000G 1000W White 80+ Gold Fully Modular ATX PSU (Boxed)
Lian Li Edge EG1000G 1000W 80+ Gold ATX 3.1 PSU in white. L-shaped design for dual-chamber cases, fully modular, detachable USB/fan hub, 12VHPWR connector, 120mm FDB fan, 10-year warranty.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PSU (Power Supplies) - Wattage | 1000 - 1199 W |
|---|---|
| PSU (Power Supplies) - Efficiency Rating | 80 Plus Gold |
| PSU (Power Supplies) - Color | White |
| PSU (Power Supplies) - Modularity | Fully modular |
| PSU (Power Supplies) - PCIe GPU Connectors | 1x 12V-2x6 4x 8/6 pins |
| PSU (Power Supplies) - Length | 141-160 mm 180+ mm |
| PSU (Power Supplies) - EPS CPU Connectors | 2x 4+4pin EPS/ATX12V |

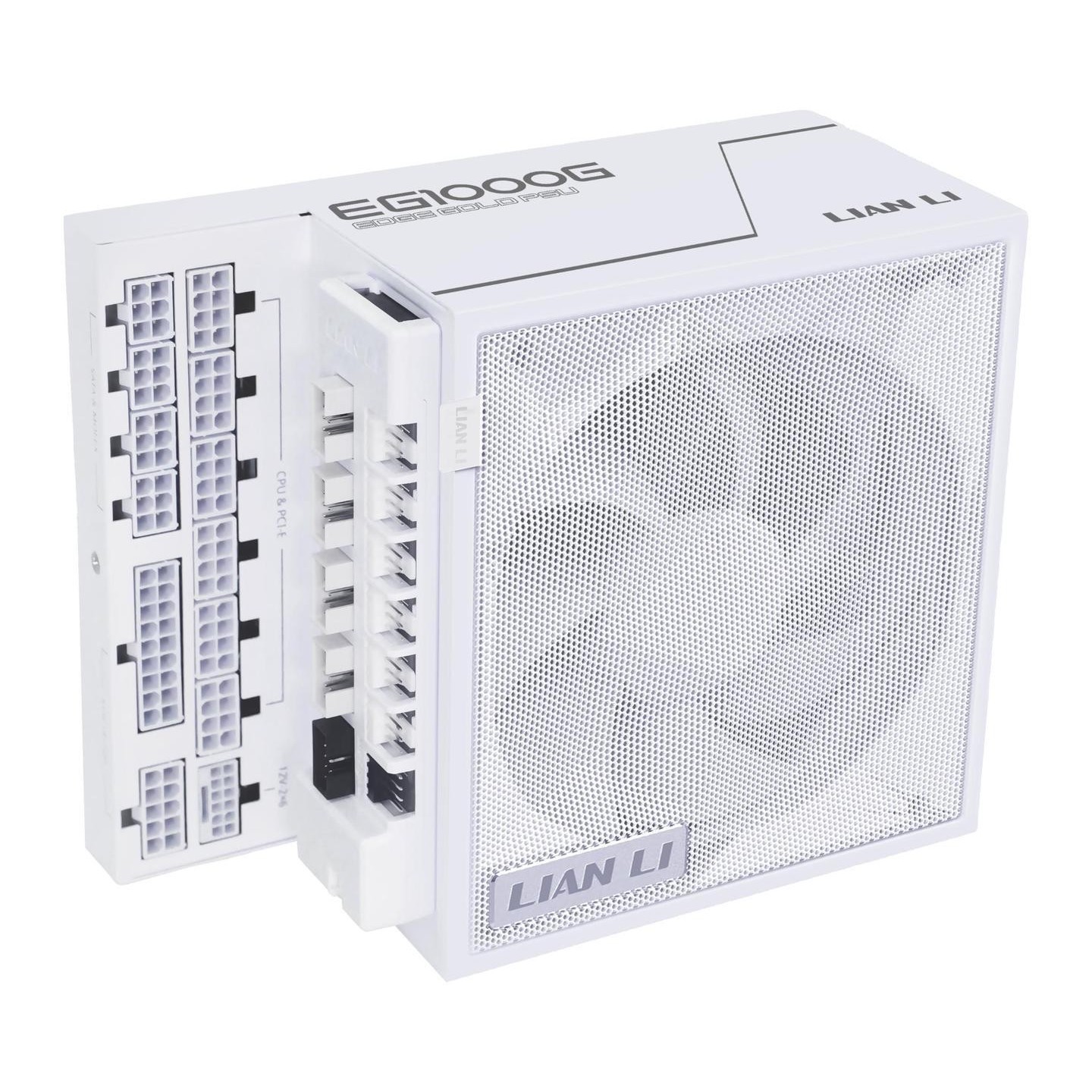

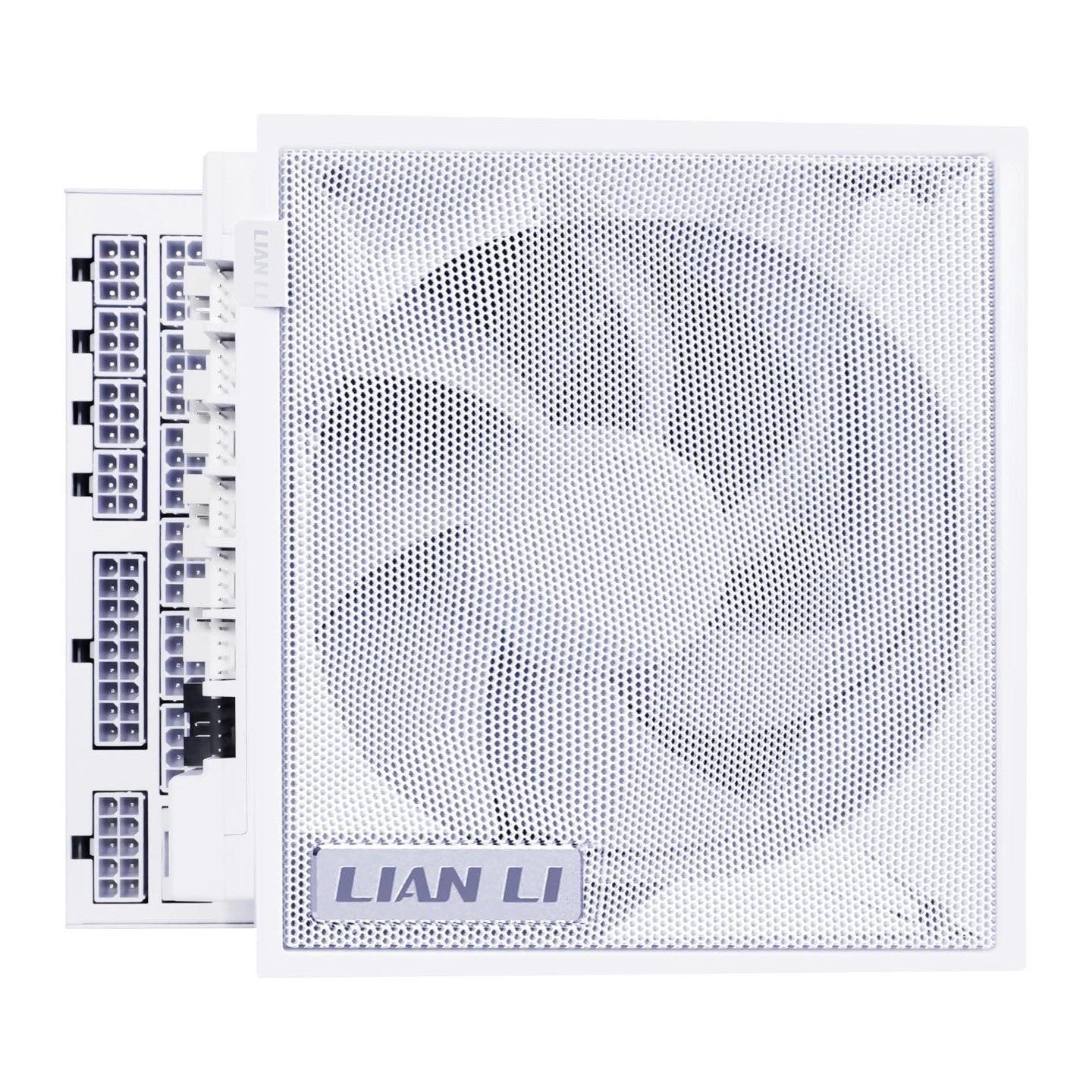

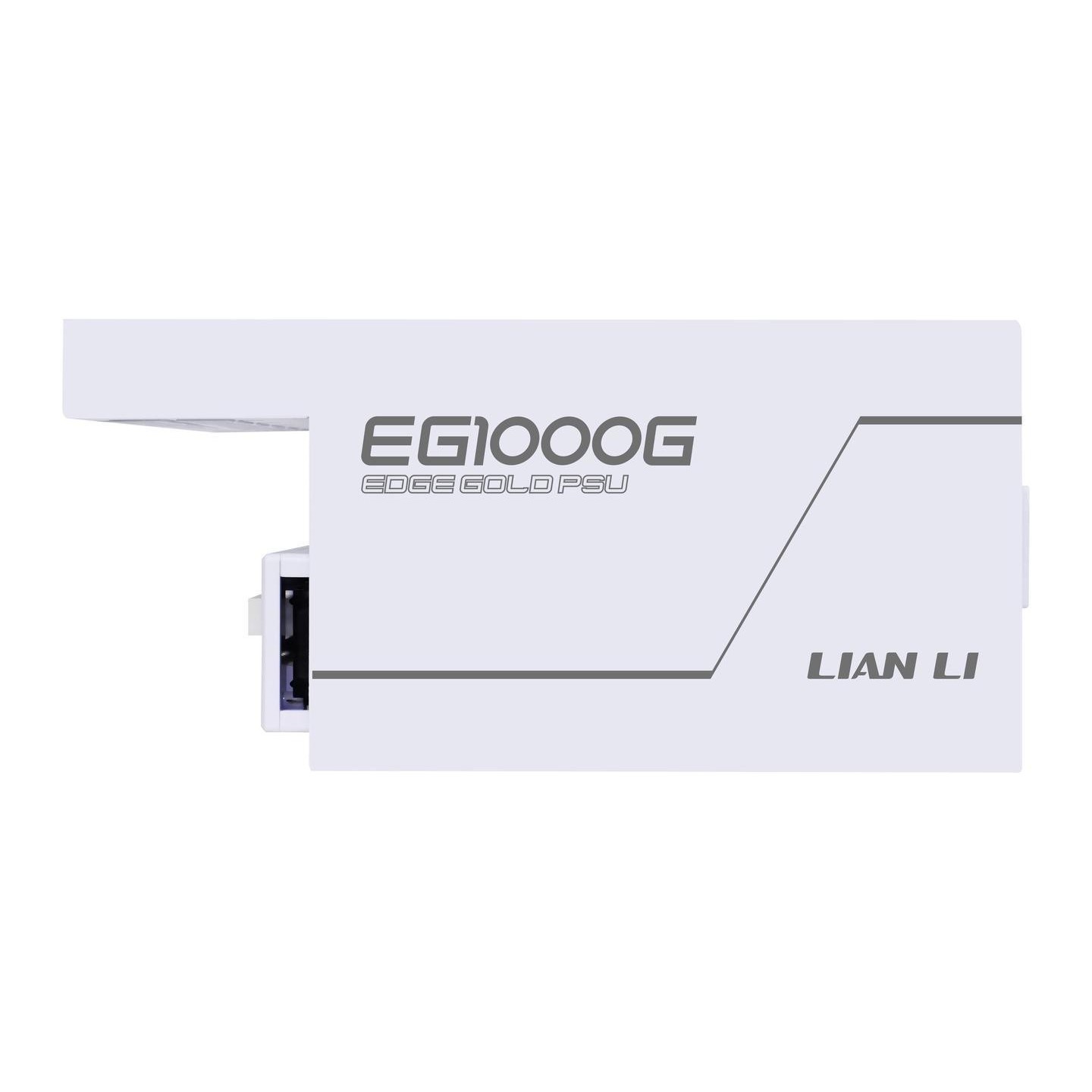

The Lian Li Edge EG1000G is a premium 1000W 80+ Gold certified fully modular ATX 3.1 power supply unit designed specifically for modern dual-chamber PC cases with vertical PSU mounting. Its innovative L-shaped design allows flush integration, optimizing space and airflow while featuring a minimalist mesh cover for superior ventilation (66.9% rate).

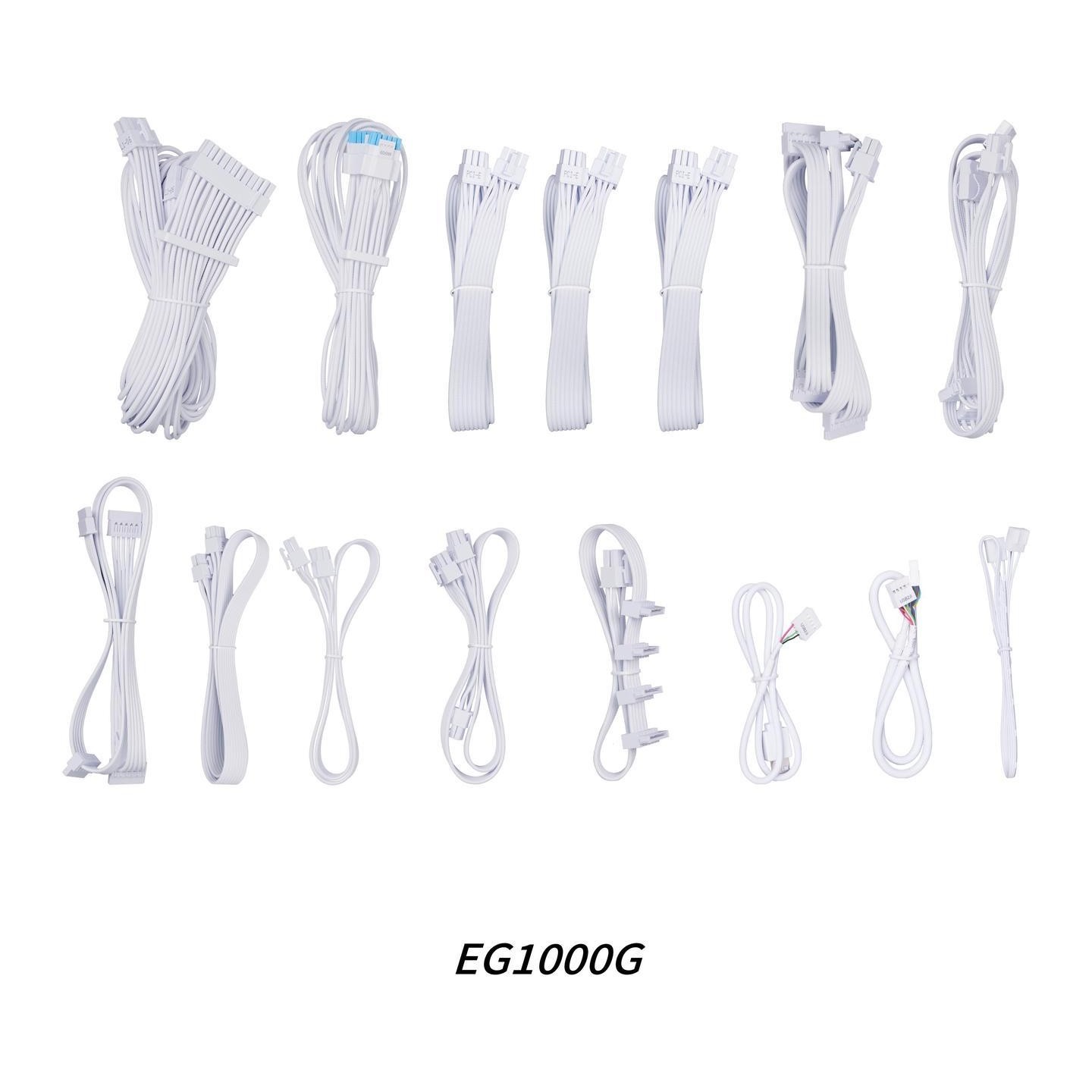

Key highlights include a detachable USB and fan hub for simplified cable management, longer modular cables, removable dust filter for easy maintenance, and a quiet 120mm fluid dynamic bearing (FDB) PWM fan. Compliant with PCIe 5.1, it includes a 12V-2x6 (12VHPWR) connector for next-gen GPUs alongside traditional PCIe cables. Single powerful +12V rail delivers up to 996W.
- 80+ Gold efficiency (up to 91.64% at 50% load)
- ATX 3.1 & PCIe 5.1 compliant with power excursion support
- Protections: OCP/OVP/OTP/OPP/SCP/UVP
- 10-year warranty (2 years on USB hub)
- Dimensions: 182 x 150 x 86 mm; available in white
| Model | EG1000G |
| Form Factor | ATX (L-shaped) |
| Total Power | 1000 W |
| +12V Rail | 83A / 996W (single rail) |
| +3.3V & +5V Combined | 120 W |
| ATX Version | ATX 3.1 / PCIe 5.1 |
| Efficiency | 80+ Gold (91.64% max) |
| Fan | 120mm FDB PWM |
| Modularity | Fully Modular |
| PCIe Connectors | 1x 12V-2x6 (12VHPWR), 4x 6+2-pin |
| EPS Connectors | 2x 4+4-pin |
| Dimensions (WxHxD) | 86 x 150 x 182 mm |
| Weight (Unit) | 1.796 kg |
| Warranty | 10 years (2 years USB hub) |
| Protections | OCP/OVP/OTP/OPP/SCP/UVP |
