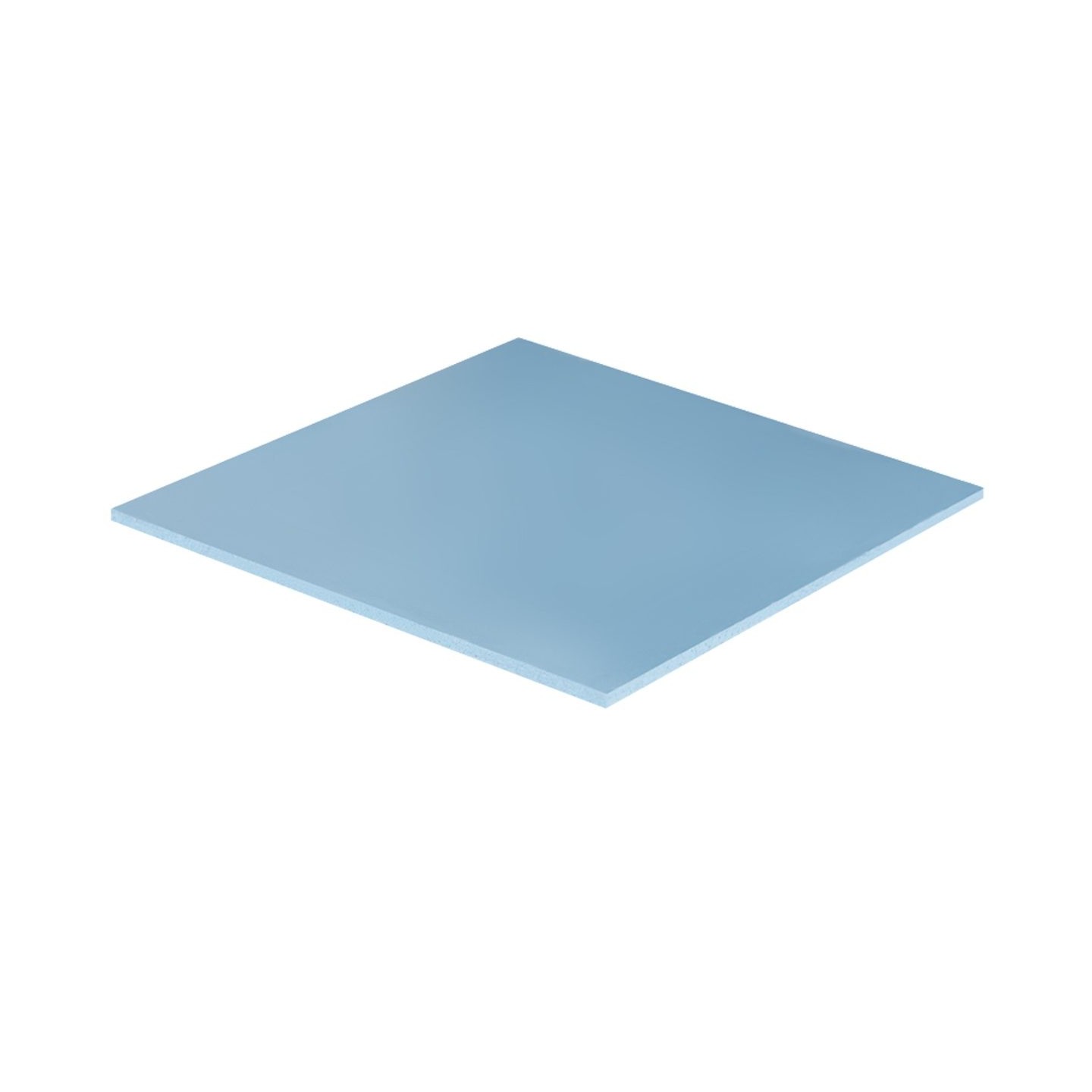

ARCTIC TP-2 APT2560 290x290mm 1.0mm Thermal Pads (Boxed)
High-performance ultra-soft silicone thermal pads (APT2560) in 290x290mm sheet, 1.0mm thick. 12 W/mK conductivity, 80 Shore OO hardness. Bridges gaps, protects components. Ideal for VRAM, M.2, RAM cooling. Non-conductive, easy to cut.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Cooling (CPU & Case) - Device Type | Thermal Pad |
|---|---|
| Cooling (CPU & Case) - Socket Support | Universal |
| Cooling (CPU & Case) - Color | Silver / Grey |
| Cooling (CPU & Case) - Special Features | Low Profile |
High Performance - Ultra Soft
Based on silicone with special APT2560 filler material, ARCTIC TP-2 offers excellent thermal conductivity of 12 W/mK despite extremely low hardness (80 Shore OO). This 290x290mm sheet is 1.0mm thick, perfect for custom cuts.
Perfect Gap Filler
Softer than standard pads, TP-2 excels at bridging uneven chip heights and gaps between heat sources (GPU VRAM, RAM, ICs) and heatsinks. Its high compressibility cushions delicate components without stress, ensuring optimal contact.
Versatile & Safe
- Available thicknesses: 0.5mm, 1.0mm, 1.5mm
- Non-conductive & non-capacitive - safe for electrical components
- Temp range: -40~200°C
- Easy to apply and cut to any size
- Density: 3.2 g/cm³
| Material | APT2560 (Silicone + Filler) |
| Sheet Size | 290 x 290 mm |
| Thickness | 1.0 mm |
| Thermal Conductivity | 12 W/mK |
| Hardness | 80 Shore OO |
| Continuous Use Temperature | -40 ~ 200 °C |
| Specific Gravity | 3.2 g/cm³ |
| Color | Blue |
| Electrical Properties | Non-conductive, Non-capacitive |
