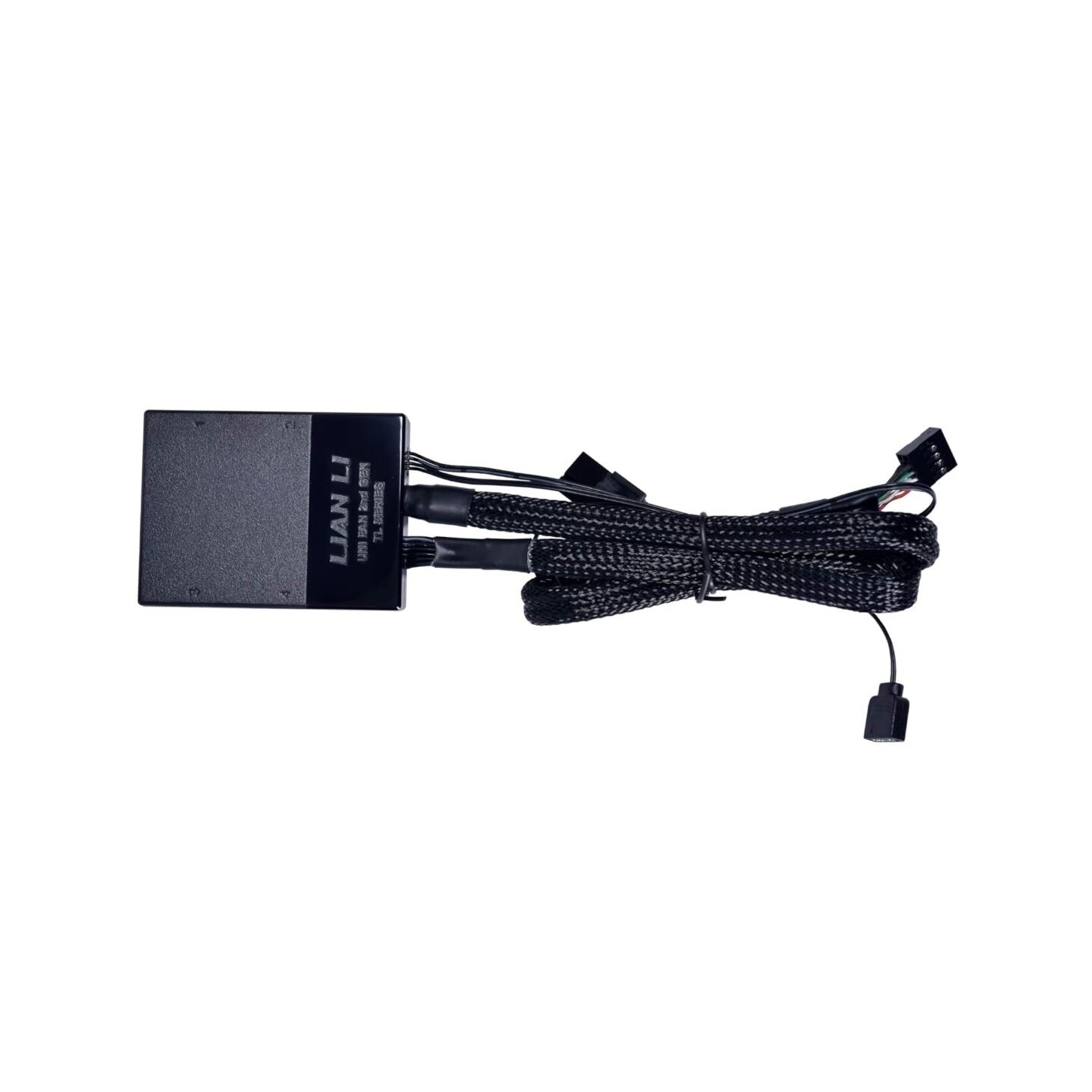

Lian Li UNI HUB TL L-Connect 3 Controller - 12TL-CONT3B (Black) (Boxed)
Lian Li UNI HUB TL Controller (12TL-CONT3B Black) manages up to 16 UNI FAN TL/TL LCD fans via 1 USB + PWM header. Magnetic mount, black/white cables, L-Connect 3 software for RGB/fan control. Max 7 LCD fans on ports 2-4.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Cooling (CPU & Case) - Device Type | Fan Hub Controller |
|---|---|
| Cooling (CPU & Case) - Fan Size | 120 mm 140 mm |
| Cooling (CPU & Case) - Lightning | RGB |
| Cooling (CPU & Case) - Connector | 4-Pin PWM SATA Power USB 2.0 Header |
| Cooling (CPU & Case) - Color | Black |
| Cooling (CPU & Case) - Special Features | Cableless |

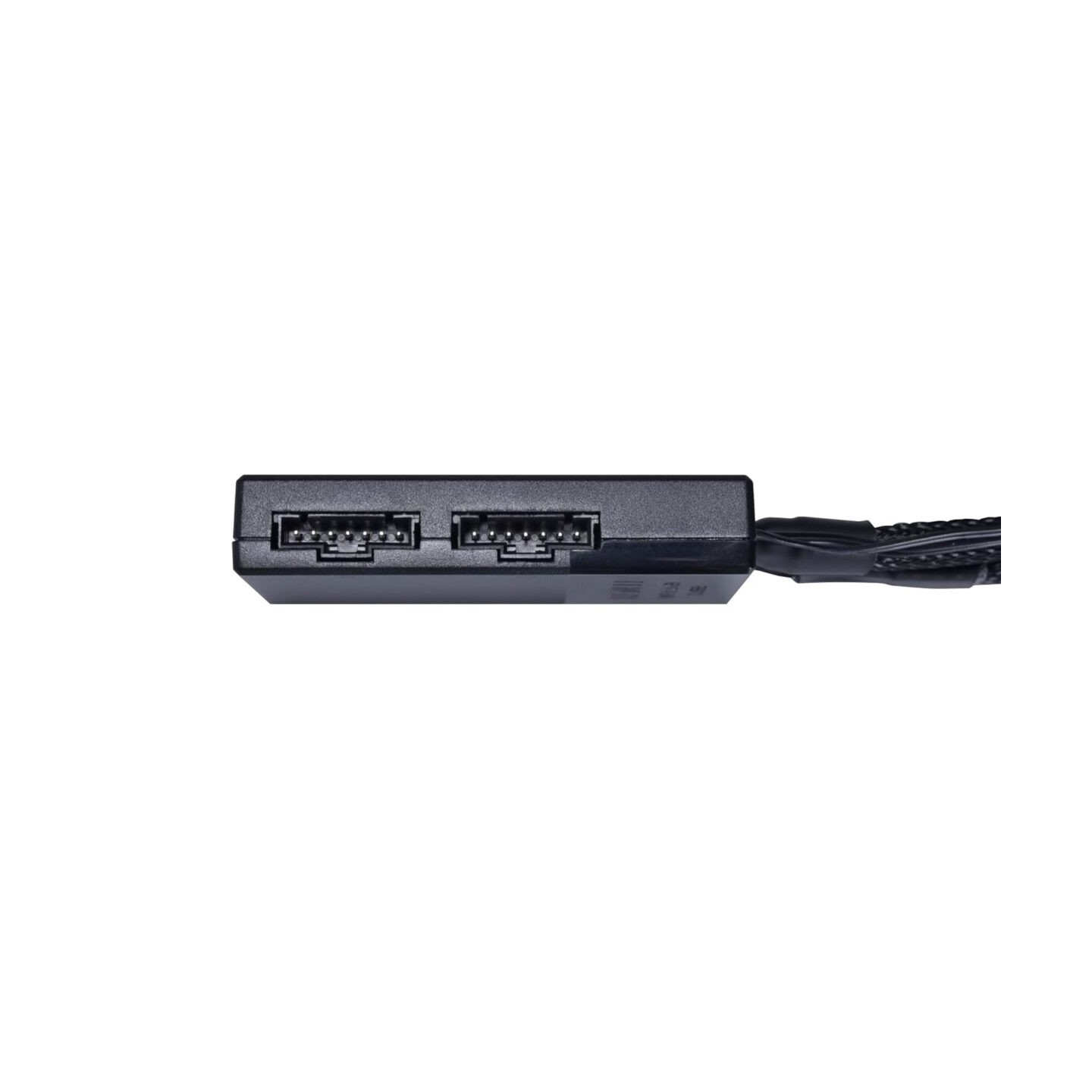

Take control of UNI FAN TL RGB and LCD series fans with the Lian Li UNI HUB TL Controller (12TL-CONT3B Black). This hub supports up to 16 fans across 4 ports (max 10 TL or 3 TL LCD per port, ports 2-4 for LCD only, total max 7 LCD). Connect via single motherboard USB 2.0 header and PWM for simplified cable management.

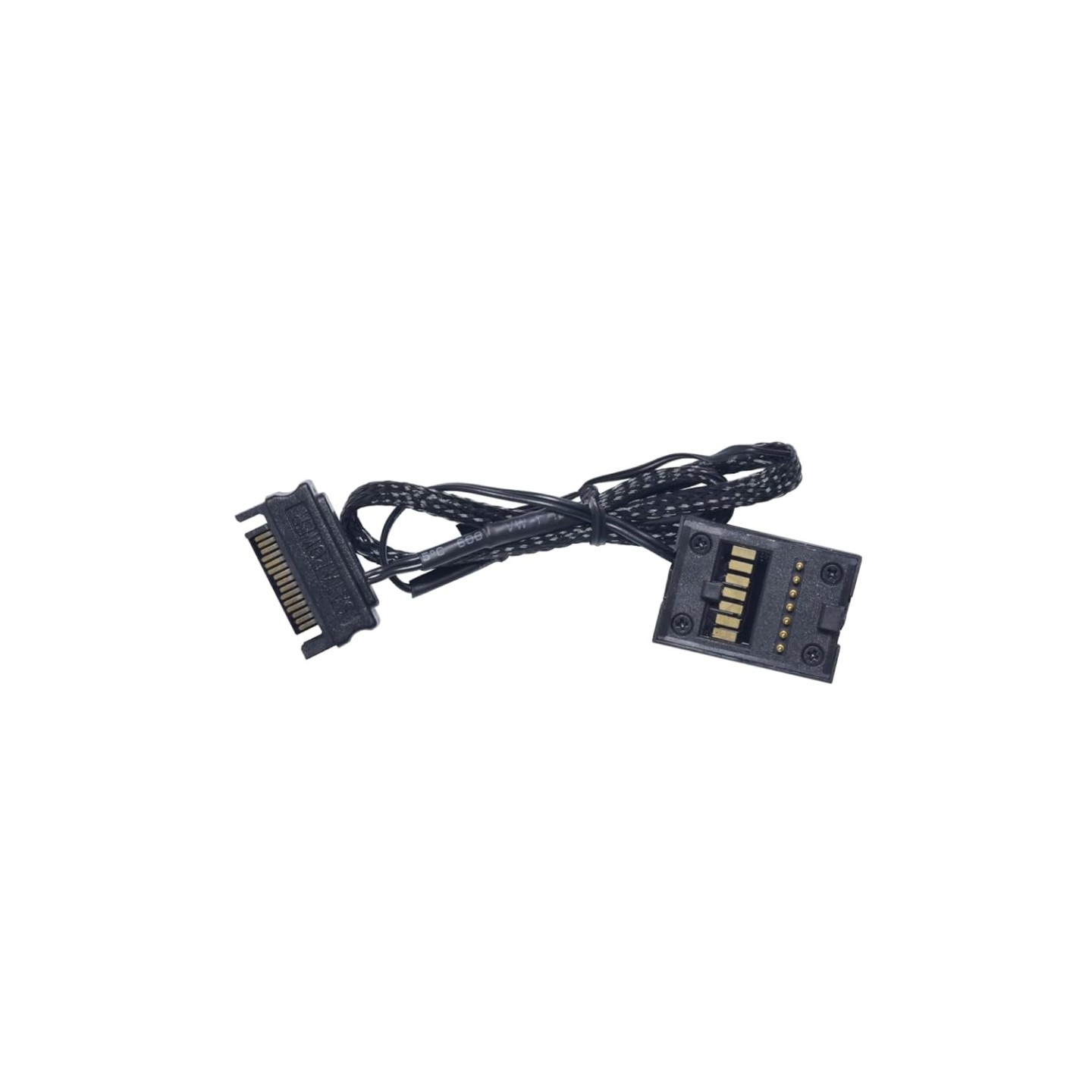

Magnetic mounting allows easy installation inside your case. Includes PCIe-to-SATA power cable, USB cable, and 5V ARGB/4-pin PWM cable for mobo sync. Use L-Connect 3 software to customize fan curves, RGB lighting, and sync effects. Compatible with 120/140mm TL fans (standard/reverse blades). Cables in black/white finishes.
UNI HUB TL AT A GLANCE:

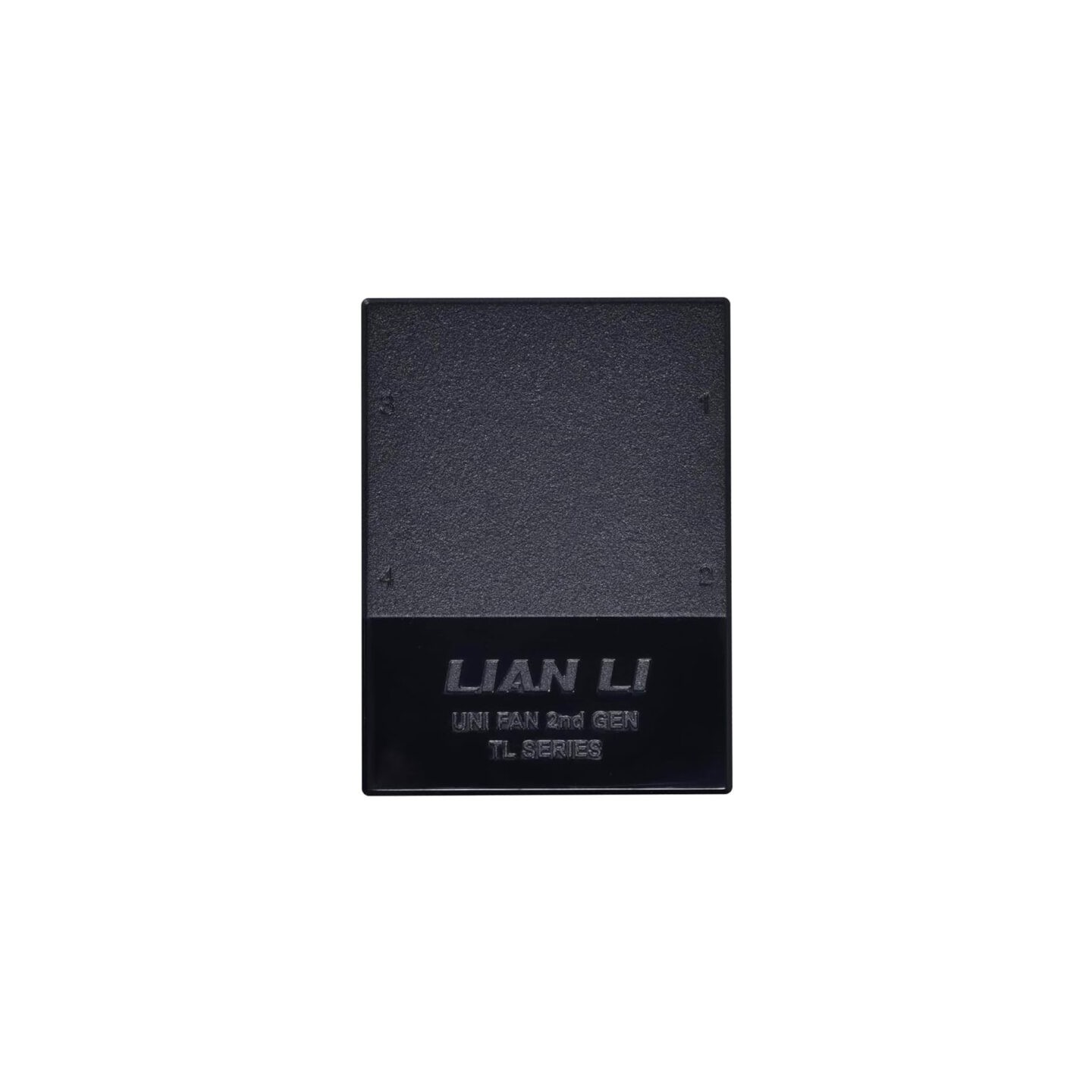

- Magnetic easy-mount installation
- Supports UNI FAN TL RGB and TL LCD fans
- Up to 16 fans total (4 groups)
- Single USB 2.0 + PWM header required
- Multiple ports for fan groups
- Black/white cable options
- L-Connect 3 full software control
| Model | 12TL-CONT3B |
| Color | Black |
| Supported Fans | UNI FAN TL / TL LCD (120/140mm, standard/reverse) |
| Max Fans | 16 total (4 ports, max 10 TL or 3 TL LCD per port) |
| Max TL LCD Fans | 7 (ports 2-4 only) |
| Connectors | USB 2.0 9-pin, SATA power (via PCIe adapter), 5V ARGB, 4-pin PWM |
| Software | L-Connect 3 |
| Mounting | Magnetic |
| Warranty | 2 years |
