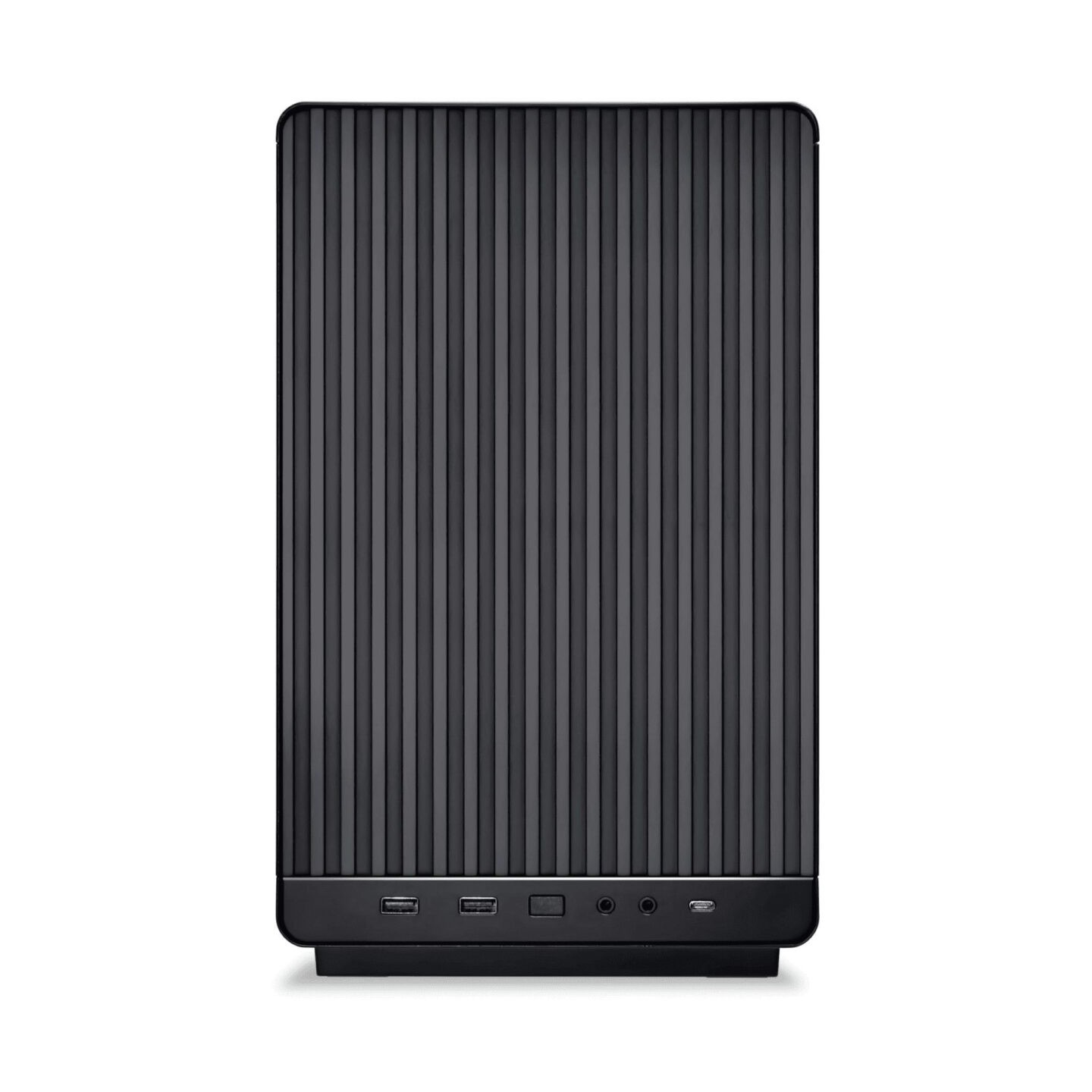

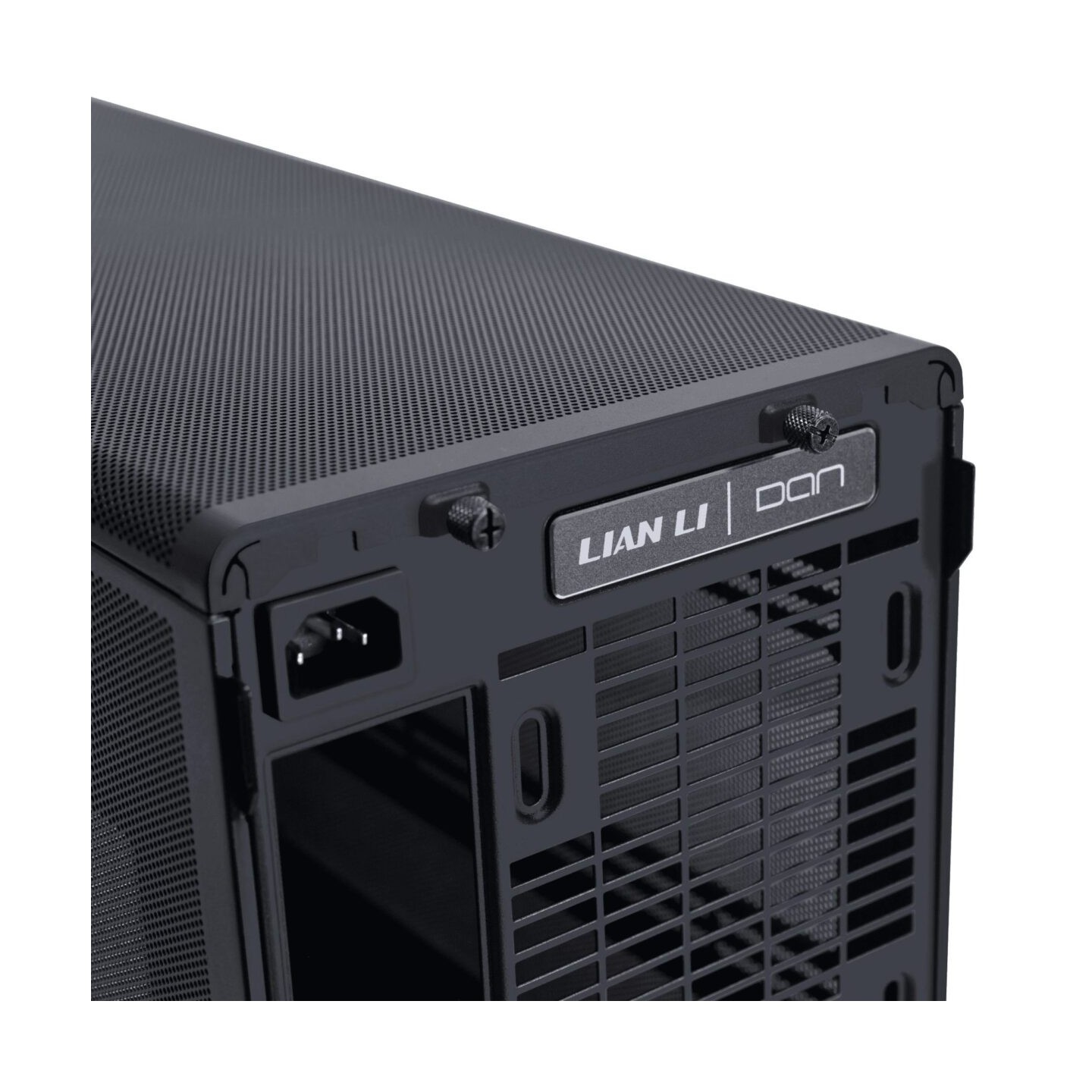

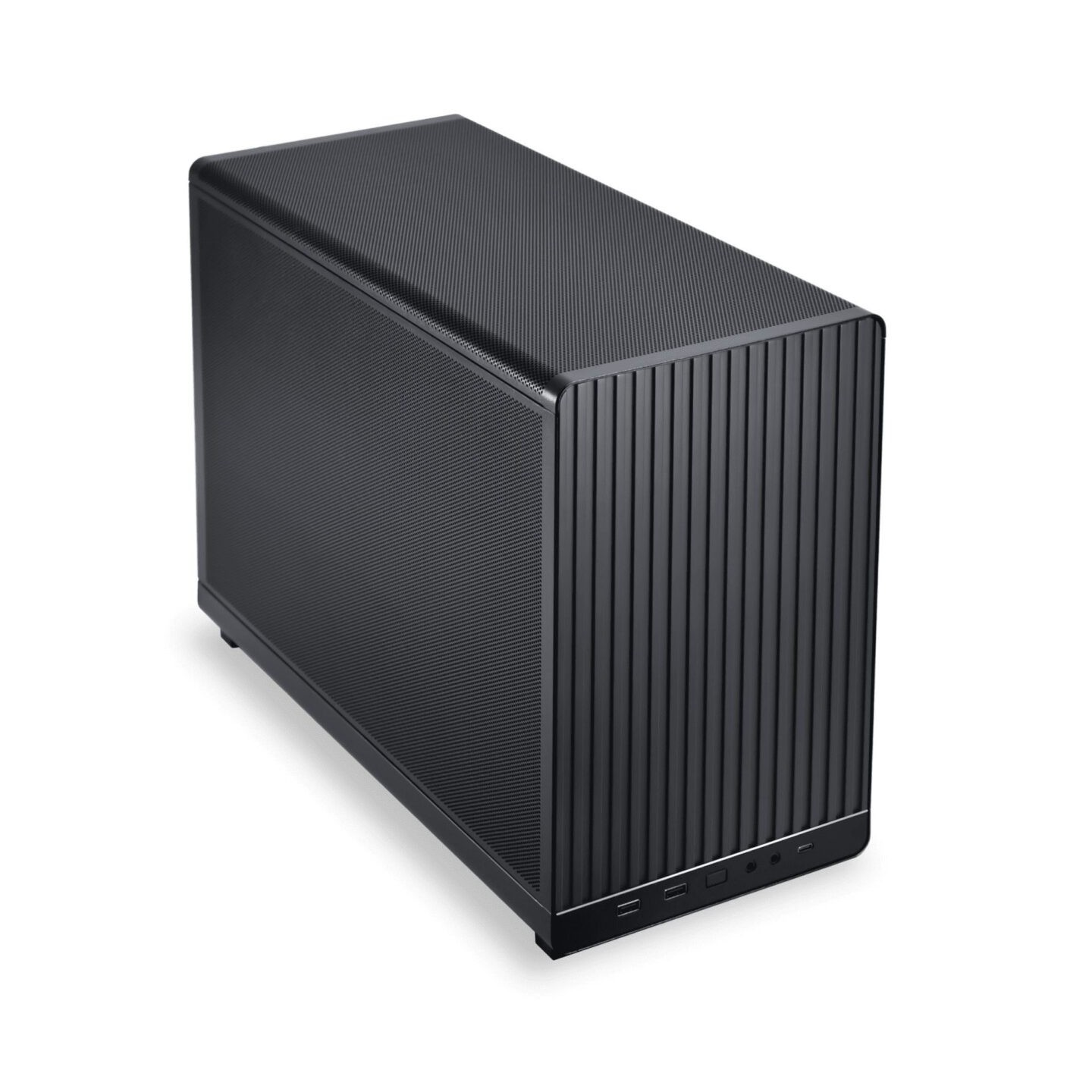

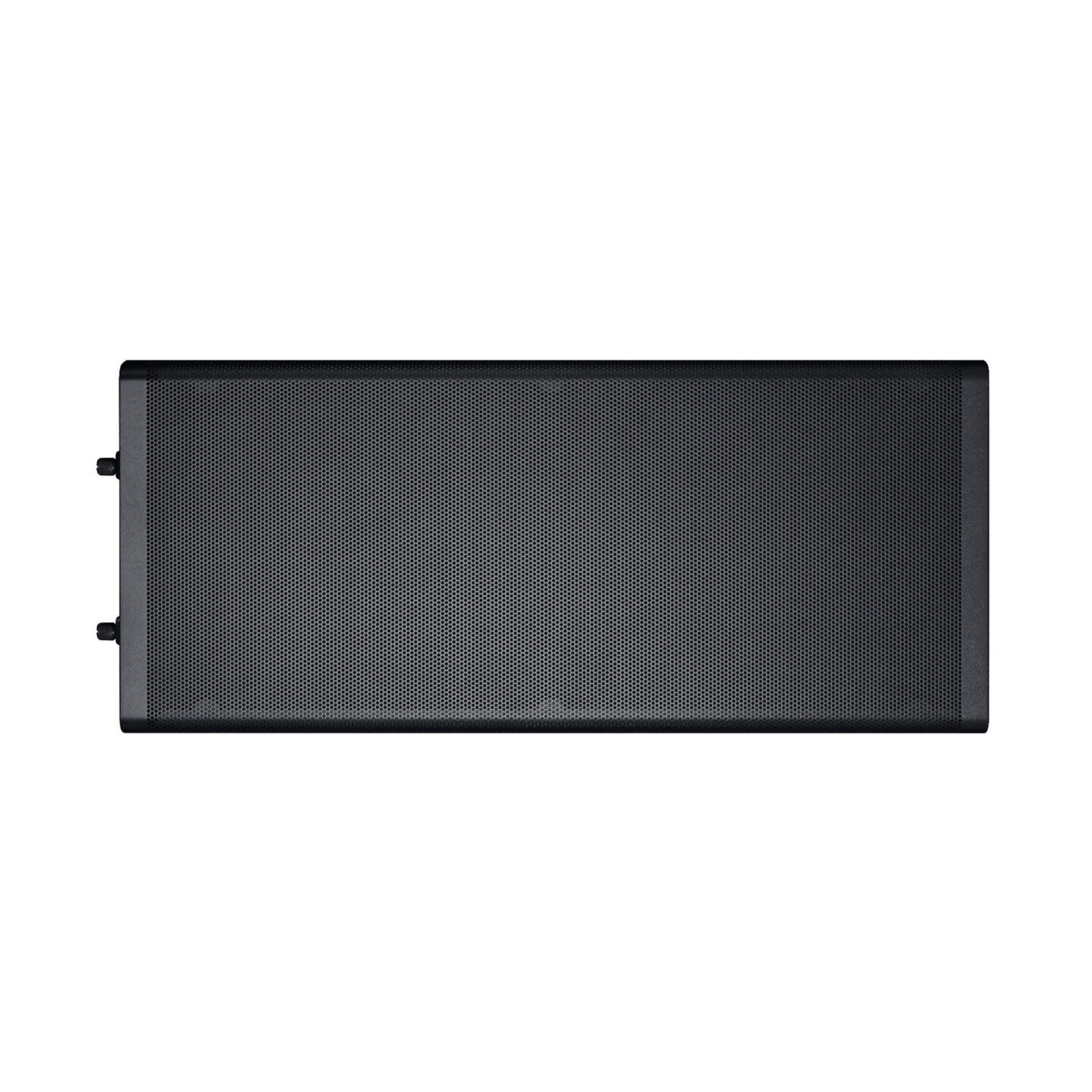

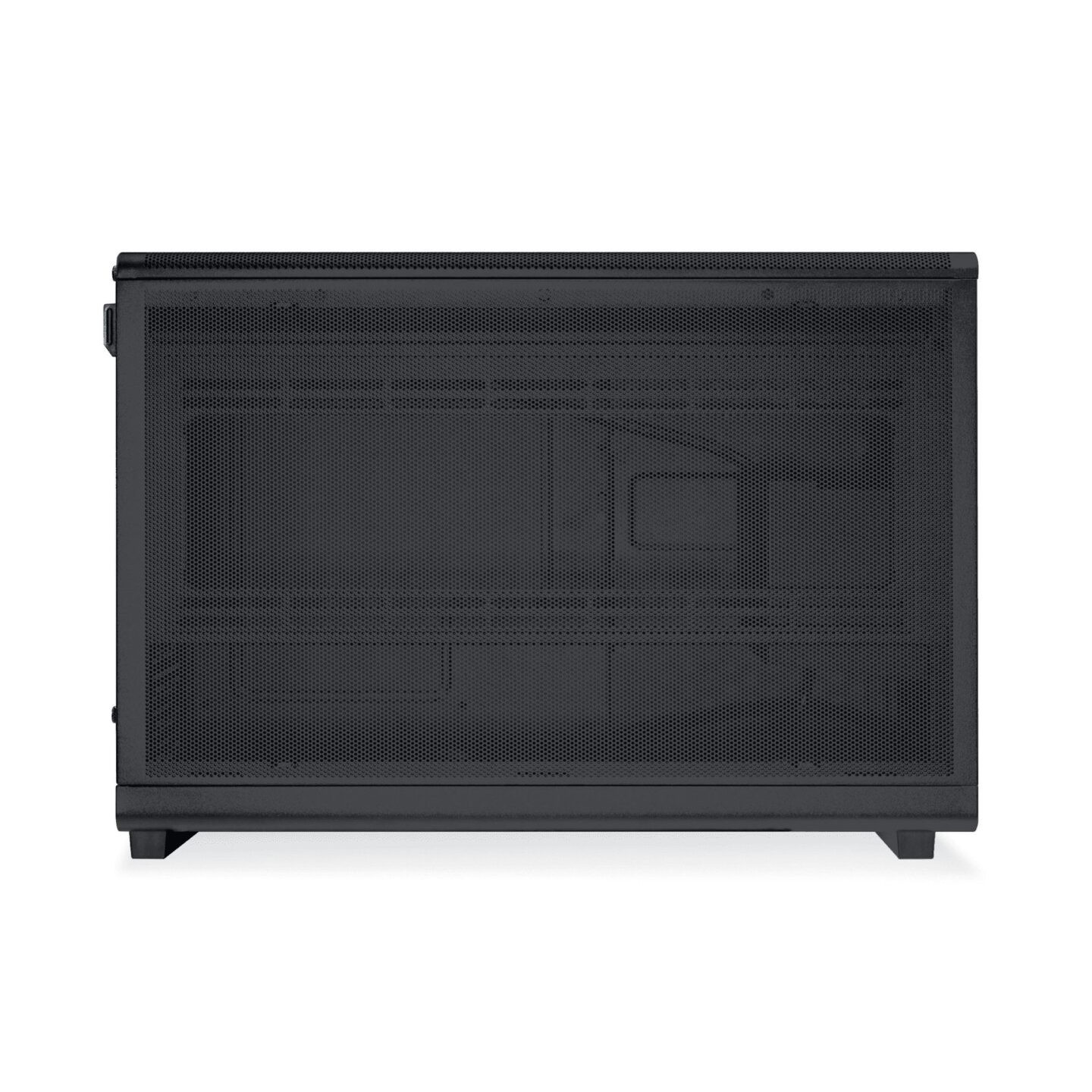

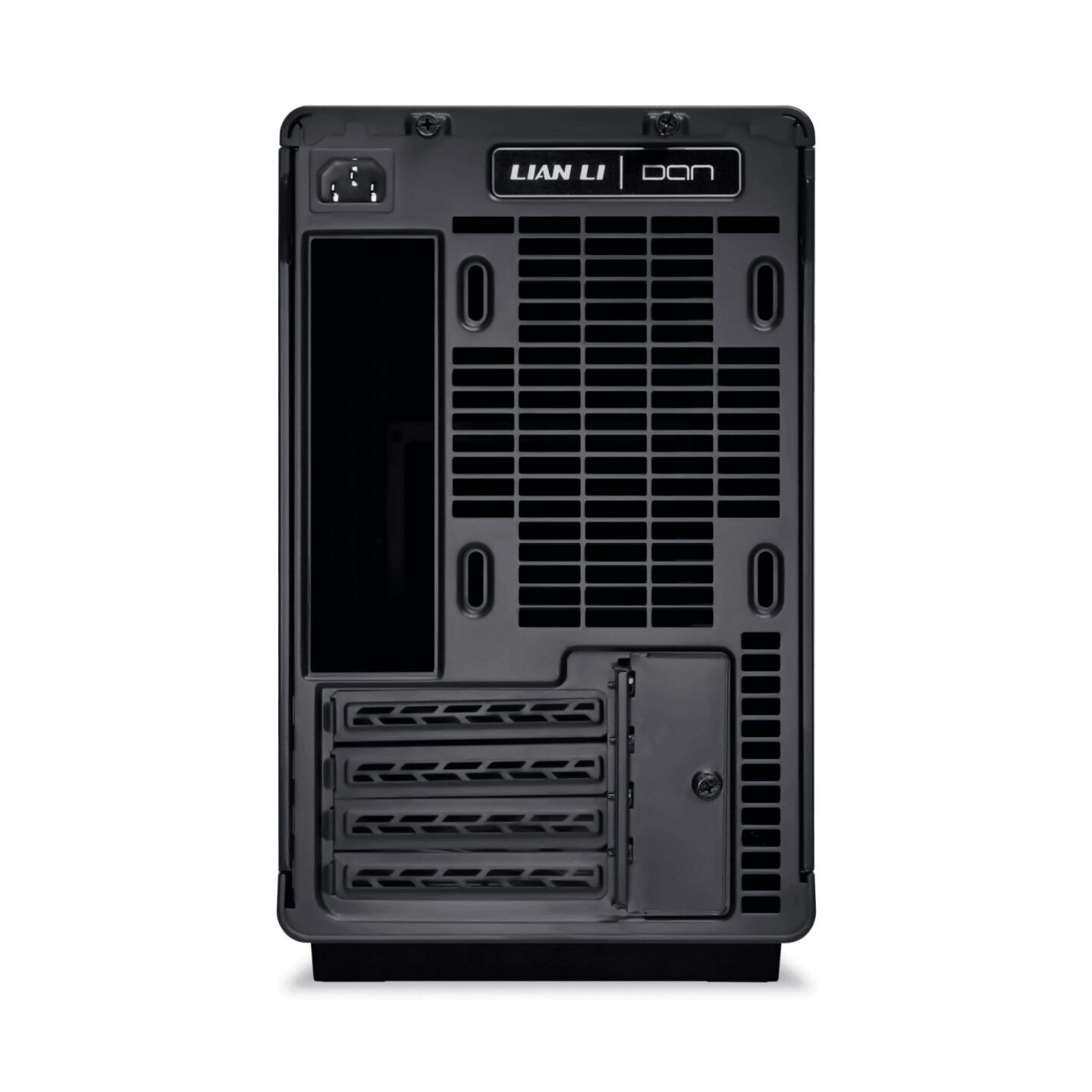

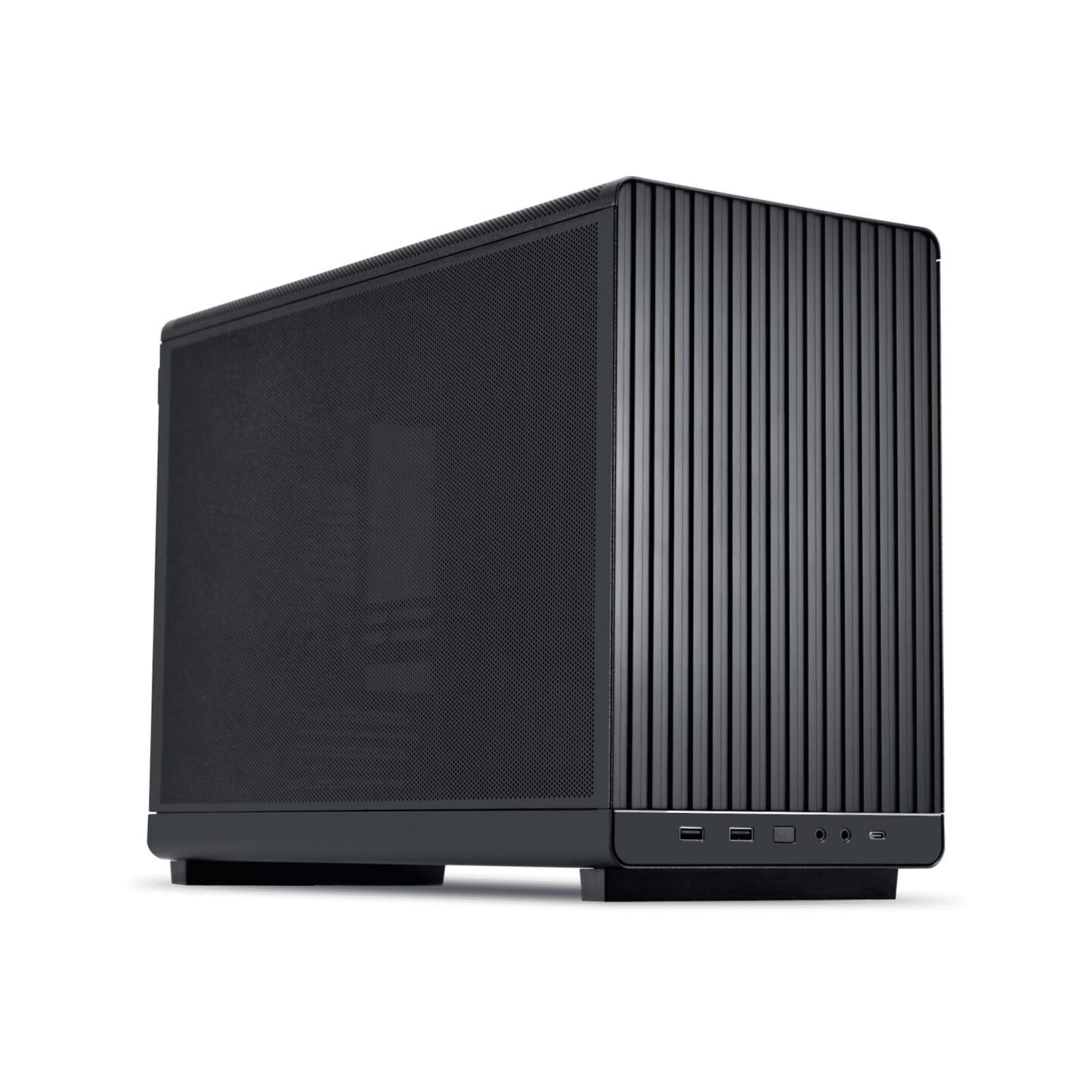

Lian Li DAN A3-mATX Black G99.A3X.00 Micro-ATX Mesh Steel PC Case (Boxed)
Compact 26.3L micro-ATX PC case with 3-sided steel mesh panels for optimal airflow. Supports 415mm GPUs, 165mm CPU coolers, 360mm AIO radiators, modular PSU mounting. Tool-free panels.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PC Cases - Motherboard Support | Micro ATX Mini ITX |
|---|---|
| PC Cases - Radiator Support | 240 mm 280 mm 360 mm |
| PC Cases - Included Fans | 0 |
| PC Cases - Front I/O | Audio Jacks USB A USB C |
| PC Cases - GPU Orientation | Horizontal |
| PC Cases - Form Factor | Small Form Factor |
| PC Cases - Max GPU Length | 401–450 mm |
| PC Cases - Color | Black |
| PC Cases - CPU Cooler Clearance | 151-165 mm |
The Lian Li DAN A3-mATX is a collaboration between Lian Li and DAN Cases, delivering a compact 26.3L micro form factor with mid-tower capabilities. Featuring three-sided steel mesh panels for superior airflow, this all-mesh case supports high-end components including 415mm GPUs up to 4-slots thick and 165mm CPU coolers.

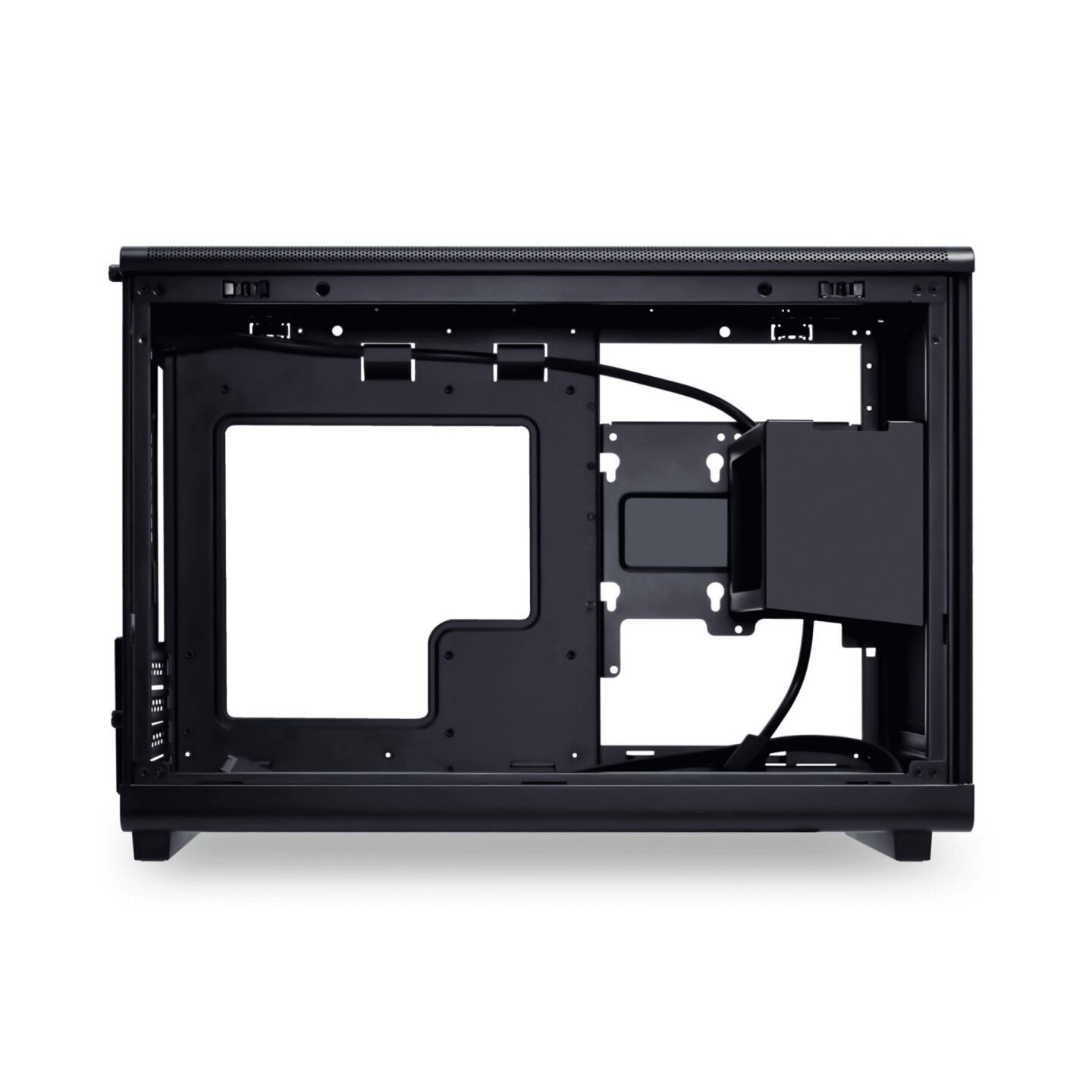

Modular tool-free design allows easy access with removable panels and relocatable PSU bracket (front or side mounting). Compatible with ATX/SFX/SFX-L PSUs up to 220mm and Lian Li Edge PSUs. Flexible storage with 2x 2.5" SSD trays and 1x 2.5"/3.5" bay. Front I/O includes 2x USB 3.0 Type-A, 1x USB 3.1 Type-C, audio jacks, and power button.
- Capacity: 26.3L
- Dimensions: 443 x 194 x 321.5 mm (DxWxH)
- Fan Support: Top/Side/Bottom 3x120mm or 2x140mm, Rear 1x120mm
- Radiator Support: Up to 360mm (top/side)
- Motherboard: mATX/ITX
- No pre-installed fans
| Case Type | Micro Form Factor (mATX) |
| Dimensions | (D) 443mm x (W) 194mm x (H) 321.5mm |
| Capacity | 26.3L |
| Material | Steel |
| Motherboard Support | M-ATX / ITX |
| PSU Support | ATX / SFX / SFX-L (Max 220mm) |
| Fan Support | Top: 3x120mm / Side: 3x120mm or 2x140mm / Bottom: 3x120mm / Rear: 1x120mm |
| Radiator Support | Top: 360/240mm / Side: 360/280/240mm / Bottom: 240mm |
| Drive Support | 2x 2.5 |
| GPU Length Clearance | Max 415mm |
| CPU Height Clearance | Max 165mm |
| Expansion Slots | 4 |
| I/O Ports | 1x Power Button, 2x USB 3.0 Type-A, 1x USB 3.1 Type-C, 1x Mic, 1x HD Audio |
| Dust Filter | Bottom |
| Pre-installed Fans | 0 |
| MPN | G99.A3X.00 |
| Weight (unboxed) | ~5kg |
