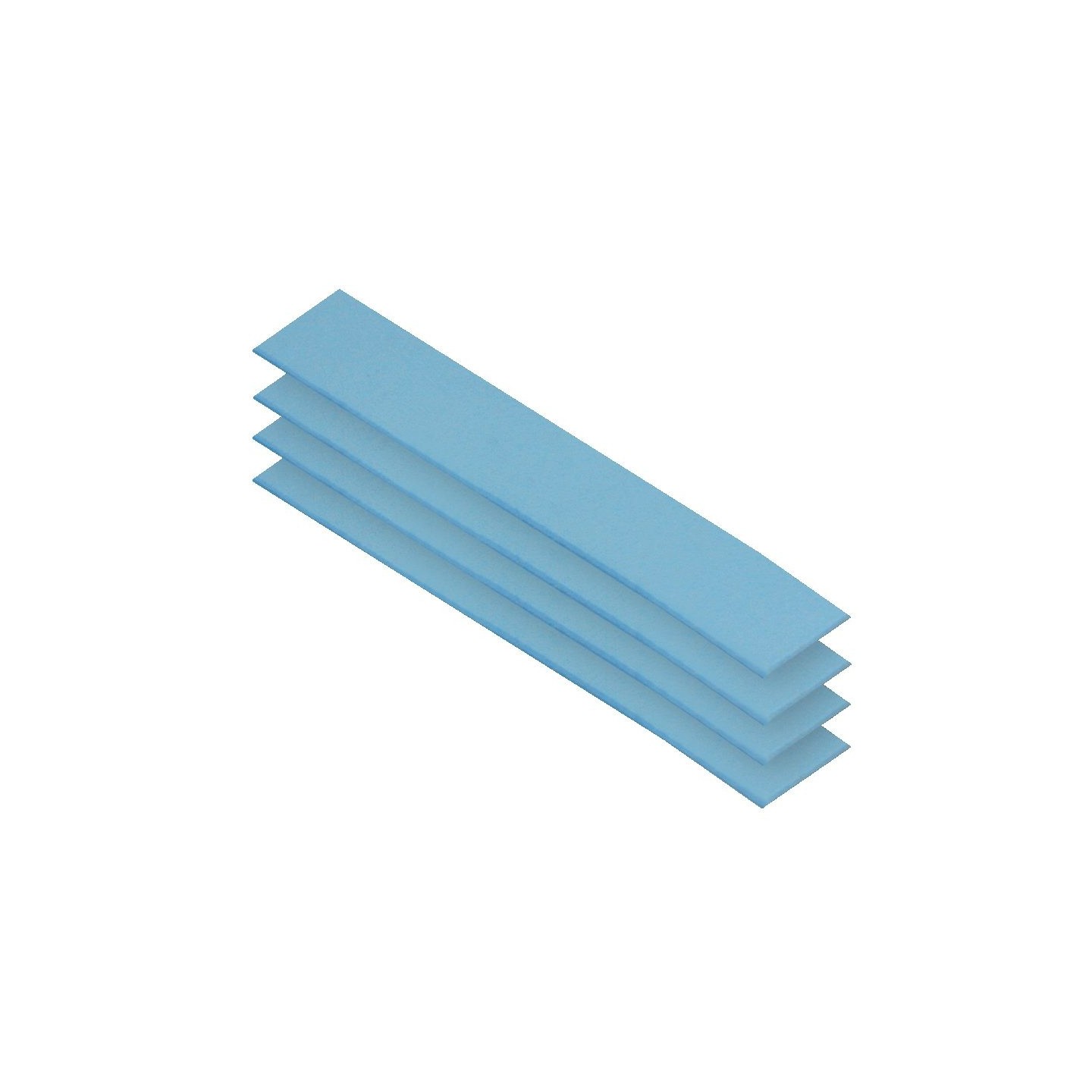

ARCTIC TP-3 Thermal Pad 120x20x1.0mm - 4 Pack (Retail)
ARCTIC TP-3 120x20x1.0mm thermal pads (4-pack). Ultra-soft silicone-based with high conductivity. Compresses to fill gaps up to 0.2mm. Ideal for M.2, RAM, chipsets in PCs, laptops, GPUs.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Cooling (CPU & Case) - Device Type | Thermal Pad |
|---|---|
| Cooling (CPU & Case) - Socket Support | Universal |
| Cooling (CPU & Case) - Color | Silver / Grey |
High Performance — Very Soft
Based on silicone and special filler material, the ARCTIC TP-3 outperforms standard high-performance pads, especially for closely spaced chips with height differences due to manufacturing tolerances. Despite extremely low hardness (55 Shore OO), it delivers excellent thermal conductivity.
Versatile Gap Filler
The 1.0mm pads compress easily to bridge gaps up to 0.2mm while minimizing thermal resistance. Electrically insulating, non-adhesive, and easy to cut to size. Perfect for M.2 drives, RAM, chipsets, ICs in PCs, laptops, consoles, and graphics cards. Stackable without performance loss.
Safe & Reliable
- Electrically insulating & non-capacitive
- Heat-conducting & vibration-damping
- Operating temperature: -40~150°C
- UL 94 V-0 flammability rating
- Blue color, easy handling

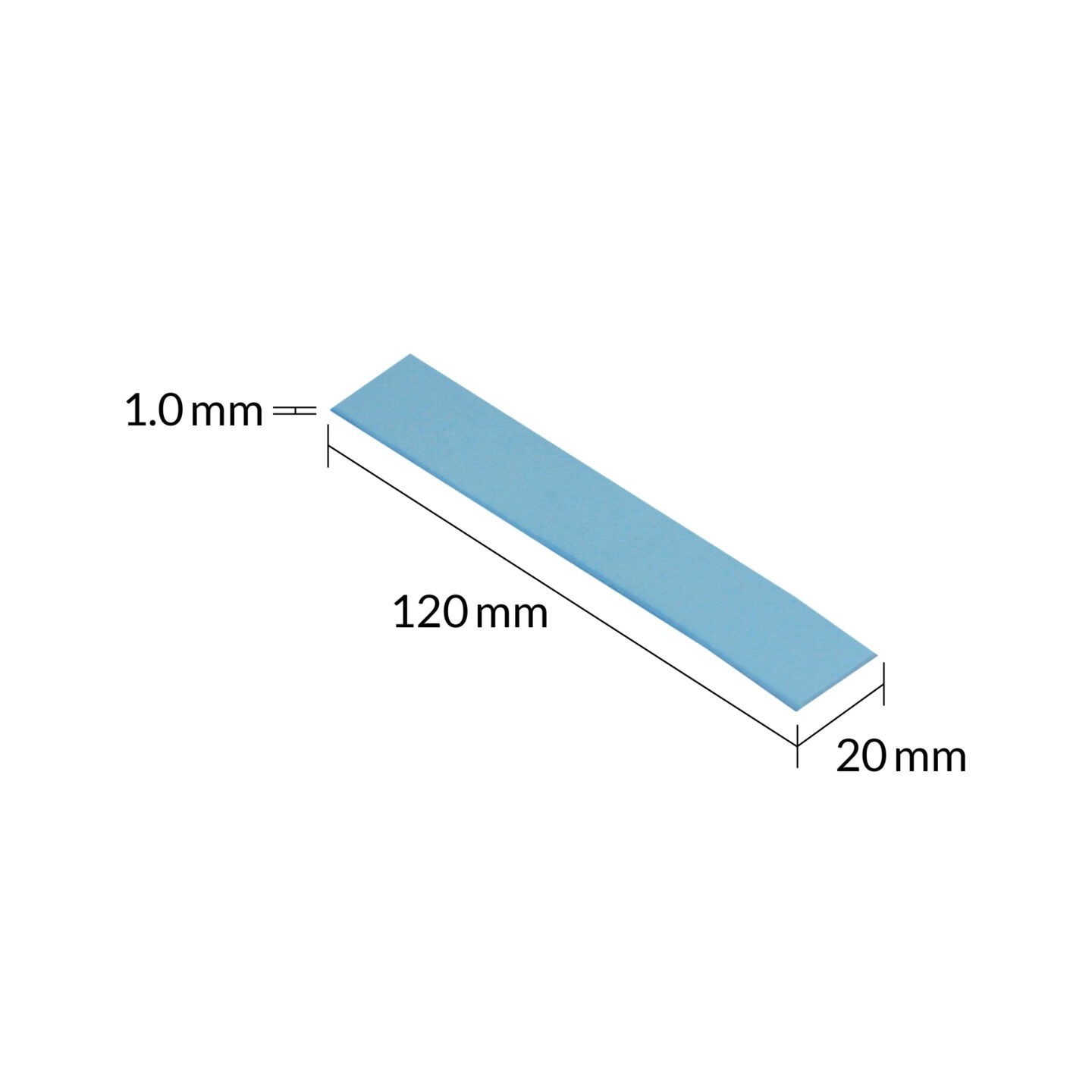

| Size | 120 x 20 x 1.0 mm (4 Pack) |
| Color | Blue |
| Hardness | 55 Shore OO |
| Continuous Use Temperature | -40~150 °C |
| Specific Gravity | 3.4 g/cm³ |
| Dielectric Constant @1MHz | 5.19 |
| Volume Resistance | 2.69 x 10^12 Ω-cm |
| Flammability Rating | UL 94 V-0 |
| Material | Silicone-based |
| Electrically Insulating | Yes |
