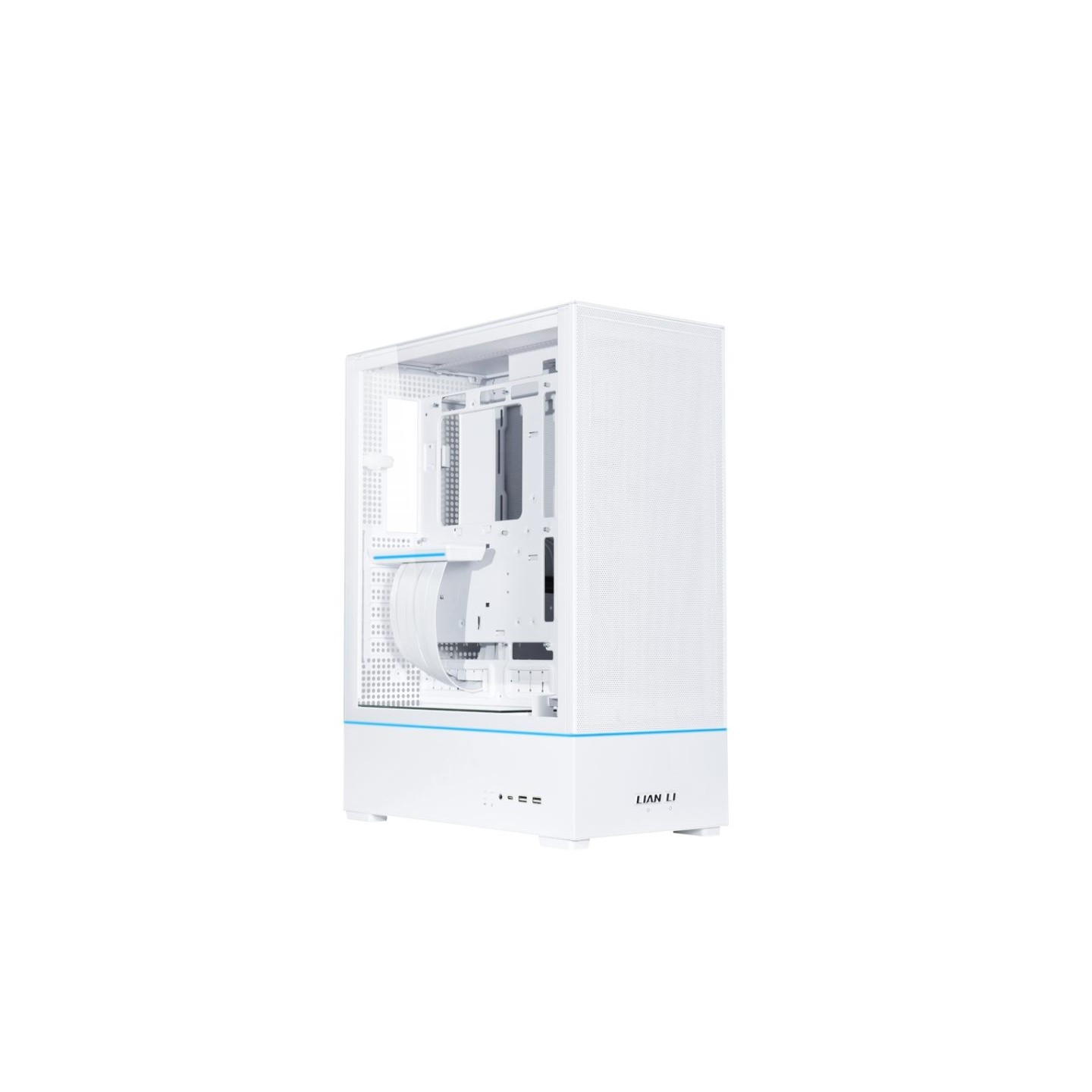

LIAN LI SUP01 White - 45L Vertical ATX PC Case w/ 3x120mm ARGB Fans (Boxed)
Compact 44.8L white stand-up ATX PC case w/ vertical GPU mount, 3-chamber cooling, 3x120mm PWM ARGB fans. Supports 400mm GPU, 360mm AIO, back-connect mobo. Includes PCIe 4.0 riser.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PC Cases - Motherboard Support | ATX Micro ATX Mini ITX |
|---|---|
| PC Cases - Radiator Support | 280 mm 360 mm |
| PC Cases - Included Fans | 3 |
| PC Cases - Front I/O | Audio Jacks USB A USB C |
| PC Cases - GPU Orientation | Vertical Supported |
| PC Cases - Form Factor | Mid Tower |
| PC Cases - Max GPU Length | 361–400 mm |
| PC Cases - Color | White |
| PC Cases - CPU Cooler Clearance | Up to 150 mm |
Optimize your workspace with the LIAN LI SUP01 White, featuring an innovative stand-up platform design that minimizes desktop footprint while ensuring superior hardware compatibility and cooling efficiency.
The SUP01 offers independent chambered direct cooling for GPU, AIO radiator, and motherboard components. GPU intakes cool air via front mesh and exhausts through 3x pre-installed 120mm PWM ARGB fans (300-1800RPM, 68.88CFM). AIO radiator on side draws from rear opening. Rear 120mm fan cools VRM/M.2/RAM directly.
Built with steel and 4.0mm tempered glass, it supports ATX/mATX/ITX (incl. back-connect), 400mm GPUs via PCIe 4.0 riser, 220mm PSU, and flexible storage (2x3.5" or 4x2.5" SSDs). Three mesh panels ensure optimal airflow.
- ✅ 44.8L capacity, dimensions: 403x212x534mm
- ✅ Includes 510mm PCIe 4.0 riser w/ RGB
- ✅ I/O: 2x USB-A, 1x USB-C, audio, RGB controls

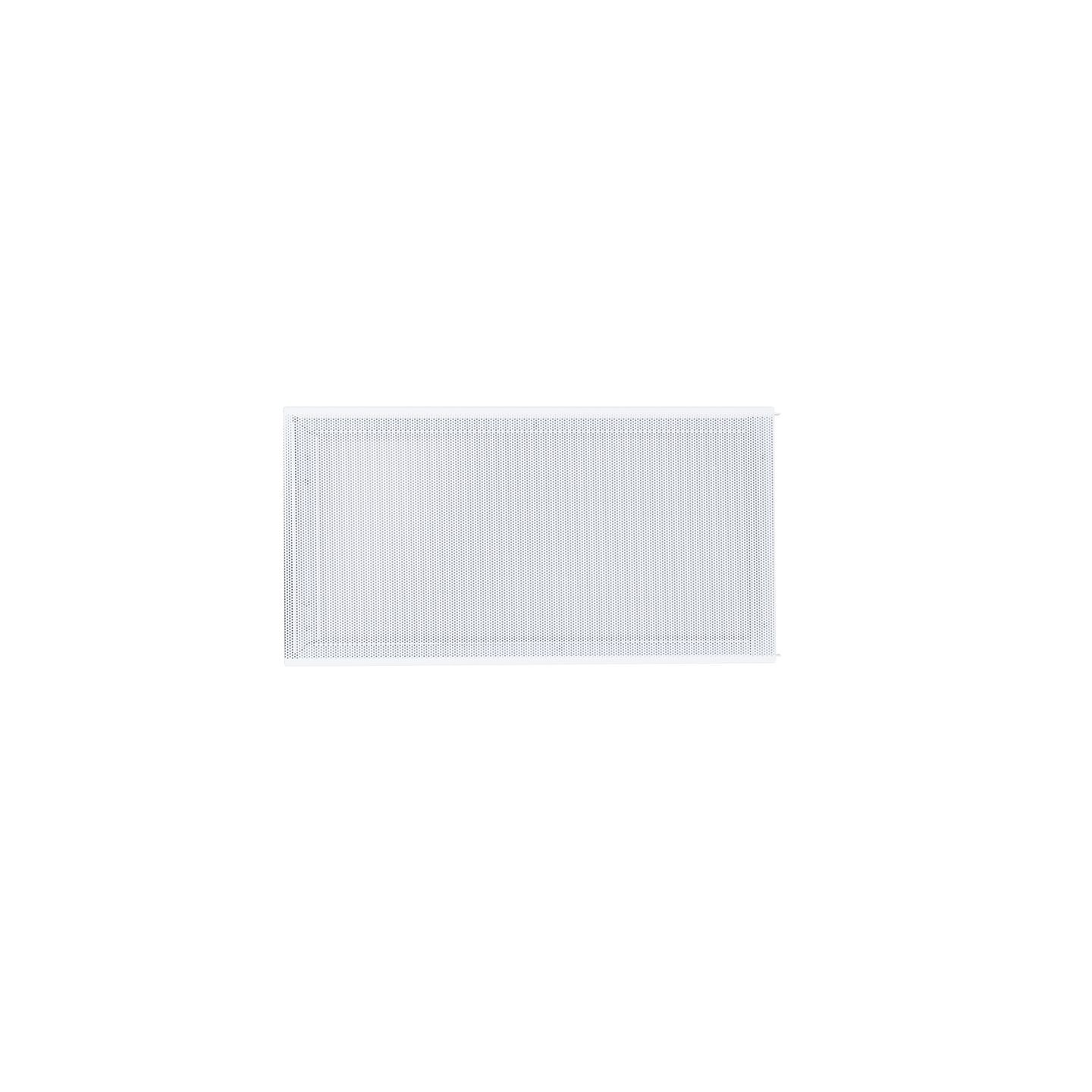

- ✅ Dust filters: front, top, bottom
- ✅ Max CPU cooler: 88.2mm
| Case Type | Small Tower Case |
| Dimension | (D) 403.45mm x (W) 212mm x (H) 534mm |
| Capacity | 44.8L |
| Material | Steel, 4.0mm Tempered Glass |
| Riser Cable Type | PCIE 4.0 (510mm w/ RGB) |
| Motherboard Support | ATX / M-ATX / ITX, ATX Back Connect |
| PSU Support | ATX (Max 220mm) |
| Included Fans | 3 x 120mm PWM (300~1800 RPM, 68.88 CFM, 2.56mmH2O) |
| Fan Support | Side 1: 3x120mm; Side 2: 3x120mm or 2x140mm; Rear exterior: 1x120mm |
| Radiator Support | Side 2: 360mm or 280mm |
| Drive Support | Drive Cage: 2×2.5 |
| GPU Length Clearance | Max 400mm |
| CPU Height Clearance | Max 88.2mm |
| Expansion Slots | 7 (low profile); 4 (standard w/ extension) |
| I/O Ports | 1x Power, 1x Reset, 2x USB 3.0 Type-A, 1x USB 3.1 Type-C, 1x Mic, 1x Light Color (C), 1x Light Mode (M) |
| Dust Filter | Bottom tray, Front magnetic, Top magnetic |
