Arctic P12 Pro PST 120mm PWM Case Fan - White (Boxed)
High-performance 120mm PWM case fan with 7-blade design, 6.9 mmH₂O static pressure, FDB bearing, and PST daisy-chain technology for synchronized multi-fan control.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Cooling (CPU & Case) - Device Type | Case Fan |
|---|---|
| Cooling (CPU & Case) - Fan Size | 120 mm |
| Cooling (CPU & Case) - Lightning | None |
| Cooling (CPU & Case) - Connector | 4-Pin PWM |
| Cooling (CPU & Case) - Color | White |
| Cooling (CPU & Case) - Special Features | Daisy-Chain Low Noise |

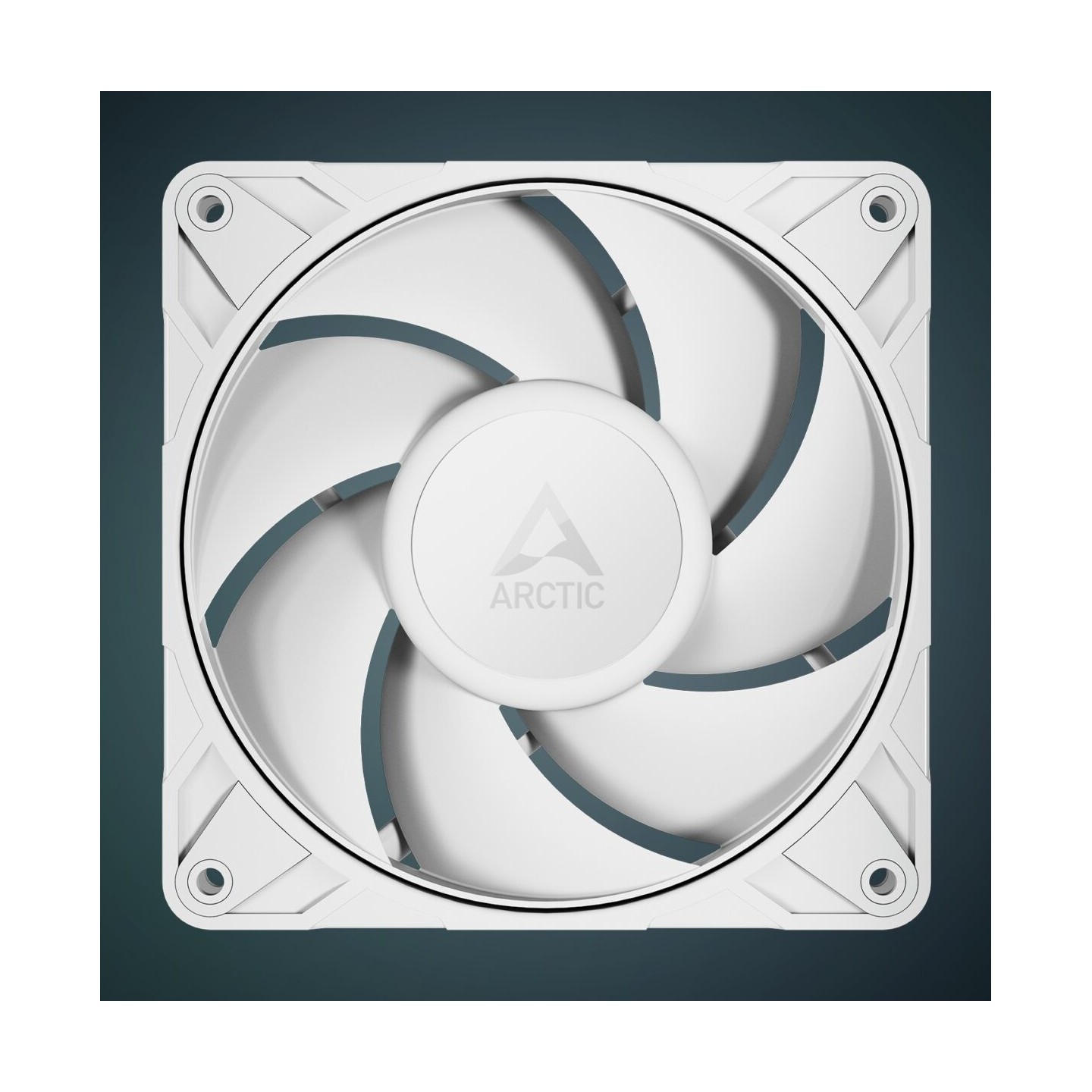

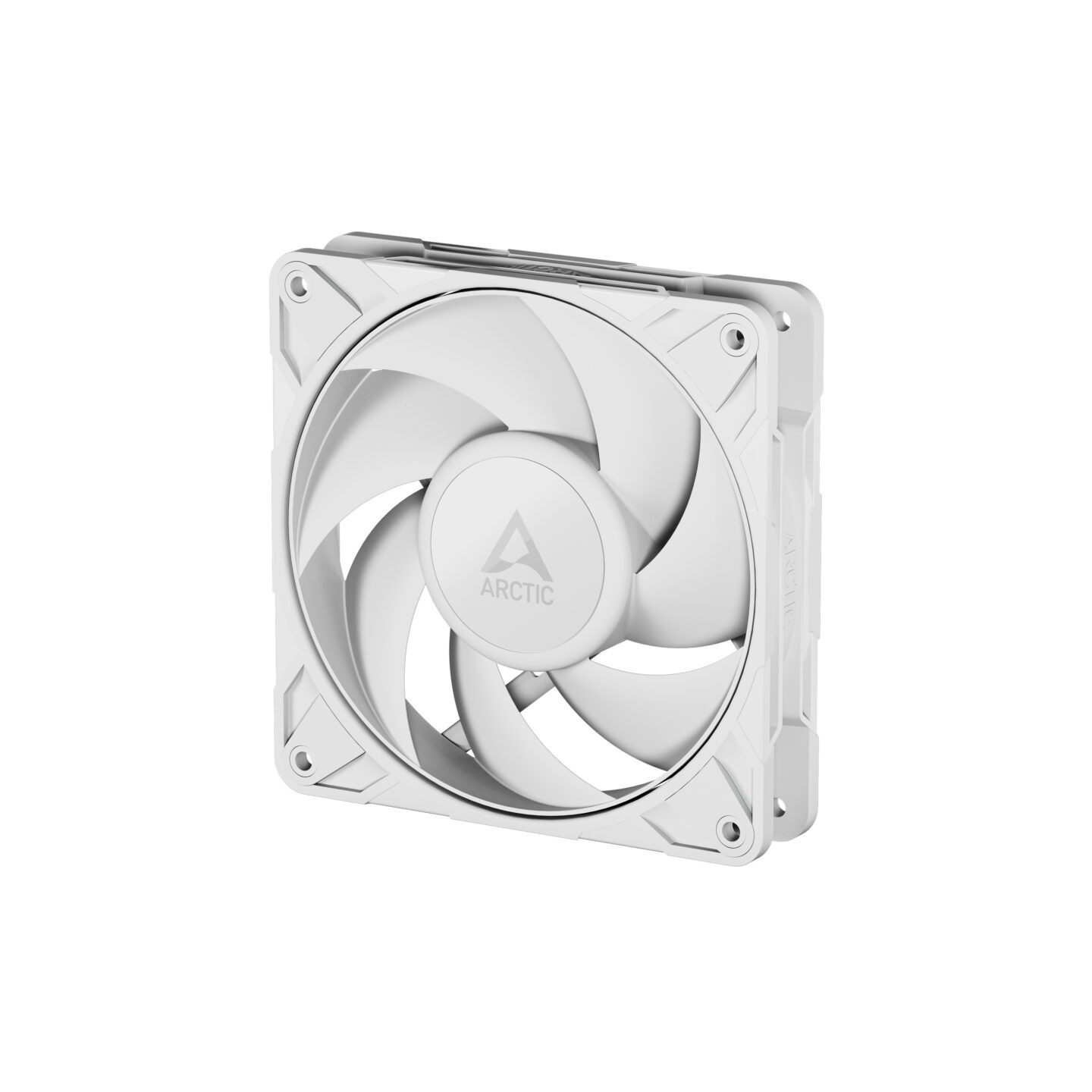

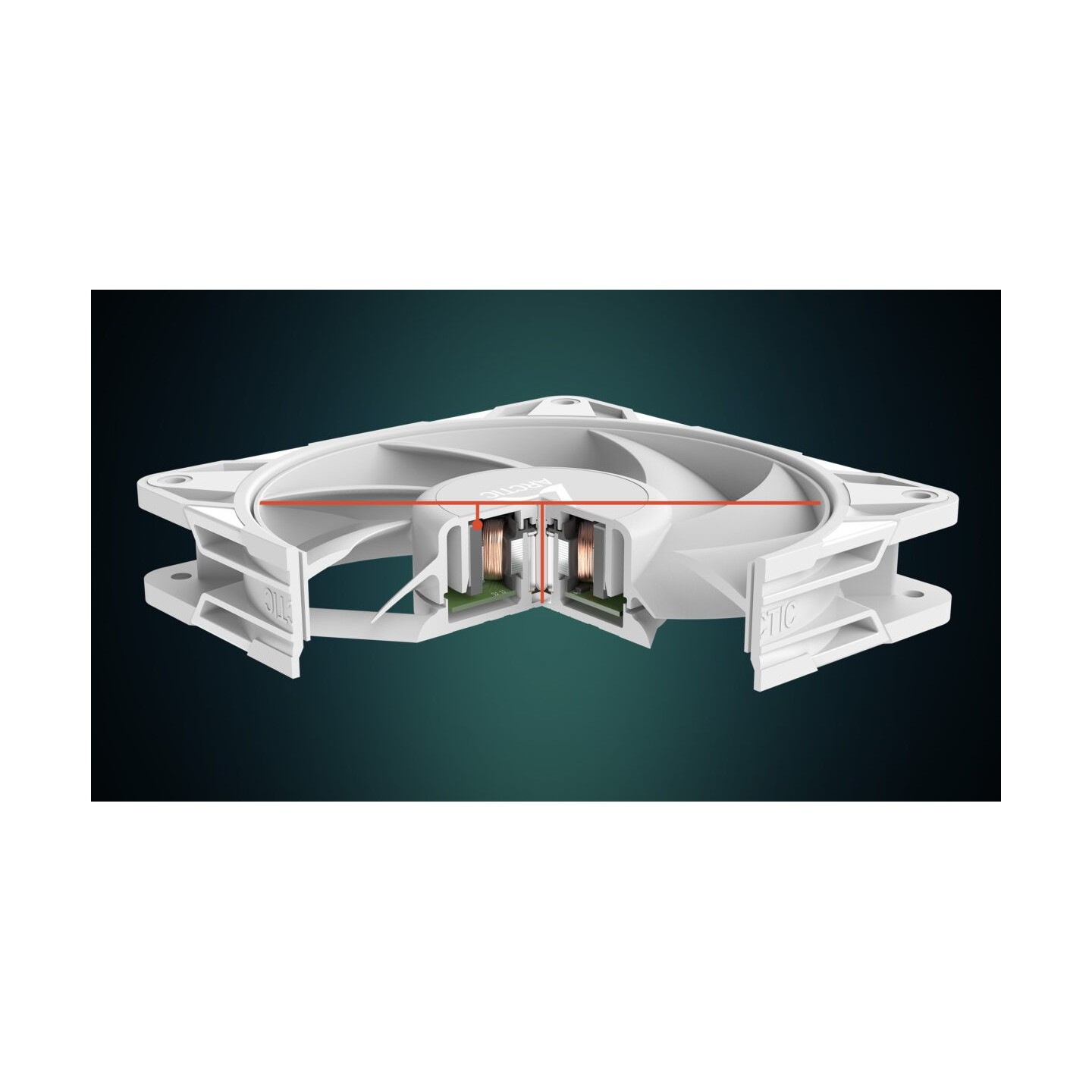

The Arctic P12 Pro PST is a premium 120mm PWM case fan engineered for high-performance cooling in demanding environments. Featuring an advanced 7-blade aerodynamic design, this fan delivers exceptional static pressure (6.9 mmH₂O) and airflow (77 CFM / 131 m³/h), making it ideal for radiators, perforated panels, and restrictive mesh filters. The optimized Fluid Dynamic Bearing (FDB) with extended shaft design ensures smooth, quiet operation while minimizing vibration and noise across all speed ranges.

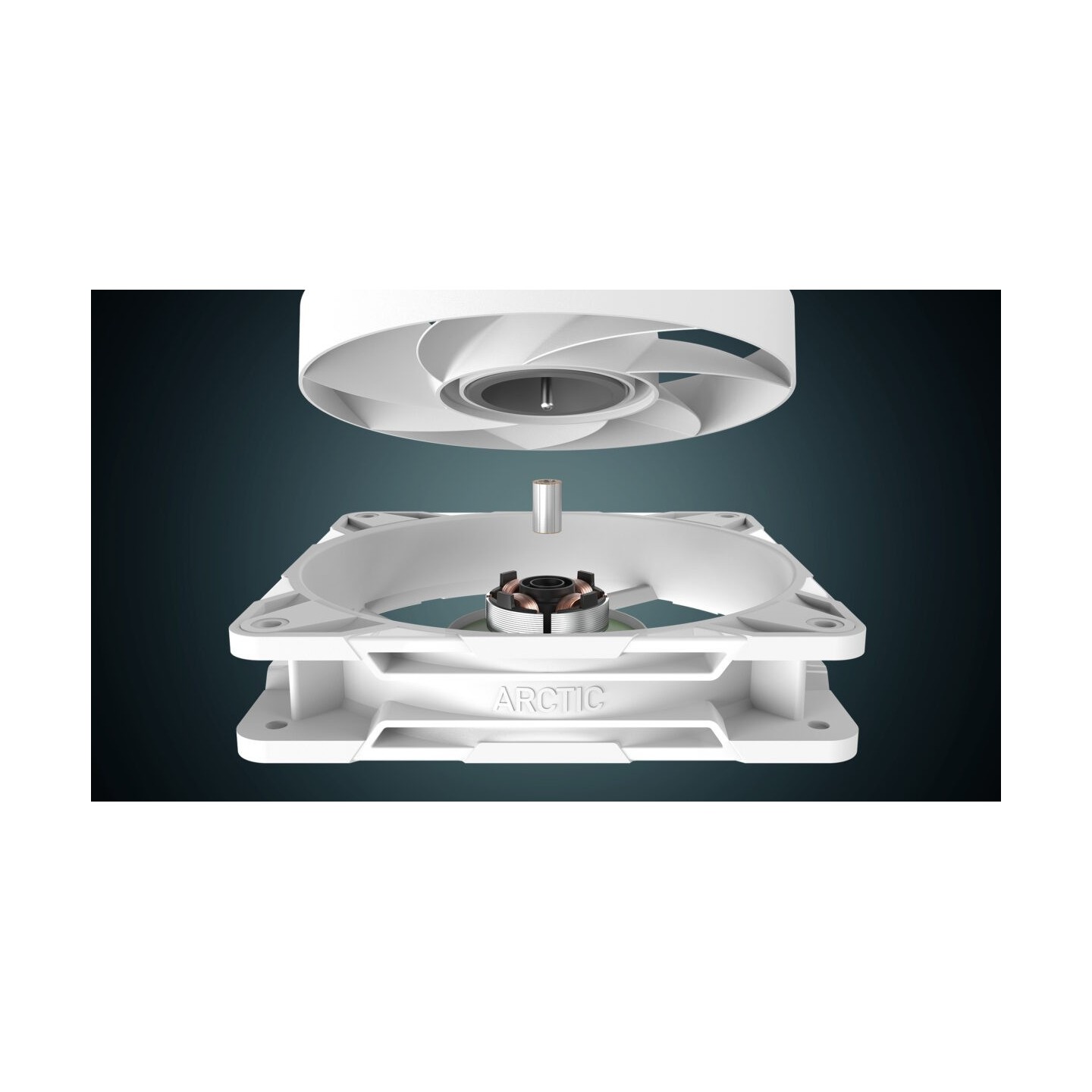

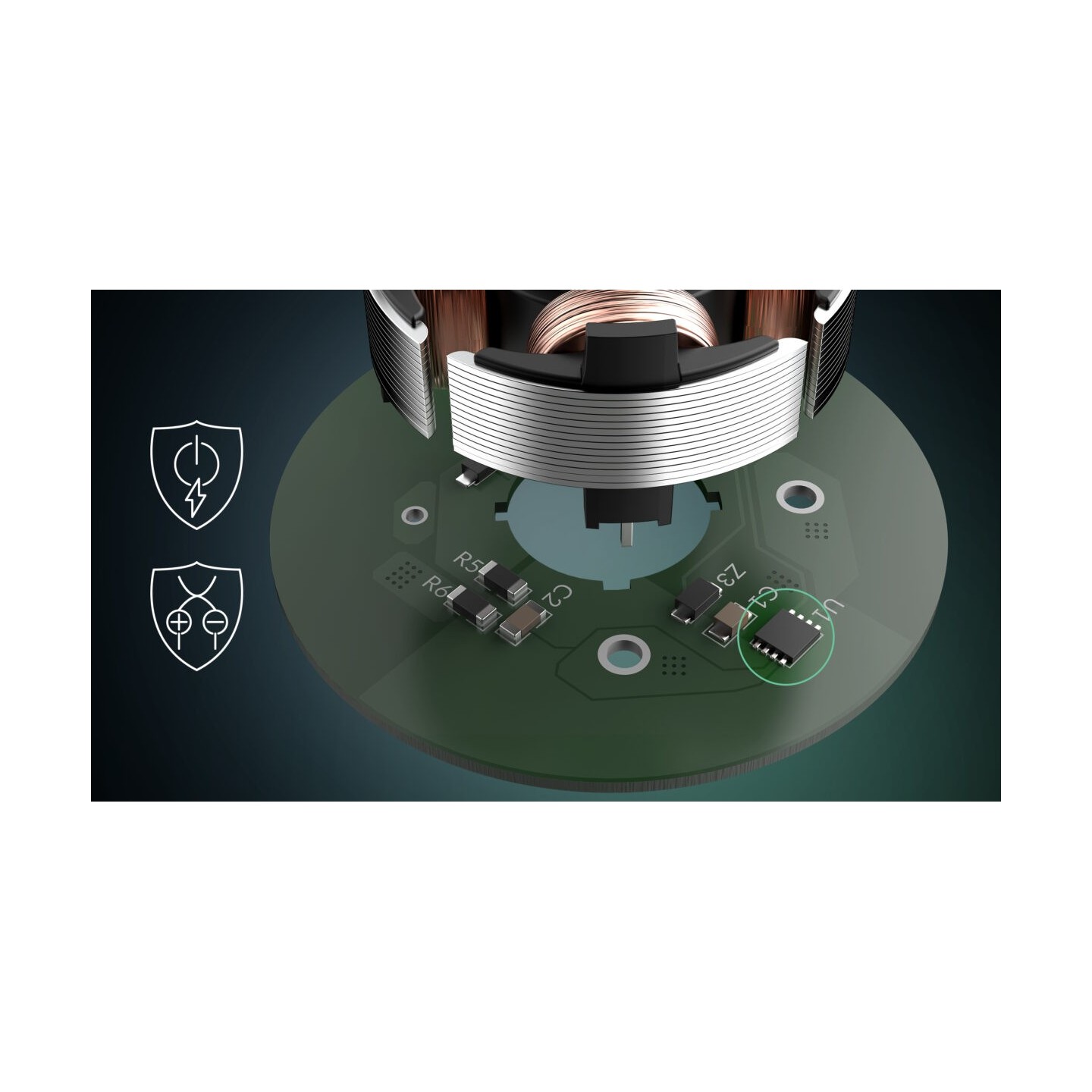

The P12 Pro PST incorporates PWM Sharing Technology (PST), allowing multiple fans to be synchronized using a single motherboard header through the included daisy-chain cable. This eliminates the need for additional fan headers and simplifies cable management. Operating at speeds from 600 to 3000 RPM with PWM control, the fan achieves near-silent operation at low speeds while maintaining powerful cooling performance. The SOTA microcontroller reduces motor noise, compensates for load fluctuations, and protects against startup current surges and reverse polarity. Backed by a comprehensive 6-year warranty, this fan represents Arctic's commitment to durability and reliability.
- Fan Speed: 600–3000 RPM (PWM controlled, 0 RPM below 5% PWM)
- Airflow: 77 CFM (131 m³/h)

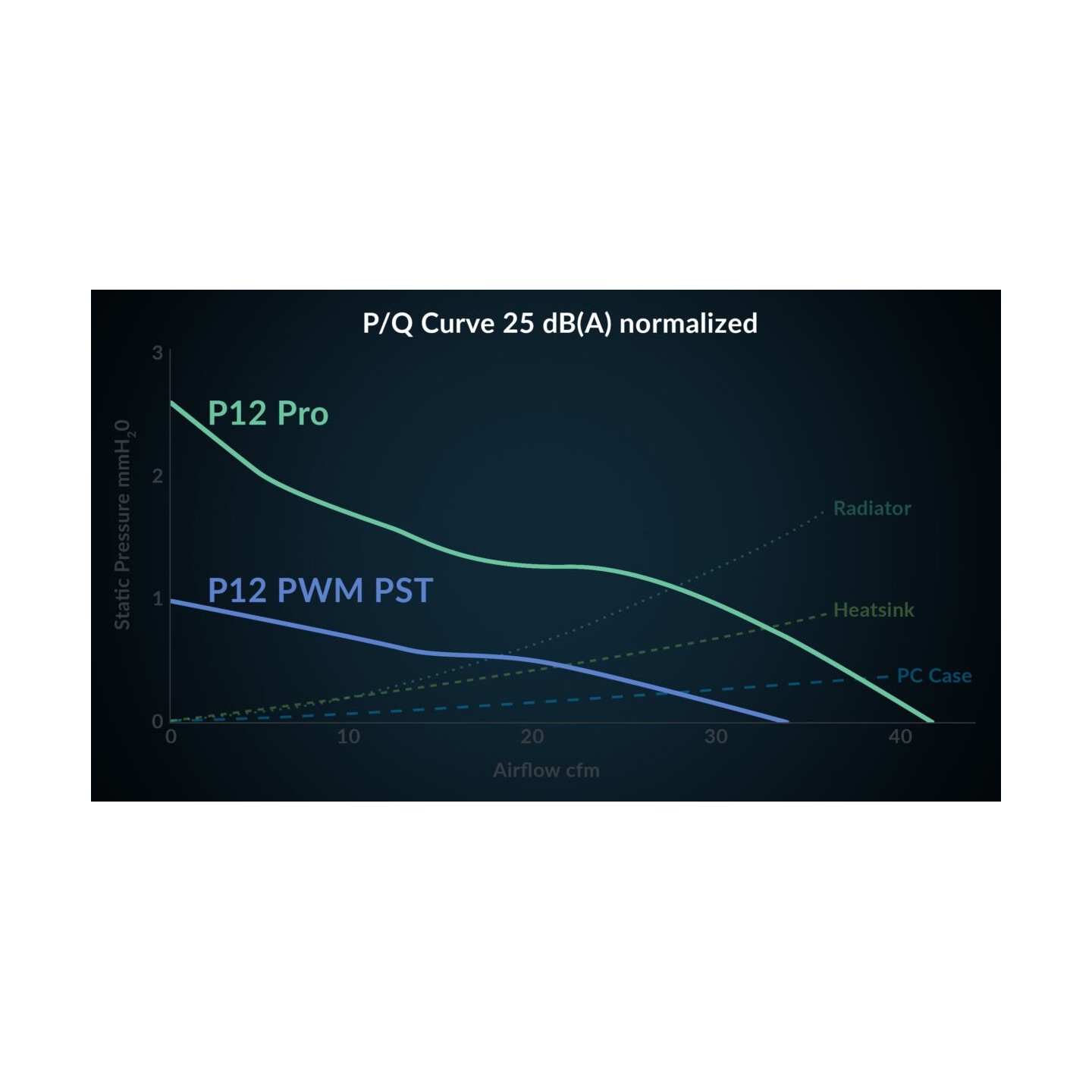

- Static Pressure: 6.9 mmH₂O
- Bearing Type: Fluid Dynamic Bearing (FDB)
- Connector: 4-Pin PWM + 4-Pin PST Socket
- Cable Length: 400mm + 80mm Daisy-Chain
- Operating Temperature: 0–40°C
- Warranty: 6 Years
| Fan Speed | 600–3000 RPM (PWM controlled, 0 RPM below 5% PWM) |
| Airflow | 77 CFM / 131 m³/h |
| Static Pressure | 6.9 mmH₂O |
| Fan Bearing | Fluid Dynamic Bearing (FDB) |
| Blade Design | 7-blade aerodynamic design |
| Typical Voltage | 12 V DC |
| Start Up Voltage | 3.3 V DC |
| Current | 0.33 A |
| Connector | 4-Pin PWM Fan Plug + 4-Pin PST Socket |
| Cable Length | 400 mm + 80 mm Daisy-Chain Cable |
| Dimensions (Fan) | 120 (L) x 120 (W) x 25 (H) mm |
| Net Weight (Fan) | 185 g |
| Operating Ambient Temperature | 0–40°C |
| Warranty | 6 Years |
| Special Features | PST (PWM Sharing Technology), SOTA Microcontroller, Enhanced FDB bearing-shaft design, Daisy-chain capable |
| Noise Level (at 25 dB(A)) | Low noise operation at standard speeds |
