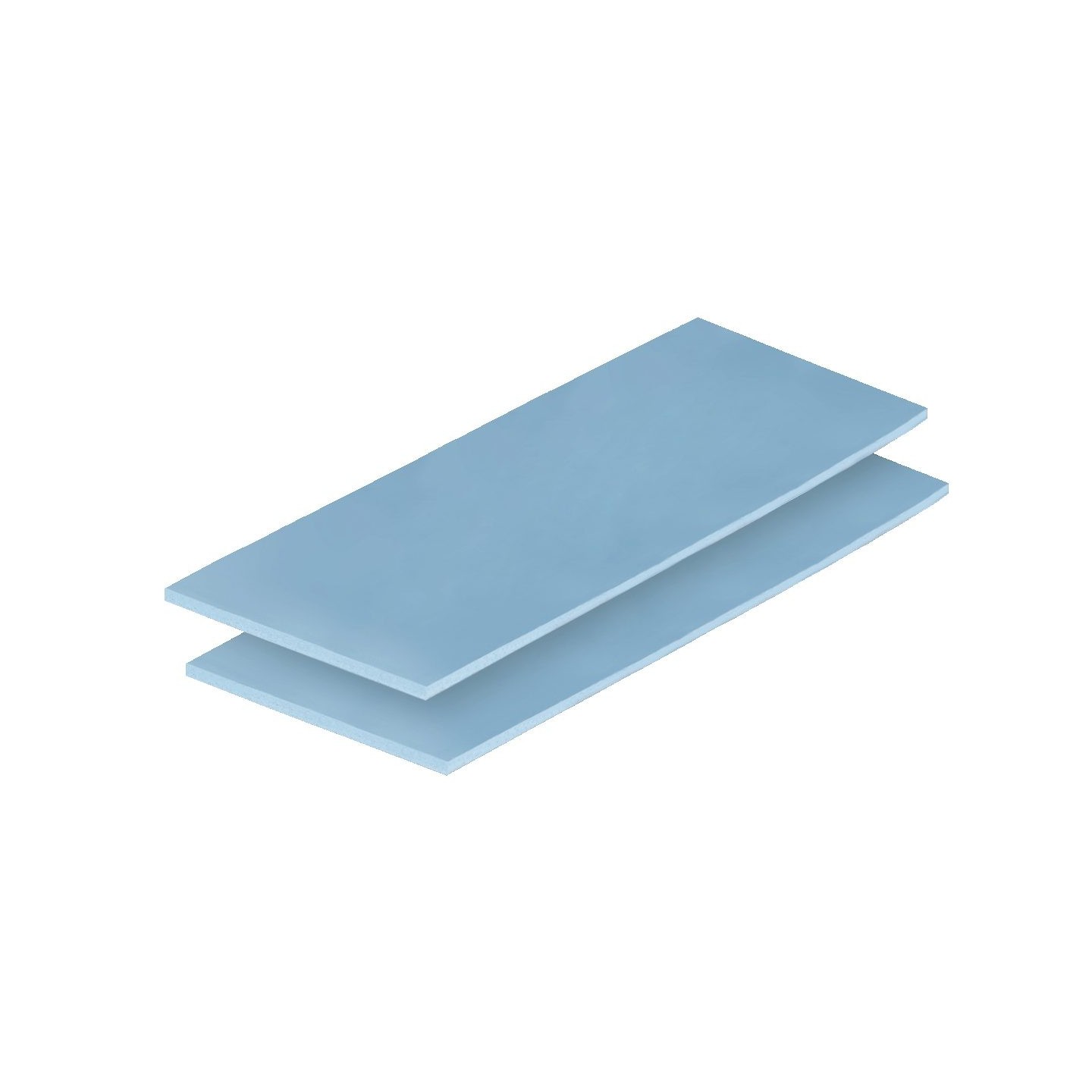

Arctic TP-3 Premium Performance Thermal Pad 200x100mm 1.5mm 2-Pack (Boxed)
Two-pack silicone thermal pads, 200x100mm, 1.5mm thick. High thermal conductivity with soft compression to compensate for height differences. Electrically insulating, vibration-damping, and easily cuttable.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Cooling (CPU & Case) - Device Type | Thermal Pad |
|---|---|
| Cooling (CPU & Case) - Socket Support | Universal |
High Performance — Very Soft
Based on silicone and a special filler material, the TP-3 outperforms high-performance thermal pads, especially when height differences of closely spaced chips occur due to manufacturing tolerances. The TP-3 offers excellent thermal conductivity despite extremely low hardness, making it ideal for applications requiring both thermal transfer and component protection.
Minimization of Thermal Resistance & Versatile Applications
The thinner the pad, the lower the thermal resistance. Thanks to its good compression properties, the soft heat conduction pad is particularly gentle on components while being an excellent heat conductor. The TP-3 is available in various sizes and thicknesses that can be easily cut to desired shapes. This makes it ideal for RAM, chipsets, and integrated circuits used in PCs, laptops, consoles, graphics cards, and general electronic devices. The pad is electrically insulating, non-capacitive, and contains no metal particles, ensuring safe handling and optimal heat transfer across multiple applications.
- Dimensions: 200x100mm per pad, 1.5mm thickness
- Quantity: 2 pads per pack
- Color: Blue
- Hardness: 55 Shore OO
- Operating Temperature: -40°C to +150°C
- Specific Gravity: 3.4 g/cm³
- Dielectric Constant: 5.19 @1MHz
- Volume Resistance: 2.69 x 10^12 Ω-cm
- Cuttable to custom sizes and shapes
- Safe for sensitive electronic components
| Type | Thermal Pad |
| Dimensions (Per Pad) | 200 x 100 mm |
| Thickness | 1.5 mm |
| Quantity | 2 pads |
| Color | Blue |
| Material | Silicone with special filler |
| Hardness | 55 Shore OO |
| Continuous Use Temperature | -40°C to +150°C |
| Specific Gravity | 3.4 g/cm³ |
| Dielectric Constant @ 1MHz | 5.19 |
| Volume Resistance | 2.69 x 10^12 Ω-cm |
| Dielectric Strength | 7.6 kV/mm |
| Electrical Properties | Electrically insulating, non-capacitive, no metal particles |
| Compressibility | Highly compressible, can compress from 0.5mm to 0.3mm to compensate height differences up to 0.2mm |
| Applications | CPU, GPU, chipsets, RAM, M.2 drives, integrated circuits, PCs, laptops, consoles, graphics cards |
| Features | Heat-conducting, vibration-damping, mouldable, cuttable to custom sizes, gap-filling |
