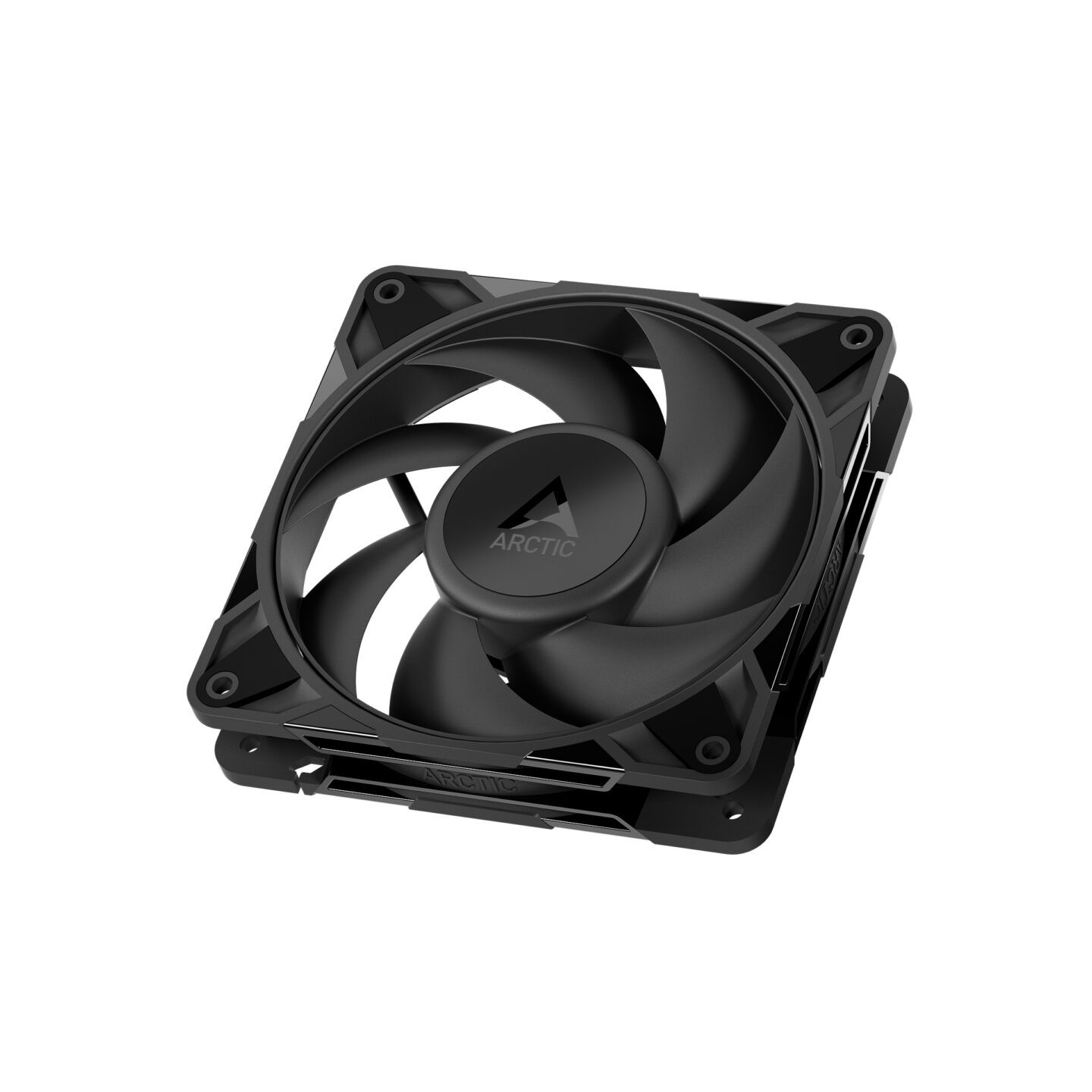

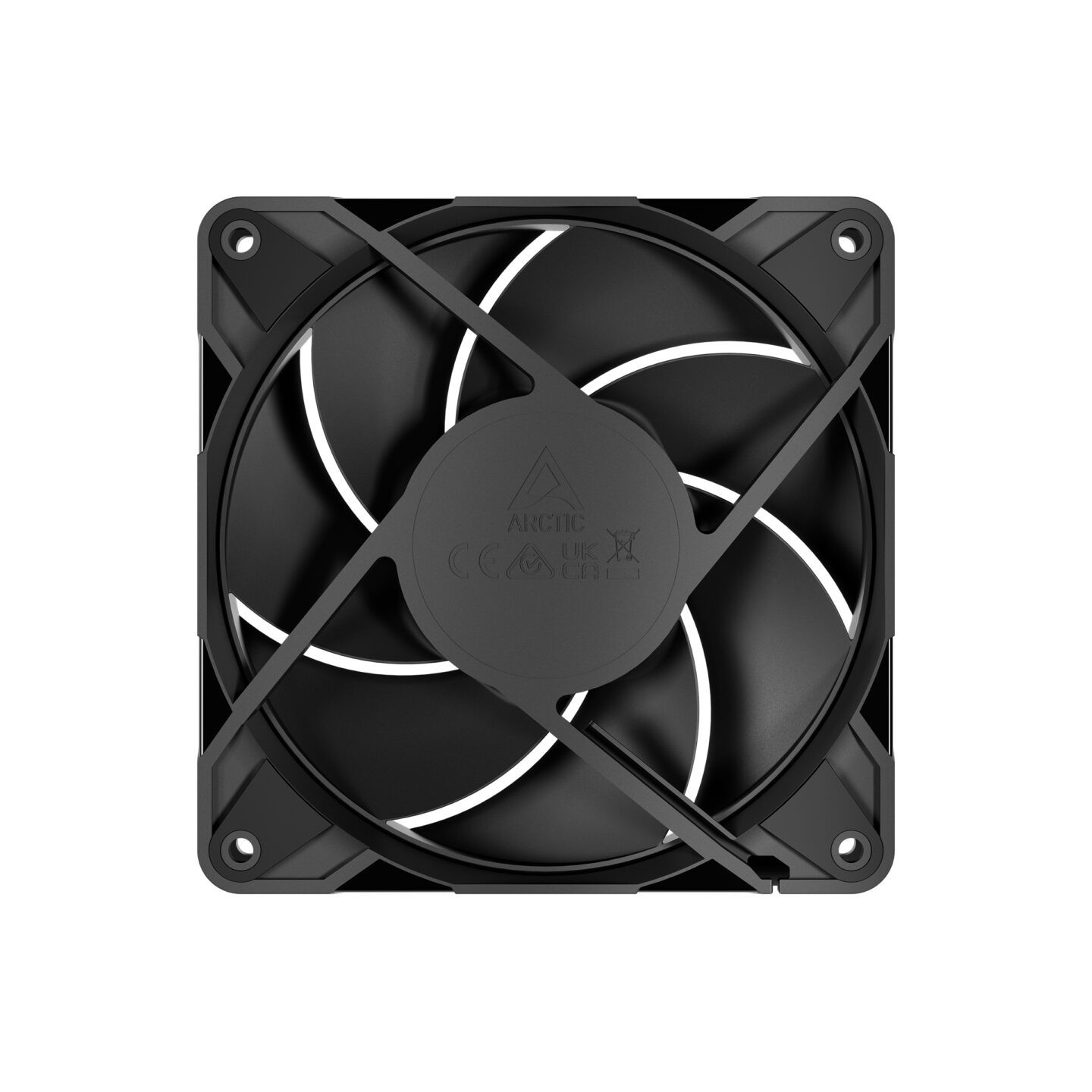

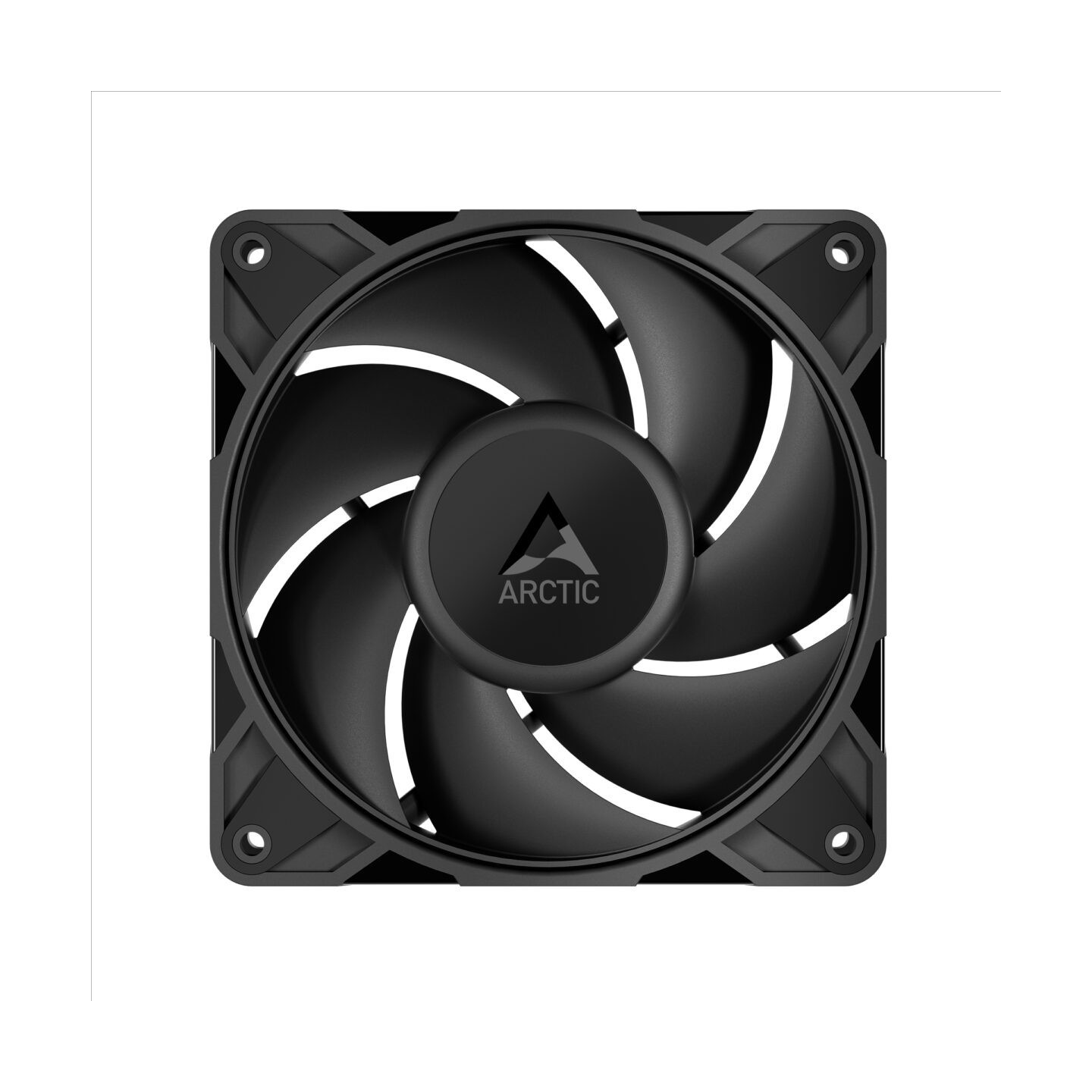

Arctic P12 Pro Black 120mm Case Fan - ACFAN00305A (Boxed)
High static pressure 120mm PWM fan (600-3000 RPM) with Fluid Dynamic Bearing. Delivers 77 CFM airflow, 6.9 mmH2O pressure at 25dB(A). Ideal for radiators & filters. 6-year warranty.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Cooling (CPU & Case) - Device Type | Case Fan |
|---|---|
| Cooling (CPU & Case) - Fan Size | 120 mm |
| Cooling (CPU & Case) - Lightning | None |
| Cooling (CPU & Case) - Connector | 4-Pin PWM |
| Cooling (CPU & Case) - Color | Black |
| Cooling (CPU & Case) - Special Features | Daisy-Chain Industrial / High Speed Low Noise |
The Arctic P12 Pro is a premium 120mm PWM case fan optimized for high static pressure, making it perfect for radiators, mesh filters, and tight spaces. With speeds from 600-3000 RPM (0 RPM below 5% PWM), it provides 77 CFM airflow and 6.9 mmH2O static pressure while maintaining low noise at just 25 dB(A).
Featuring a revised 7-blade design, Fluid Dynamic Bearing (FDB), and SOTA microcontroller for smooth, quiet operation. Includes cable splitter for daisy-chaining multiple fans via a single PWM header. Black frame and blades ensure a sleek look in any build.
- High static pressure for restricted airflow environments
- 600–3000 RPM PWM controlled speed
- 77 CFM | 131 m³/h airflow
- 6.9 mmH2O static pressure
- Fluid Dynamic Bearing for longevity
- 6-Year warranty
| Warranty | 6 Years |
| Operating Ambient Temperature | 0–40 °C |
| Dimensions (Fan) | 120 (L) x 120 (W) x 25 (H) mm |
| Net Weight | 183 g |
| Fan Speed | 600–3000 rpm, PWM controlled; 0 rpm below 5 % PWM |
| Airflow | 77 cfm | 131 m³/h |
| Static Pressure | 6.9 mmH₂O |
| Fan Bearing | Fluid Dynamic Bearing |
| Typical Voltage | 12 V DC |
| Start Up Voltage | 3.3 V DC |
| Current | 0.33 A |
| Cable Length | 400 mm |
| Connector | 4-Pin Fan Plug |
| Noise Level | 25 dB(A) |
| MPN | ACFAN00305A |
