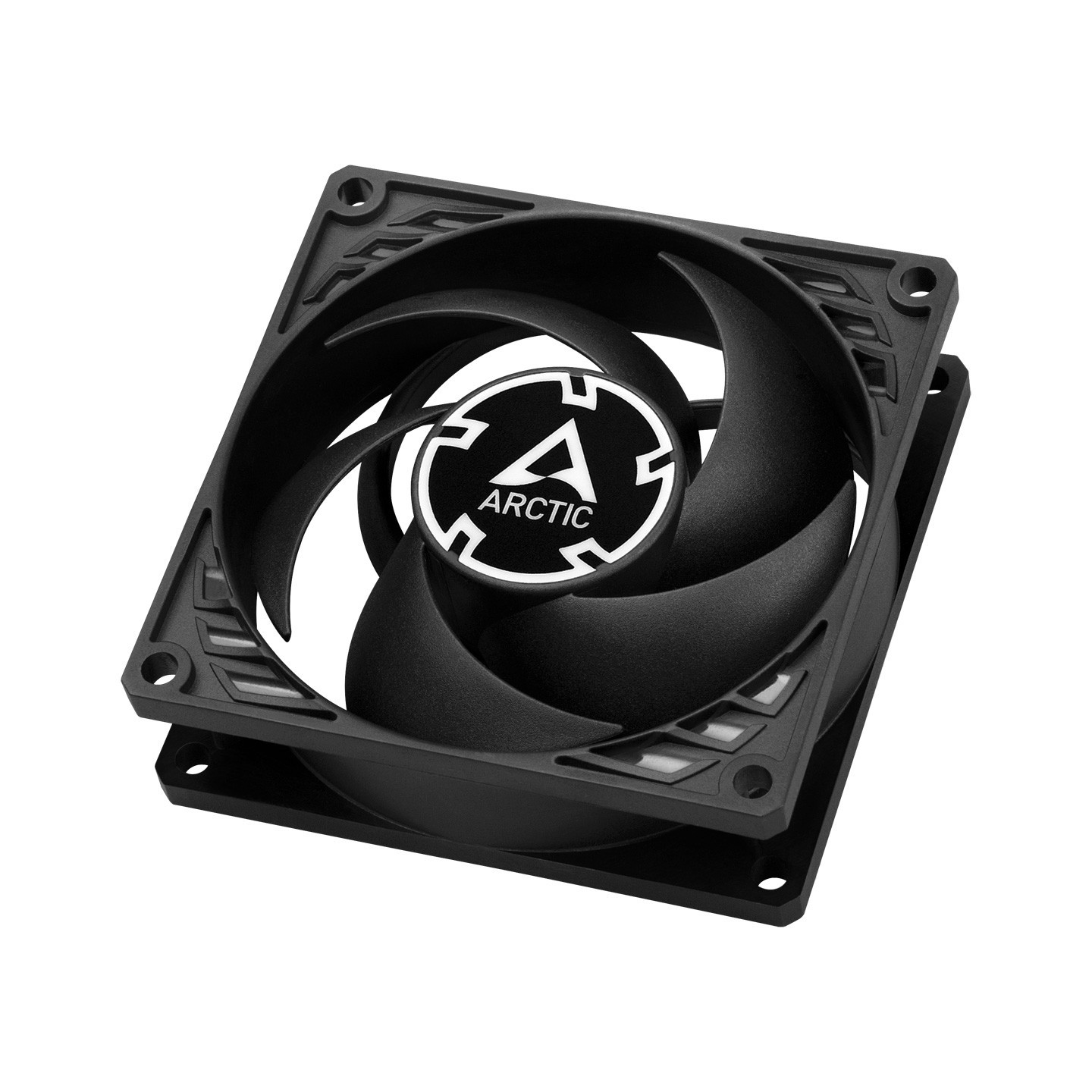

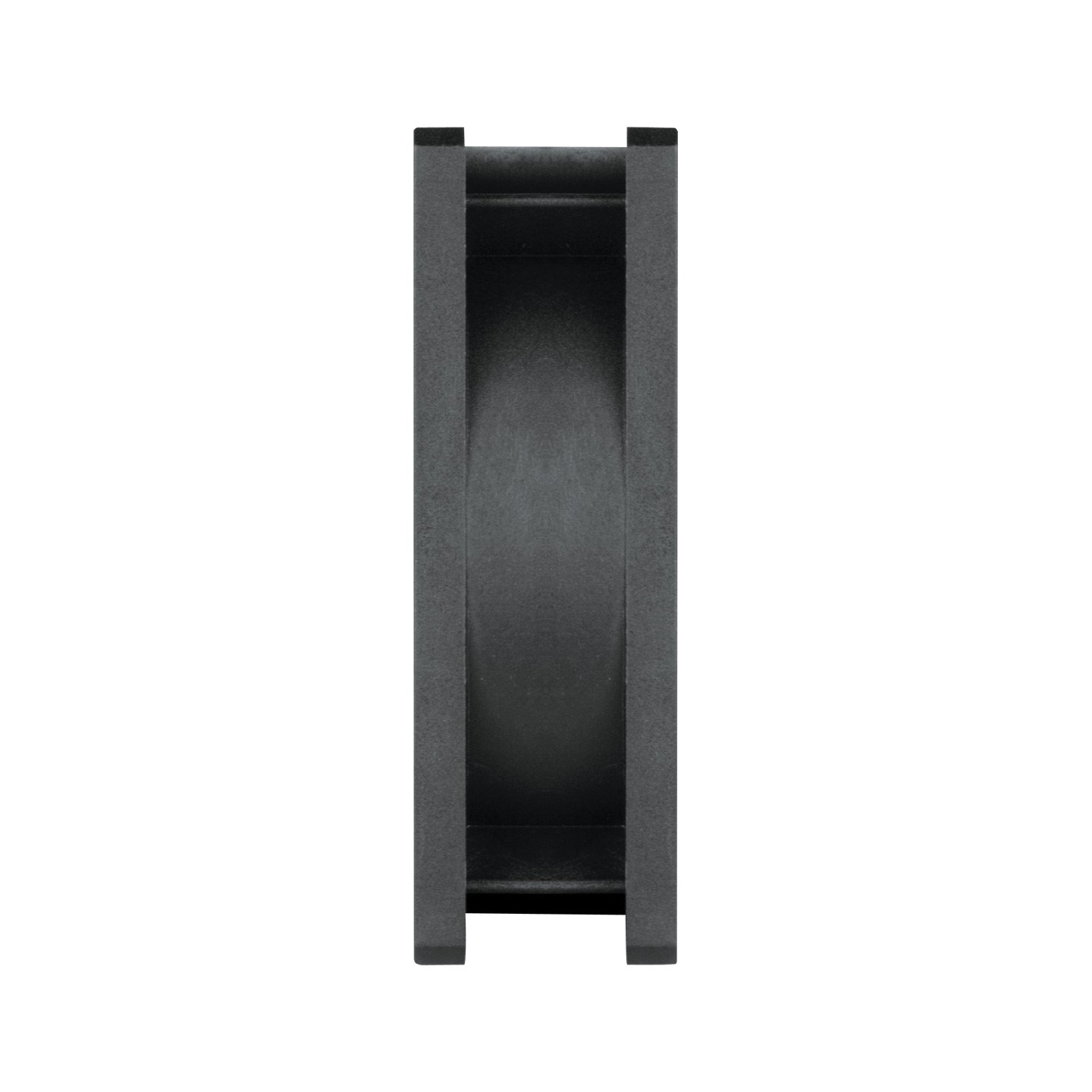

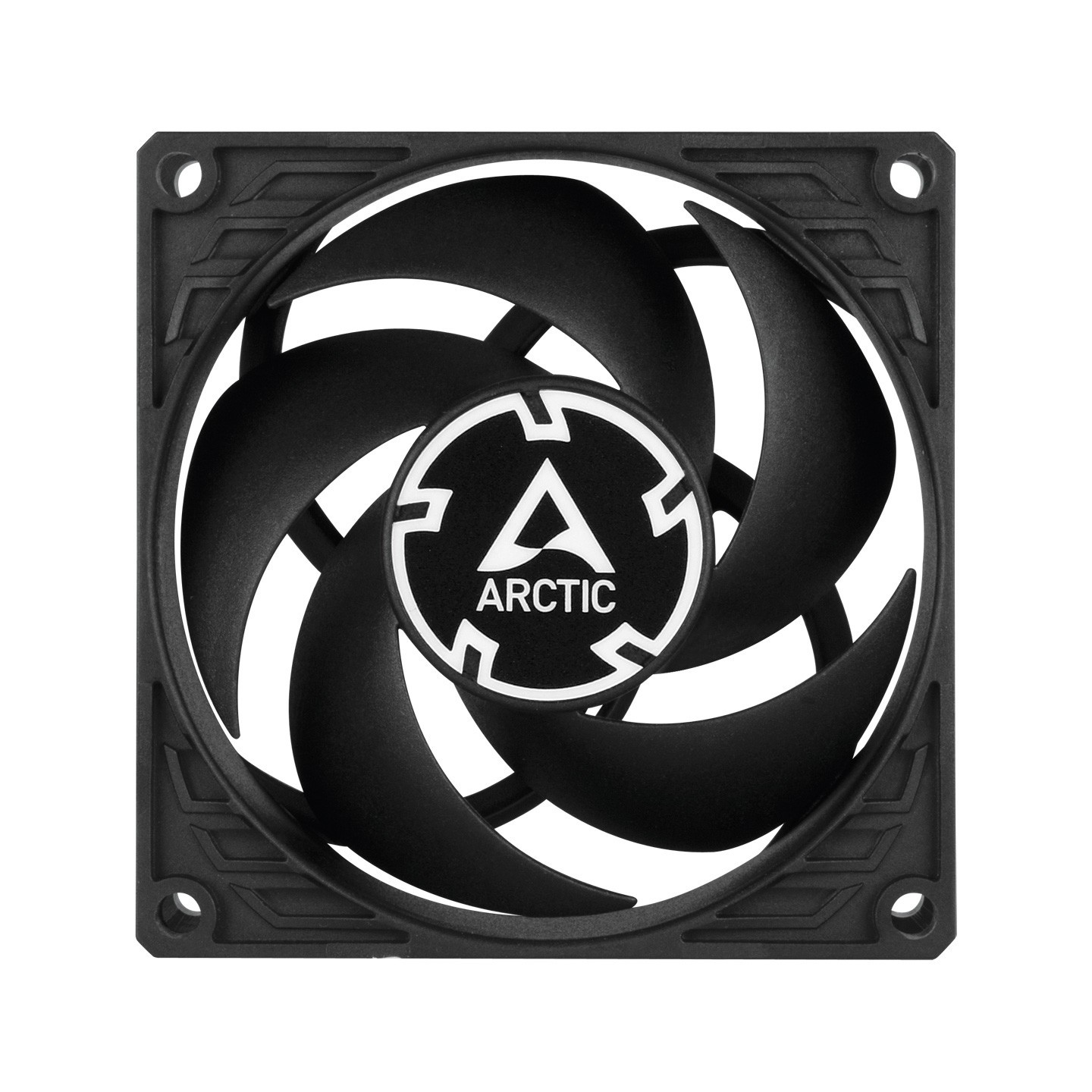

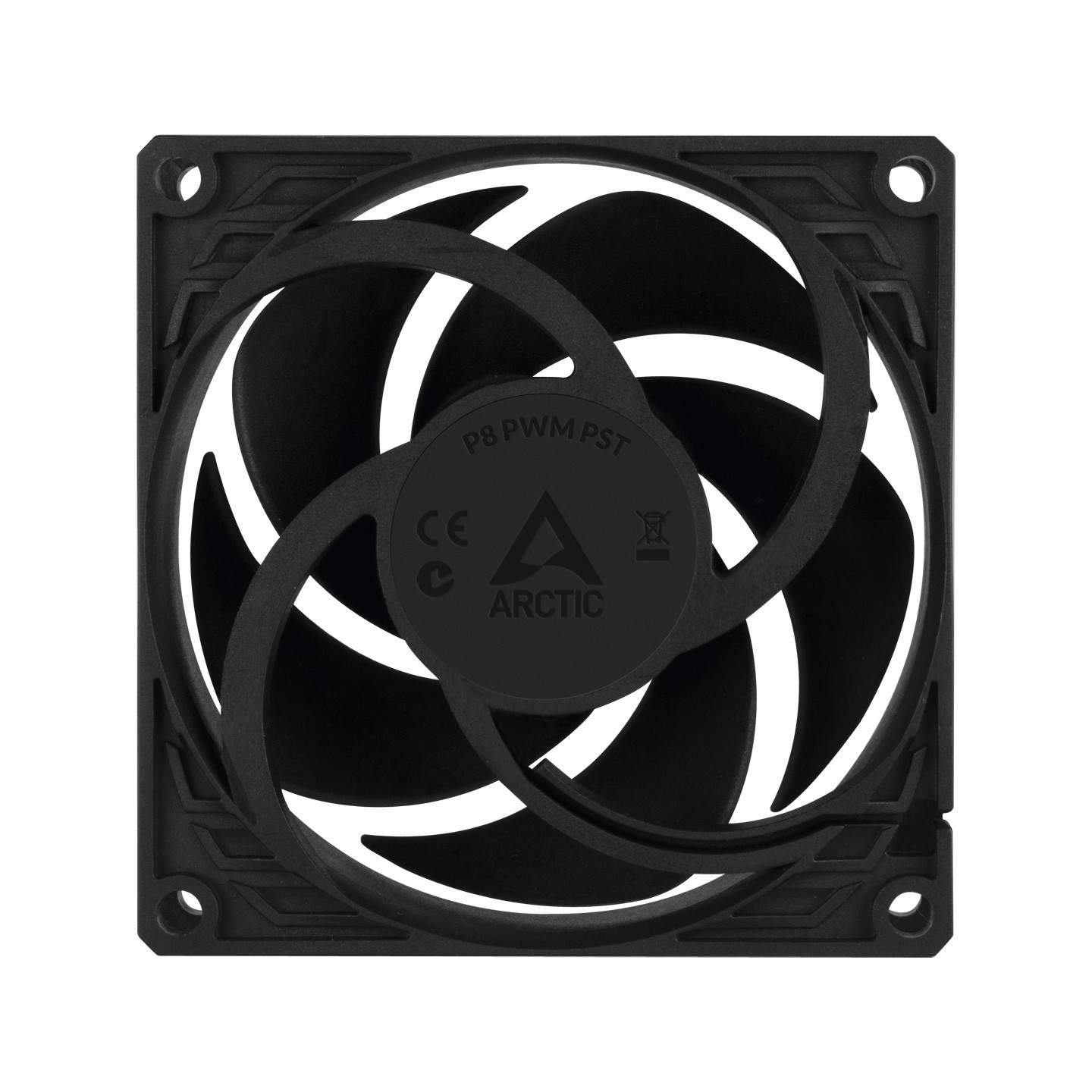

ARCTIC P8 PWM PST Case Fan - 80mm, 200-3000 RPM, PWM Sharing Technology (Boxed)
ARCTIC P8 PWM PST is a pressure-optimized 80mm case fan with 200-3000 RPM PWM control and PST for synchronized operation. Delivers 23.4 CFM airflow, 1.9 mmH2O pressure at 0.3 Sone noise. Fluid bearing, 81g, 6-year warranty.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Cooling (CPU & Case) - Device Type | Case Fan |
|---|---|
| Cooling (CPU & Case) - Fan Size | 80 mm |
| Cooling (CPU & Case) - Lightning | None |
| Cooling (CPU & Case) - Connector | 4-Pin PWM |
| Cooling (CPU & Case) - Color | Black |
| Cooling (CPU & Case) - Special Features | Daisy-Chain Low Noise |
PRESSURE-OPTIMISED TECHNOLOGY
The P8 PWM PST motor uses a latest-generation Neodym-Iron-Boron-Magnet ring for superior efficiency over predecessors, saving energy and reducing temperatures without performance loss.
PIONEERING DESIGN FOR SILENT, EFFICIENT AIRFLOW
Even at low speeds, the new ARCTIC motor is barely audible. Sinus magnetizing reduces vibrations to ~5% of standard DC motors. Optimized for static pressure, ideal for heatsinks and radiators with 23.4 CFM airflow and 1.9 mmH2O pressure.
EXTENDED LIFESPAN & PWM SHARING TECHNOLOGY (PST)
- Fan Speed: 200—3000 RPM (PWM controlled, 0 RPM <5% PWM)
- Noise Level: 0.3 Sone
- Dimensions: 80 x 80 x 25 mm

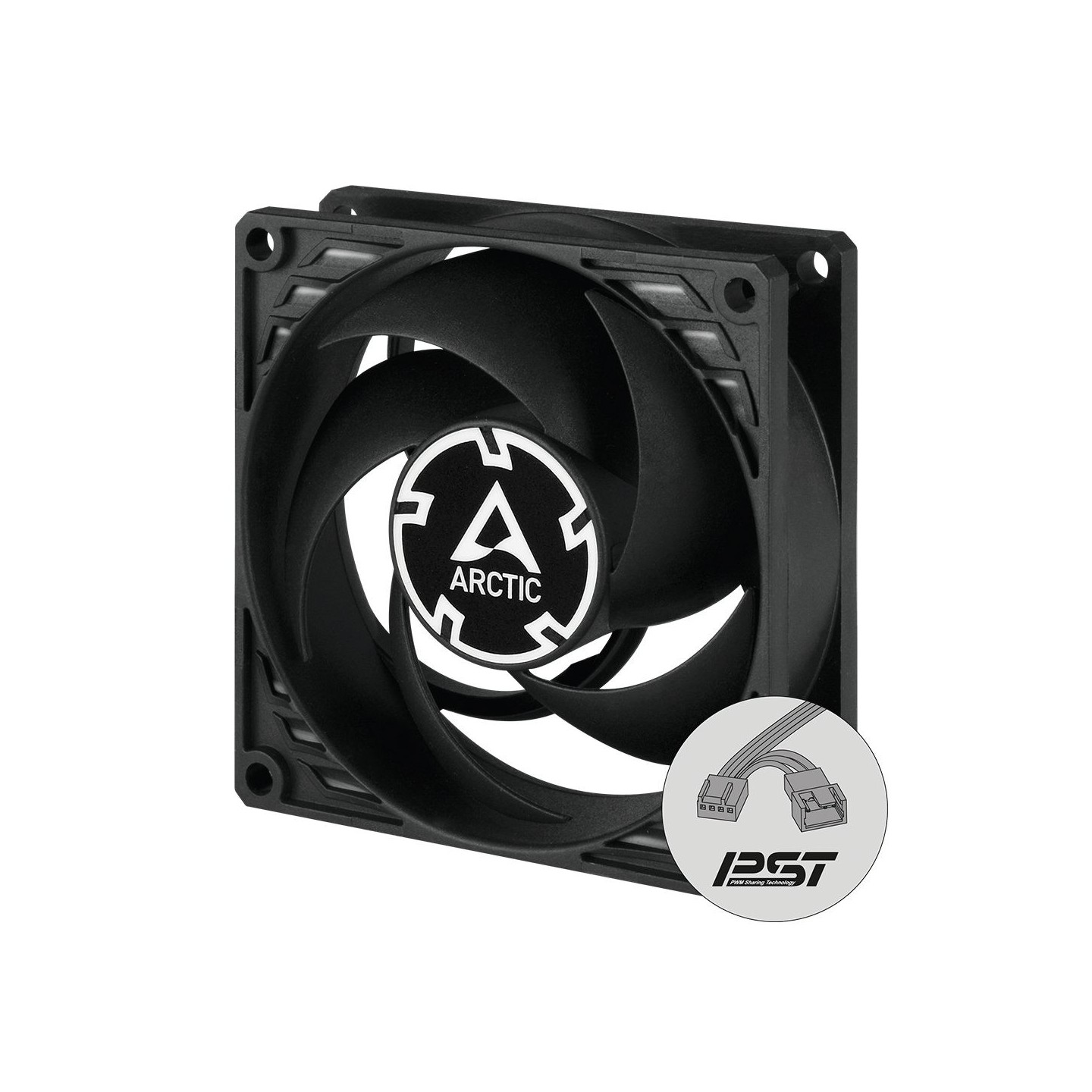

- Connector: 4-Pin PWM + PST Socket for daisy-chaining
- Fluid Dynamic Bearing, 12V DC, 0.09A, 400mm cable
| Manufacturer Part Number | ACFAN00150A |
| Fan Speed | 200—3000 rpm (0 rpm below 5 % PWM) |
| Airflow | 23.4 cfm | 39.76 m³/h |
| Static Pressure | 1.9 mmH2O |
| Noise Level | 0.3 Sone |
| Fan Bearing | Fluid Dynamic Bearing |
| Control Type | PWM PST |
| Connector | 4-Pin Connector + 4-Pin Socket |
| Typical Voltage | 12 V DC |
| Starting Voltage | 3.4 V |
| Current | 0.09 A | 12 V DC |
| Cable Length | 400 mm |
| Dimensions (L x W x H) | 80 x 80 x 25 mm |
| Weight (Fan) | 81 g |
| Operating Temperature | 0—40 °C |
| Warranty | 6 Years |
