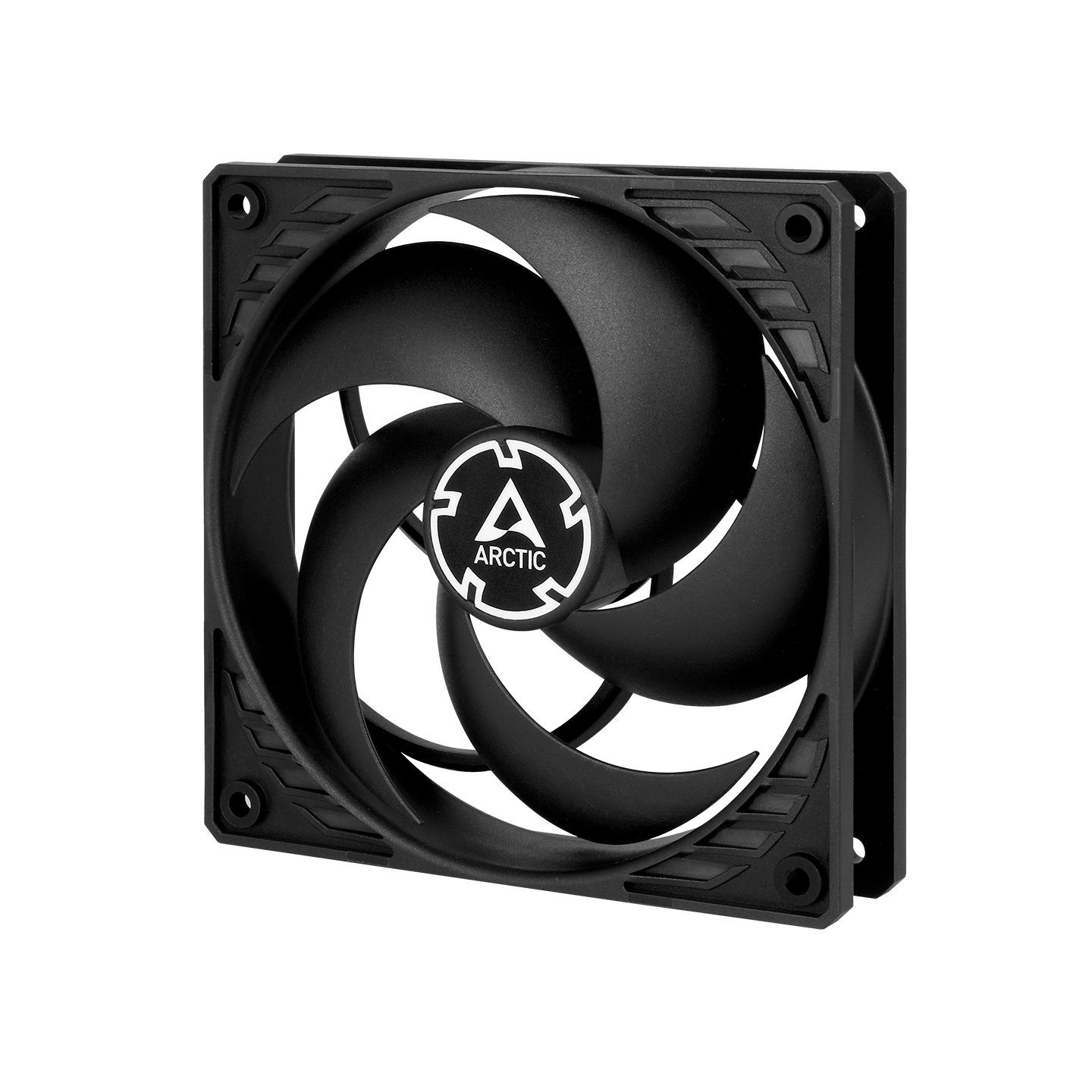

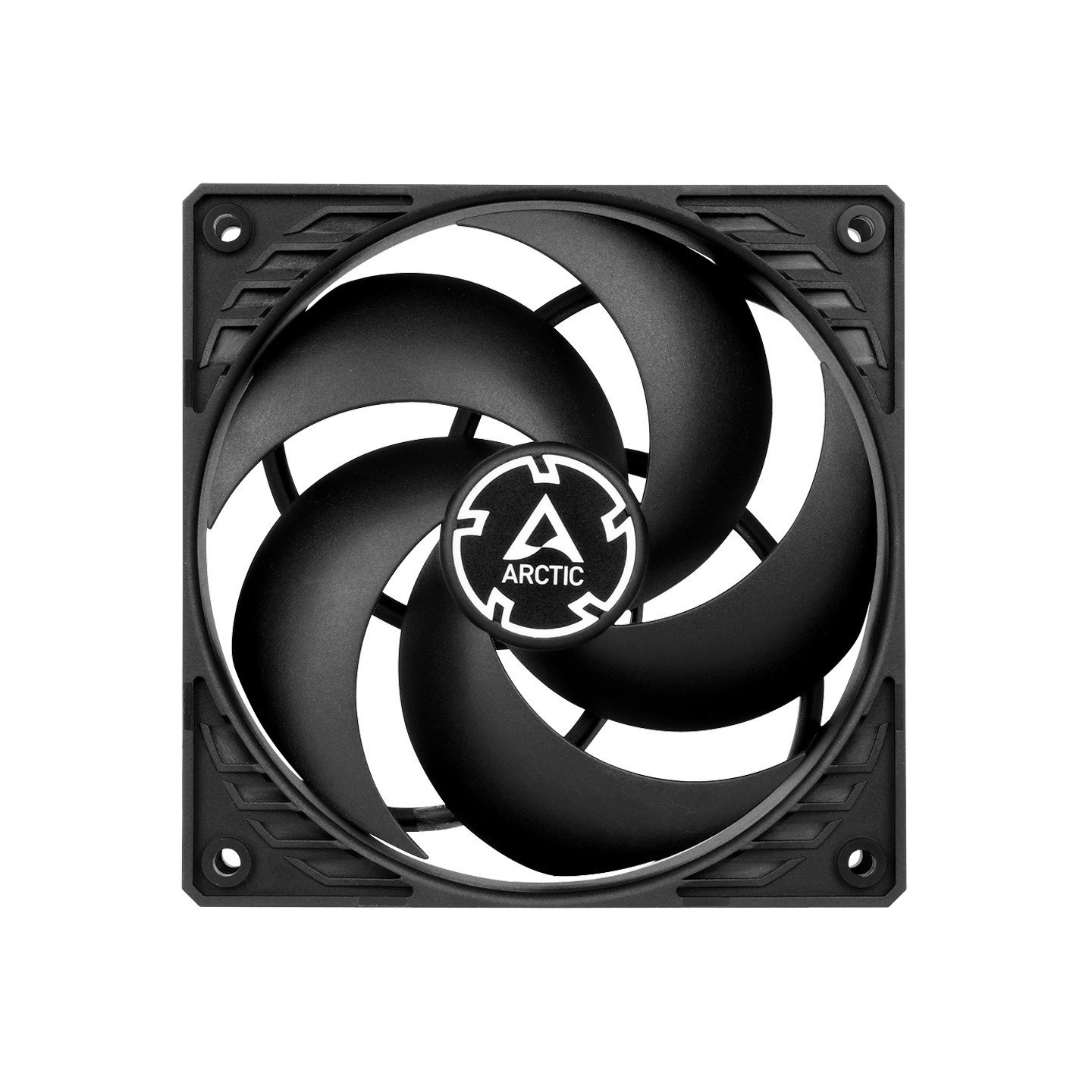

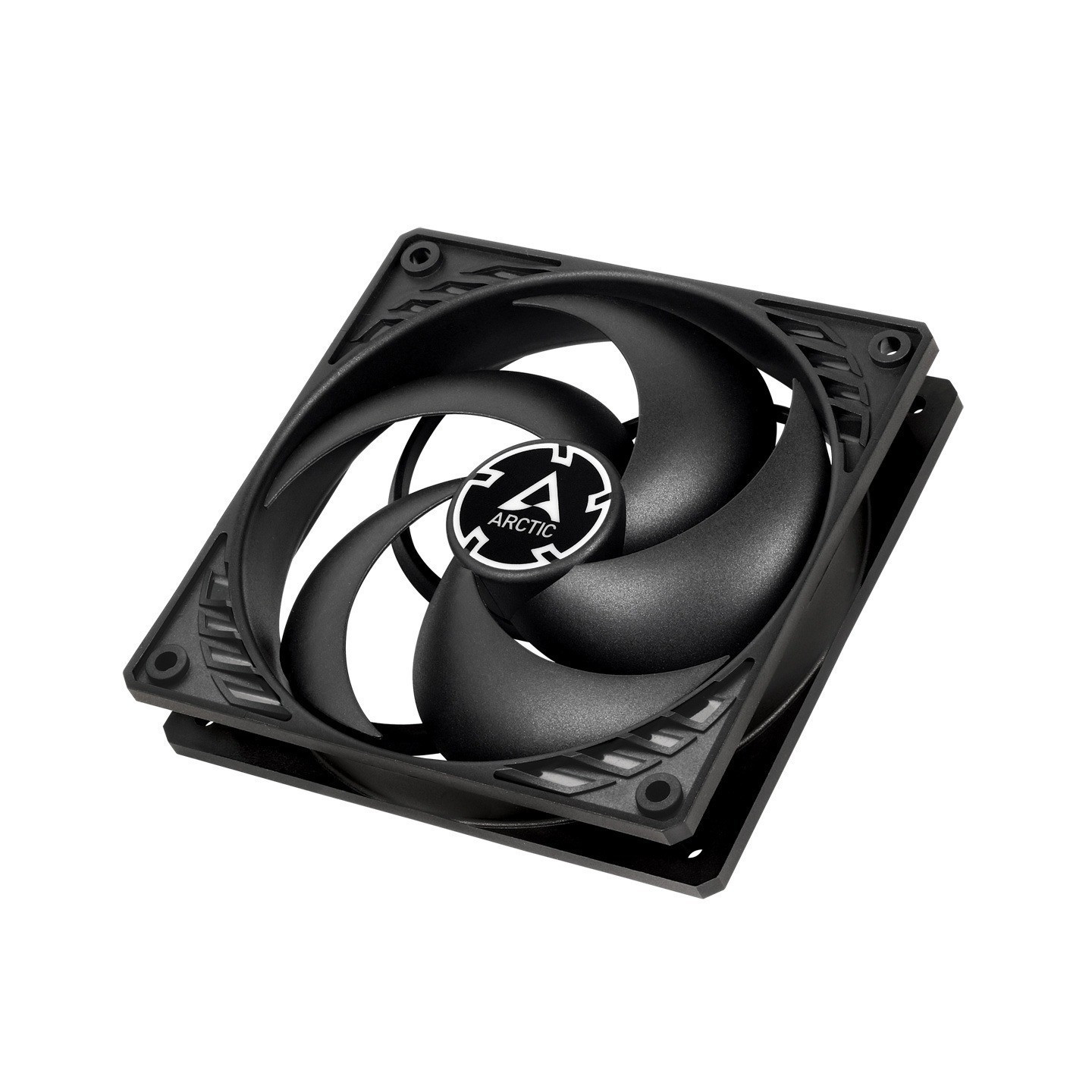

Arctic P12 PWM 120x120x25mm 1800 RPM Black (Boxed)
Pressure-optimised 120mm PWM fan for heatsinks/radiators. 200-1800 RPM, 56.3 CFM, 2.2 mmH2O static pressure, 0.3 Sone noise. Fluid Dynamic Bearing, black frame, 4-pin connector.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Cooling (CPU & Case) - Device Type | Case Fan |
|---|---|
| Cooling (CPU & Case) - Fan Size | 120 mm |
| Cooling (CPU & Case) - Lightning | None |
| Cooling (CPU & Case) - Connector | 4-Pin PWM |
| Cooling (CPU & Case) - Color | Black |
| Cooling (CPU & Case) - Special Features | Low Noise |
OPTIMISED FOR STATIC PRESSURE
The ARCTIC P12 PWM is a 120mm fan designed for high static pressure, ideal for heatsinks and radiators. It delivers focused airflow for efficient cooling even under high air resistance. Speed is PWM-controlled from 200-1800 RPM for quiet operation and optimal performance.
Featuring a Fluid Dynamic Bearing with oil capsule for longevity and low noise (0.3 Sone max), it ensures reliable 24/7 operation. The motor runs efficiently at 12VDC / 0.08A. Black frame with 25mm thickness fits standard mounts.
- Airflow: 56.3 CFM
- Static Pressure: 2.2 mmH2O
- Noise: 0.3 Sone / ~22-37 dB(A)
- Bearing: FDB (6+ years warranty)
- Connector: 4-pin PWM
| MPN | ACFAN00121A |
| Fan Speed | 200 - 1800 RPM (PWM) |
| Airflow | 56.3 CFM |
| Static Pressure | 2.2 mmH2O |
| Noise Level | 0.3 Sone |
| Bearing Type | Fluid Dynamic Bearing (FDB) |
| Dimensions | 120 x 120 x 25 mm |
| Weight | 147 g (fan only) |
| Rated Voltage | 12 VDC |
| Rated Current | 0.08 A |
| Power Consumption | 0.96 W |
| Connector | 4-pin PWM |
| Cable Length | 400 mm |
| Warranty | 6 years |
