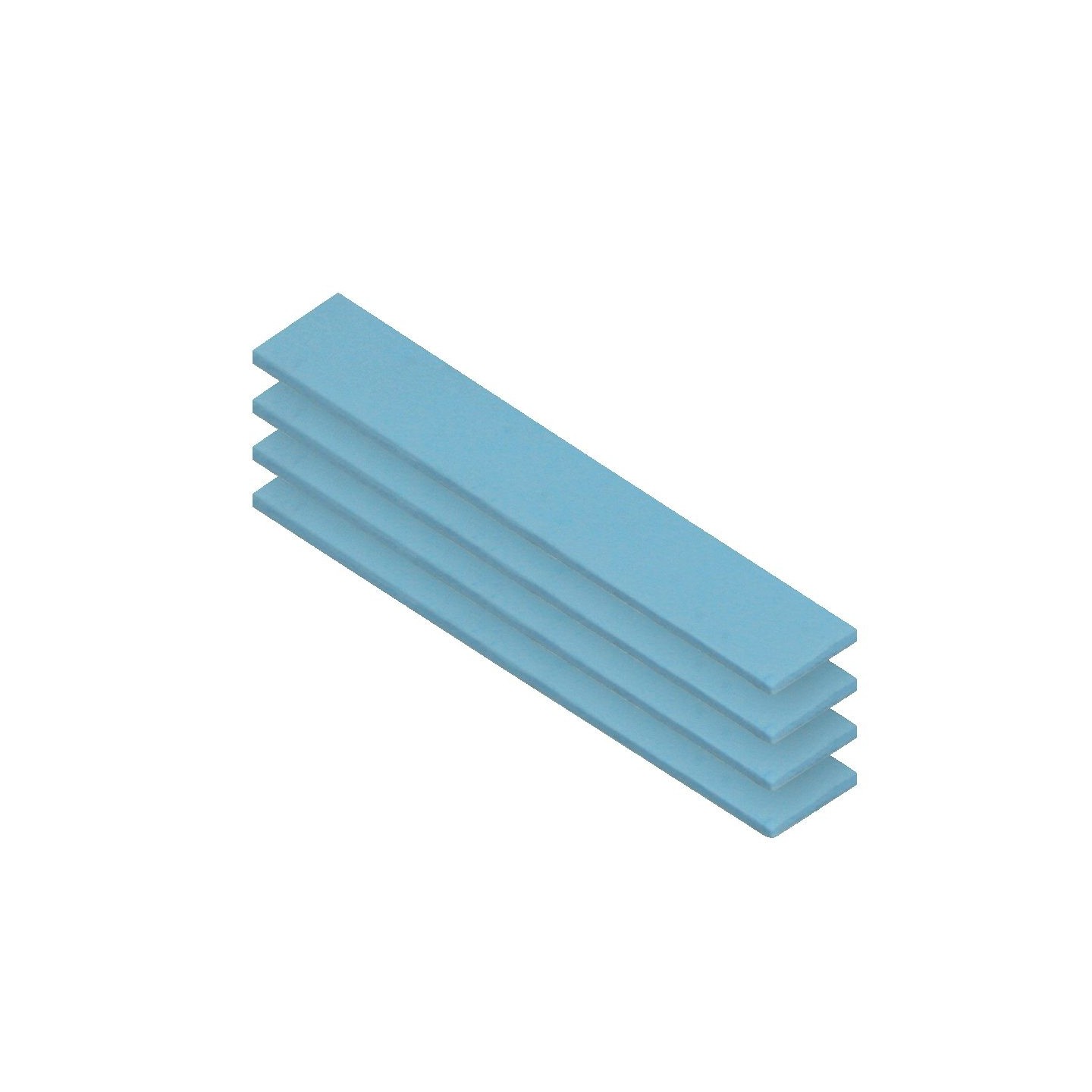

ARCTIC TP-3 Thermal Pad 120x20mm 1.5mm 4-Pack (Retail)
Silicone-based TP-3 thermal pads with special filler for high conductivity; 120x20mm, 1.5mm thick, 4-pack; ultra-soft and flexible for bridging gaps between components.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Cooling (CPU & Case) - Device Type | Thermal Pad |
|---|
High Performance — Very Soft
Based on silicone and a special filler, the ARCTIC TP-3 outperforms high-performance thermal pads, especially when height differences of closely spaced chips occur due to manufacturing tolerances. The TP-3 offers excellent thermal conductivity despite extremely low hardness (55 Shore OO), making it ideal for applications requiring gentle contact with sensitive components.
Minimization of Thermal Resistance
The thinner the pad, the lower the thermal resistance. The TP-3 pad can be easily compressed and compensates for height differences between various components. Thanks to its good compression properties, the soft heat conduction pad is particularly gentle on components while maintaining excellent heat transfer. The pad can be easily cut to desired shapes and sizes, making it versatile for RAMs, chipsets, ICs, M.2 drives, and other electronic components in PCs, laptops, consoles, and graphics cards.
Safe Handling & Gap Bridging
The ARCTIC TP-3 is electrically insulating, non-adhesive, and contains no metal particles, ensuring safe handling and optimal heat transfer. The pads can be stacked without performance loss due to their softness and low interfacial contact resistance. Operating temperature range: -40°C to +150°C. This 4-pack provides flexibility for multiple applications or component upgrades.

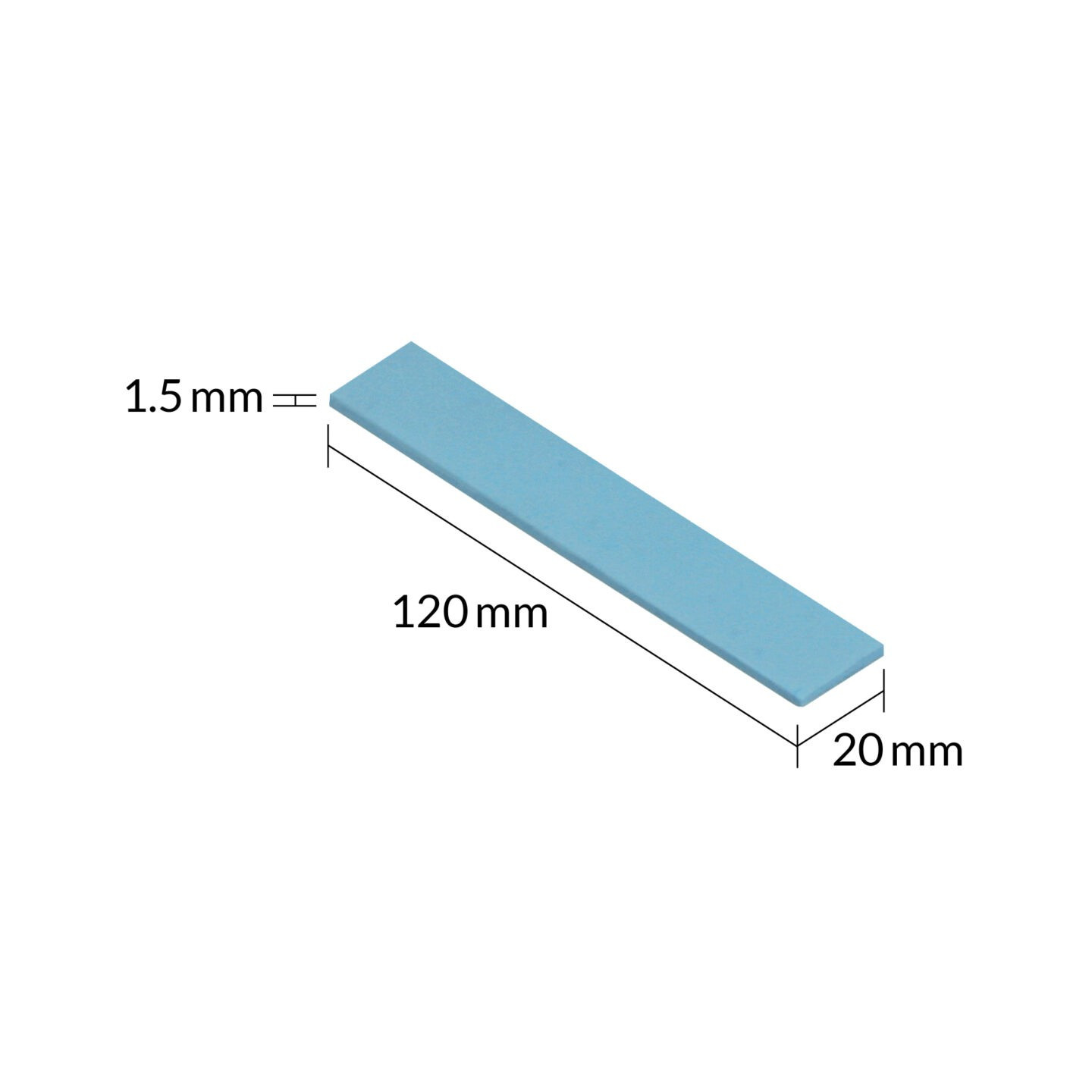

- Dimensions: 120 x 20 mm per pad, 1.5 mm thickness
- Color: Blue
- Hardness: 55 Shore OO
- Specific Gravity: 3.4 g/cm³
- Dielectric Constant @1MHz: 5.19
- Volume Resistance: 2.69 x 10¹² Ω-cm
- Flammability Rating: UL 94 V-0
- Quantity: 4 pads per pack
- Installation requires careful handling due to extremely low hardness
| Type | Thermal Pad |
| Dimensions (per pad) | 120 x 20 x 1.5 mm |
| Quantity | 4 pads |
| Color | Blue |
| Material | Silicone with special filler |
| Hardness | 55 Shore OO |
| Continuous Use Temperature | -40 to +150 °C |
| Specific Gravity | 3.4 g/cm³ |
| Dielectric Constant @1MHz | 5.19 |
| Volume Resistance | 2.69 x 10¹² Ω-cm |
| Flammability Rating | UL 94 V-0 |
| Electrical Properties | Electrically insulating, non-capacitive, no metal particles |
| Compression Properties | Highly compressible, can be compressed from 1.5mm to lower thickness |
| Stackability | Can be stacked without performance loss |
| Cuttable | Yes, can be cut to desired shape and size |
| Applications | RAM, chipsets, ICs, M.2 drives, graphics cards, laptops, consoles, electronic devices |
| Installation Note | Requires careful handling due to extremely low hardness |
