Arctic Alpine 23 CO 100W AM4/AM5 CPU Cooler 90mm PWM Dual Ball - ACALP00036A (Boxed)
Compact 100W AMD AM4/AM5 CPU air cooler with 90mm PWM fan (100-2000 RPM), dual ball bearing, aluminum Y-shaped heatsink, MX-2 paste. Low noise (0.3 Sone), 65mm height, 24/7 operation. Ideal budget cooling.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Cooling (CPU & Case) - Device Type | CPU Air Cooler |
|---|---|
| Cooling (CPU & Case) - Socket Support | AMD AM4 AMD AM5 |
| Cooling (CPU & Case) - Fan Size | 120 mm |
| Cooling (CPU & Case) - Air Cooler Height | Under 120 mm |
| Cooling (CPU & Case) - Lightning | None |
| Cooling (CPU & Case) - Connector | 4-Pin PWM |
| Cooling (CPU & Case) - Color | Silver / Grey |
| Cooling (CPU & Case) - Special Features | Low Noise Low Profile |
Outstanding Price/Performance Ratio

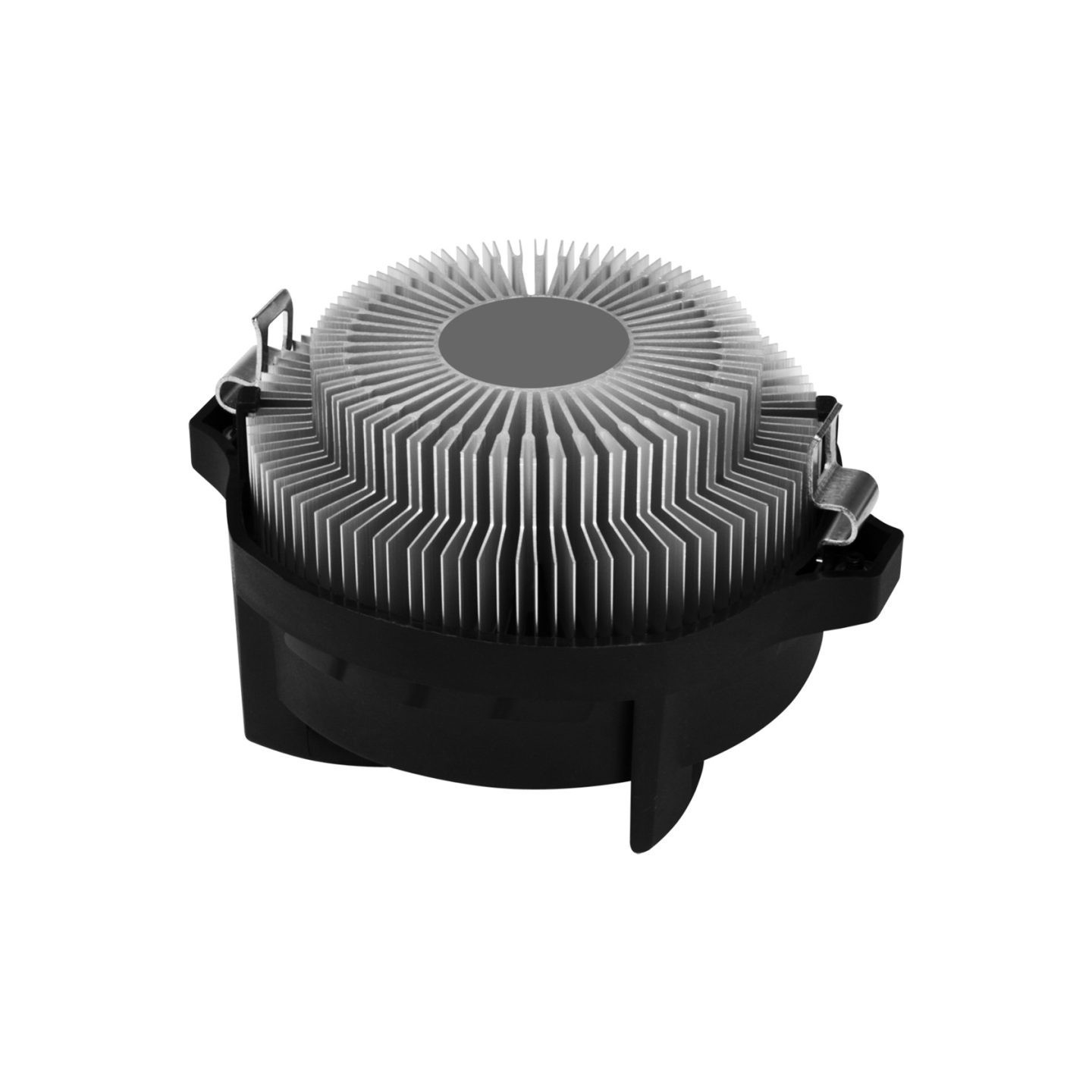

Thanks to the circular heatsink and optimized fan design, the Alpine 23 CO delivers excellent cooling performance at a very low price. Its compact radial design with 50 Y-shaped aluminum fins maximizes surface area for superior heat dissipation.
Wide PWM-Controlled RPM Range
The Alpine 23 CO features new motor technology with a broad speed range of 100-2000 RPM. This ensures minimal noise levels while providing maximum cooling when needed. Lower power consumption and sinus-magnetizing reduce vibrations by 95% compared to standard DC motors.
Designed for 24/7 Continuous Operation
Premium Japanese dual ball bearings enable reliable 24/7 operation with minimal impact from dust or high temperatures. Pre-applied high-performance MX-2 thermal paste and tool-free mounting clips make installation quick and easy. Compatible exclusively with AMD AM4/AM5 sockets.
- Compact height: 65mm (unlimited RAM clearance)
- Noise level: 0.3 Sone
- Current draw: 0.06-0.09A
- 6-year warranty
- Weight: 275.5g (net)
| Product Type | CPU Air Cooler |
| Compatibility | AMD AM4, AM5 |
| TDP | 100W |
| Fan Diameter | 90 mm |
| Fan Speed | 100-2000 RPM (PWM) |
| Bearing Type | Dual Ball Bearing |
| Noise Level | 0.3 Sone |
| Current | 0.06-0.09 A |
| Connector | 4-Pin PWM |
| Heatsink Material | Aluminum (50 Y-shaped fins) |
| Thermal Paste | MX-2 (pre-applied) |
| Height | 65 mm |
| Dimensions (LxWxH) | 98.6 x 121 x 65 mm |
| Weight (net) | 275.5 g |
| Warranty | 6 Years |
| Operating Temperature | 0-40 °C |
