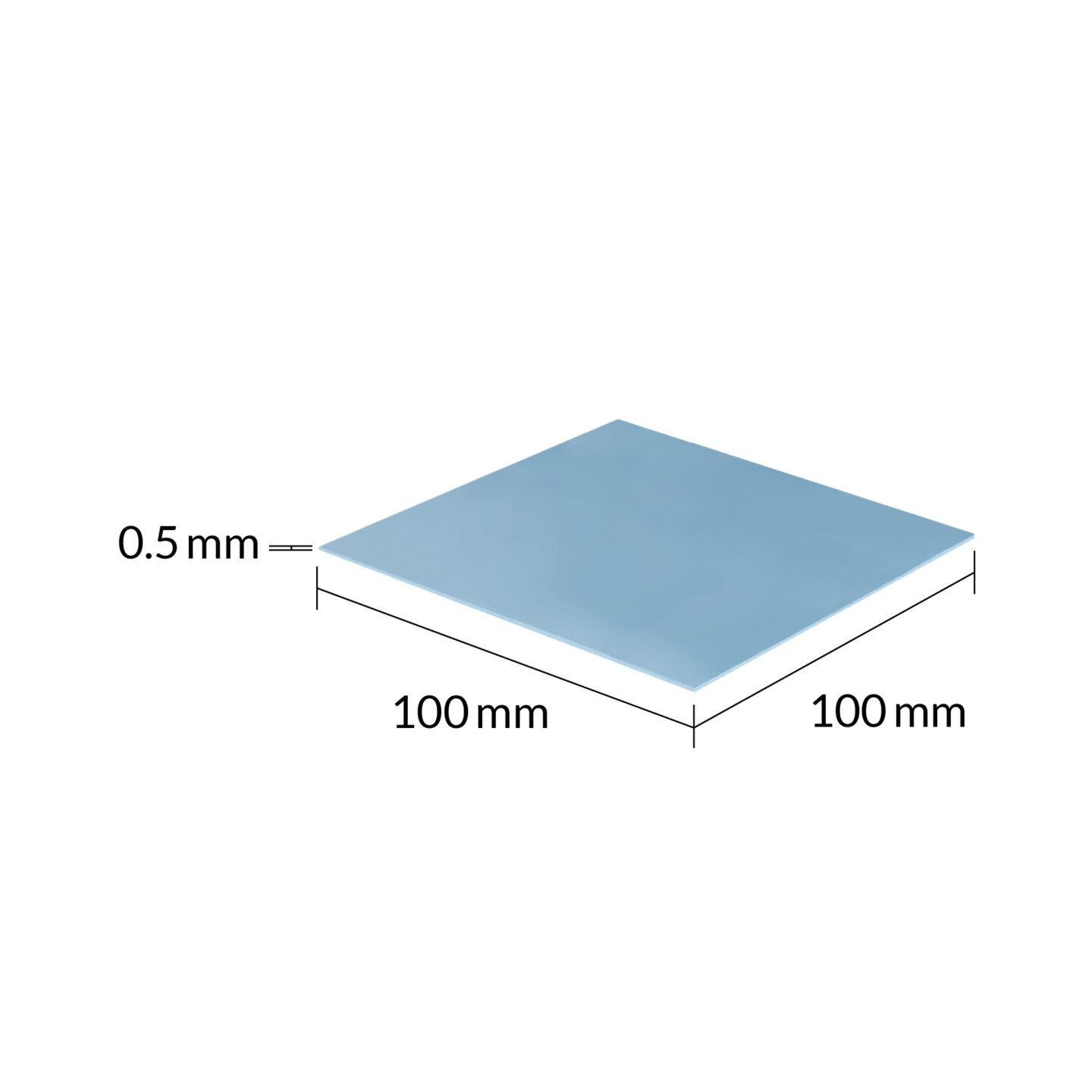

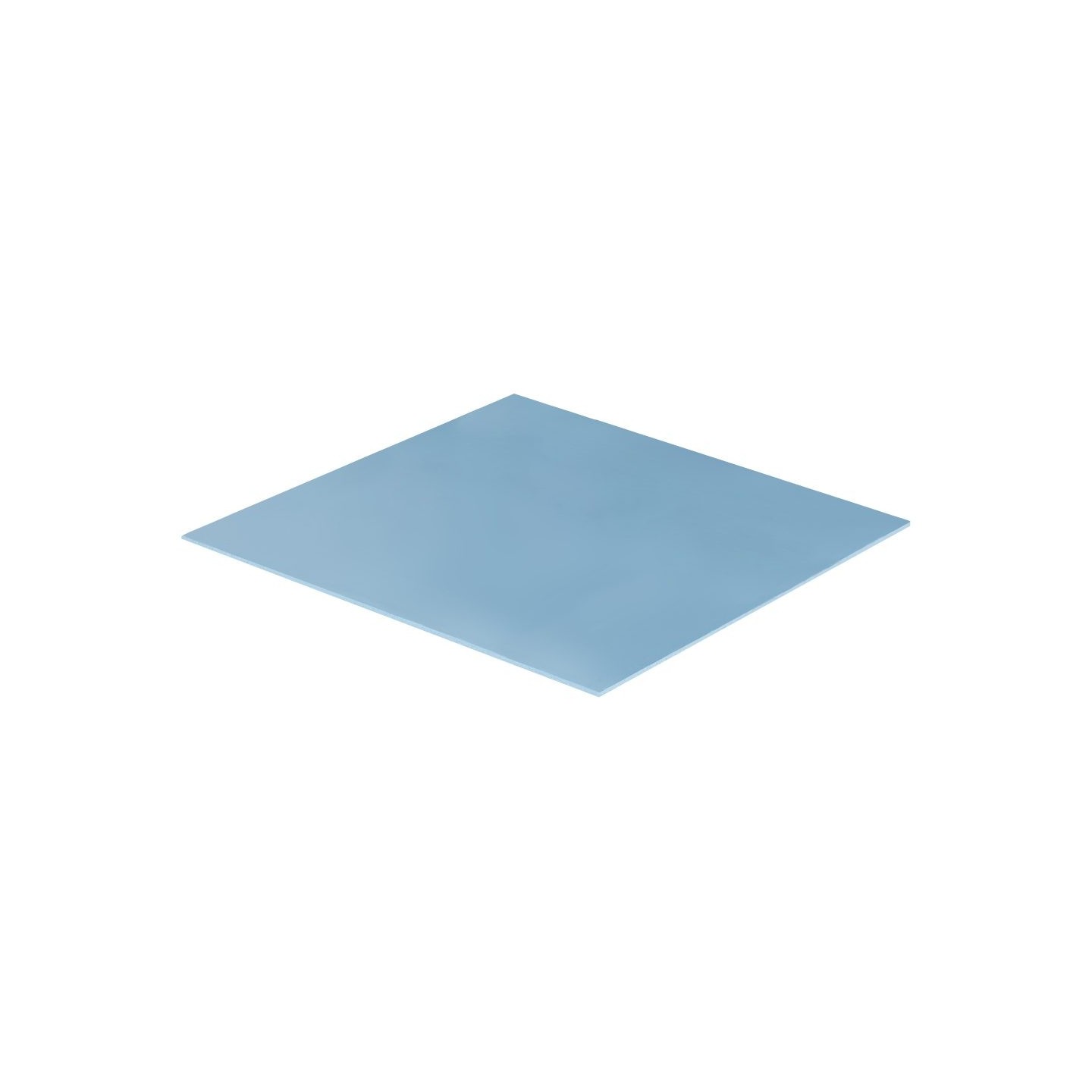

ARCTIC TP-3 100x100mm 0.5mm Premium Thermal Pad - Ultra Soft (Boxed)
ARCTIC TP-3 Premium silicone-based thermal pad, 100x100mm, 0.5mm thick (compresses to 0.3mm). Ultra-soft, high thermal conductivity, ideal for bridging chip height differences up to 0.2mm in PCs, GPUs, laptops.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Cooling (CPU & Case) - Device Type | Thermal Pad |
|---|
High Performance — Very Soft
Based on silicone and a special filler material, the TP-3 outperforms high-performance pads, especially when height differences of closely spaced chips occur due to manufacturing tolerances. It offers excellent thermal conductivity despite its extremely low hardness.
Minimization of Thermal Resistance
The thinner the pad, the lower the thermal resistance. The TP-3 0.5 mm pad compresses easily to 0.3 mm, compensating for height differences up to 0.2 mm between components. Note: Due to low hardness, careful installation is required.
Versatile Applications
- Heat-conducting, vibration-damping, mouldable, electrically insulating
- Safe and easy to use, gentle on components
- Ideal for RAM, chipsets, ICs in PCs, laptops, consoles, GPUs
- Available in various sizes/thicknesses; easily cut to shape
| MPN | ACTPD00054A |
| Thickness | 0.5 mm (compressible to 0.3 mm) |
| Dimensions (Pad) | 100 x 100 mm |
| Color | Blue |
| Hardness | 55 Shore OO |
| Continuous Use Temperature | -40~150 °C |
| Specific Gravity | 3.4 g/cm³ |
| Dielectric Constant @1MHz | 5.19 |
| Volume Resistance | 2.69 x 10^12 Ω-cm |
| Dielectric Strength | 7.6 kV/mm |
